Dataverse capacity-based storage details
If you purchased storage in or after April 2019, or you have a mix of storage purchases made before and after April 2019, you'll see your storage capacity entitlement and usage by database, file, and log as it appears in the Microsoft Power Platform admin center today.
Data volume continues to grow exponentially, as businesses advance their digital transformation journey and bring data together across their organization. Modern business applications need to support new business scenarios, manage new data types, and help organizations with the increasing complexity of compliance mandates. To support the growing needs of today's organizations, data storage solutions need to evolve continuously and provide the right solution to support expanding business needs.
We're rolling out this feature now so check back if your user experience varies from the following content.
Note
For licensing information, see the Power Apps and Power Automate licensing guide.
If you purchased your Dynamics 365 subscription through a Microsoft partner, contact them to manage storage capacity. The following steps don't apply to partner-based subscriptions.
Licenses for Microsoft Dataverse capacity-based storage model
The following licenses provide capacity by using the new storage model. If you have any of these licenses, you see the new model report:
- Dataverse for Apps Database Capacity
- Dataverse for Apps File Capacity
- Dataverse for Apps Log Capacity
To see whether you have any of these licenses, sign in to the Microsoft 365 admin center, and then go to Billing > Licenses.
Note
If you have a mix of legacy model licenses and the abovementioned new model licenses, you'll see the new model report.
If you have none of the legacy model licenses nor the new model licenses, you'll see the new model report.
Verifying your Microsoft Dataverse capacity-based storage model
Sign in to the Power Platform admin center, and then select an environment.
Select Resources > Capacity > Summary tab.
View the data on the Summary page.
For the Summary page to be displayed, the user needs to have one of the following roles:
- Tenant administrator
- Power Platform administrator
- Dynamics 365 administrator
Alternatively, a user with any of the above-mentioned roles has the option to grant permissions to the environment administrator to view the Capacity summary tab within the Tenant setting page.
The new licensing storage model looks like the following image.
Capacity page details
Summary tab
This page provides a tenant-level view of where your organization is using storage capacity.
To view the Summary page, select Resources > Capacity > Summary tab.
All tables of Dataverse, including system tables, are included in the storage capacity reports.
| Number | Description |
|---|---|
| (1) | Storage capacity usage
|
| (2) | Storage capacity, by source
|
| (3) | Top storage usage, by environment: The environments that consume the most capacity |
| (4) | Add-ons: Your organization's add-on usage details. See View capacity add-ons in Power Platform admin center |
The actual files such as .pdf (or any other file attachment type) are stored in file storage. However, certain attributes needed to access the files are stored in the database as well.
Dataverse tab
This page provides similar information as the Summary tab, but with an environment-level view of where your organization is using capacity.
Note
There's no technical limit on the size of a Dataverse environment. Limits mentioned on this page are entitlement limits based on product licenses purchased.
To view the Storage capacity page, select Resources > Capacity > Dataverse tab.
Note the following features:
| Feature | Description |
|---|---|
| Download | Select Download above the list of environments to download an Excel .CSV file with high-level storage information for each environment that the signed-in admin has permission to see in the Power Platform admin center. |
| Search | Use Search to search by the environment name and the environment type. |
| Details | See the next section for using the Details button ( ) to see environment capacity analytics. |
| Default environment tip | The calculated storage usage in this view only displays what is above the default environment’s included capacity. Tool tips indicate how to view actual usage in the Details section. |
Note
- The following environments don't count against capacity and are shown as 0 GB:
- Microsoft Teams
- Trial
- Preview
- Support
- Developer
- The default environment has the following included storage capacity: 3 GB Dataverse database capacity, 3 GB Dataverse file capacity, and 1 GB Dataverse log capacity.
- You can select an environment that's showing 0 GB, and then go to its environment capacity analytics page to see the actual consumption.
- For the default environment, the list view shows the amount of capacity consumed beyond the included quota. Select the Details button () to see usage.
- The capacity check conducted prior to creating new environments excludes the default environment's included storage capacity when calculating whether you have sufficient capacity to create a new environment.
Allocate capacity for an environment (preview)
Important
- This is a preview feature.
- Preview features aren't meant for production use and might have restricted functionality. These features are subject to supplemental terms of use, and are available before an official release so that customers can get early access and provide feedback.
- This feature is being gradually rolled out across regions and might not be available in your region yet.
In the Dataverse tab, you can allocate capacity to a specific environment. Once capacity is allocated, you can view the status of your environments to determine whether they are within capacity or in an overage state.
Sign in to the Power Platform admin center.
In the navigation pane, select Resources > Capacity.
On the Capacity page, select the Datavese tab.
Select the environment for which you want to allocate capacity.
Select the Allocate capacity button, located above the environment list. The Allocate capacity pane is displayed on the right side of the page.
In the Allocate capacity pane, view the currently allocated and consumed capacity for the environment.
Allocate capacity by entering the desired value in the Database, File, and Log fields.
Ensure the capacity values are positive integers and don't exceed the available capacity displayed at the top of the panel.
Opt in to receive daily email alerts sent to tenant and environment admins when the consumed capacity (Database, Log, or File) reaches a set percentage of the allocated capacity.
Select Save to apply the changes.

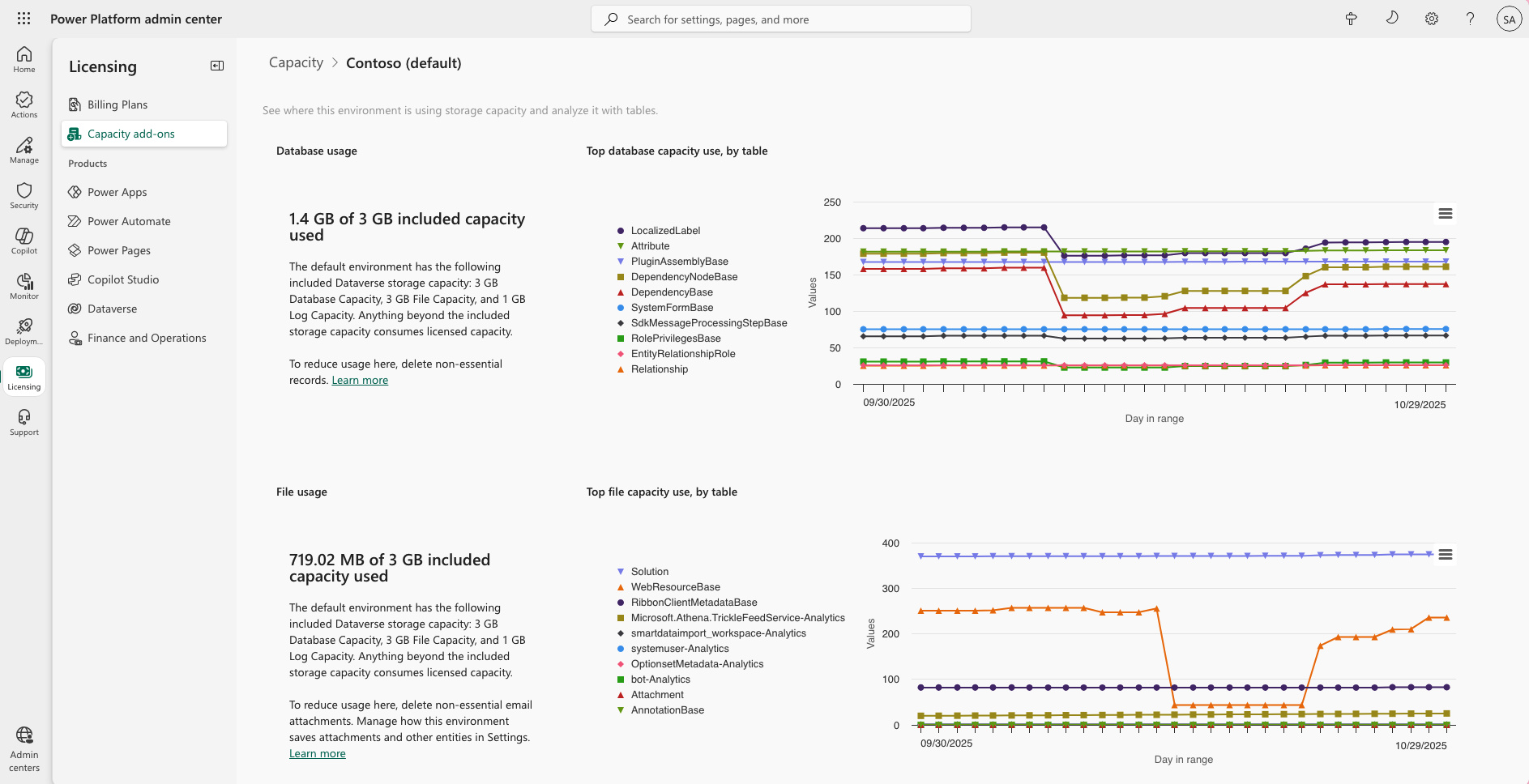

Environment storage capacity details
Select the Details button () on the Summary tab view to see an environment-level detailed view of where your organization is using capacity, in addition to the three types of capacity consumption.
The following details are provided:
- Actual database usage
- Top database tables and their growth over time
- Actual file usage
- Top files tables and their growth over time
- Actual log usage
- Top tables and their growth over time
Note
Refer to the storage capacity reports under Dataverse long term retention to understand details on storage capacity with the retention feature.
Microsoft Teams tab
This page provides a view of the capacity storage used by your Microsoft Teams environments. Teams environment capacity usage doesn't count towards your organization's Dataverse usage.
To view this page, select Resources > Capacity > Microsoft Teams tab.
| Feature | Description |
|---|---|
| Download | Select Download above the list of environments to download an Excel .CSV file with high-level storage information for each environment that the signed-in admin has permission to see in the Power Platform admin center. |
| Search | Use Search to search by the environment name and the environment type. |
Add-ons tab
Use this page to view your organization's add-on usage details and to assign add-ons to environments. See View capacity add-ons in Power Platform admin center
Note
This tab only appears if you have add-ons included in your tenant.
Trial tab
This page provides a view of the capacity storage used by your trial environments. Trial environment capacity usage doesn't count towards your organization's Dataverse usage.
To view this page, select Resources > Capacity > Trials tab.
| Feature | Description |
|---|---|
| Download | Select Download above the list of environments to download an Excel .CSV file with high-level storage information for each environment that the signed-in admin has permission to see in the Power Platform admin center. |
| Search | Use Search to search by the environment name and the environment type. |
Changes for exceeding storage capacity entitlements
We're making changes for what happens when an organization's storage capacity is close to, or exceeds the capacity entitled or purchased via add-ons.
Notifications for capacity approaching storage limits are triggered when any of the three storage capacities (database, file, or log) have less than 15% of space available. Another warning notification that admin operations could be impacted are sent when any of the three storage capacities have less than 5% of space available. The final tier of notification triggers when the tenant is ‘in overage’ (storage usage exceeds capacity entitlements), which alerts the admin that the following operations are no longer available until the overage is resolved.
- Create a new environment (requires minimum 1GB capacity available)
- Copy an environment
- Restore an environment
- Convert a trial environment to paid (requires minimum 1GB capacity available)
- Recover an environment (requires minimum 1GB capacity available)
- Add Dataverse database to an environment
Note
The storage driven capacity model calculation of these thresholds also considers the overflow usage allowed in the storage driven model. For example, extra database capacity can be used to cover log and file overuse and extra log capacity can be used to cover file overuse. Therefore, overflow usage has been taken into consideration to reduce the number of emails a tenant admin receives.
These notifications are sent out to tenant admins, Power Platform admins, and Dynamics 365 admins on a weekly basis. At this time, there's no option for a customer to opt-out of these notifications or delegate these notifications to someone else. All admins types listed earlier automatically receive these notifications.
Additionally, there's a notification banner in the Power Platform admin center when a tenant has exceeded storage capacity.
The Universal License Terms for Online Services apply to your organization’s use of the online service, including consumption that exceeds the online service’s documented entitlements or usage limits.
Your organization must have the right licenses for the storage you use:
- If you use more than your documented entitlements or usage limits, you must buy more licenses.
- If your storage consumption exceeds the documented entitlements or usage limits, we may suspend use of the online service. Microsoft provides reasonable notice before suspending your online service.
Example storage capacity scenarios, overage enforcement
You should be within limits for your entitled capacity for database, log, and file. If you have used more capacity than you're entitled to, you should buy more capacity or free up capacity. However, if you have overused database, log, or file capacity, review the following scenarios to understand when enforcement is applied.
Scenario 1: Database storage is over capacity, overage enforcement
| Type | Entitled | Consumed |
|---|---|---|
| Database | 100 GB | 110 GB |
| Log | 10 GB | 5 GB |
| File | 400 GB | 200 GB |
This tenant is 10 GB over in database usage. Despite having 200 GB excess file storage, the tenant is considered to be in deficit. This tenant should free up storage or purchase more capacity.
Scenario 2: Log storage is over capacity, overage enforcement
| Type | Entitled | Consumed |
|---|---|---|
| Database | 100 GB | 95 GB |
| Log | 10 GB | 20 GB |
| File | 400 GB | 200 GB |
This tenant is 10 GB over in log usage and has only 5 GB available in database capacity. Therefore, the tenant is in deficit and should free up storage or purchase more capacity.
Scenario 3: File storage is over capacity, overage enforcement
| Type | Entitled | Consumed |
|---|---|---|
| Database | 100 GB | 20 GB |
| Log | 10 GB | 5 GB |
| File | 200 GB | 290 GB |
This tenant is 90 GB over in file usage. Despite having 85 GB available (80 GB database + 5 GB log) in storage capacity, the tenant is considered to be in deficit. This tenant should free up storage or purchase more capacity.
Example storage capacity scenario, no overage
Scenario 4: Log storage is over capacity
| Type | Entitled | Consumed |
|---|---|---|
| Database | 100 GB | 80 GB |
| Log | 10 GB | 20 GB |
| File | 400 GB | 200 GB |
This tenant is 10 GB over in log usage but has 20 GB available in database capacity. Therefore, the tenant isn't in deficit. File storage excess entitlement can't be used to compensate deficits in log or database storage.
Actions to take for a storage capacity deficit
You can always free up storage, delete unwanted environments, or buy more capacity to be compliant with storage usage. To learn more about capacity add-ons, see the Dynamics 365 Licensing Guide or the "Add-ons" section of the Power Apps and Power Automate Licensing Guide. You can work through your organization's standard procurement process to purchase capacity add-ons.
FAQ
Why is my storage consumption decreasing in database and growing in file?
We're constantly optimizing the Dataverse for ease of use, performance, and efficiency. Part of this ongoing effort is to move data to the best possible storage with the lowest cost for customers. File-type data such as “Annotation” and “Attachment” is moving from database to file storage. This leads to decreased usage of database capacity and an increase in file capacity.
Why could my database table size decrease while my table and file data sizes remain the same?
As part of moving file-type data such as “Annotation” and “Attachment” out from database and into file storage, we periodically reclaim the freed database space. This leads to decreased usage of database capacity, while the table and file data size computations remain unchanged.
Do indexes affect database storage usage?
Possibly. Database storage includes both the database rows and index files used to improve search performance. Indexes are created and optimized for peak performance and are updated frequently by the system by analyzing data use patterns. No user action is needed to optimize the indexes, as all Dataverse stores have tuning enabled by default. A fluctuation in database storage can be represented by an increased or decreased number of indexes on the database. Dataverse is continually being tuned to increase efficiency and incorporate new technologies that improve user experience and optimize storage capacity. Common causes for an increase in index size are:
- An organization making use of new functionality (this can be custom, out-of-the-box, or part of an update or solution installation).
- Data volume or complexity changes.
- A change in usage patterns that indicate new indexes are in need of reevaluation.
If Quick Find lookups are configured for data that's frequently used, this also creates more indexes in the database. Admin-configured Quick Find values can increase the size of the indexes based on:
- The number of columns chosen and the data type of those columns.
- The volume of rows for the tables and columns.
- The complexity of the database structure.
Because custom Quick Find lookups are created by an admin in the org, these can be user-controlled. Admins can reduce some of the storage used by these custom indexes by doing the following:
- Removing unneeded columns and/or tables
- Eliminating multiline text columns from inclusion
What is the DataverseSearch table and how can I reduce it?
The DataverseSearch table is the cumulative storage used by the Dataverse search index. It includes the data from all searchable, retrievable, and filterable fields of the tables you have indexed for your environment. See Configure Dataverse search to improve search results and performance. You can reduce the table size by removing Find Columns, View Columns, and Filter conditions for one or more tables. You can turn off Dataverse search to remove all indexed data. It may take up to 24 hours after reducing the number of indexed columns or turning off Dataverse search.
I just bought the new capacity-based licenses. How do I provision an environment by using this model?
You can provision environments through the Power Platform admin center. More information: Create and manage environments in the Power Platform admin center
I'm a new customer and I recently purchased the new offers. My usage of database/log/file is showing red. What should I do?
Consider buying more capacity by using the Licensing Guide. Alternatively, you can free up storage.
I'm an existing customer, and my renewal is coming up. Will I be affected?
Customers who renew existing subscriptions can choose to continue to transact by using the existing offers for a certain period of time. Contact your Microsoft partner or Microsoft sales team for details.
I'm a Power Apps/Power Automate customer and have environments with and without database. Will they consume storage capacity?
Yes. All environments consume 1 GB, regardless of whether they have an associated database.
Do I get notified through email when my organization is over capacity?
Yes, tenant admins are notified through email on a weekly basis if their organization is at or over capacity. Additionally, tenant admins are notified when their organization reaches 15% of available capacity, and when their organization reaches 5% of available capacity.
Why am I no longer getting storage notifications?
Capacity email notifications are sent weekly to tenant admins based on three different thresholds. If you're no longer getting storage notifications, check to see your admin role. It could also be the case that your organization is over the three predefined capacity thresholds. In that case, you don't receive an email notification.
I'm an existing customer. Should I expect my file and log usage to change?
Log and files data usage isn't expected to be exactly the same size as when the same data is stored by using database, due to different storage and indexing technologies. The current set of out-of-the-box tables stored in file and log storage might change in the future.
The capacity report shows the entitlement breakdown per license, but I have more licenses in my tenant and not all of them are listed in the breakdown. Why?
Not all licenses give per-user entitlement. For example, the Team Member license doesn't give any per-user database, file, or log entitlement. So in this case, the license isn't listed in the breakdown.
Which environments are counted in the capacity report?
Default, production, and sandbox environments are counted for consumption. Trial, preview, support, and developer environments aren't counted.
What are tables ending in “- analytics" in my capacity report?
Tables ending in “– Analytics” are tables used by one or more Insights applications, for example Sales Insights, Customer Service Hub, or Field Service and resource scheduling and optimization analytics dashboard to generate predictive insights and/or analytics dashboards. The data is synched from Dataverse tables. See More information below for documentation covering the installed Insights applications and the tables used to create insights and dashboards.
Why can I no longer see the Summary tab in my capacity report?
This is due to a change that occurred in April 2023, after which only users with the tenant admin, Power Platform admin, or Dynamics 365 admin roles can see the Summary tab in the capacity report. Users, such as environment admins, no longer see this tab and are redirected to the Dataverse tab when accessing the report. If you have a user that requires access to the Summary tab, assign one of the required roles.
More information:
- Sales Insights
- Field Service and resource scheduling optimization (RSO)
- Customer Service Insights
- Field Service
Who can allocate capacity?
Users with global admin, Power Platform admin, and Dynamics 365 admin roles can allocate Dataverse capacity.
Does this impact my total available capacity in my tenant?
There's no impact on the overall capacity available at the tenant level. Admins can optionally preallocate capacity from the tenant pool to an environment. Preallocated capacity is reduced from the tenant level's total available capacity for use by other environments.
What happens if capacity consumption goes beyond the allocated capacity?
Currently, only soft enforcement through email notification is turned on. Admins (Power Platform admins and environment admins) start receiving notifications when capacity usage exceeds 85% of the allocated capacity.
What types of Dataverse capacity can be allocated?
Database, file, and log capacity can be allocated.
Do I need to allocate capacity to every environment like other supported currencies?
No, admins can select specific environments to allocate capacity.
