Create a chaos experiment that uses a Chaos Mesh fault to kill AKS pods with the Azure portal

You can use a chaos experiment to verify that your application is resilient to failures by causing those failures in a controlled environment. In this article, you cause periodic Azure Kubernetes Service (AKS) pod failures on a namespace by using a chaos experiment and Azure Chaos Studio. Running this experiment can help you defend against service unavailability when there are sporadic failures.

Chaos Studio uses Chaos Mesh, a free, open-source chaos engineering platform for Kubernetes, to inject faults into an AKS cluster. Chaos Mesh faults are service-direct faults that require Chaos Mesh to be installed on the AKS cluster. You can use these same steps to set up and run an experiment for any AKS Chaos Mesh fault.

Prerequisites

Limitations

Set up Chaos Mesh on your AKS cluster

Before you can run Chaos Mesh faults in Chaos Studio, you must install Chaos Mesh on your AKS cluster.

  1. Run the following commands in an Azure Cloud Shell window where you have the active subscription set to be the subscription where your AKS cluster is deployed. Replace $RESOURCE_GROUP and $CLUSTER_NAME with the resource group and name of your cluster resource.

    az aks get-credentials -g $RESOURCE_GROUP -n $CLUSTER_NAME

    helm repo add chaos-mesh https://charts.chaos-mesh.org
    helm repo update
    kubectl create ns chaos-testing
    helm install chaos-mesh chaos-mesh/chaos-mesh --namespace=chaos-testing --set chaosDaemon.runtime=containerd --set chaosDaemon.socketPath=/run/containerd/containerd.sock

  2. Verify that the Chaos Mesh pods are installed by running the following command:

    kubectl get po -n chaos-testing


    You should see output similar to the following example (a chaos-controller-manager and one or more chaos-daemons):

    NAME                                        READY   STATUS    RESTARTS   AGE
    chaos-controller-manager-69fd5c46c8-xlqpc   1/1     Running   0          2d5h
    chaos-daemon-jb8xh                          1/1     Running   0          2d5h
    chaos-dashboard-98c4c5f97-tx5ds             1/1     Running   0          2d5h


You can also use the installation instructions on the Chaos Mesh website.

Enable Chaos Studio on your AKS cluster

Chaos Studio can't inject faults against a resource unless that resource is added to Chaos Studio first. You add a resource to Chaos Studio by creating a target and capabilities on the resource. AKS clusters have only one target type (service-direct), but other resources might have up to two target types. One target type is for service-direct faults. Another target type is for agent-based faults. Each type of Chaos Mesh fault is represented as a capability like PodChaos, NetworkChaos, and IOChaos.

  1. Open the Azure portal.

  2. Search for Chaos Studio in the search bar.

  3. Select Targets and go to your AKS cluster.

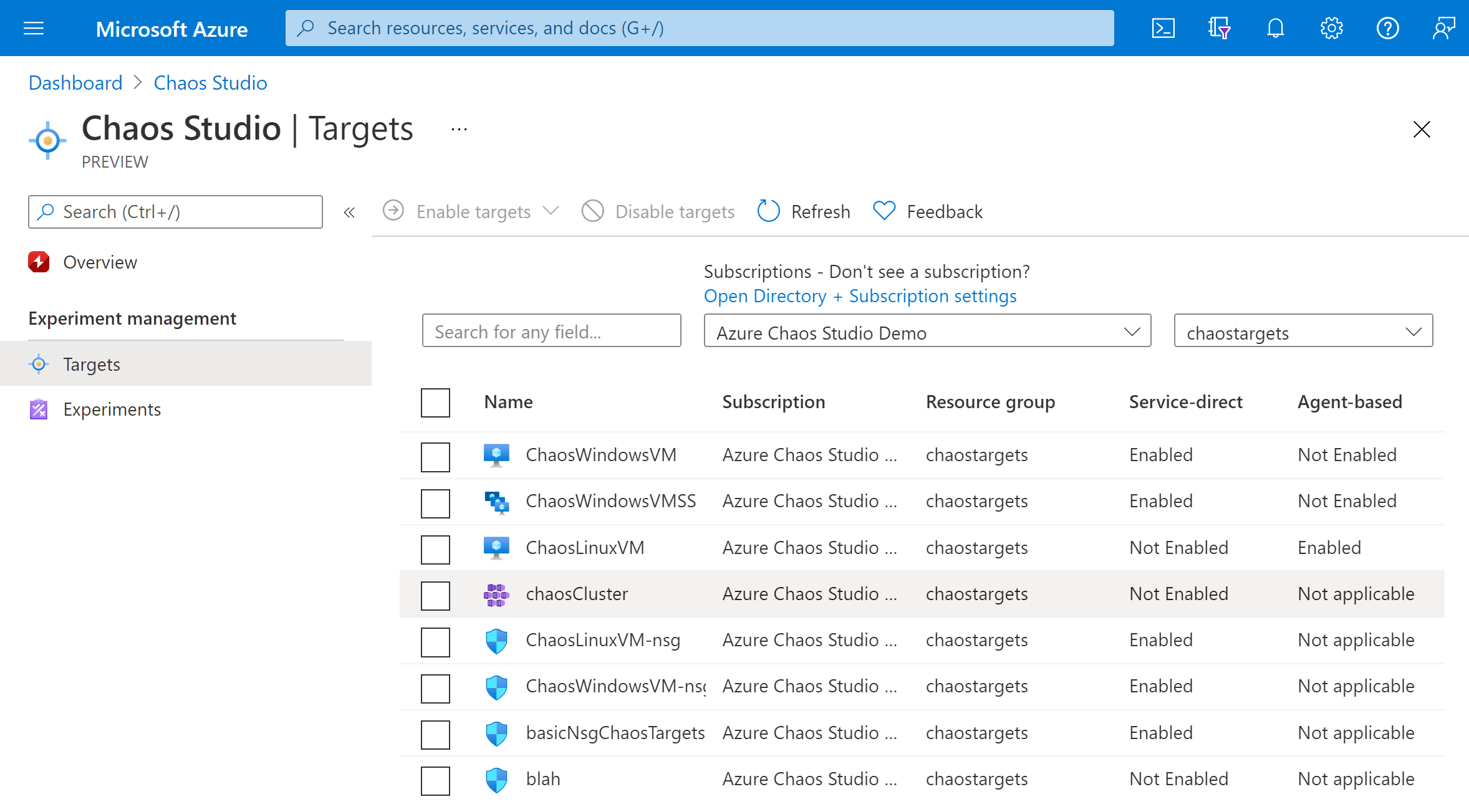

    Screenshot that shows the Targets view in the Azure portal.

  4. Select the checkbox next to your AKS cluster. Select Enable targets and then select Enable service-direct targets from the dropdown menu.

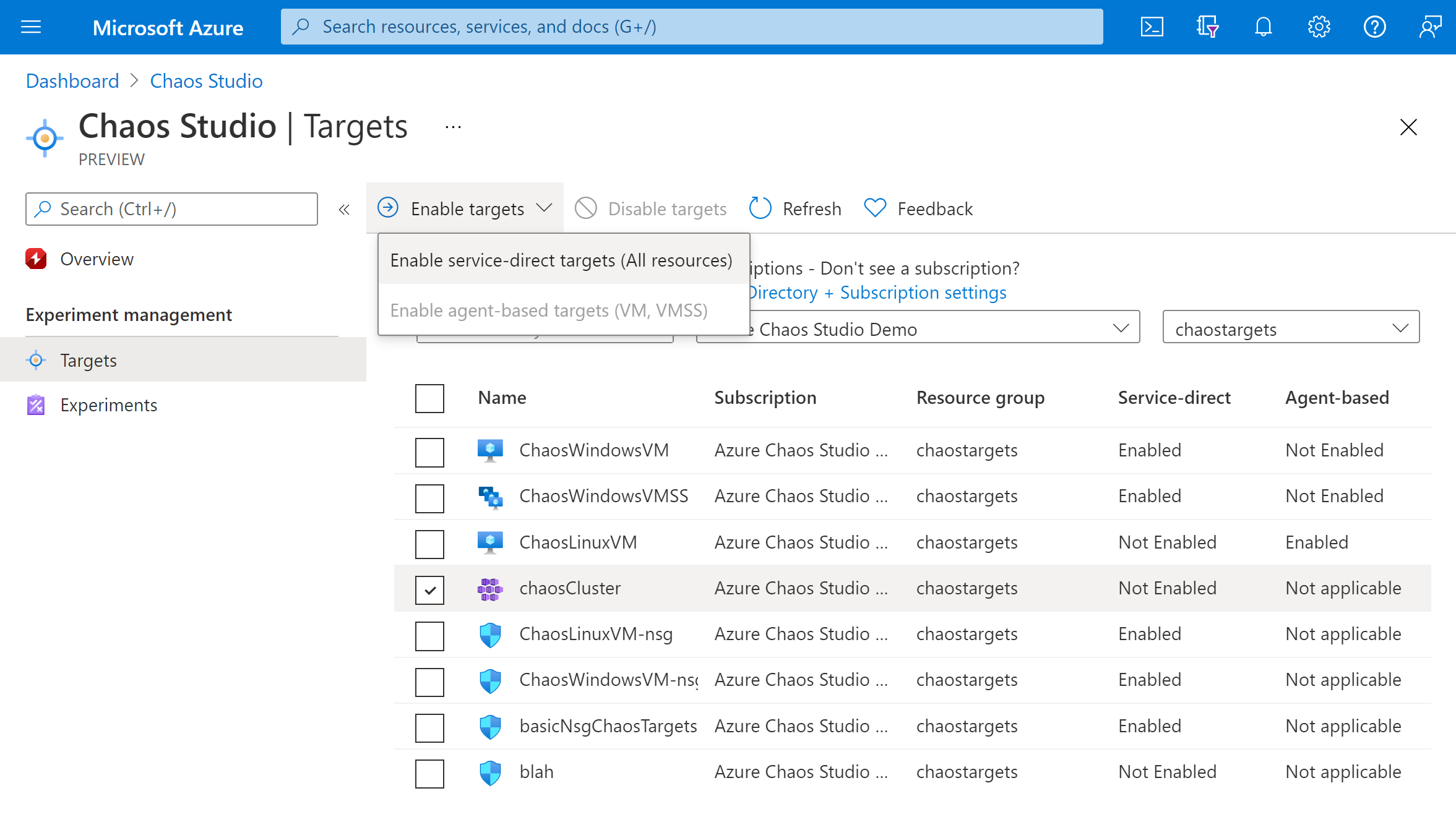

    Screenshot that shows enabling targets in the Azure portal.

  5. Confirm that the desired resource is listed. Select Review + Enable, then Enable.

  6. A notification appears that indicates that the resources you selected were successfully enabled.

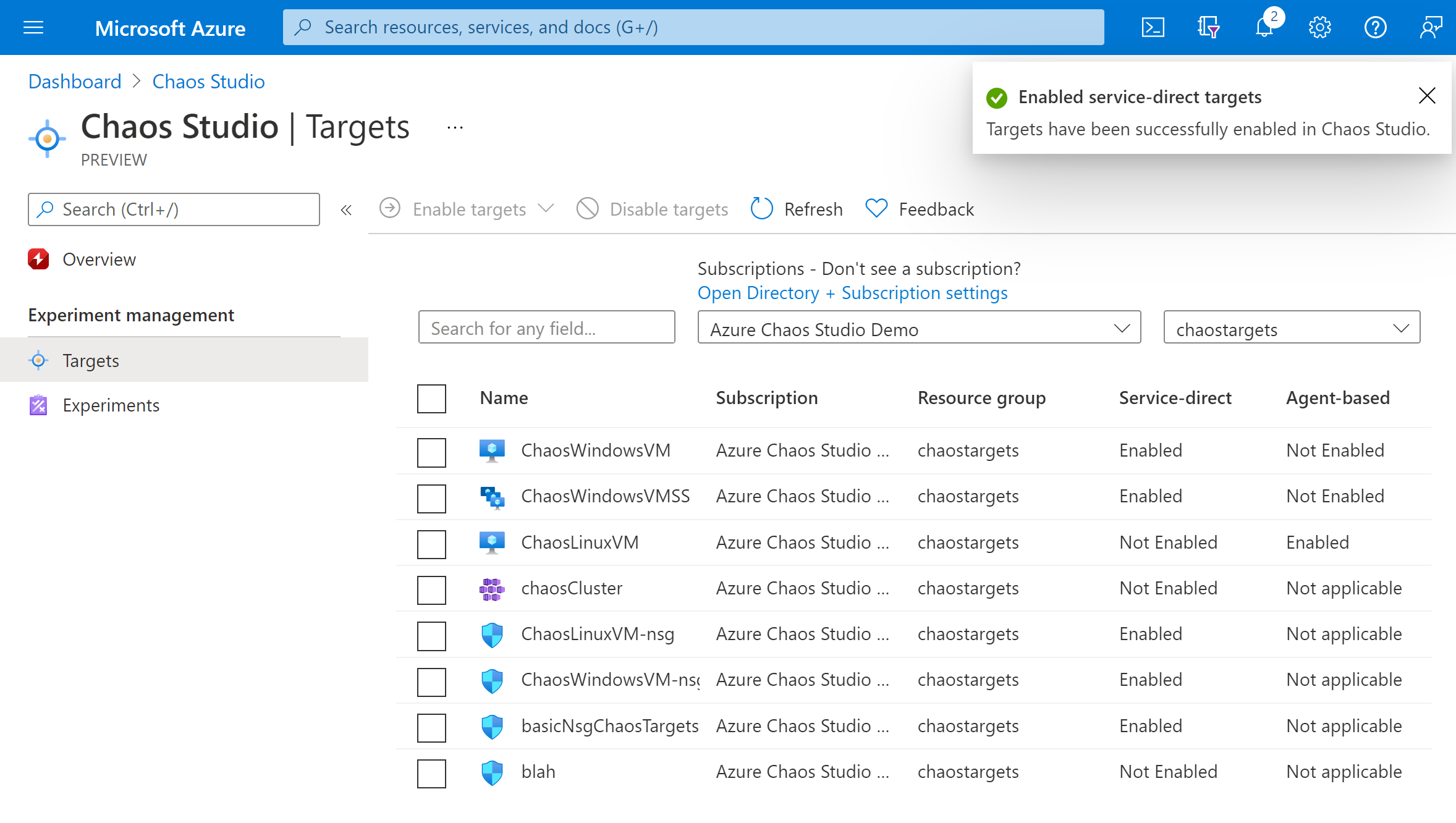

    Screenshot that shows the notification showing that the target was successfully enabled.

You've now successfully added your AKS cluster to Chaos Studio. In the Targets view, you can also manage the capabilities enabled on this resource. Select the Manage actions link next to a resource to display the capabilities enabled for that resource.

Create an experiment

Now you can create your experiment. A chaos experiment defines the actions you want to take against target resources. The actions are organized and run in sequential steps. The chaos experiment also defines the actions you want to take against branches, which run in parallel.

  1. Select the Experiments tab in Chaos Studio. In this view, you can see and manage all your chaos experiments. Select Create > New experiment.

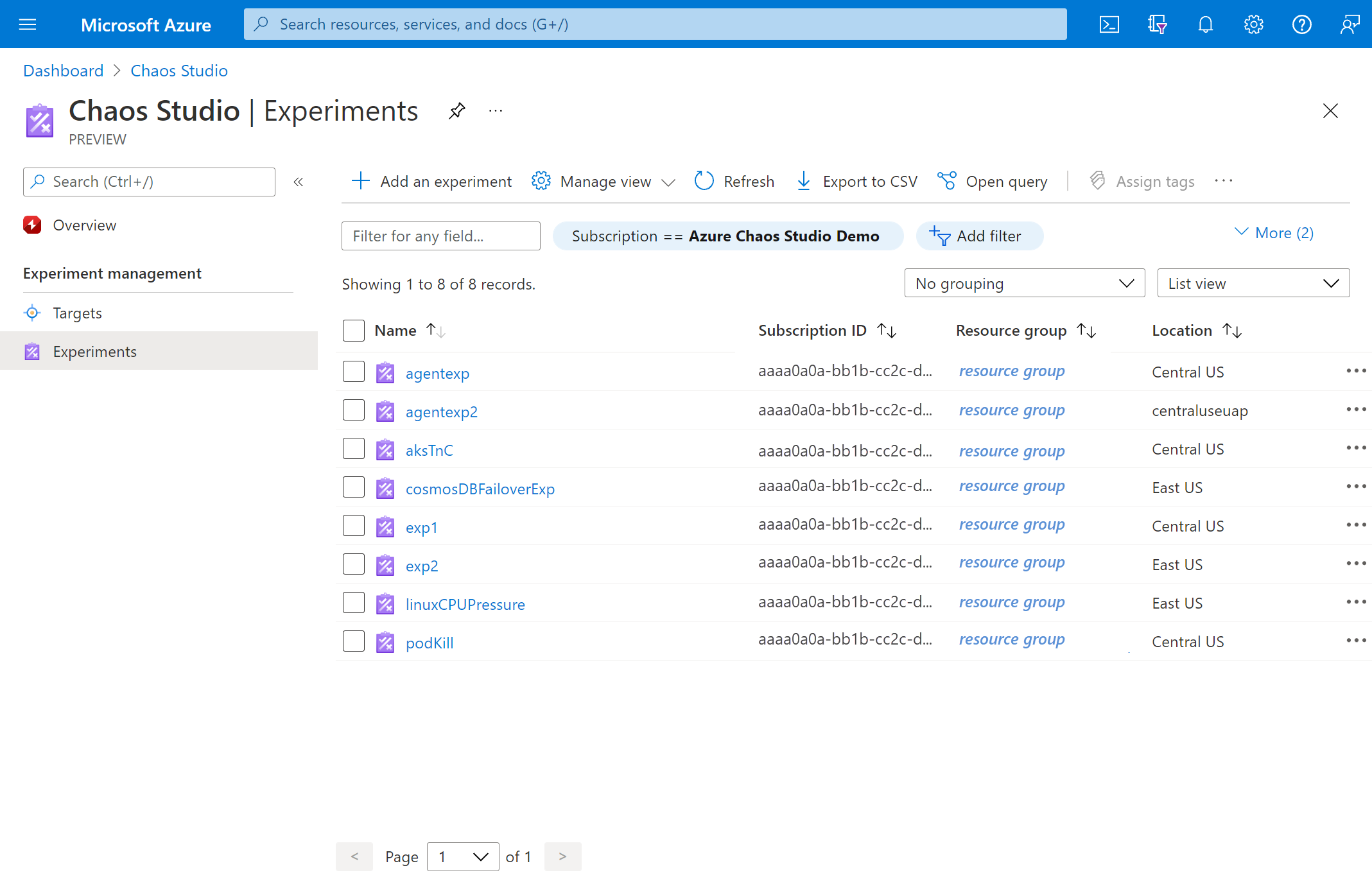

    Screenshot that shows the Experiments view in the Azure portal.

  2. Fill in the Subscription, Resource Group, and Location where you want to deploy the chaos experiment. Give your experiment a name. Select Next: Experiment designer.

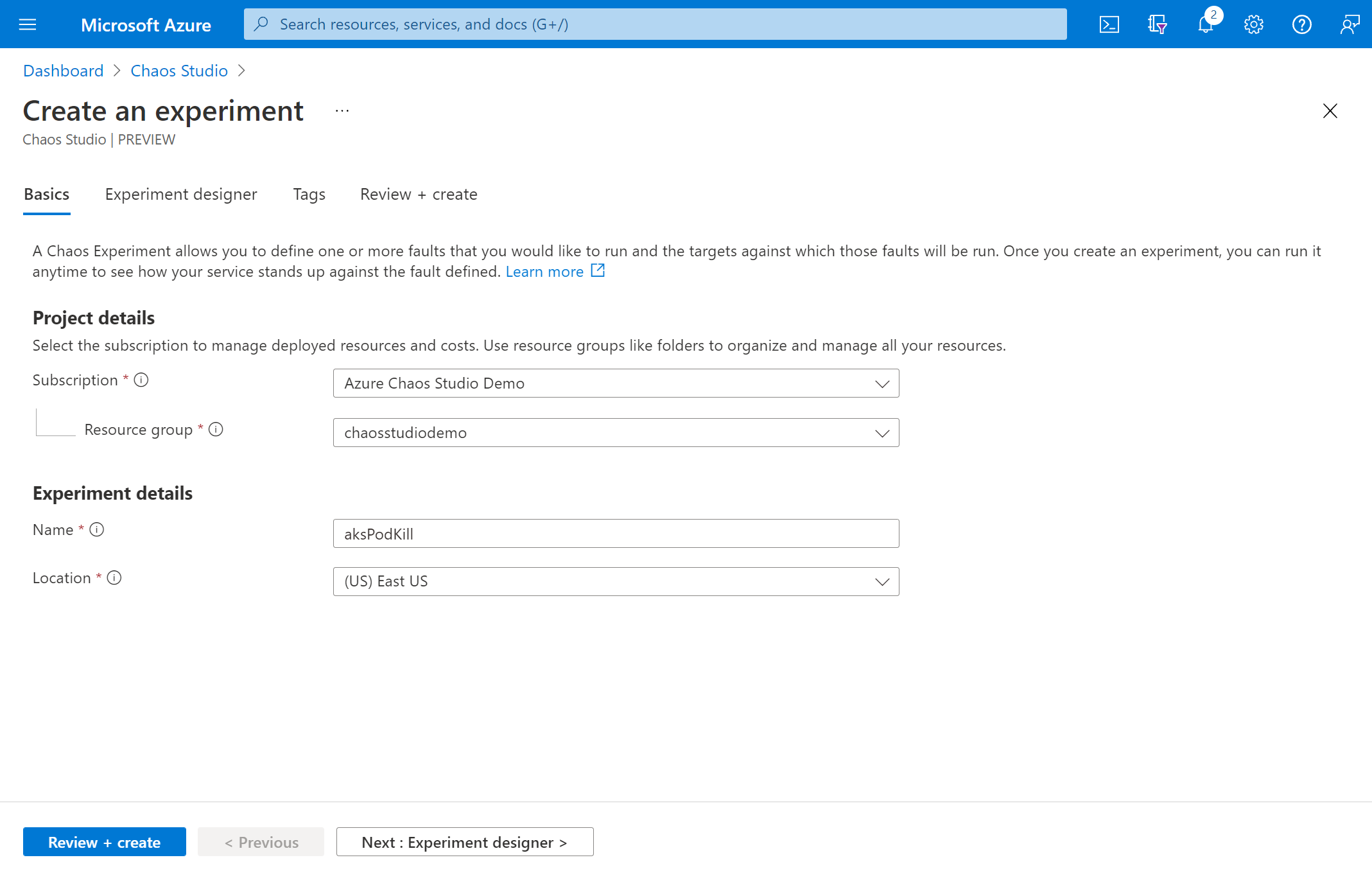

    Screenshot that shows adding basic experiment details.

  3. You're now in the Chaos Studio experiment designer. The experiment designer allows you to build your experiment by adding steps, branches, and faults. Give a friendly name to your Step and Branch and select Add action > Add fault.

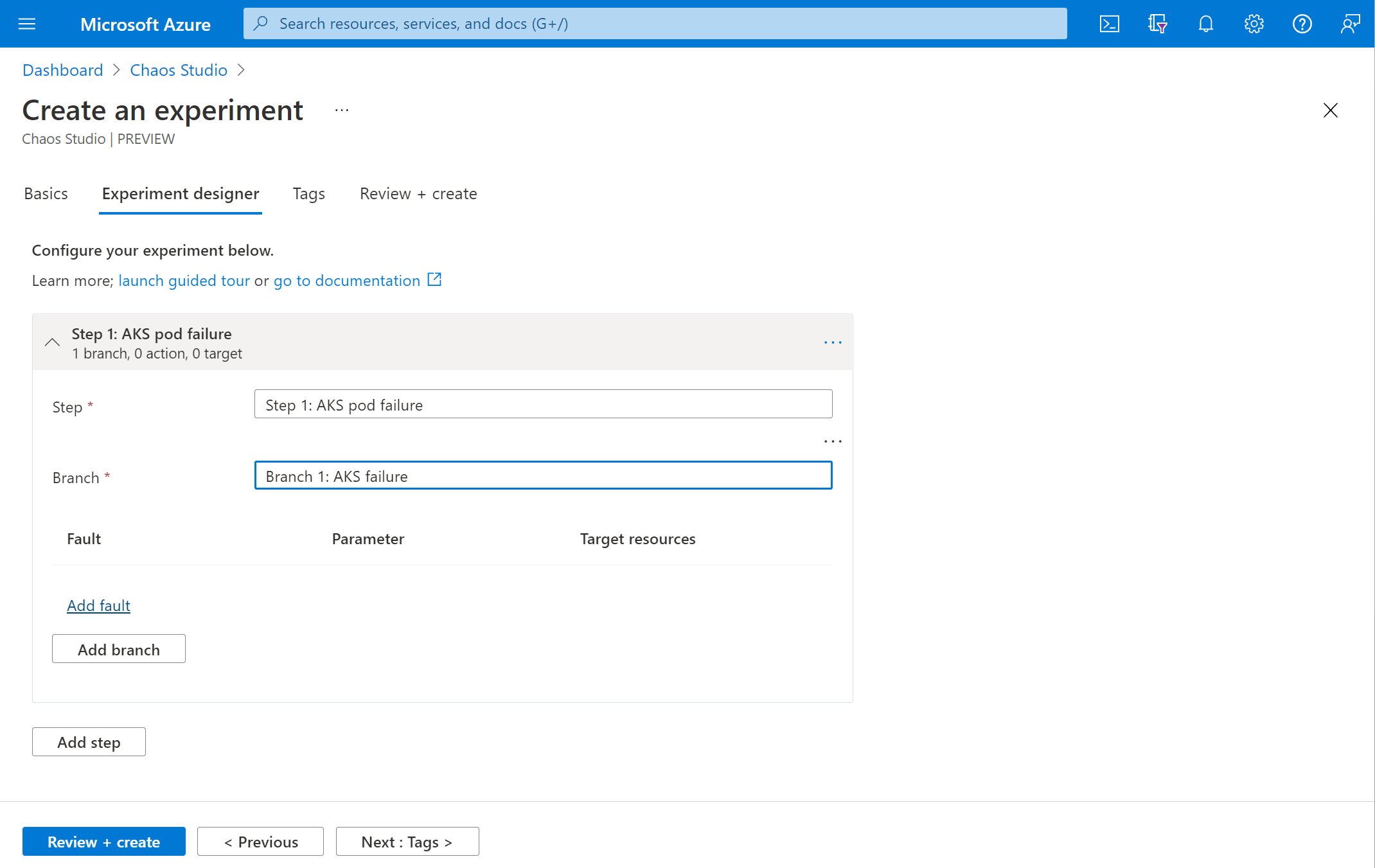

    Screenshot that shows the experiment designer.

  4. Select AKS Chaos Mesh Pod Chaos from the dropdown list. Fill in Duration with the number of minutes you want the failure to last and jsonSpec with the following information:

    To formulate your Chaos Mesh jsonSpec:

    1. See the Chaos Mesh documentation for a fault type, for example, the PodChaos type.

    2. Formulate the YAML configuration for that fault type by using the Chaos Mesh documentation.

      apiVersion: chaos-mesh.org/v1alpha1
      kind: PodChaos
      metadata:
        name: pod-failure-example
        namespace: chaos-testing
      spec:
        action: pod-failure
        mode: all
        duration: '600s'
        selector:
          namespaces:
            - default

    3. Remove any YAML outside of the spec (including the spec property name) and remove the indentation of the spec details. The duration parameter isn't necessary, but is used if provided. In this case, remove it.

      action: pod-failure
      mode: all
      selector:
        namespaces:
          - default

    4. Use a YAML-to-JSON converter like this one to convert the Chaos Mesh YAML to JSON and minimize it.

      {"action":"pod-failure","mode":"all","selector":{"namespaces":["default"]}}

    5. Paste the minimized JSON into the jsonSpec field in the portal.

  5. Select Next: Target resources.

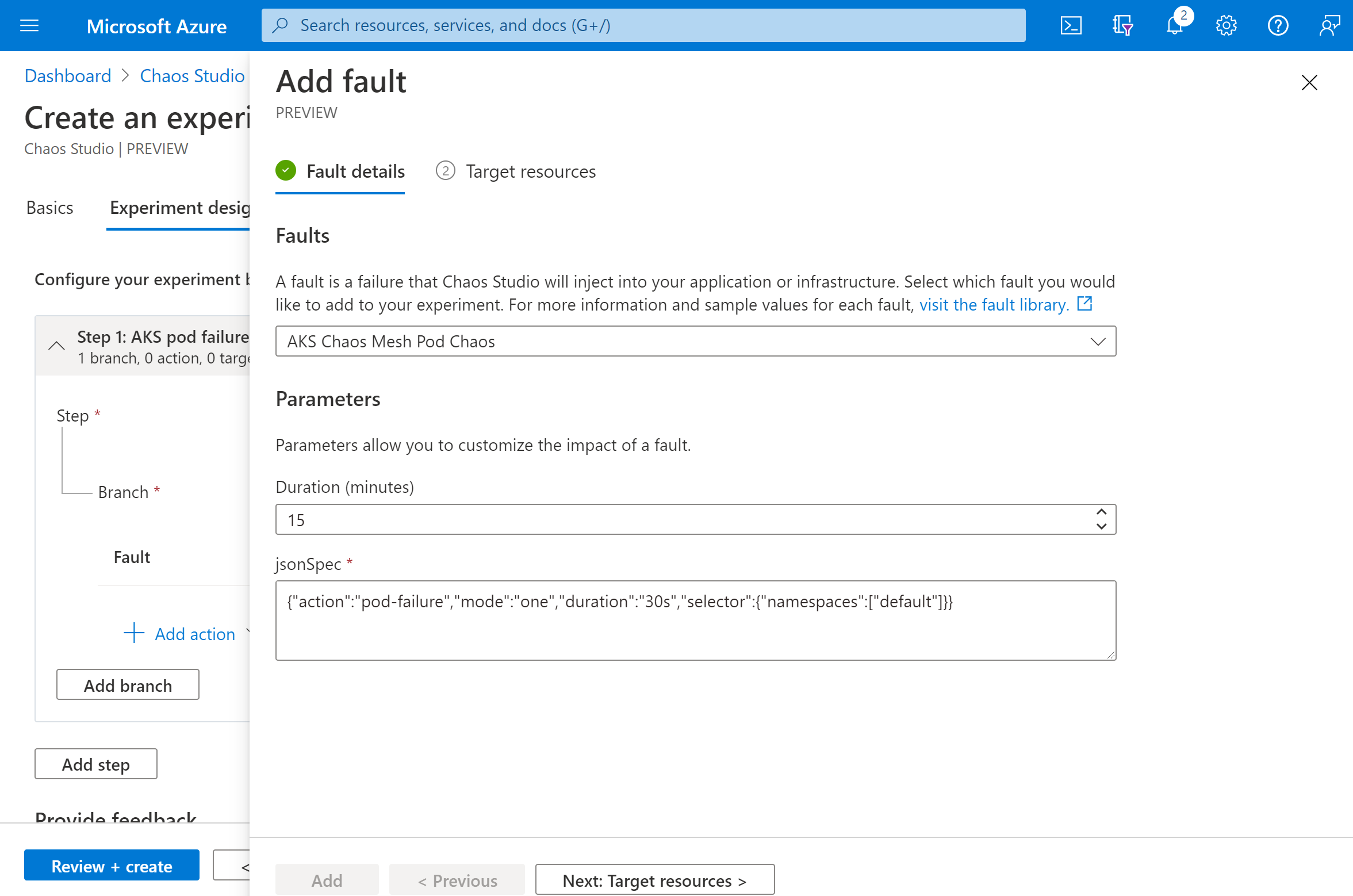

    Screenshot that shows fault properties.

  6. Select your AKS cluster and select Next.

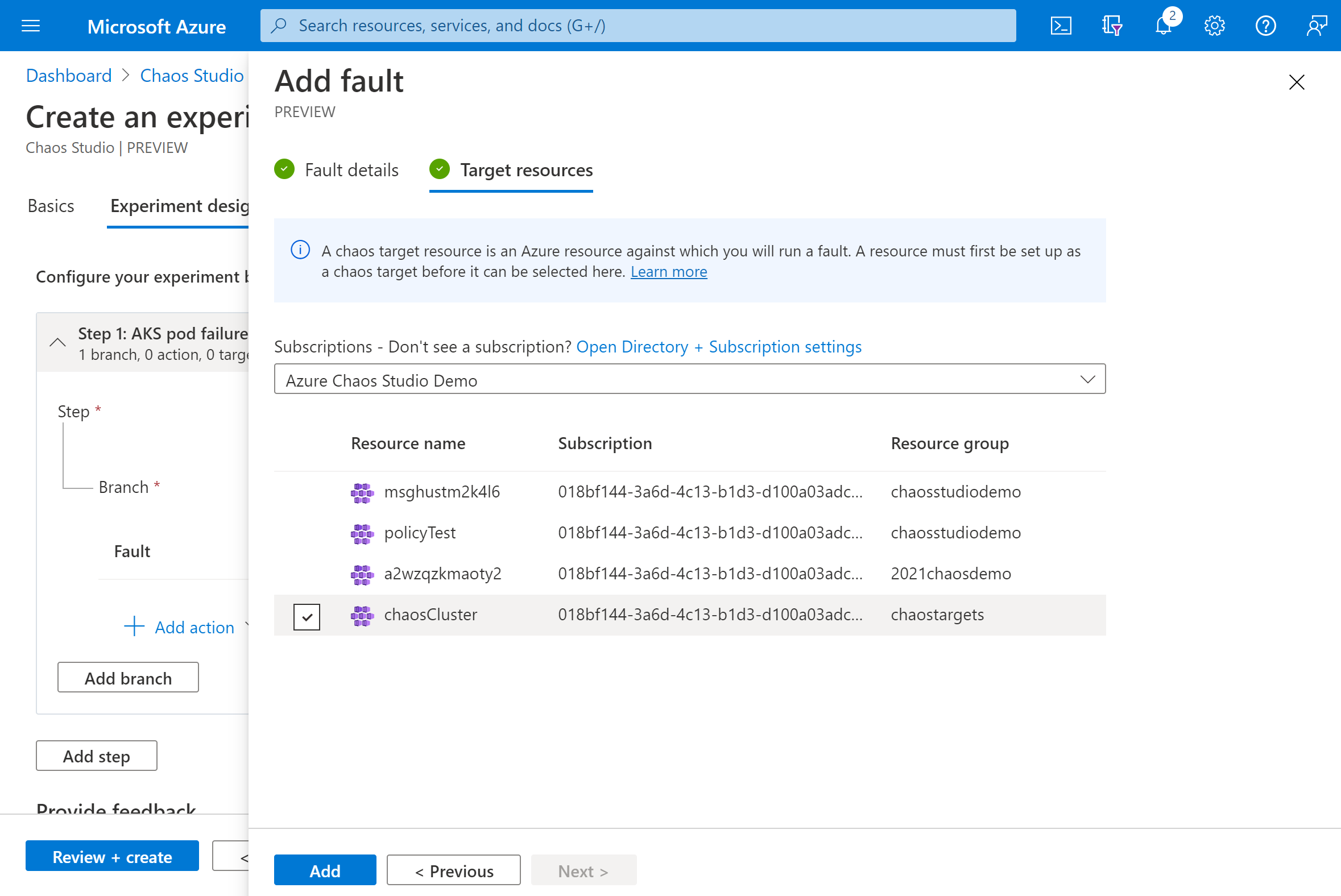

    Screenshot that shows adding a target.

  7. Verify that your experiment looks correct and select Review + create > Create.

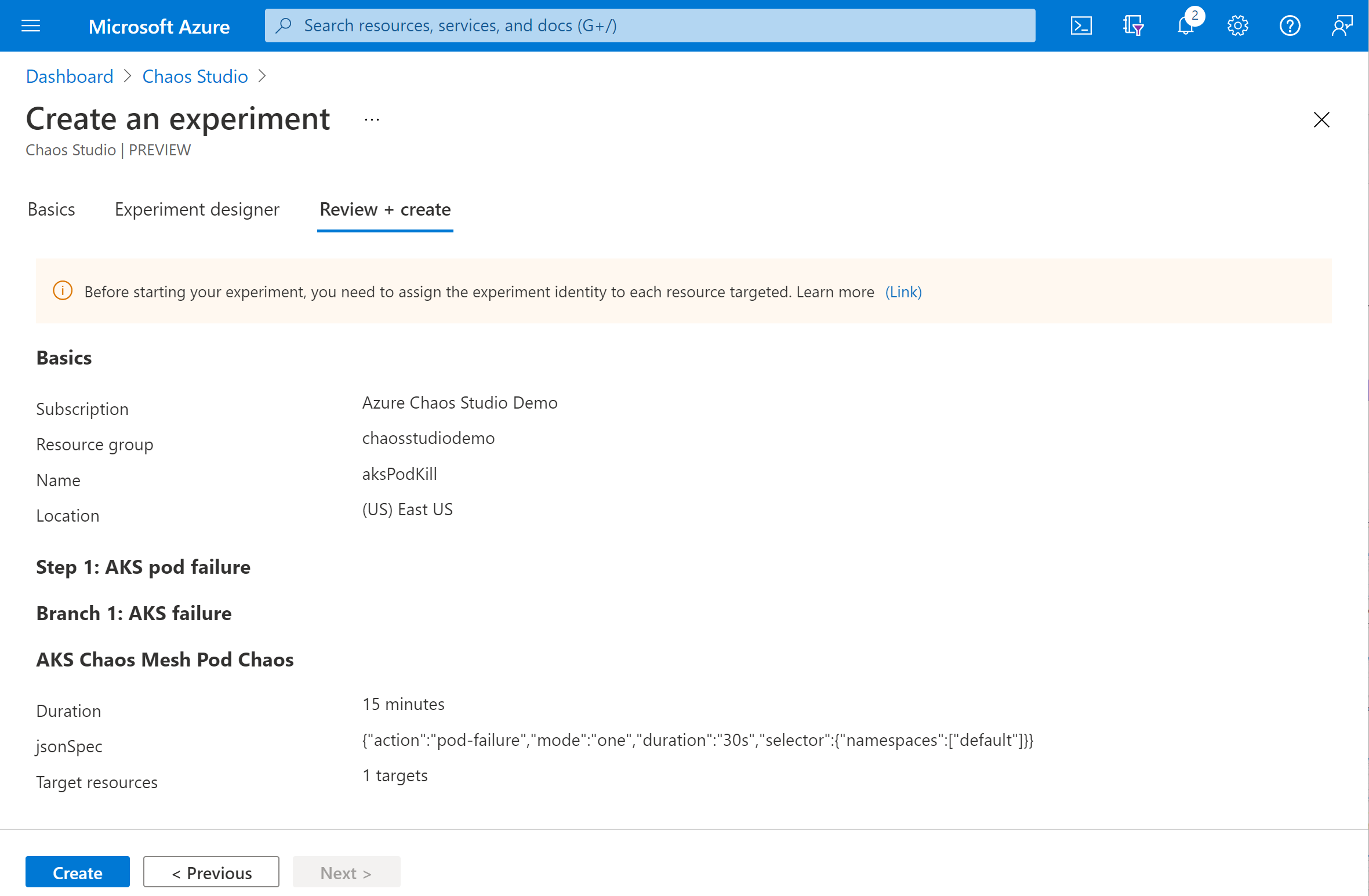

    Screenshot that shows reviewing and creating an experiment.

Give the experiment permission to your AKS cluster

When you create a chaos experiment, Chaos Studio creates a system-assigned managed identity that executes faults against your target resources. This identity must be given appropriate permissions to the target resource for the experiment to run successfully.

  1. Go to your AKS cluster and select Access control (IAM).

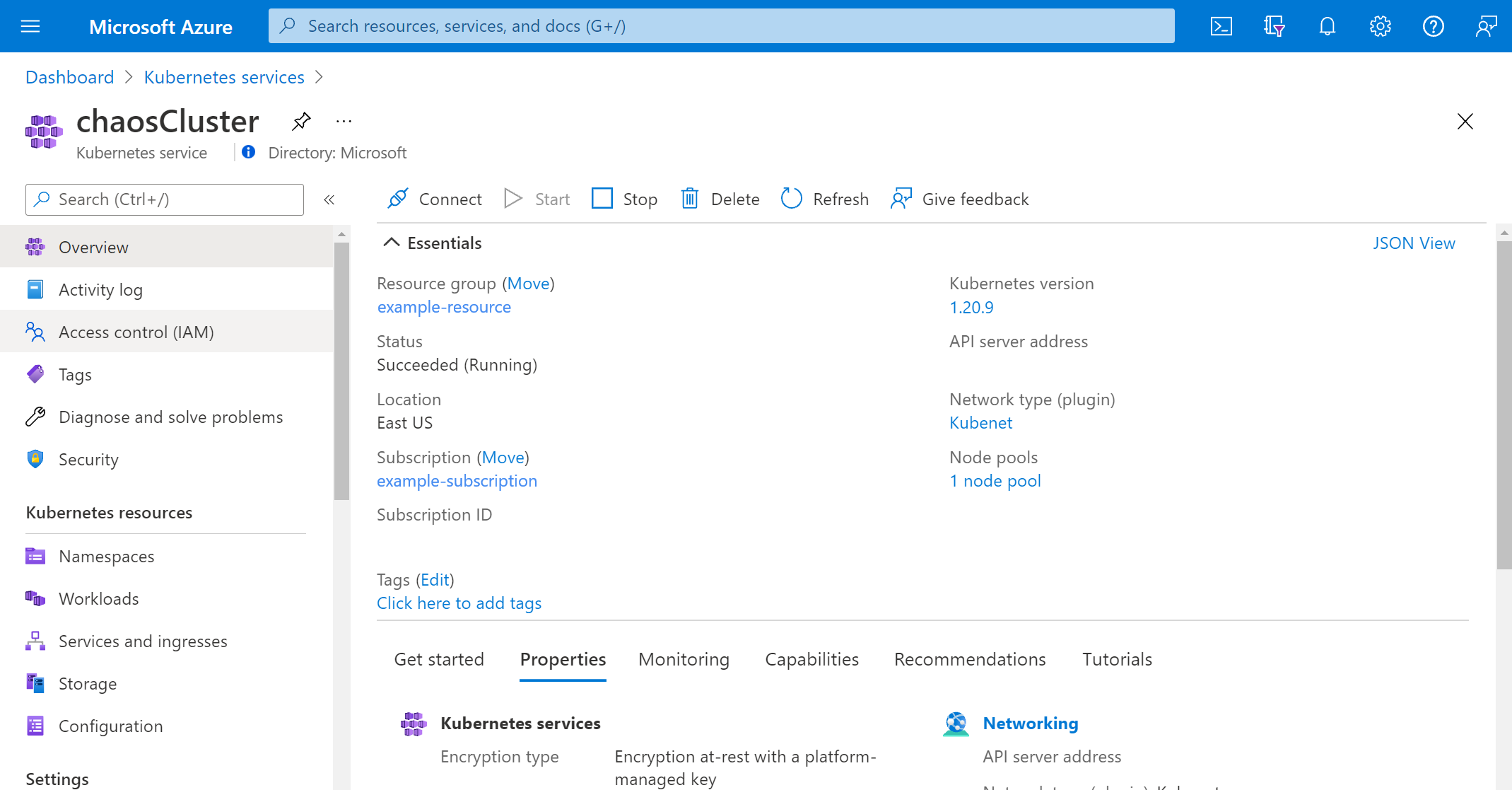

    Screenshot that shows the AKS Overview page.

  2. Select Add > Add role assignment.

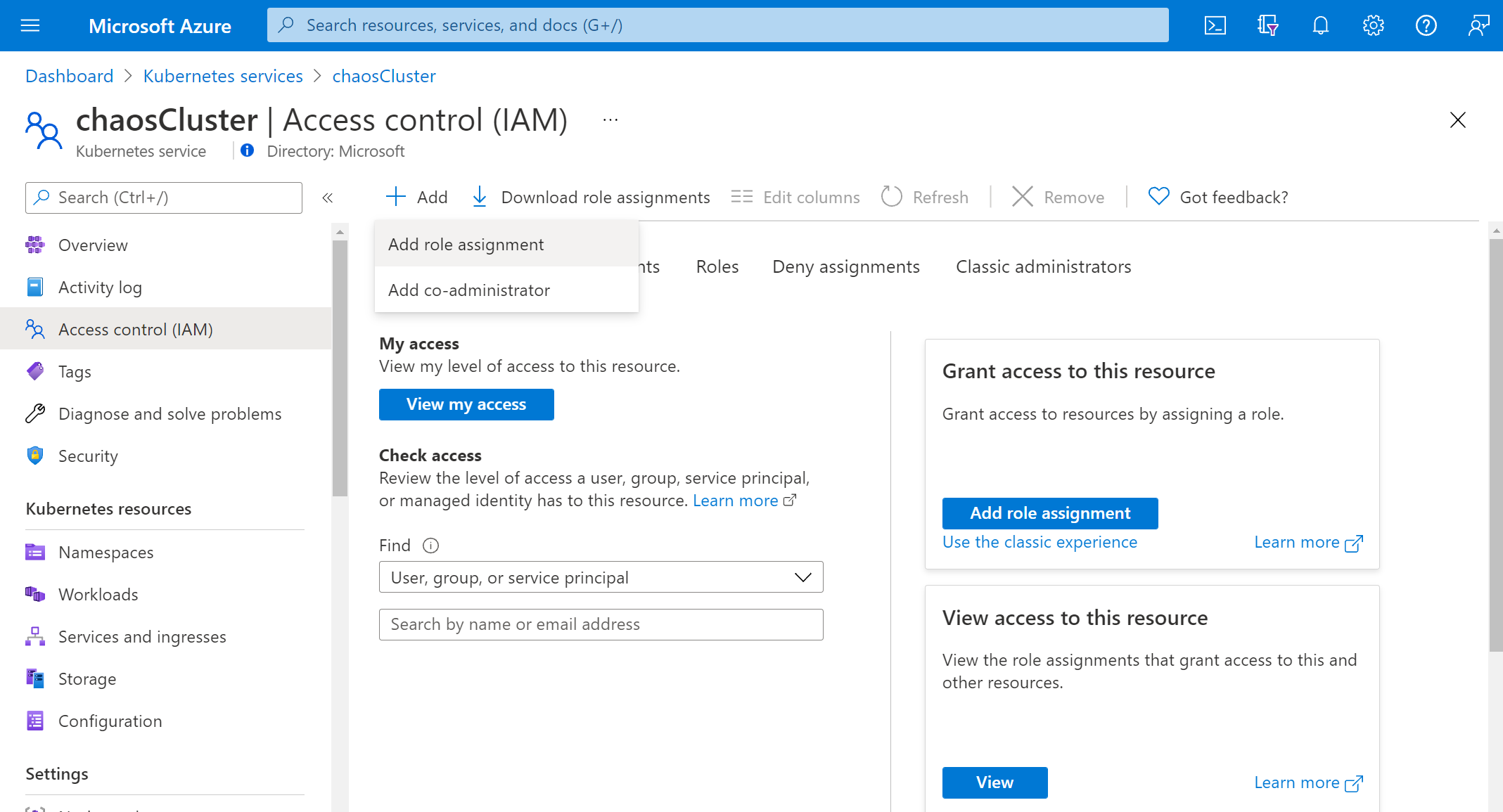

    Screenshot that shows the Access control (IAM) overview.

  3. Search for Azure Kubernetes Service Cluster Admin Role and select the role. Select Next.

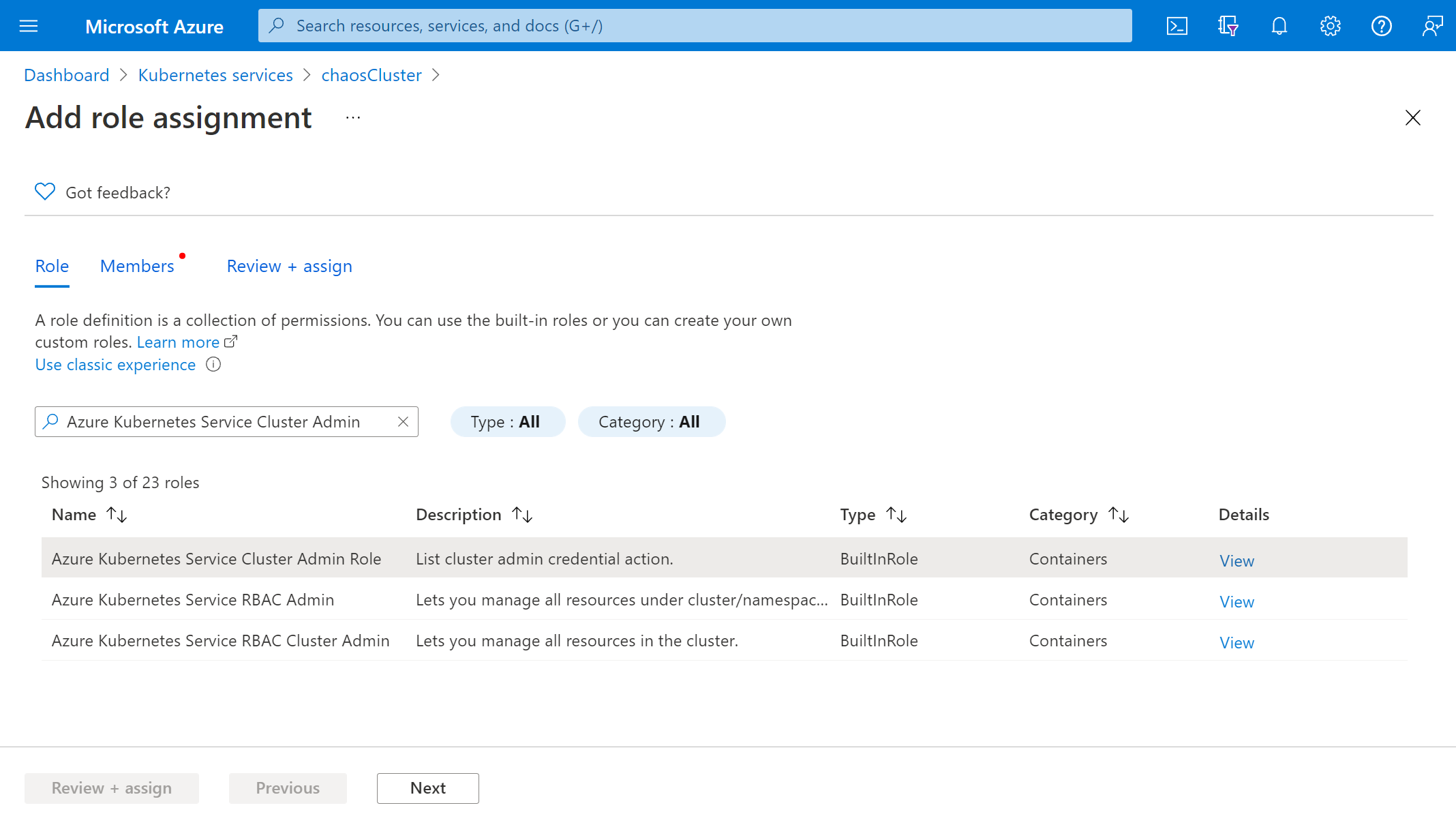

    Screenshot that shows assigning the AKS Cluster Admin role.

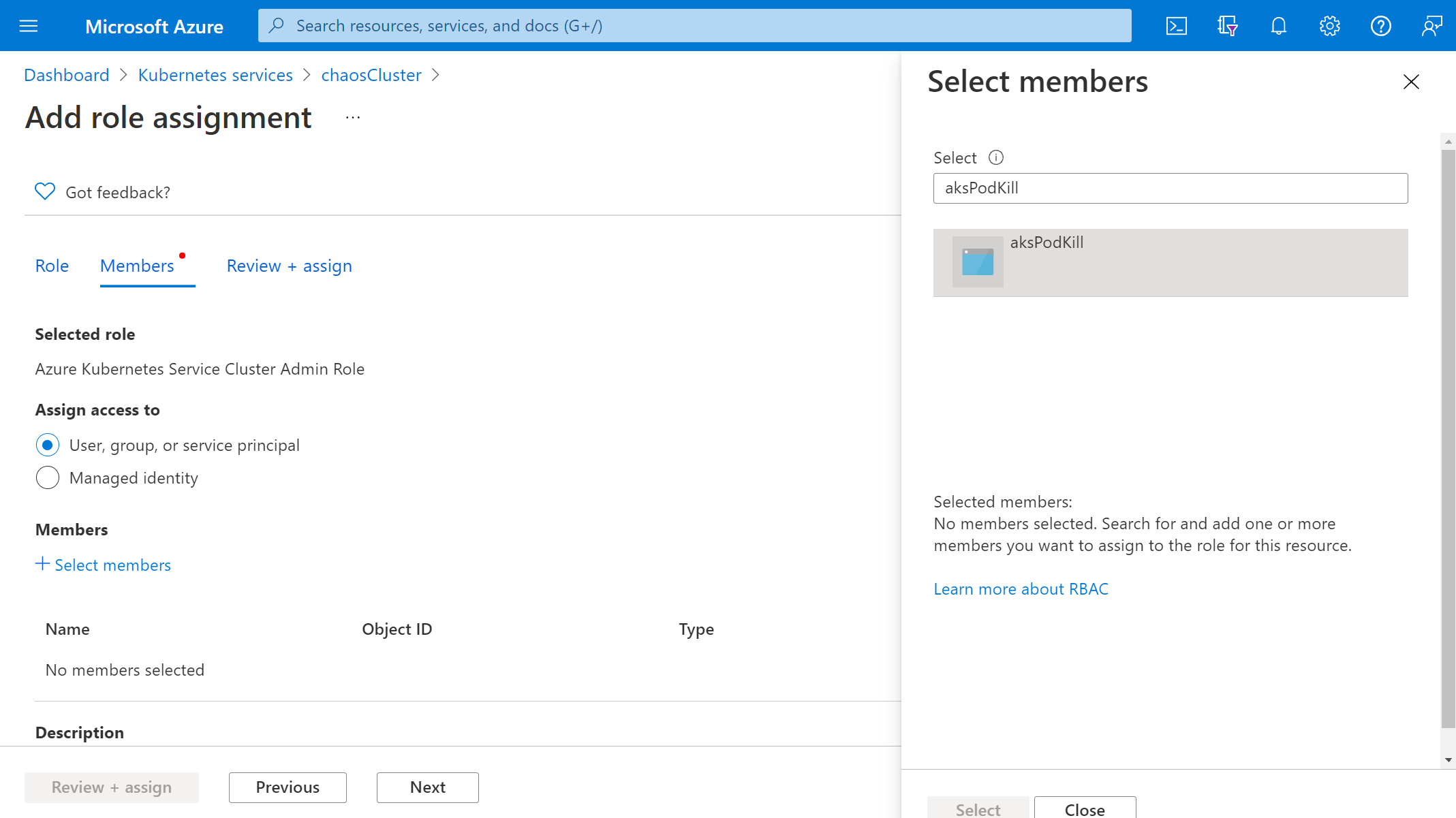

  4. Choose Select members and search for your experiment name. Select your experiment and choose Select. If there are multiple experiments in the same tenant with the same name, your experiment name is truncated with random characters added.

    Screenshot that shows adding an experiment to a role.

  5. Select Review + assign > Review + assign.

Run your experiment

You're now ready to run your experiment. To see the effect, we recommend that you open your AKS cluster overview and go to Insights in a separate browser tab. Live data for the Active Pod Count shows the effect of running your experiment.

  1. In the Experiments view, select your experiment. Select Start > OK.

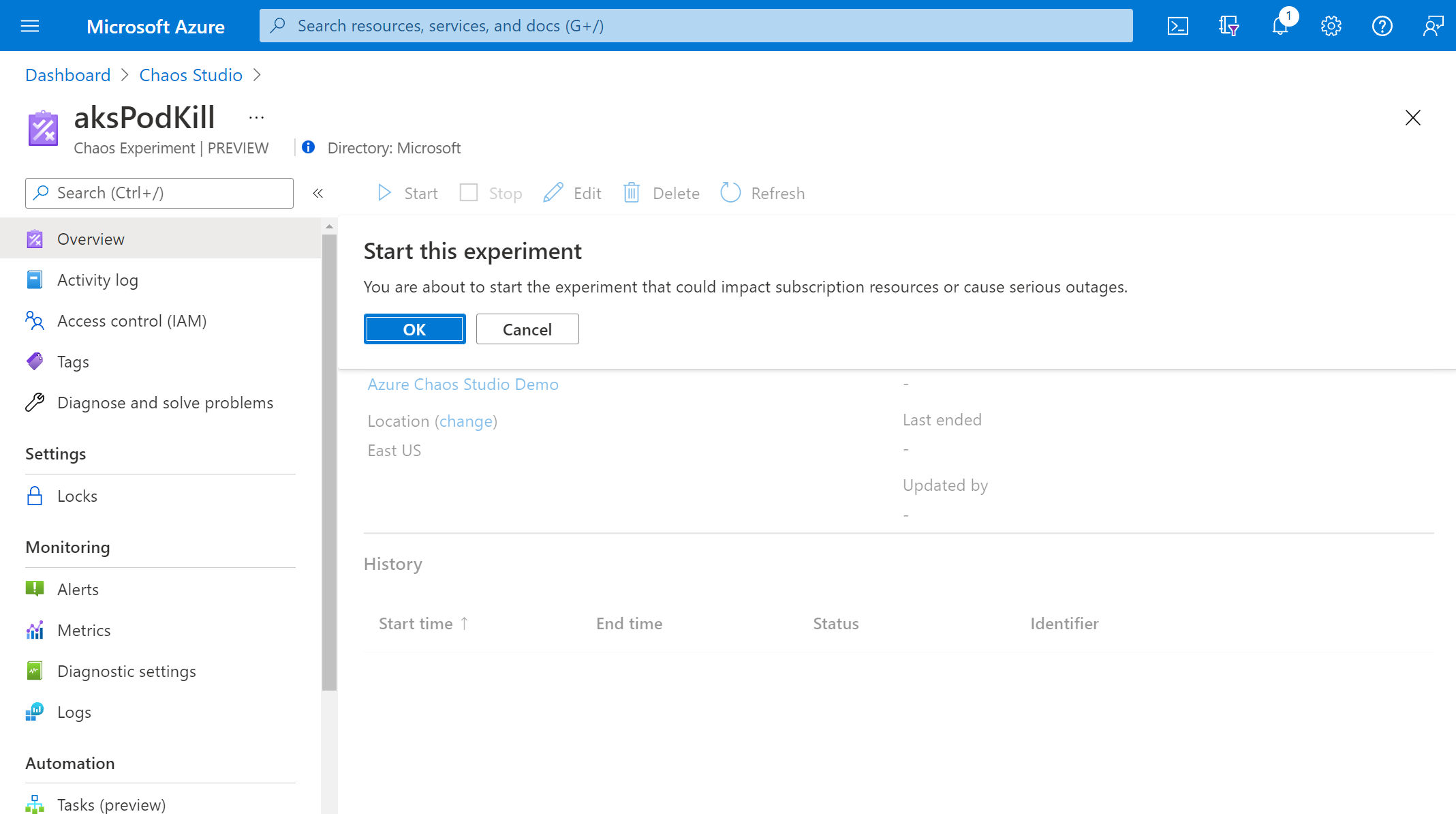

    Screenshot that shows starting an experiment.

  2. When the Status changes to Running, select Details for the latest run under History to see details for the running experiment.
