Add Azure Blob Storage event source to an eventstream (preview)

This article shows you how to add an Azure Blob Storage event source to an eventstream. An event is the smallest amount of information that fully describes something that happened in a system. Azure Blob Storage events are triggered when a client creates, replaces, or deletes a blob. Microsoft Fabric event streams allows you to link Blob Storage events to Fabric events in Real-Time hub.

When you add Azure Blob Storage events as an eventstream source, it automatically creates system events to your Blob Storage account and links them to Fabric events in Real-Time hub. You can then convert these events into continuous data streams and transform them before routing them to various destinations in Fabric.

Fabric event streams supports the following Blob Storage event types:

Event name Description
Microsoft.Storage.BlobCreated Triggered when a blob is created or replaced.
Microsoft.Storage.BlobDeleted Triggered when a blob is deleted.
Microsoft.Storage.BlobRenamed Triggered when a blob is renamed.
Microsoft.Storage.BlobTierChanged Triggered when the blob access tier is changed.
Microsoft.Storage.DirectoryCreated Triggered when a directory is created.
Microsoft.Storage.DirectoryRenamed Triggered when a directory is renamed.
Microsoft.Storage.AsyncOperationInitiated Triggered when an operation involving moving or copying data from the archive to hot or cool tiers is initiated.
Microsoft.Storage.DirectoryDeleted Triggered when a directory is deleted.
Microsoft.Storage.BlobInventoryPolicyCompleted Triggered when the inventory run completes for a rule that defines an inventory policy.
Microsoft.Storage.LifecyclePolicyCompleted Triggered when the actions defined by a lifecycle management policy are done.

For more details about available event types, see Azure Blob Storage as Event Grid source.

Important

Enhanced capabilities of Fabric event streams are currently in preview.

Note

This source is not supported in the following regions of your workspace capacity: Germany West Central, South-Central US, West US2, West US3, West India.

Unstreamed vs. streamed events

Azure Blob Storage events are discrete events with clear start and end points. Fabric Real-Time hubs can capture these events in two formats:

  • Unstreamed events. These events are represented in their raw format as discrete events. If Azure Blob Storage events aren't streamed in an eventstream, they're not directly connected to the eventstream, and the default stream isn't created.

    This status indicates that the events are linked to Fabric events in the Real-Time hub and awaiting further action. Actions include creating alerts with Data Activator that execute Fabric job items like Pipeline or Notebook in the Fabric events tab in Real-Time hub.

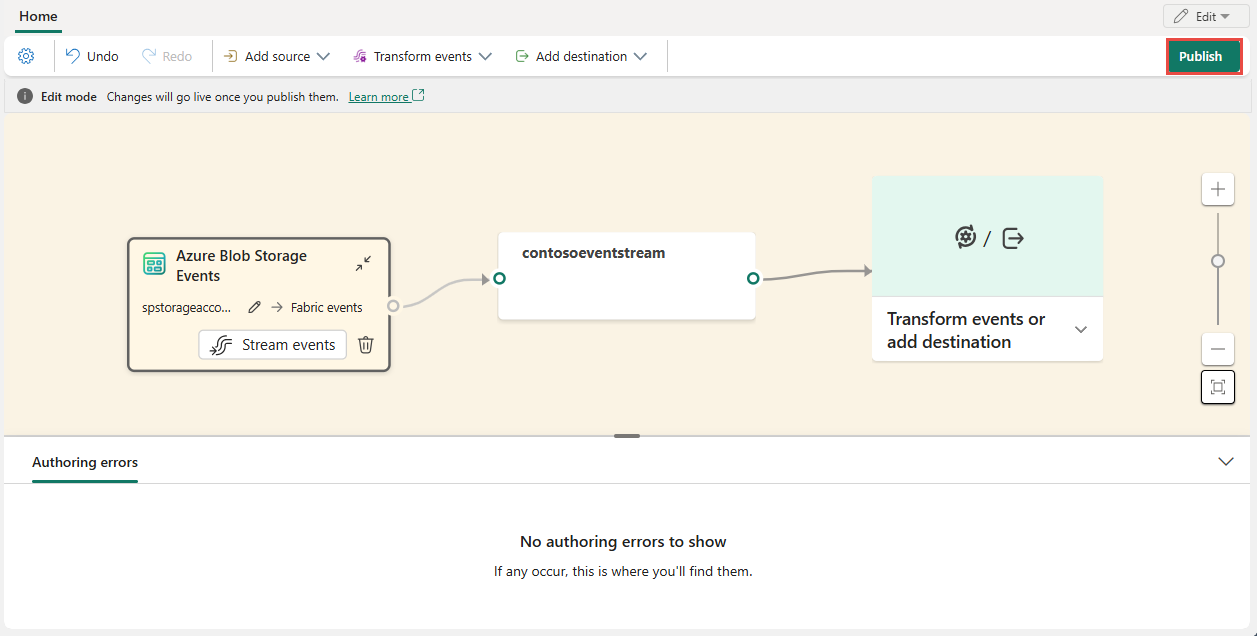

    A screenshot showing unstreamed Azure Blob Storage events with the button to Stream events.

  • Streamed events. These events are converted to continuous events, enabling real-time transformation and routing to various destinations in Fabric for further analysis. In an eventstream, selecting the Stream events button on an unstreamed Azure Blob Storage source converts the events into continuous events. The eventstream is then assigned a default stream, letting you add operations and route it to other destinations in Fabric.

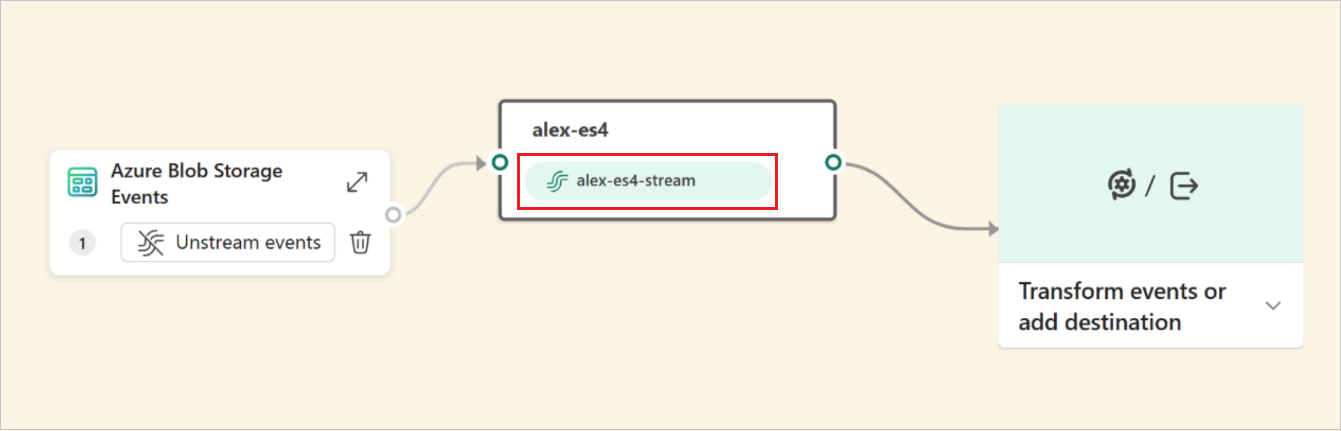

    A screenshot showing streamed Azure Blob Storage events in an eventstream.

Prerequisites

  • Access to the Fabric premium workspace with Contributor or higher permissions.
  • Access to an Azure Blob Storage StorageV2 (general purpose v2), BlockBlobStorage, or BlobStorage account. The Storage (general purpose v1) storage type doesn't support integration with Fabric event streams.

Note

The maximum number of sources and destinations for one eventstream is 11.

Add Azure Blob Storage events as source

  1. Select Eventstream to create a new eventstream. Make sure the Enhanced Capabilities (preview) option is enabled.

    A screenshot of creating a new eventstream.

  2. On the next screen, select Add external source.

    A screenshot of selecting Add external source.

Configure and connect to Azure Blob Storage events

  1. On the Select a data source screen, select Azure Blob Storage events.

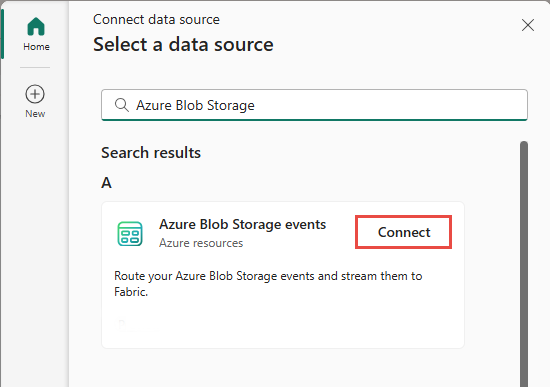

    A screenshot of selecting Azure Blob Storage events.

  2. On the Connect screen, select the Subscription and the Storage account that you want to capture in the eventstream.

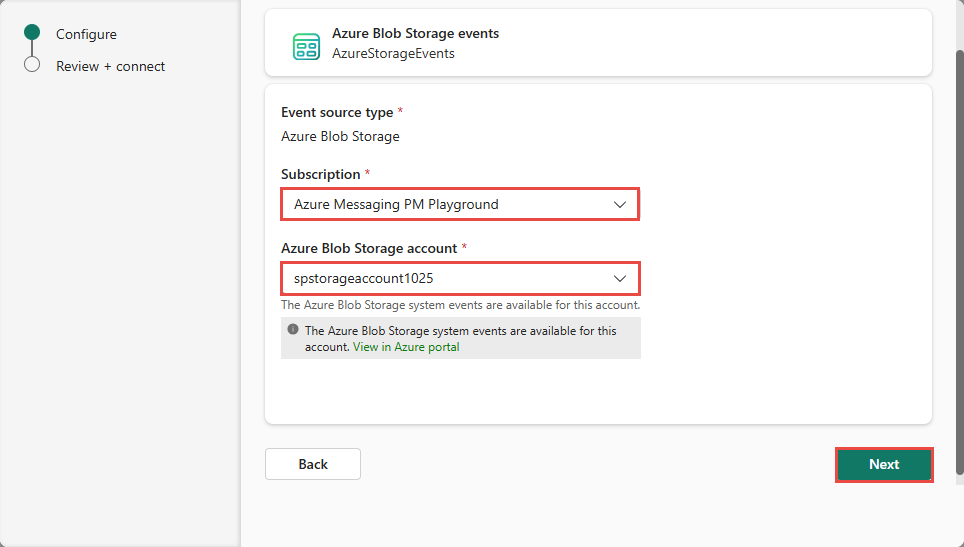

    A screenshot of the Connect screen.

  3. Select Next.

  4. On the Review and create screen, review the summary, and then select Add to complete the configuration for Azure Blob Storage events.

    A screenshot of the Add screen.

Once the connection is created, you can see the Azure Blob Storage event source added to your eventstream in Edit mode. Select Publish to publish the eventstream and start capturing your Azure Blob Storage events.

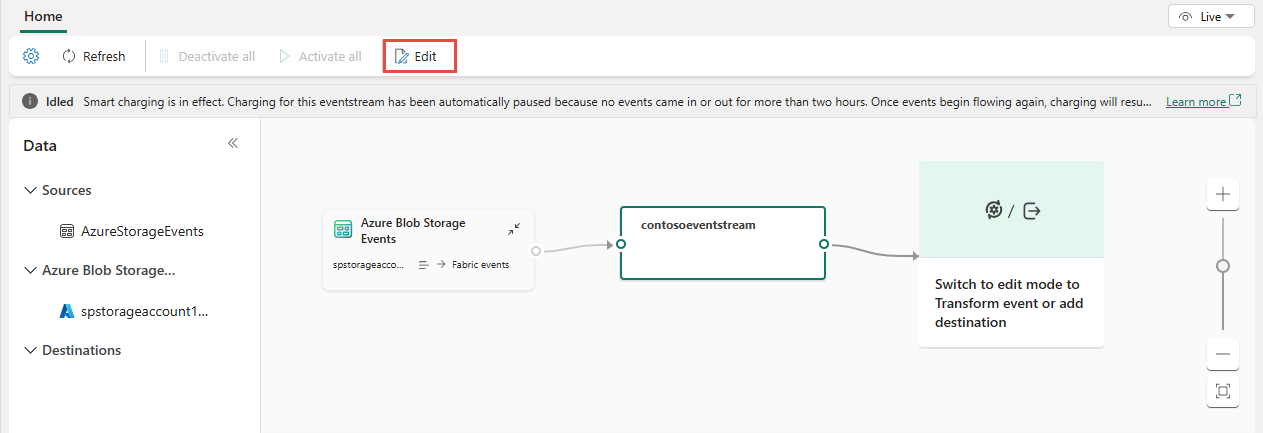

A screenshot of the Azure Blob Storage events source added to the eventstream.

Note

The Eventstream node in the editor doesn't have a default stream created. This is because the Blob Storage events are still in the form of discrete events and aren't yet converted to a stream or connected to the eventstream.

After you publish the changes, your Azure Blob Storage account is now linked to the Real-Time hub. Go to Real-time hub > Fabric events > Azure Blob Storage Events, you can locate your Azure Blob Storage account in the drop-down list and set a trigger to take actions on the blob storage events.

A screenshot of selecting Azure Blob Storage Events under Fabric events in Real-Time hub.

A screenshot of the Azure Blob Storage Events page in Real-Time hub.

Transform Azure Blob Storage events

After you link Azure Blob Storage events to Fabric events in Real-Time hub, you can convert these events into a stream and do transformations within eventstreams.

  1. After you add an Azure Blob Storage event source in Edit mode, select Stream events in the source to convert the Blob Storage events into a data stream.

    A screenshot of the unstreamed event source in Edit mode with Stream events highlighted.

  2. Respond Yes to the popup that asks if you want to stream the Blob Storage events into the eventstream.

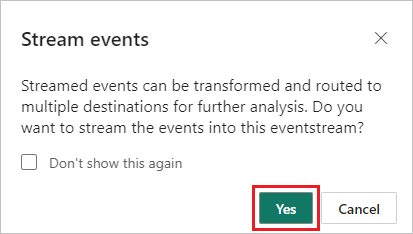

    A screenshot of the confirmation popup for streaming events.

  3. In the editor, a default stream is created within the eventstream node, indicating that the Blob Storage events are converted into a stream as the default stream.

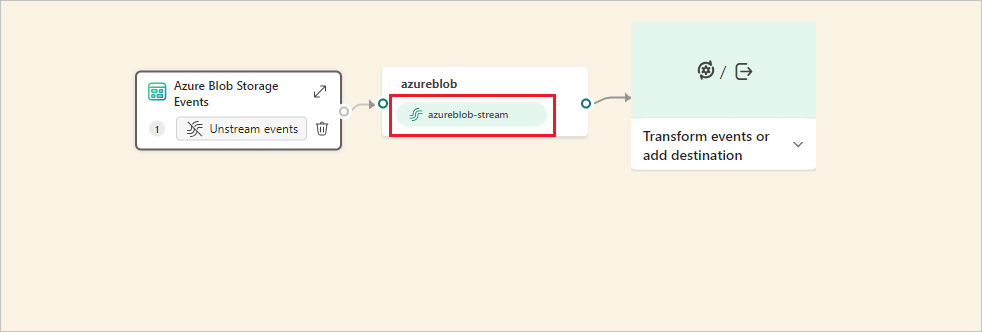

    A screenshot of the eventstream in Edit Mode showing the default stream.

  4. Then you need to publish the eventstream and make sure there's at least one event being triggered from your Azure Blob Storage in order to proceed with transformation or routing.

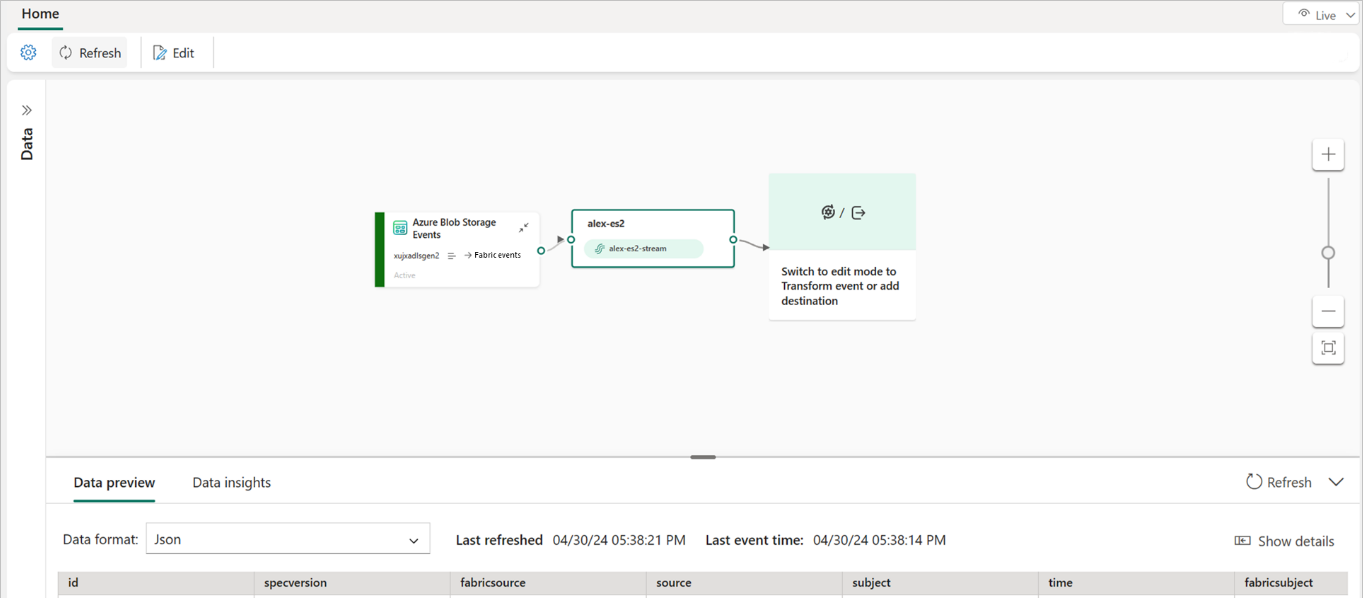

    A screenshot of the published eventstream in Live View.

  5. Once events are flowing into the eventstream, enter Edit mode and add operations to transform the streamed Blob Storage events. The following example shows that the Blob Storage events are aggregated and routed to a KQL database.

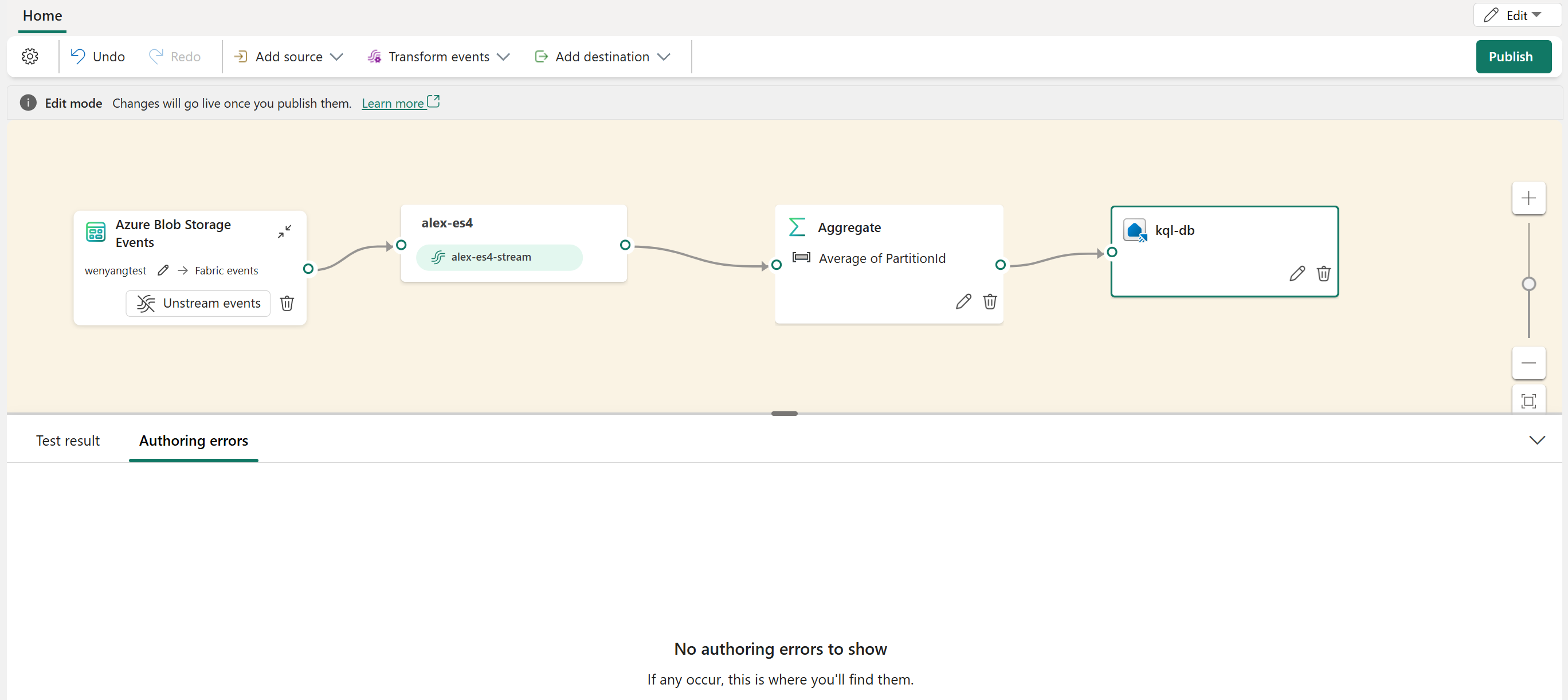

    A screenshot of the transformed eventstream in Edit Mode.

  6. Once the changes are published, the streamed Azure Blob Storage events are transformed and routed to the designated destination in Fabric.

    A screenshot of the transformed eventstream in Live Mode showing the default stream.

    You can also view the data stream on the Data streams tab of Real-Time hub for verification.

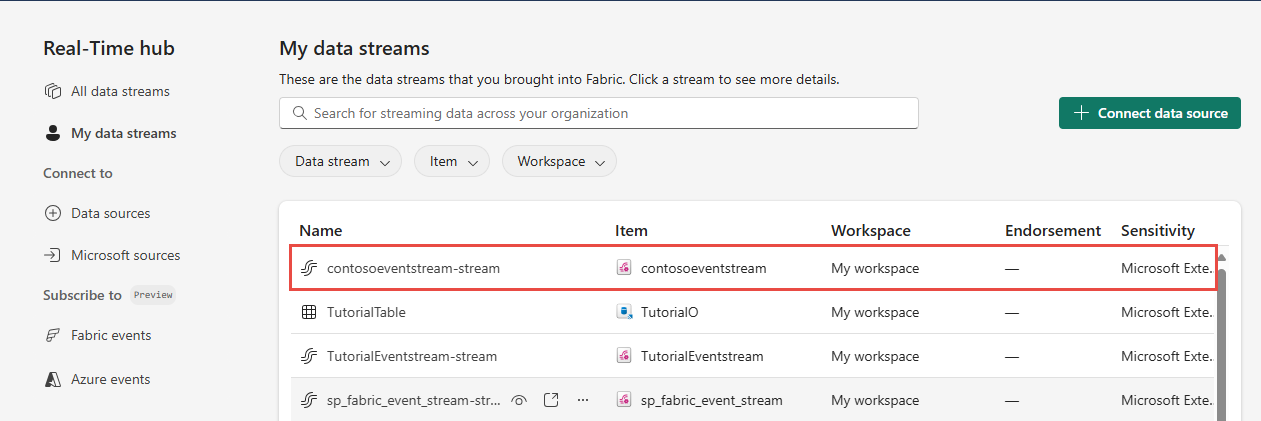

    A screenshot of the eventstream listed under Data streams in the Real-Time hub.

Known limitations

  • Currently, error messages aren't available when an error occurs on discrete events sources.
  • Currently, the Data Preview feature isn't available for discrete events sources.
