errors using claude api in microsoft foundry

Question

I have been having authentication issues using claude sonnet models in azure foundry - the errors are intermittent

mostly authentication errors

"{"error":{"code":"invalid_model_endpoint_authentication","message":"Failed to authenticate to backend endpoint. RequestId = req_011CZppPKJPrcnPiNtHteK2R","details":"Failed to authenticate to backend endpoint. RequestId = req_011CZppPKJPrcnPiNtHteK2R"}}"

There is nothing wrong with my api key or code because right now everything is working again

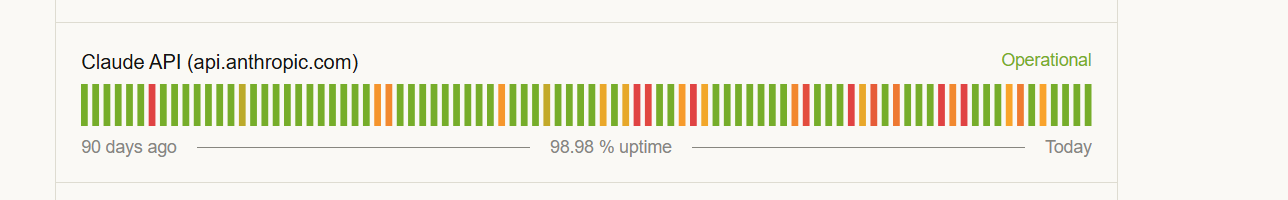

I have been reading the forums and see that every day the claude api has issues - should that affect a azure foundry deployment ?

like i said it's intermittent which leads me to believe that there are platform issues somewhere

Answer 1

Hello GS,

Greetings!

Thanks for raising this question in Q&A forum.

You are right to suspect a platform-level issue, and your instinct is correct — this is not caused by your API key or your code. Let me explain what is happening and what you can do about it.

Why this is happening

In this preview platform integration, Claude models run on Anthropic's infrastructure. This is a commercial integration for billing and access through Azure. This means that when you call Claude through Azure Foundry, your request travels through Azure's API Management layer (APIM) and then gets forwarded to Anthropic's backend for actual inference. The invalid_model_endpoint_authentication error occurs at the handshake between Azure's APIM layer and Anthropic's backend not between your code and Azure. When that backend-to-backend authentication temporarily breaks, it shows up as an intermittent error on your end, even though your own key and code are perfectly fine.

This is why you see it come and go it is a transient platform issue, not something you broke.

What you can do right now

Step 1: Capture the Request IDs for Support

When contacting support, provide both the request-id and apim-request-id values to help teams quickly locate and investigate your request across both Anthropic and Azure systems. These are included in the HTTP response headers. Next time you see the error, capture those header values before the error clears.

Step 2: Implement Retry Logic with Exponential Backoff

Since the errors are transient and self-resolve, the best immediate mitigation is to add retry logic in your code. Implement exponential backoff and retry logic in your application so that when a transient auth error occurs, your application automatically waits a few seconds and retries rather than failing completely.

A simple pattern looks like this (Python example):

import time

def call_with_retry(client, max_retries=3):
    for attempt in range(max_retries):
        try:
            return client.messages.create(...)
        except Exception as e:
            if attempt < max_retries - 1:
                time.sleep(2 ** attempt)  # 1s, 2s, 4s
            else:
                raise

Step 3: Switch to Microsoft Entra ID Authentication

Claude Code supports two authentication methods for Microsoft Foundry — Microsoft Entra ID (recommended): Uses your Azure CLI credentials. Best for enterprise environments, team access, and CI/CD pipelines where you want centralized identity management without managing secrets. Switching to Entra ID authentication can reduce the frequency of these transient backend auth issues because it uses token-based auth that is renewed automatically.

Step 4: Monitor the Azure Status Page

Keep an eye on the Azure Service Health dashboard at https://status.azure.com and also check https://status.anthropic.com for any ongoing incidents. Since both platforms are involved in your call chain, issues on either side can cause these errors.

Step 5: Open a Support Ticket with the Request IDs

If the error persists with invalid_model_endpoint_authentication, open an Azure Support ticket via your Azure portal under Technical > Azure AI Foundry > Deployment/Provisioning and ensure you provide details on the error. Include the RequestId from the error message (like the req_011CZpp... you shared) along with the apim-request-id from the response headers this allows the engineering team on both the Azure and Anthropic sides to trace exactly what went wrong.

To summarize your code and API key are fine. These errors are caused by transient backend connectivity issues between Azure APIM and Anthropic's infrastructure. Adding retry logic is the most practical fix while Microsoft and Anthropic work to improve reliability of this integration.

If this answer helps you kindly accept the answer which will help others who have similar questions.

Best Regards,

Jerald Felix.

Answer 2

Hello GS,

Welcome to Microsoft Q&A .Thank you for reaching out to us.

Adding on to the imputs provided by Jerald Felix , please check if the following helps:

Claude models accessed through Azure AI Foundry are hosted on upstream infrastructure, with requests routed through Foundry’s managed endpoint before reaching the inference backend. During brief periods of upstream service fluctuation or backend routing transitions, authentication handshakes may occasionally fail, resulting in short‑lived errors such as invalid_model_endpoint_authentication. Once the transient condition clears, requests resume normal operation automatically.

Intermittent authentication errors observed while invoking Claude Sonnet models through Azure AI Foundry are consistent with temporary platform‑level behavior rather than an application configuration or credential issue. The behavior aligns with scenarios where requests are successfully processed again without any changes, indicating a transient condition that resolves on its own.

Following steps might be of help to mitigate transient authentication failures

1. Implementing retry logic with exponential backoff - Transient backend failures are best handled by retrying requests after a short delay rather than failing immediately.
   • Use a limited number of retries (for example, 3–5 attempts)
   • Apply increasing wait intervals between retries (for example, 1s, 2s, 4s)
   • Treat intermittent authentication failures as retryable events
   • please refer Transient Fault Handling - Azure Architecture Center | Microsoft Learn for detailed approach.
2. Verifying endpoint and deployment configuration - Please confirm that calls are routed to the correct Foundry endpoint and deployment.
   • Base endpoint format: https://<resource-name>.services.ai.azure.com/anthropic
   • Deployment name used in the request must exactly match the deployed model name which is case‑sensitive
   • Please consider referring to Endpoints for Microsoft Foundry Models - Microsoft Foundry | Microsoft Learn
3. Confirming regional availability and deployment location as claude models are supported only in specific regions,ensuring the Foundry resource and deployment are created in a supported region avoids intermittent routing inconsistencies.
4. Monitoring upstream service health during occurrences - Since inference is performed on upstream infrastructure, temporary service events there may impact requests routed through Foundry. Correlating error timestamps with upstream status helps validate transient behavior.

The following resources might be helpful , please check them out

• Deploy and use Claude models in Microsoft Foundry - Microsoft Foundry | Microsoft Learn
• Claude Status
