Tutorial: Configure network for Azure Stack Edge Pro 2

This tutorial describes how to configure network for your Azure Stack Edge Pro 2 device by using the local web UI.

The connection process can take around 20 minutes to complete.

In this tutorial, you learn about:

• Prerequisites
• Configure network
• Configure advanced networking
• Configure web proxy
• Validate network settings

Prerequisites

Before you configure and set up your Azure Stack Edge Pro 2 device, make sure that you:

• Install the physical device as detailed in Install Azure Stack Edge Pro 2.
• Connect to the local web UI of the device as detailed in Connect to Azure Stack Edge Pro 2.

Configure setup type

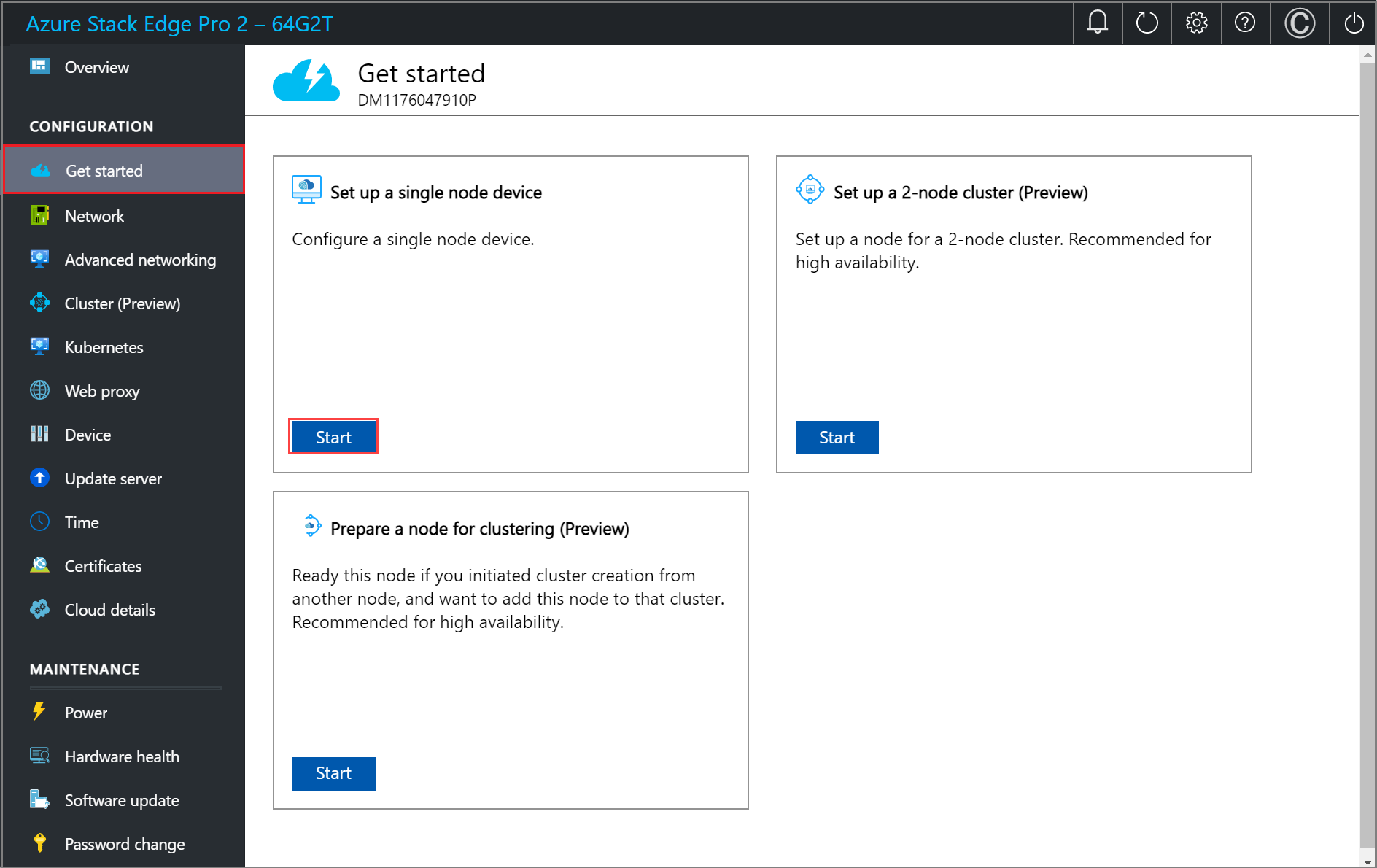

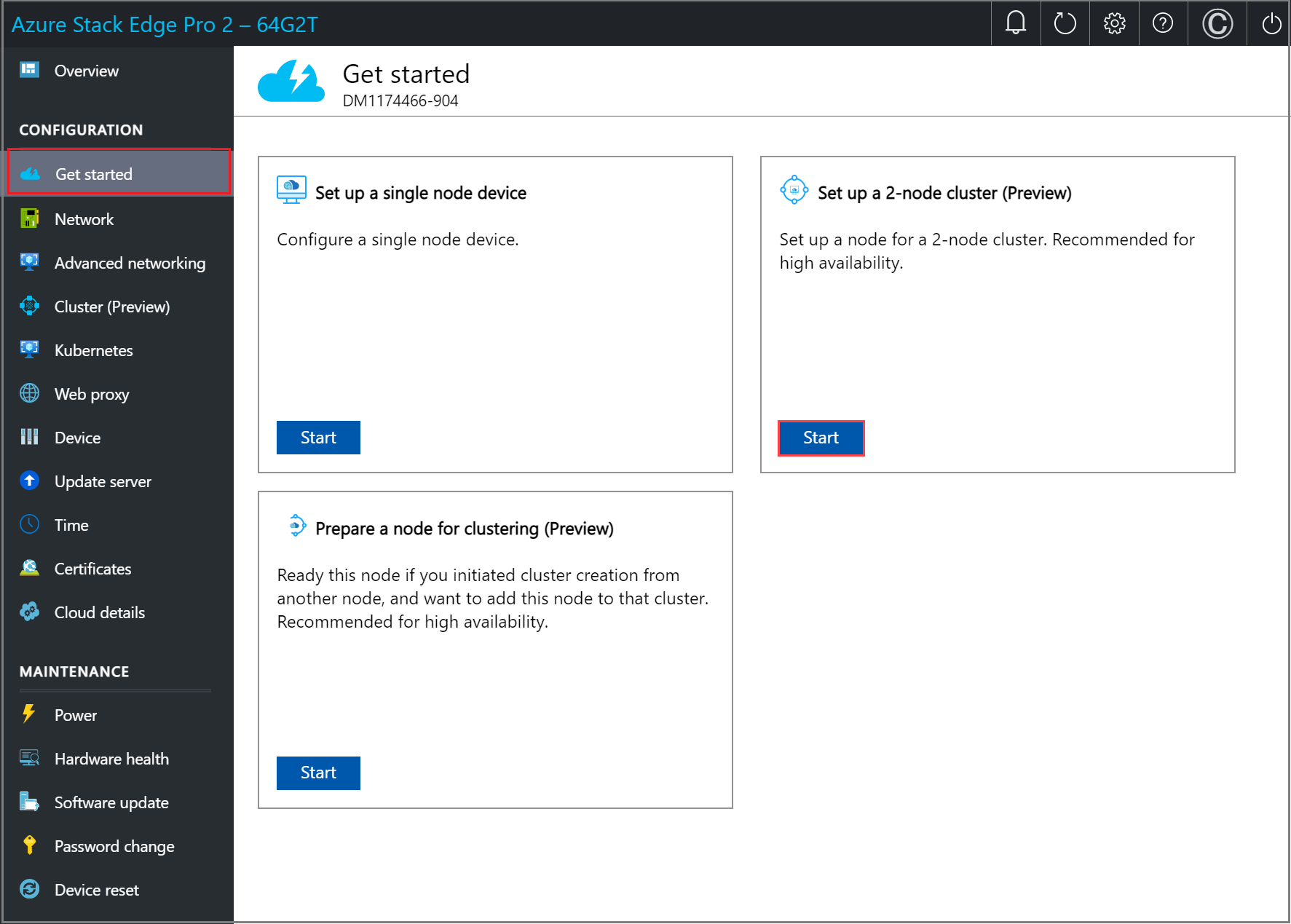

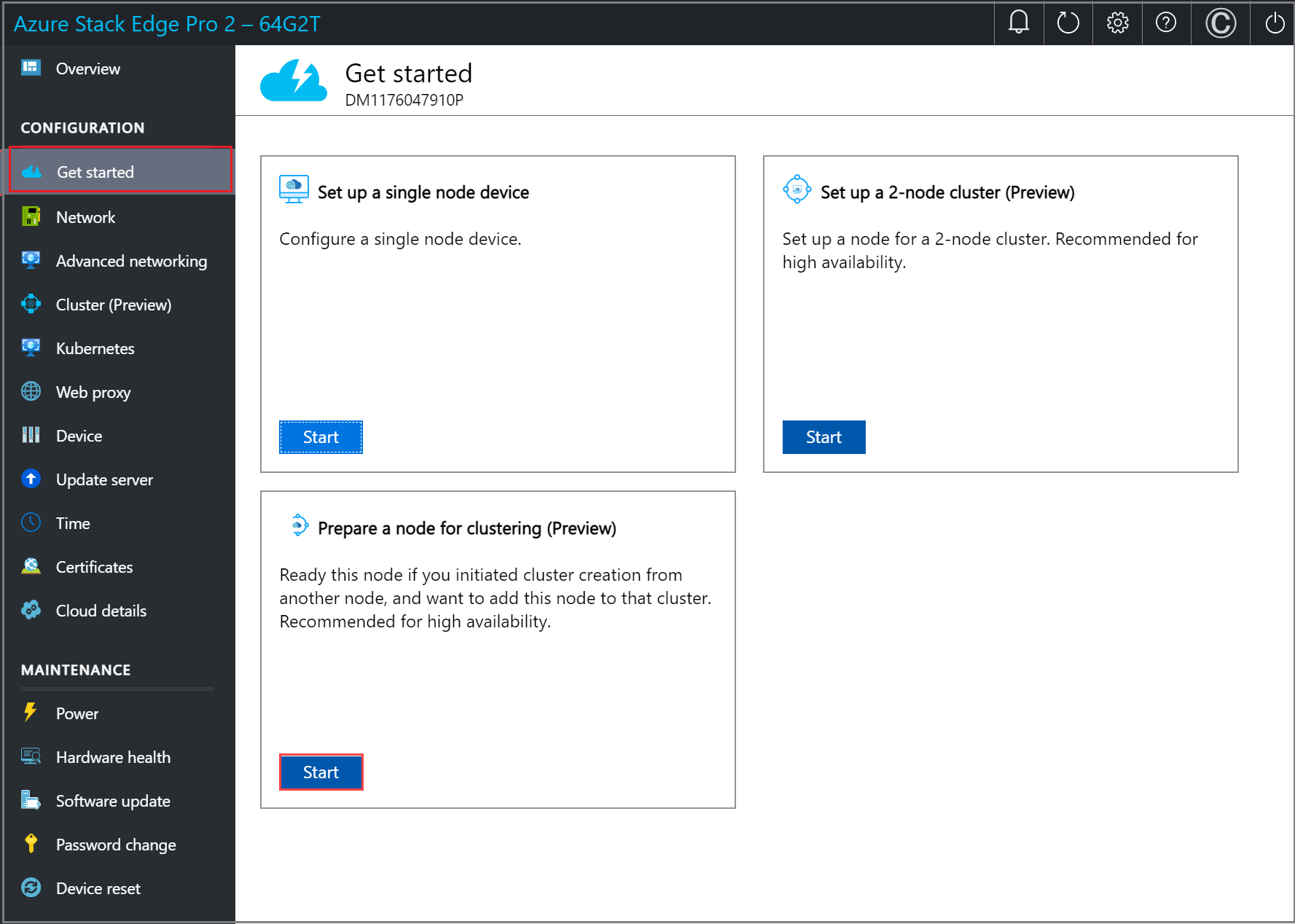

1. Go to the Get started page.

2. In the Set up a single node device tile, select Start.



Configure network

Your Get started page displays the various settings that are required to configure and activate the physical device with the Azure Stack Edge service.

Follow these steps to configure the network for your device.

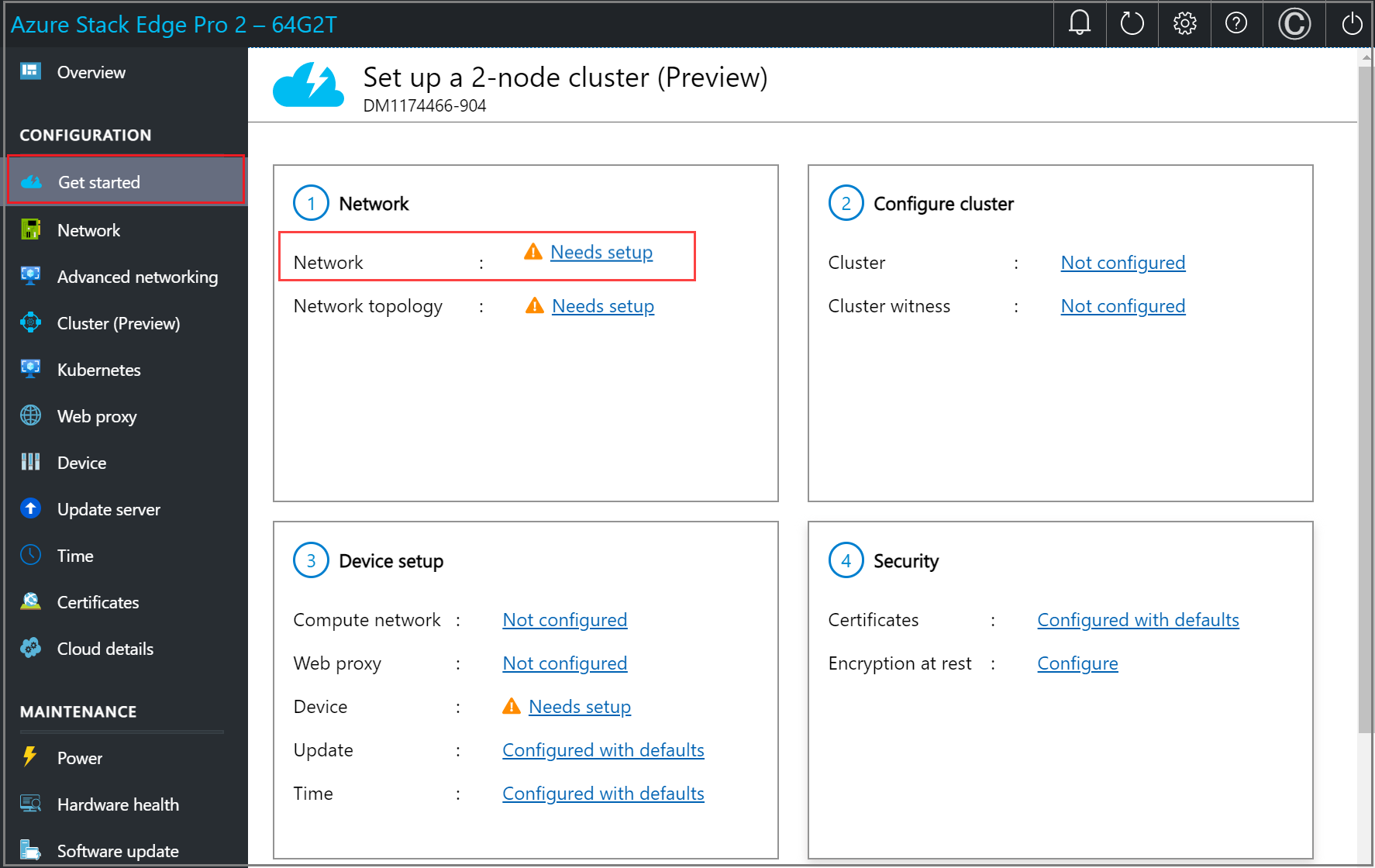

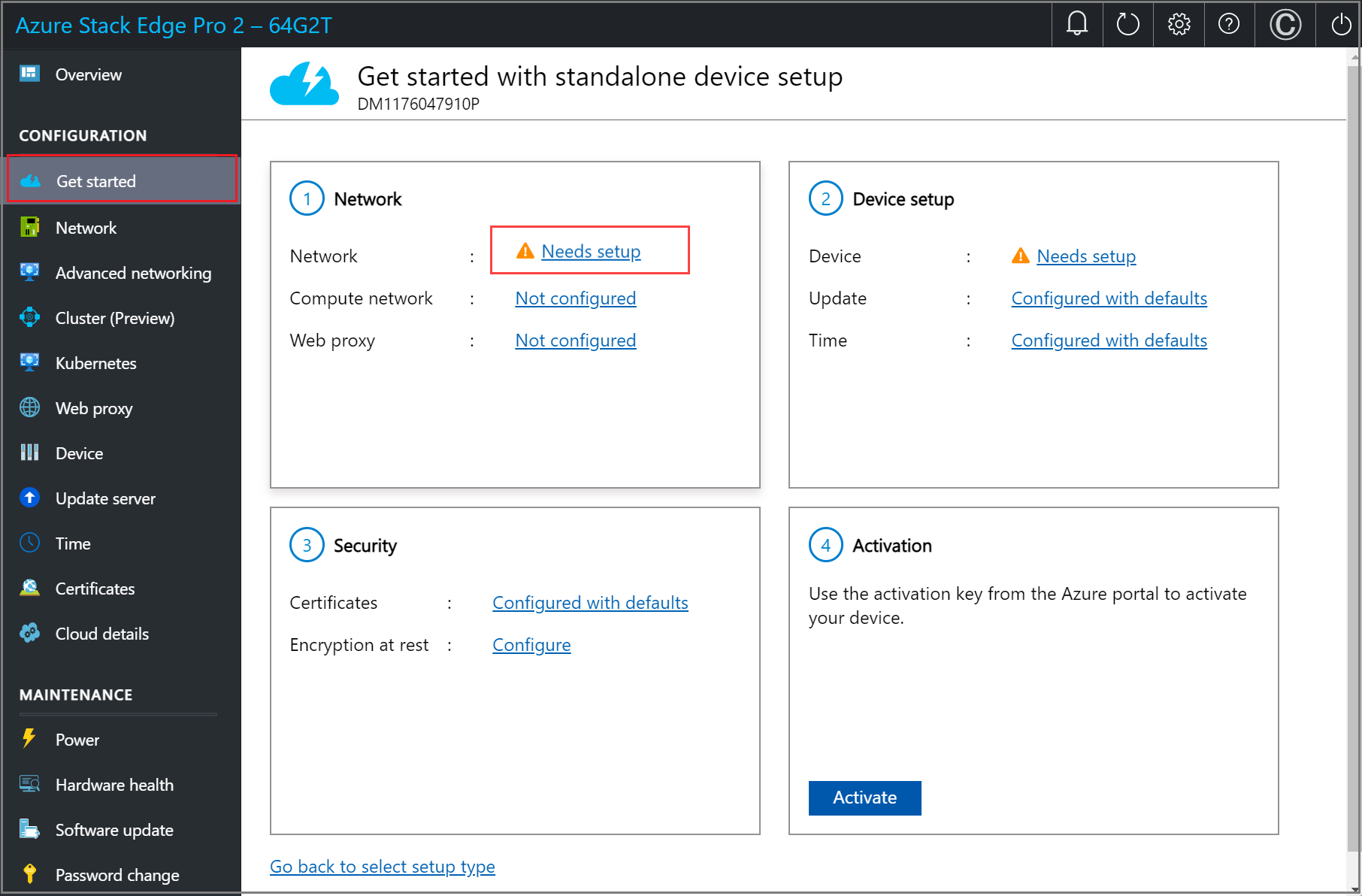

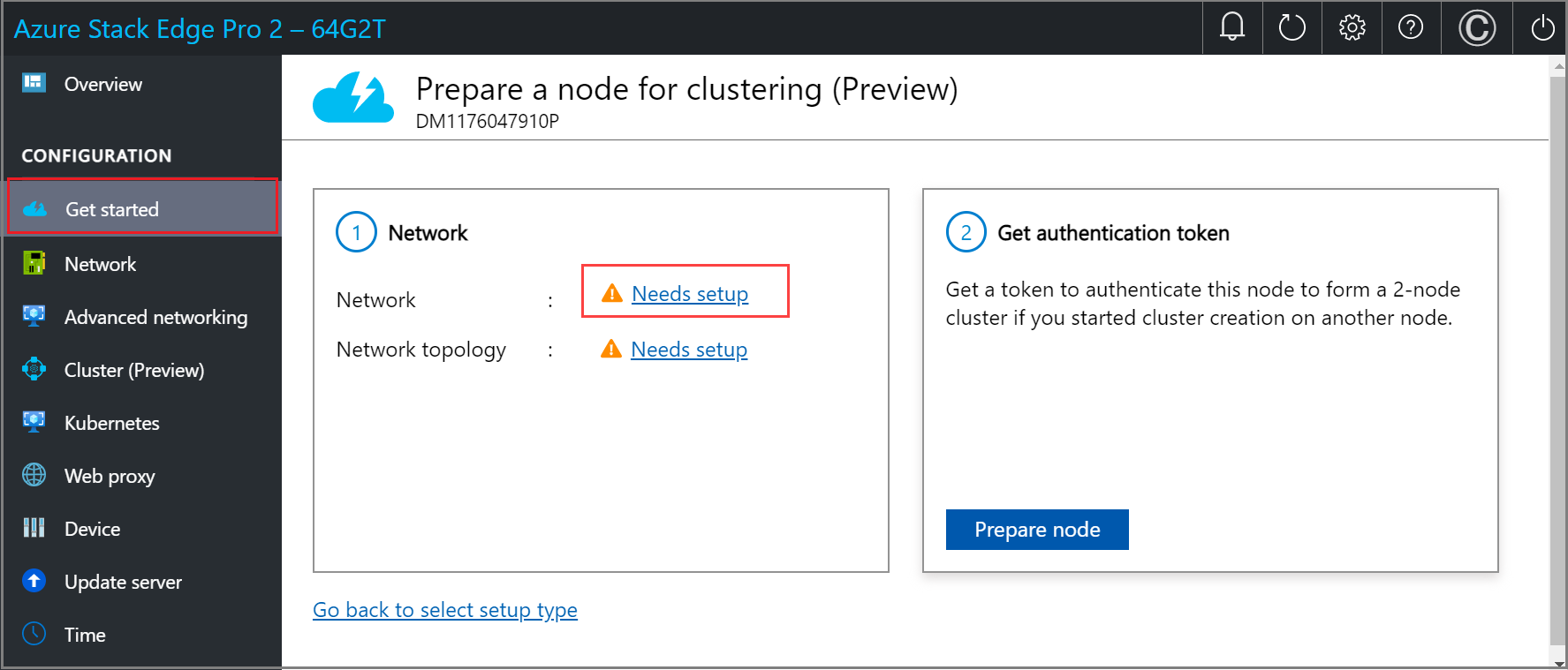

1. In the local web UI of your device, go to the Get started page.

2. On the Network tile, select Needs setup.



   On your physical device, there are four network interfaces. Port 1 and Port 2 are 1-Gbps network interfaces that can also serve as 10-Gbps network interfaces. Port 3 and Port 4 are 100-Gbps network interfaces. Port 1 is used for the initial configuration of the device. For a new device, the Network page is as follows:

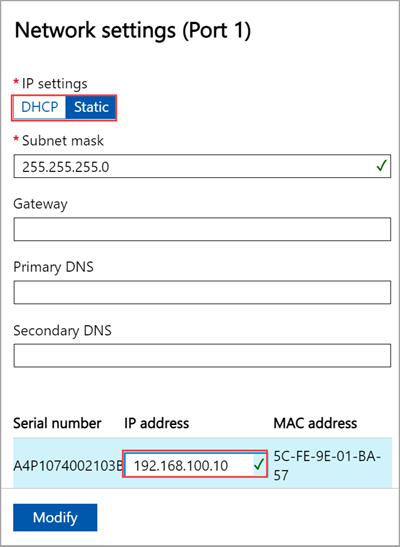

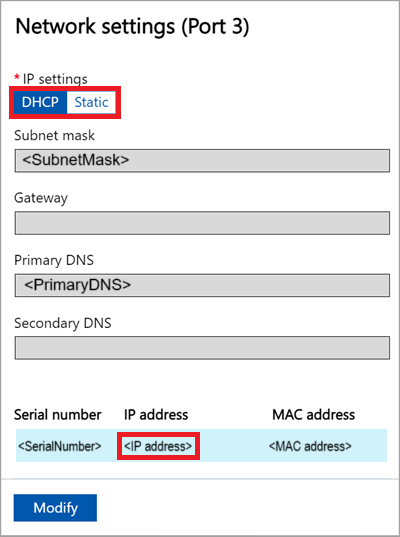

3. To change the network settings, select a port and in the right pane that appears, modify the IP address, subnet, gateway, primary DNS, and secondary DNS.

   • If you select Port 1, you can see that it's preconfigured as static.



   • If you select Port 2, Port 3, or Port 4, all of these ports are configured as DHCP by default.



   As you configure the network settings, keep in mind:

   • Port 3 and Port 4 are reserved for Network Function Manager workload deployments. For more information, see Tutorial: Deploy network functions on Azure Stack Edge.
   • If DHCP is enabled in your environment, network interfaces are automatically configured. An IP address, subnet, gateway, and DNS are automatically assigned.
   • If DHCP isn't enabled, you can assign static IPs if needed.
   • Serial number for any port corresponds to the node serial number.

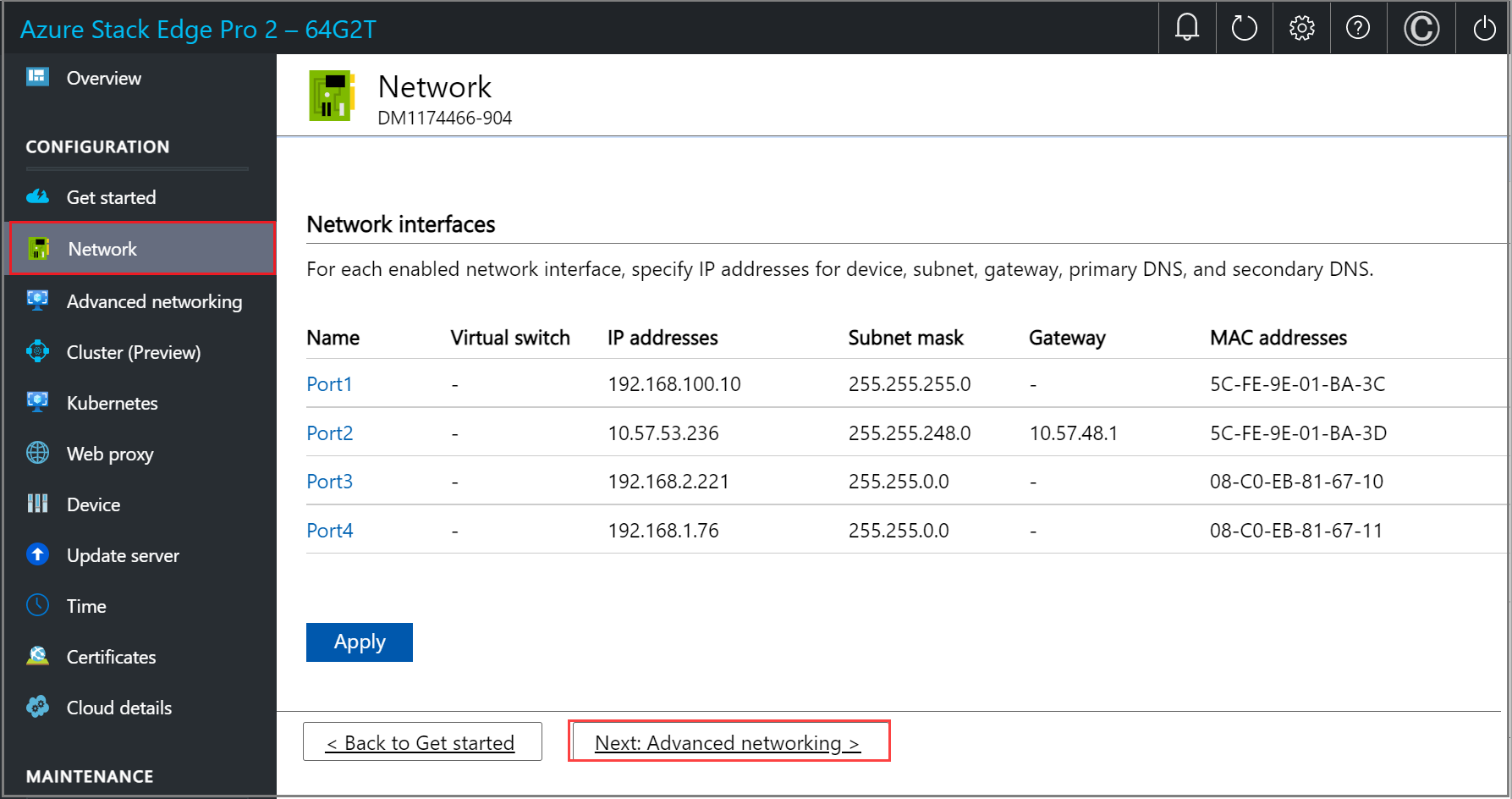

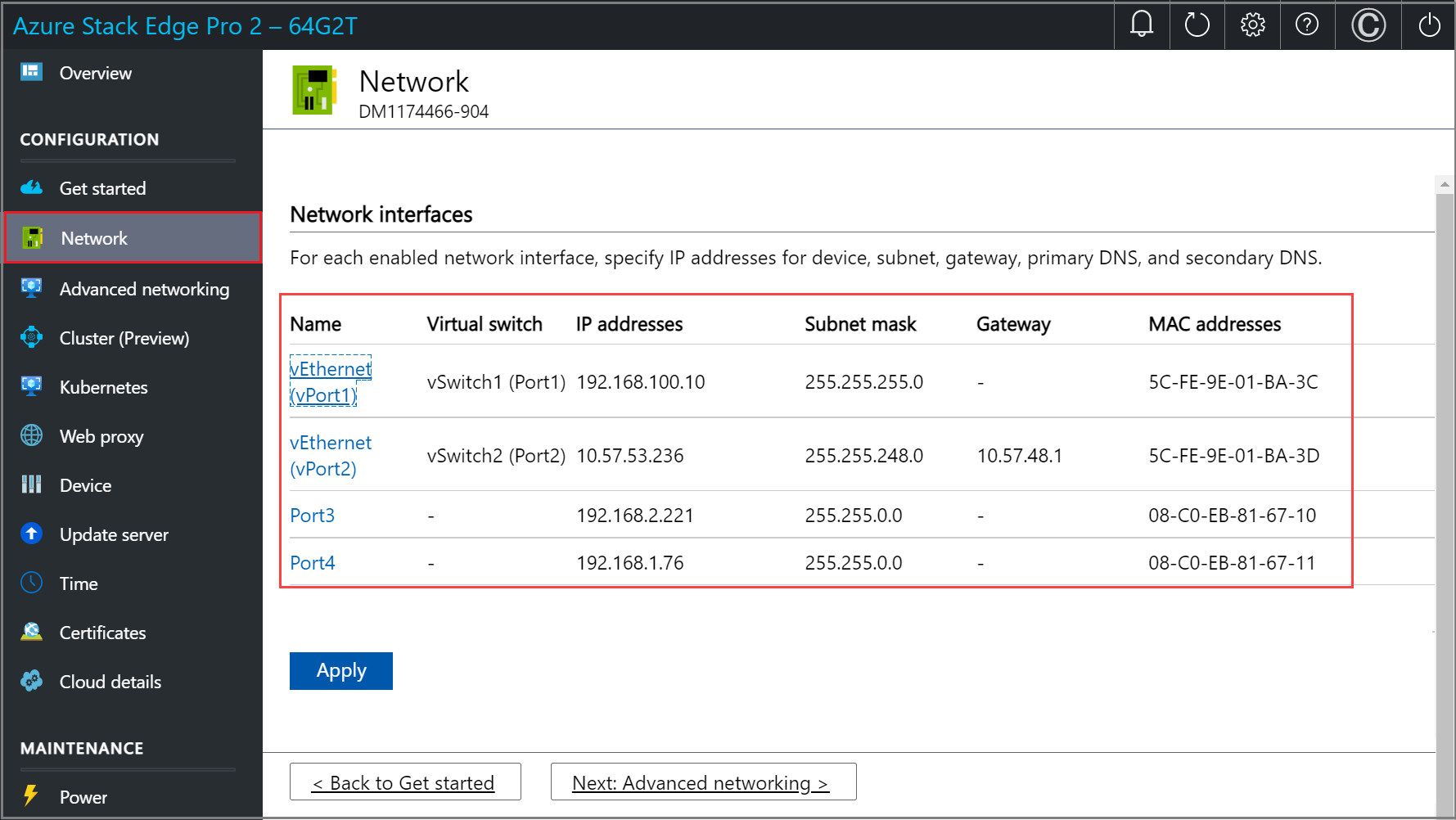

   Once the device network is configured, the page updates as shown below.



   Note

   We recommend that you do not switch the local IP address of the network interface from static to DHCP, unless you have another IP address to connect to the device. If using one network interface and you switch to DHCP, there would be no way to determine the DHCP address. If you want to change to a DHCP address, wait until after the device has activated with the service, and then change. You can then view the IPs of all the adapters in the Device properties in the Azure portal for your service.

   After you configure and apply the network settings, select Next: Advanced networking to configure compute network.

Configure virtual switches

Follow these steps to add or delete virtual switches.

Note

There is no restriction on the number of virtual switches that you can create on your device. However, you can enable compute only on one virtual switch at a time.

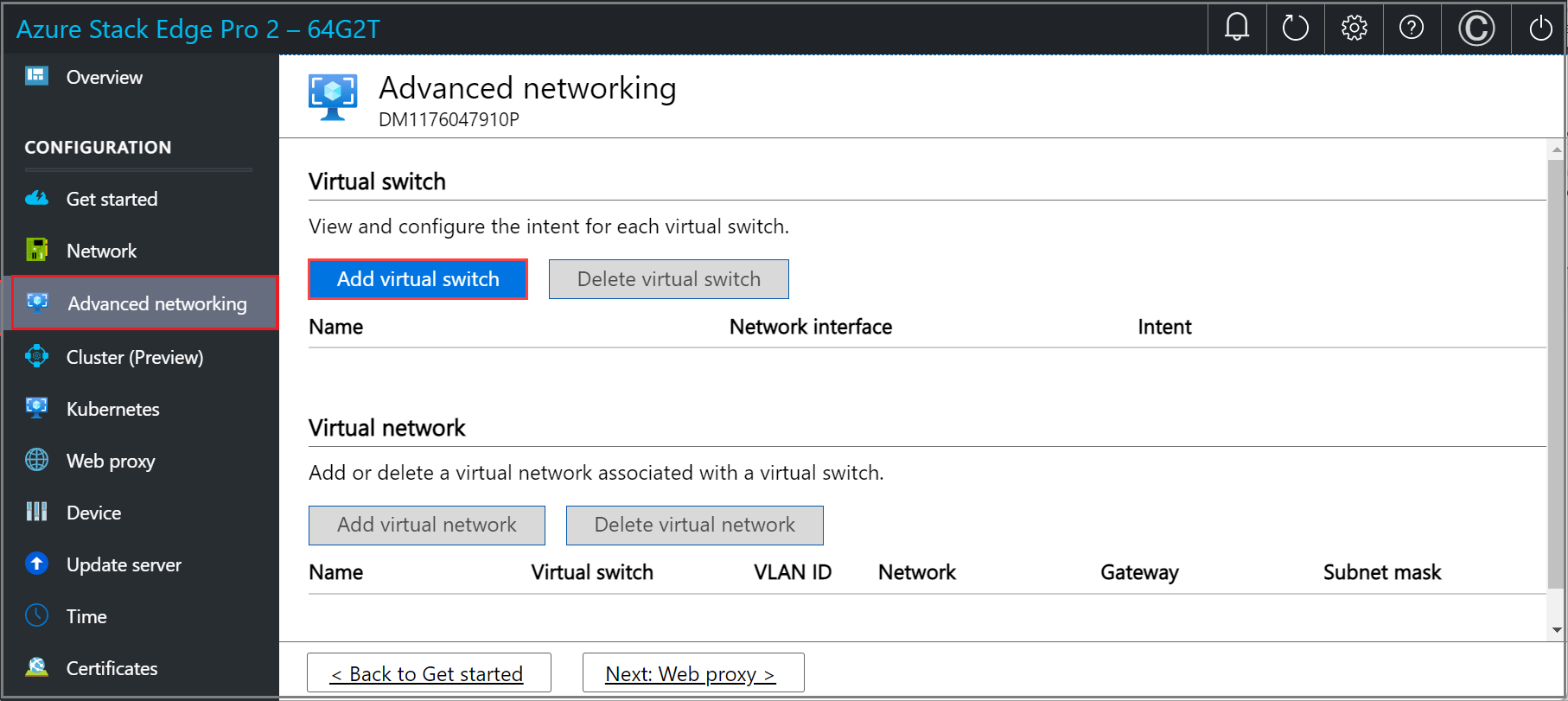

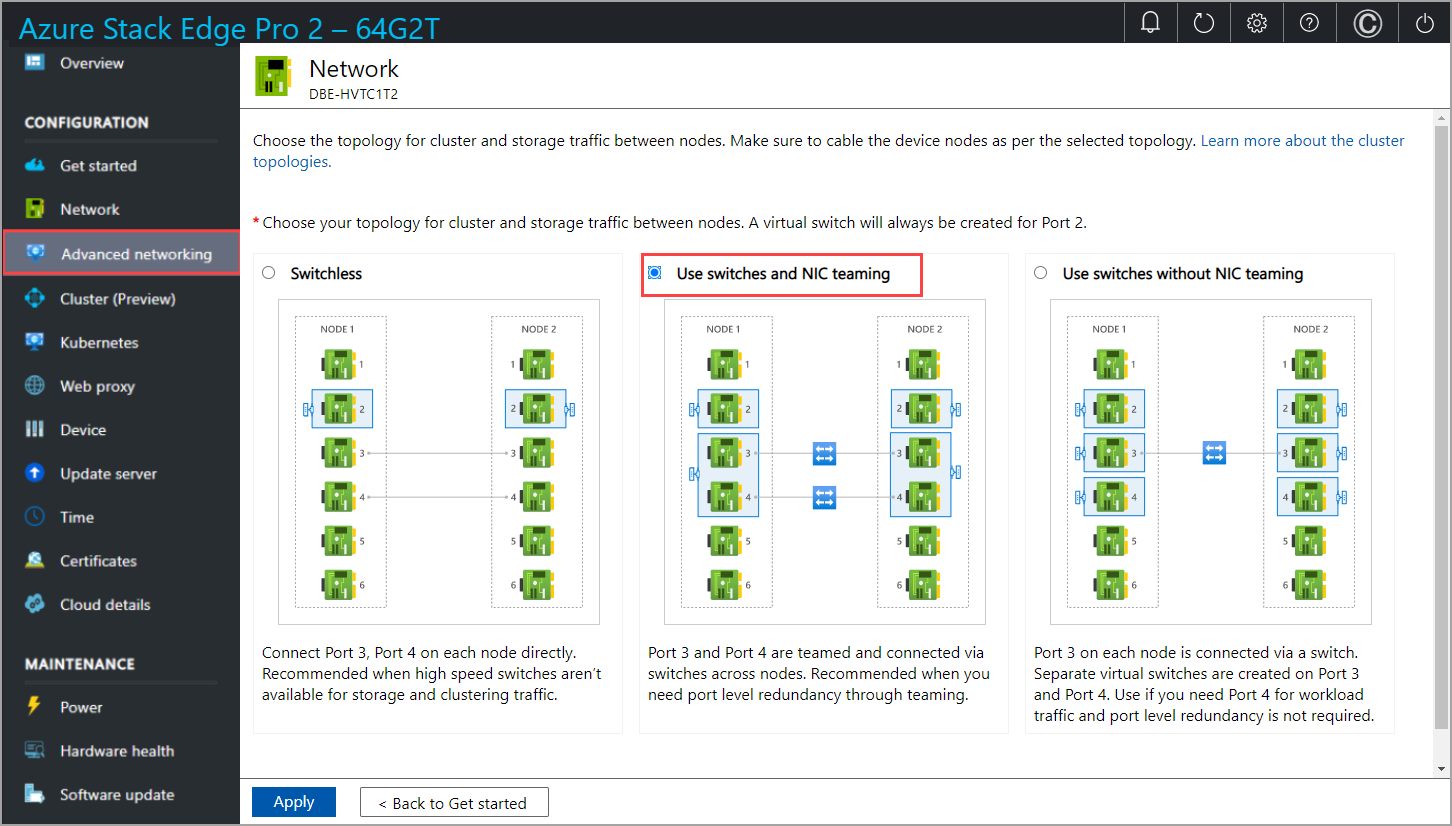

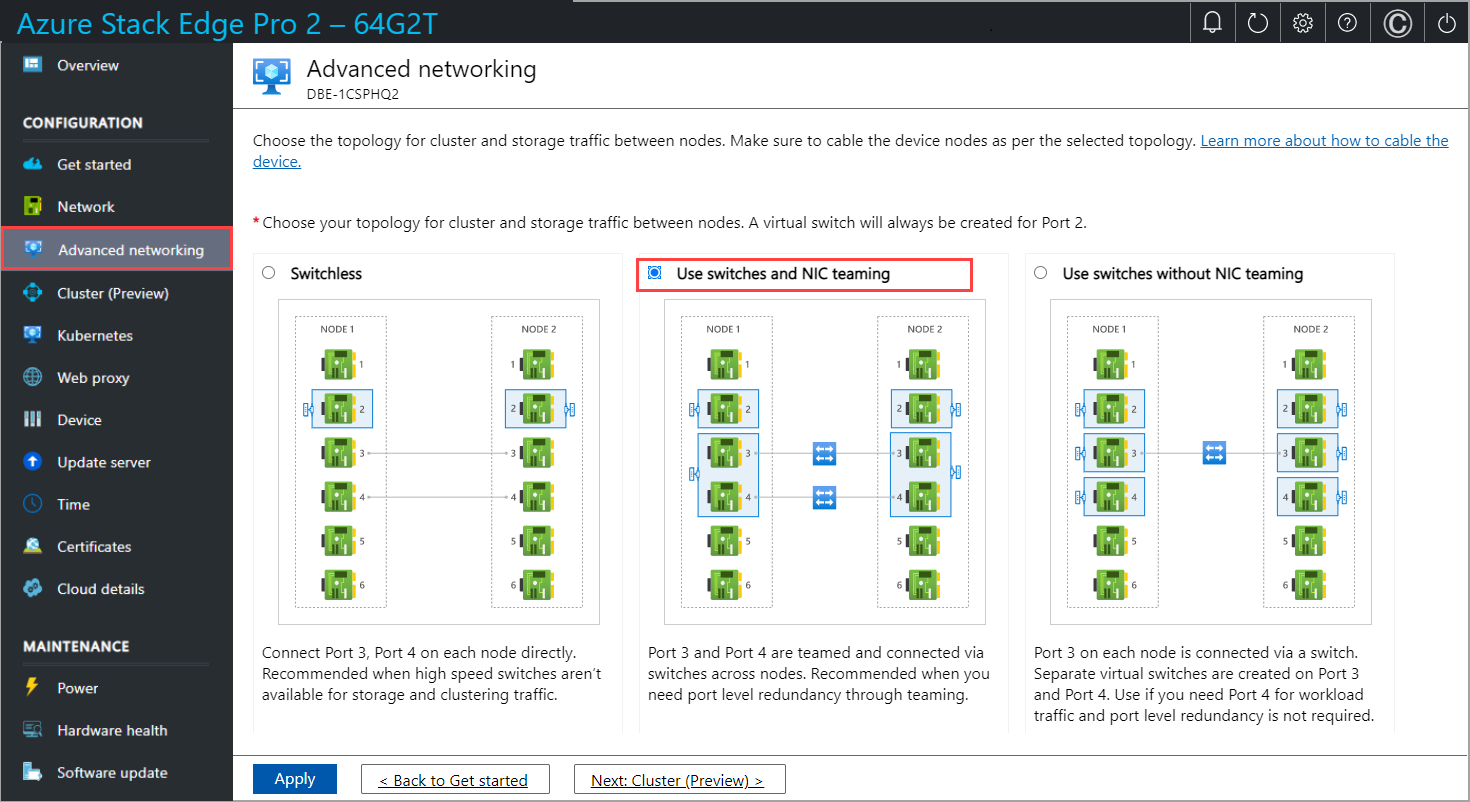

1. In the local UI of your device, go to the Advanced networking page.

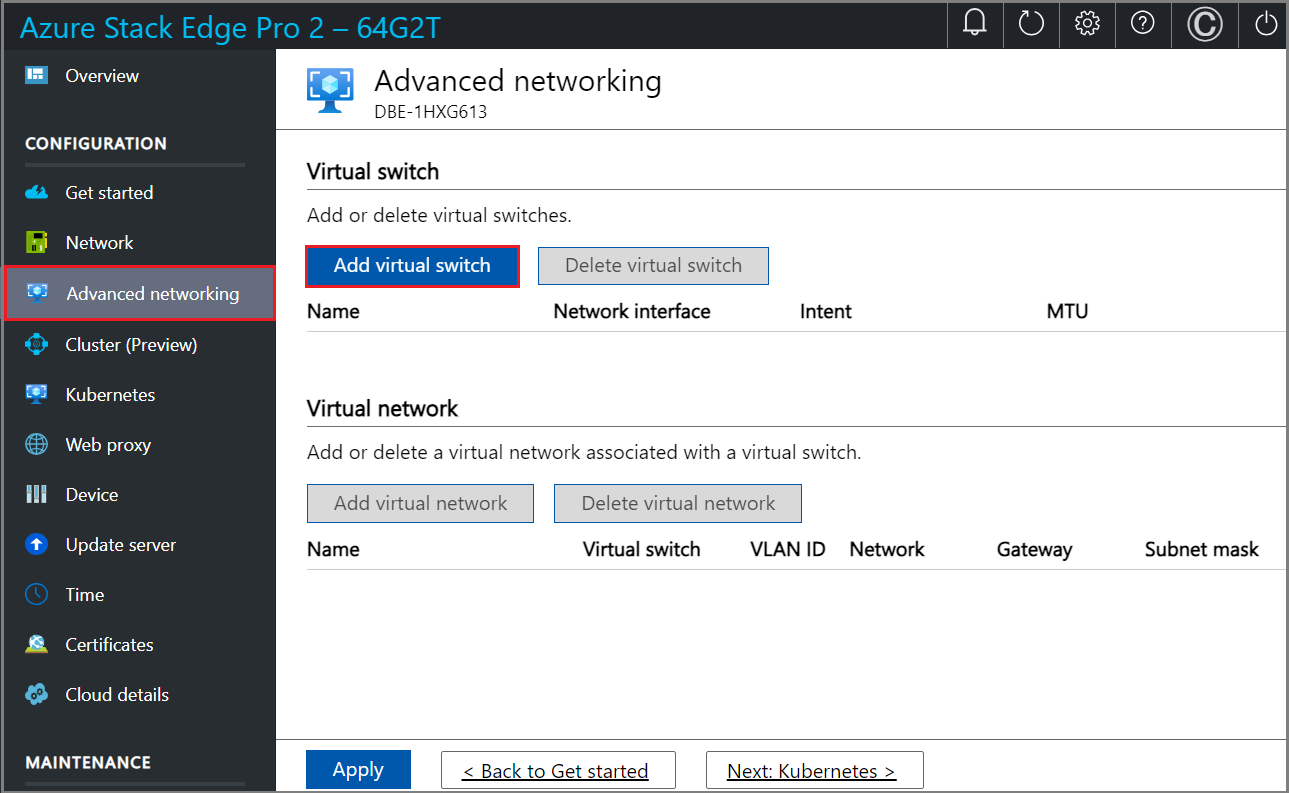

2. In the Virtual switch section, add or delete virtual switches. Select Add virtual switch to create a new switch.

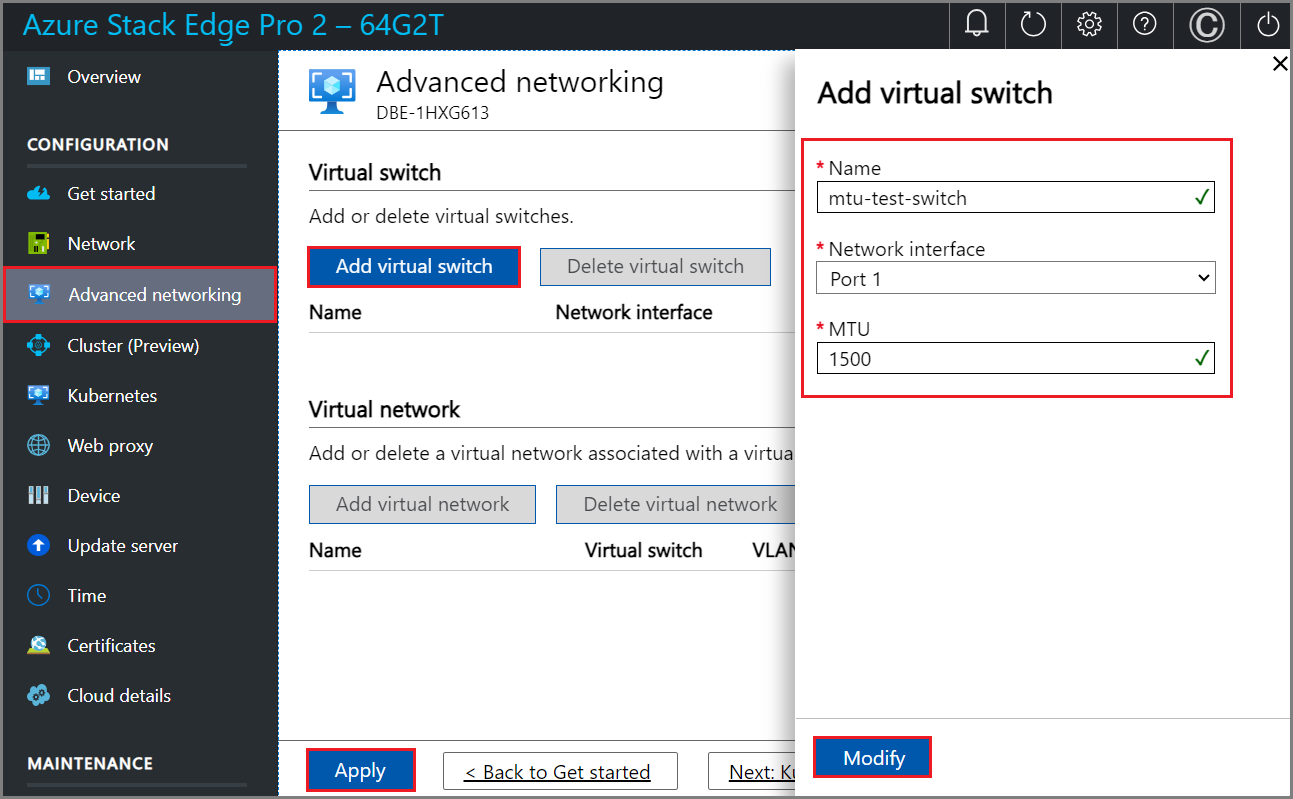

3. In the Network settings blade, if using a new virtual switch, provide the following:

   1. Provide a Name for the virtual switch.
   2. Choose the Network interface onto which the virtual switch should be created.
   3. Set the MTU (Maximum Transmission Unit) parameter for the virtual switch (Optional).
   4. Select Modify and Apply to save your changes.

   The MTU value determines the maximum packet size that can be transmitted over a network. Azure Stack Edge supports MTU values in the following table. If a device on the network path has an MTU setting lower than 1500, IP packets with the “don't fragment” flag (DF) with packet size 1500 will be dropped.

   Azure Stack Edge SKU	Network interface	Supported MTU values
   Pro-GPU	Ports 1, 2, 3, and 4	1400 - 1500
   Pro-GPU	Ports 5 and 6	Not configurable, set to default.
   Pro 2	Ports 1 and 2	1400 - 1500
   Pro 2	Ports 3 and 4	Not configurable, set to default.

   The host virtual switch uses the specified MTU setting.

   If a virtual network interface is created on the virtual switch, the interface uses the specified MTU setting. If this virtual switch is enabled for compute, the Azure Kubernetes Service VMs and container network interfaces (CNIs) uses the specified MTU as well.

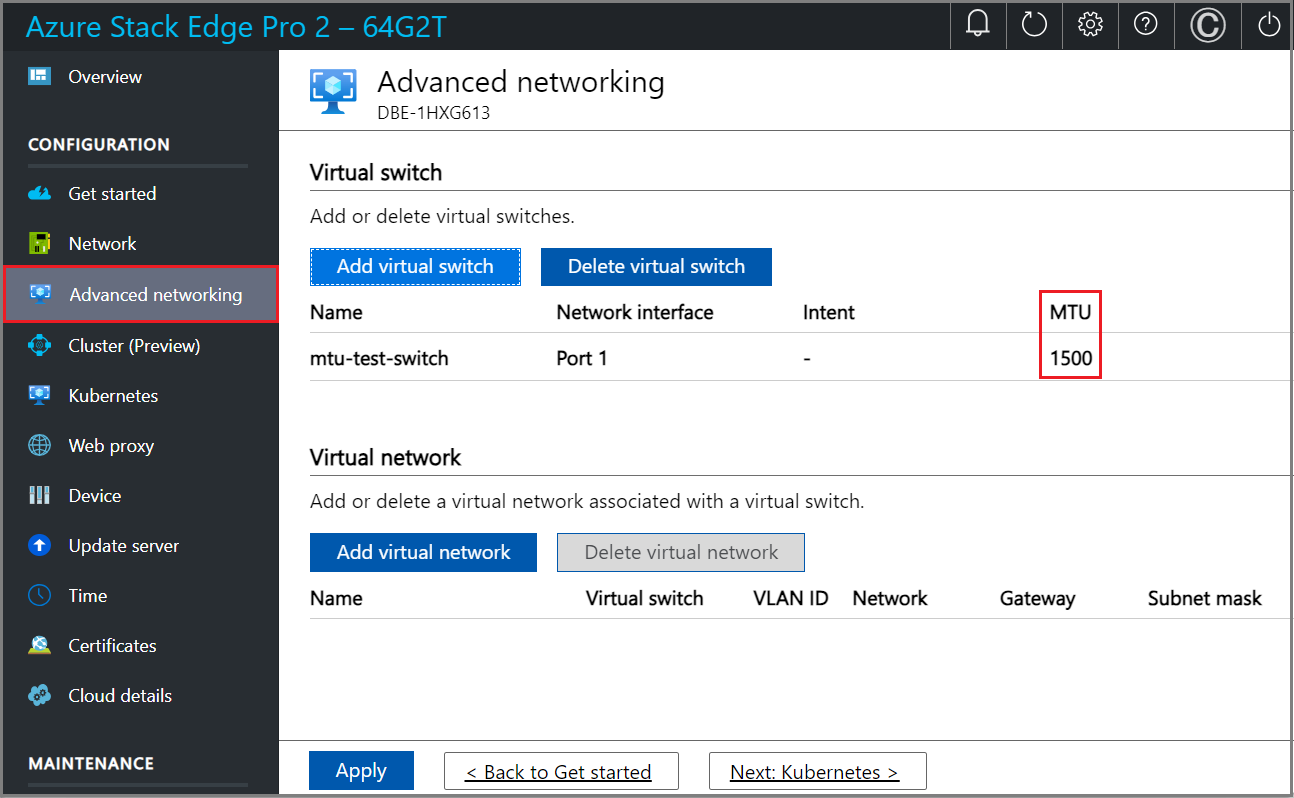

   When you create a virtual switch, the MTU column is populated with its MTU value.

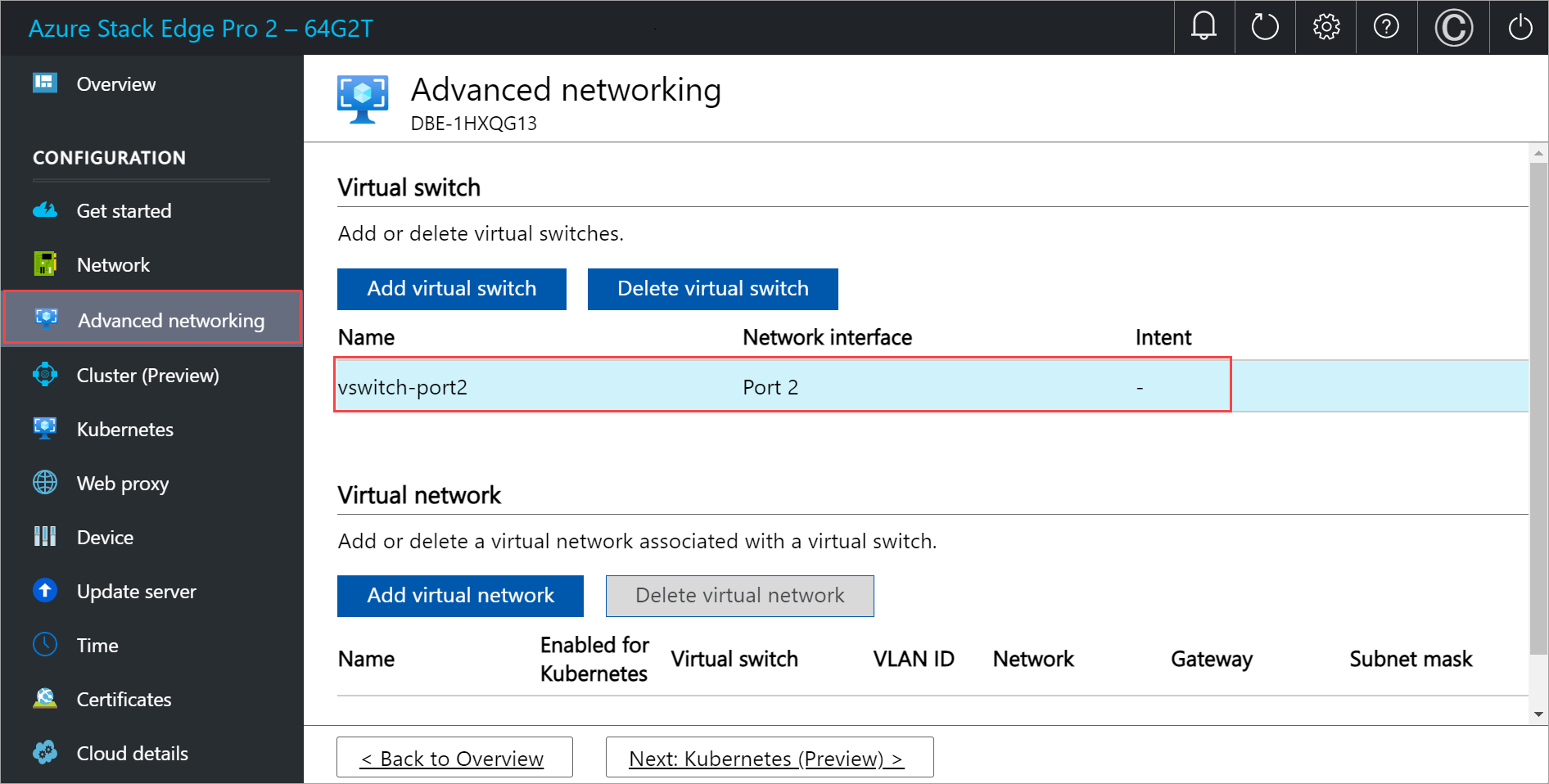

4. The configuration takes a few minutes to apply and once the virtual switch is created, the list of virtual switches updates to reflect the newly created switch. You can see that the specified virtual switch is created and enabled for compute.



5. You can create more than one switch by following the steps described earlier.

6. To delete a virtual switch, under the Virtual switch section, select Delete virtual switch. When a virtual switch is deleted, the associated virtual networks will also be deleted.

Next, you can create and associate virtual networks with your virtual switches.

Configure virtual networks

You can add or delete virtual networks associated with your virtual switches. To add a virtual switch, follow these steps:

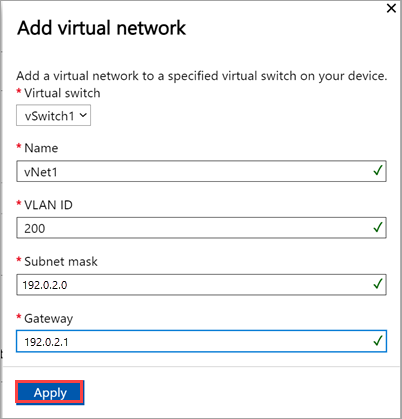

1. In the local UI on the Advanced networking page, under the Virtual network section, select Add virtual network.

2. In the Add virtual network blade, input the following information:

   1. Select a virtual switch for which you want to create a virtual network.
   2. Provide a Name for your virtual network. The name you specify must conform to Naming rules and restrictions for Azure resources.
   3. Enter a VLAN ID as a unique number in 1-4094 range. The VLAN ID that you provide should be in your trunk configuration. For more information on trunk configuration for your switch, see the instructions from your physical switch manufacturer.
   4. Specify the Subnet mask and Gateway for your virtual LAN network as per the physical network configuration.
   5. Select Apply. A virtual network is created on the specified virtual switch.



3. To delete a virtual network, under the Virtual network section, select Delete virtual network and select the virtual network you want to delete.

4. Select Next: Kubernetes > to next configure your compute IPs for Kubernetes.

Configure compute IPs

After the virtual switches are created, you can enable the switches for Kubernetes compute traffic.

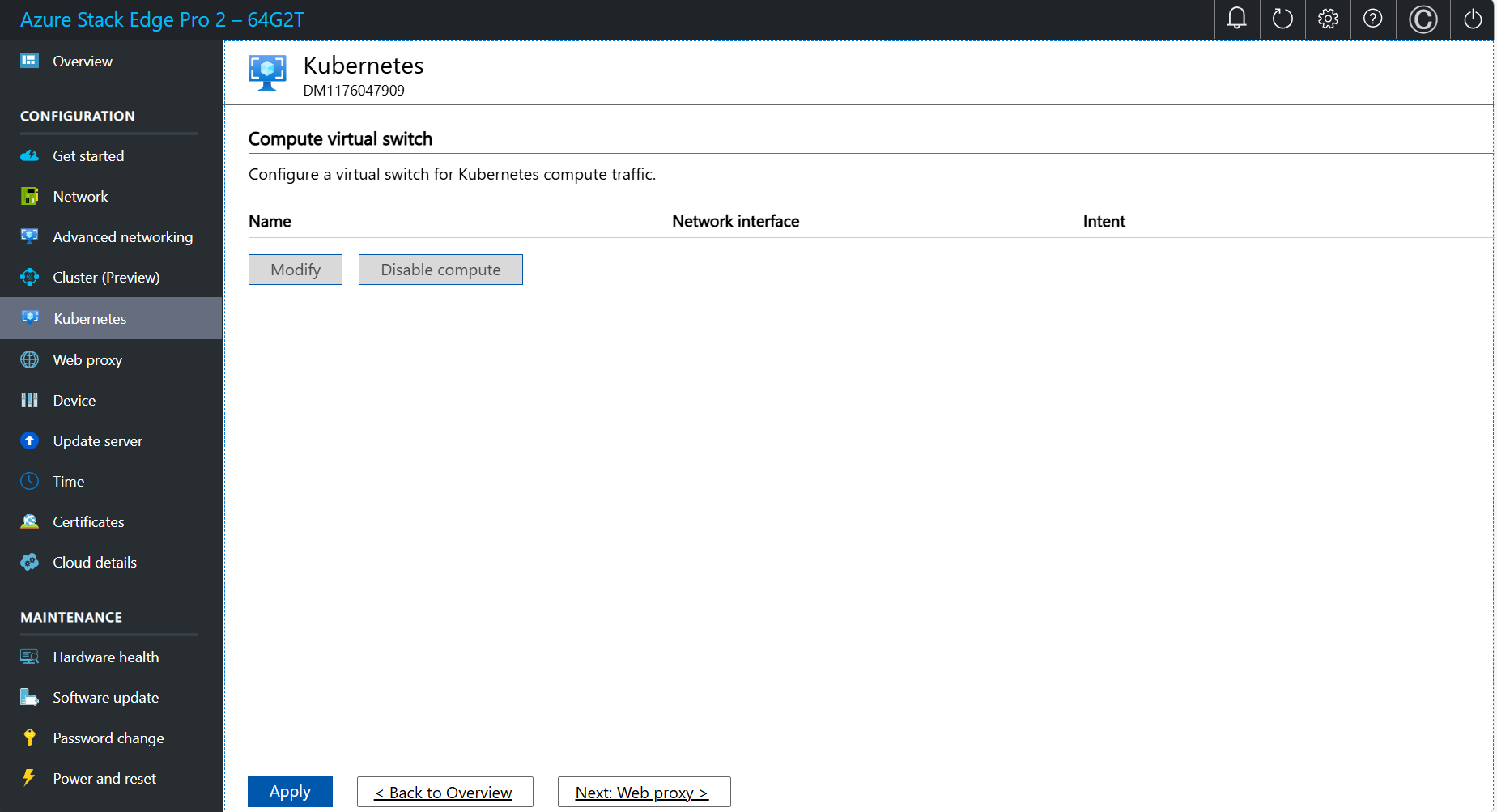

1. In the local UI, go to the Kubernetes page.

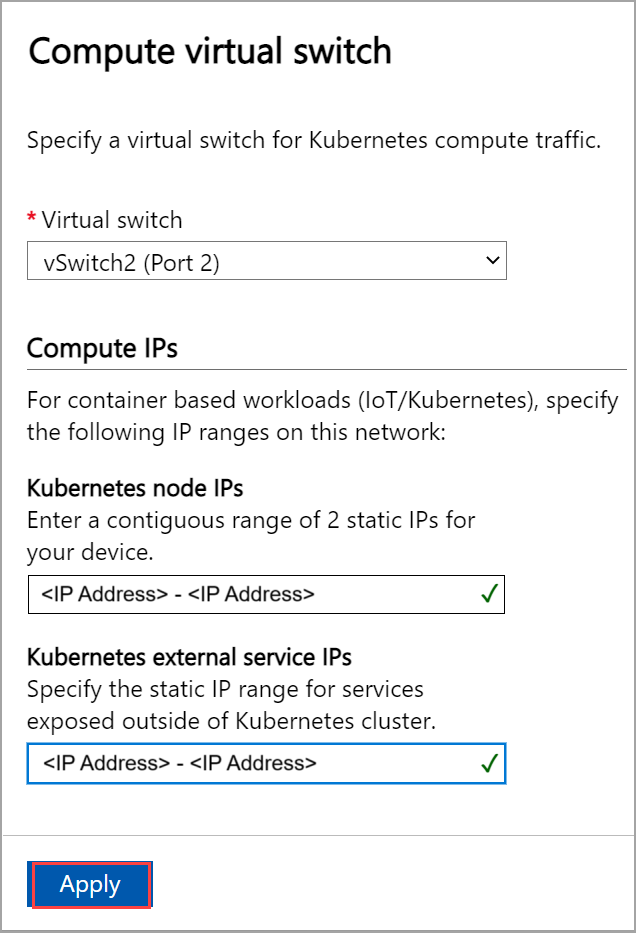

2. Select the virtual switch you want to enable for Kubernetes compute traffic.

3. Assign Kubernetes node IPs. These static IP addresses are for the Kubernetes VMs.

   Important

   • If you're running other workloads in your environment, Kubernetes on Azure Stack Edge uses 172.27.0.0/16 subnet for pod and 172.28.0.0/16 subnet for service. Make sure that these are not in use in your network. For more information, see Change Kubernetes pod and service subnets.
   • DHCP mode is not supported for Kubernetes node IPs.

4. Assign Kubernetes external service IPs. These are also the load-balancing IP addresses. These contiguous IP addresses are for services that you want to expose outside of the Kubernetes cluster and you specify the static IP range depending on the number of services exposed.

   Important

   We strongly recommend that you specify a minimum of 1 IP address for Azure Stack Edge Hub service to access compute modules. The service IP addresses can be updated later.

5. Select Apply.



6. The configuration takes a couple minutes to apply and you may need to refresh the browser.

7. Select Next: Web proxy to configure web proxy.

Configure web proxy

This is an optional configuration. However, if you use a web proxy, you can configure it only on this page.

Important

• Proxy-auto config (PAC) files are not supported. A PAC file defines how web browsers and other user agents can automatically choose the appropriate proxy server (access method) for fetching a given URL.
• Transparent proxies work well with Azure Stack Edge Pro 2. For non-transparent proxies that intercept and read all the traffic (via their own certificates installed on the proxy server), upload the public key of the proxy's certificate as the signing chain on your Azure Stack Edge Pro device. You can then configure the proxy server settings on your Azure Stack Edge device. For more information, see Bring your own certificates and upload through the local UI.

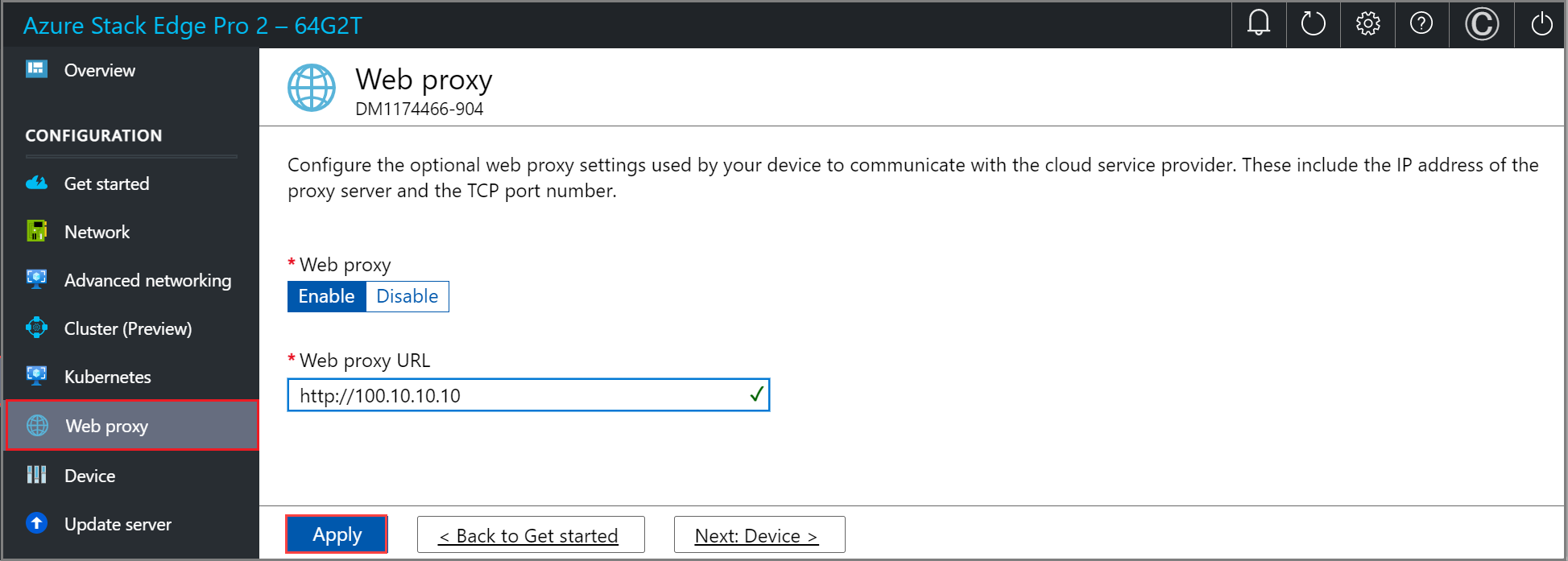

1. On the Web proxy settings page, take the following steps:

   1. In the Web proxy URL box, enter the URL in this format: http://host-IP address or FQDN:Port number. HTTPS URLs aren’t supported.

   2. To validate and apply the configured web proxy settings, select Apply.



Validate network settings

Follow these steps to validate your network settings.

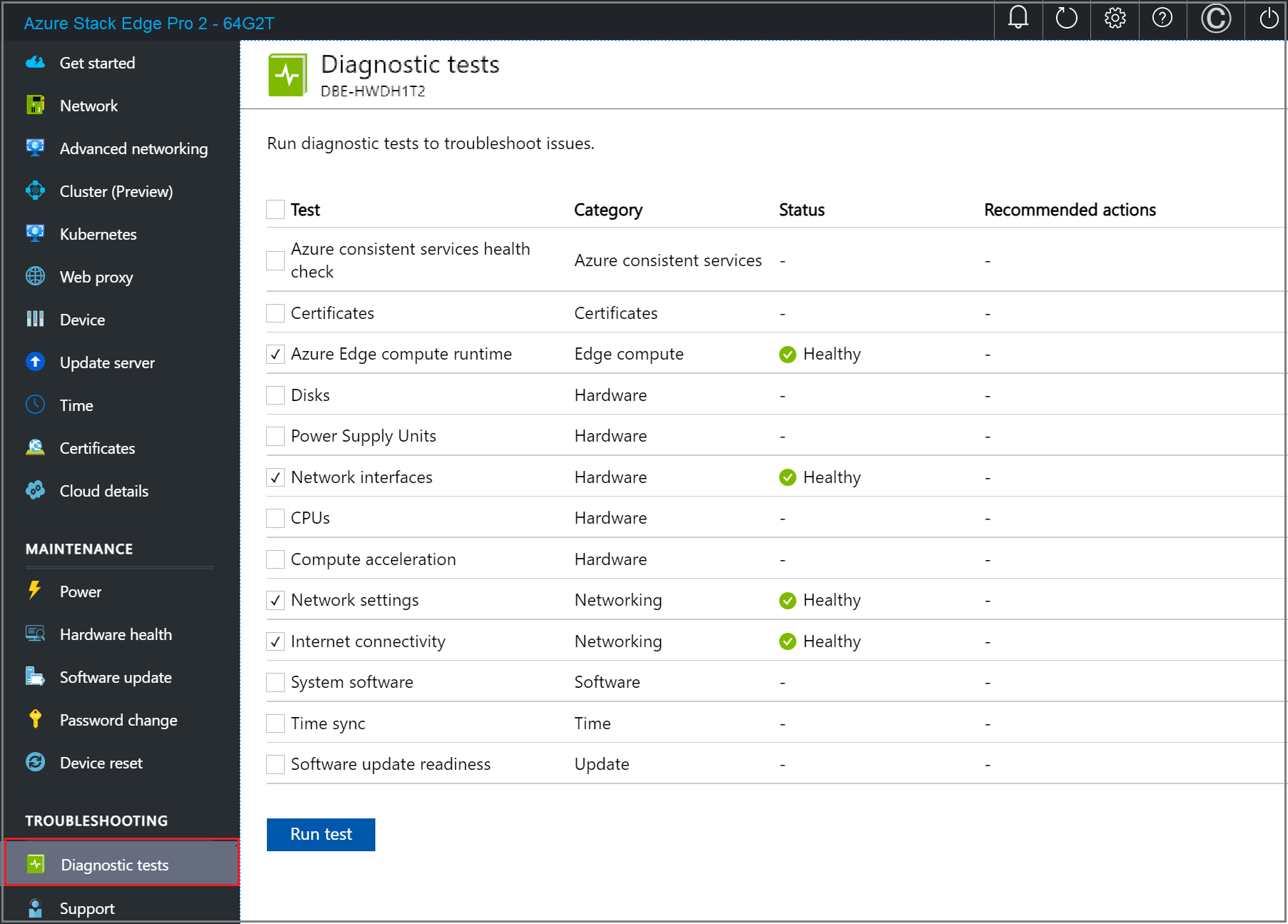

1. Go to the Diagnostic tests page and select the tests as shown below.

2. Select Run test.



3. Review test results to ensure that status shows Healthy for each test that was run.

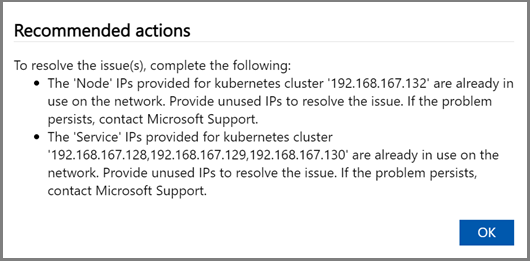

4. If a test fails, select Recommended actions on the test results page, implement the recommended change, and then rerun the test. For example, the dialog below shows recommended actions if the Azure Edge compute runtime test fails.



5. After network settings are validated and all tests return Healthy status, proceed to the device settings page.

Next steps

In this tutorial, you learned about:

• Prerequisites
• Configure network
• Enable compute network
• Configure web proxy
• Validate network settings

To learn how to set up your Azure Stack Edge Pro 2 device, see:

Configure device settings.
