Use diagnostics settings for Recovery Services vaults and Backup vaults

This article describes how to use diagnostics settings for Recovery Services vaults and Backup vaults for Azure Backup.

Azure Backup sends diagnostics events that can be collected and used for the purposes of analysis, alerting, and reporting.

You can configure diagnostics settings for a Recovery Services vault via the Azure portal by going to the vault and selecting Diagnostics settings. Selecting + Add Diagnostic Setting lets you send one or more diagnostic events to a storage account, an event hub, or a Log Analytics workspace.

Diagnostics settings pane

Diagnostics events available for Azure Backup users

Azure Backup provides the following diagnostics events. Each event provides detailed data on a specific set of backup-related artifacts:

  • Core Azure Backup Data
  • Addon Azure Backup Job Data
  • Addon Azure Backup Policy Data
  • Addon Azure Backup Storage Data
  • Addon Azure Backup Protected Instance Data
  • Azure Backup Operations

If you are still using the legacy event Azure Backup Reporting Data, we recommend switching to using the events above.

For more information, see Data model for Azure Backup diagnostics events.

Data for these events can be sent to either a storage account, a Log Analytics workspace, or an event hub. The storage account needs to be in the same region as the Recovery Services vaults. However, the Log Analytics workspace can be in a different region. If you're sending this data to a Log Analytics workspace, select the Resource specific toggle on the Diagnostics settings screen. For more information, see the following sections.

Use diagnostics settings with Log Analytics

You can now use Azure Backup to send vault diagnostics data to dedicated Log Analytics tables for backup. These tables are called resource-specific tables.

To send your vault diagnostics data to Log Analytics:

Choose a vault type:

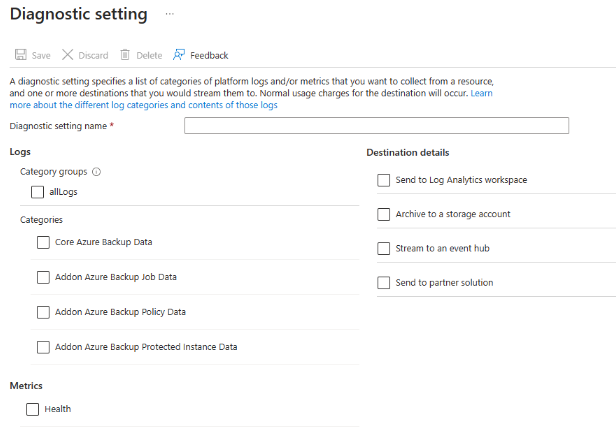

  1. Go to your vault, and select Diagnostic Settings > + Add diagnostic setting.

  2. Provide a name to the Diagnostics setting name.

  3. Select the Send to Log Analytics checkbox, and select a Log Analytics workspace.

  4. Select Resource specific and select the following six events: Core Azure Backup Data, Addon Azure Backup Job Data, Addon Azure Backup Policy Data, and Addon Azure Backup Protected Instance Data, Azure Backup Operations.

  5. Select Save.

    Screenshot shows the recovery services vault diagnostics settings.

After data flows into the Log Analytics workspace, dedicated tables for each of these events are created in your workspace. You can query any of these tables directly. You can also perform joins or unions between these tables if necessary.

Important

Addon Azure Backup Alerts refers to the alerts being generated by the classic alerts solution. As classic alerts solution is on deprecation path in favour of Azure Monitor-based alers, we recommend you not to select the event Addon Azure Backup Alerts when configuring diagnostics settings. To send the fired Azure Monitor-based alerts to a destination of your choice, you can create an alert processing rule and action group that routes these alerts to a logic app, webhook, or runbook that in turn sends these alerts to the required destination.

For Recovery Services vault, the six events- Core Azure Backup, Addon Azure Backup Jobs, Addon Azure Backup Policy, Addon Azure Backup Storage, Azure Backup Operations, and Addon Azure Backup Protected Instance are supported only in the resource-specific mode for Recovery Services in Backup reports. If you try to send data for these events in the Azure diagnostics mode, no data will appear in Backup reports.

For Backup vaults, since information on the frontend size and backup storage consumed are already included in the Core Azure Backup and Addon Azure Backup Protected Instances events (to aid query performance), the Addon Azure Backup Storage event isn't applicable for Backup vault, to avoid creation of redundant tables.

Legacy event

Traditionally, for Recovery Services vaults, all backup-related diagnostics data for a vault was contained in a single event called Azure Backup Reporting Data. The six events described here are, in essence, a decomposition of all the data contained in Azure Backup Reporting Data.

Currently, we continue to support the Azure Backup Reporting Data event for Recovery Services vaults, backward compatibility in cases where you've existing custom queries on this event. For example, custom log alerts and custom visualizations. We recommend that you move to the new events as early as possible. The new events:

  • Make the data much easier to work with in log queries.
  • Provide better discoverability of schemas and their structure.
  • Improve performance across both ingestion latency and query times.

The legacy event in Azure diagnostics mode will eventually be deprecated. Choosing the new events can help you avoid complex migrations later. Our Log Analytics-based reporting solution will also cease support for data from the legacy event.

Note

For Backup vaults, all diagnostics events are sent to the resource-specific tables only; so, you don't need to do any migration for Backup vaults. The preceeding section is specific to Recovery services vaults.

Steps to move to new diagnostics settings for a Log Analytics workspace

  1. Identify which vaults are sending data to the Log Analytics workspaces by using the legacy event and the subscriptions they belong to. Run the following query in each of your workspaces to identify these vaults and subscriptions.

    let RangeStart = startofday(ago(3d));
    let VaultUnderAzureDiagnostics = (){
        AzureDiagnostics
        | where TimeGenerated >= RangeStart | where Category == "AzureBackupReport" and OperationName == "Vault" and SchemaVersion_s == "V2"
        | summarize arg_max(TimeGenerated, *) by ResourceId
        | project ResourceId, Category};
    let VaultUnderResourceSpecific = (){
        CoreAzureBackup
        | where TimeGenerated >= RangeStart | where OperationName == "Vault"
        | summarize arg_max(TimeGenerated, *) by ResourceId
        | project ResourceId, Category};
        // Some Workspaces will not have AzureDiagnostics Table, so you need to use isFuzzy
    let CombinedVaultTable = (){
        union isfuzzy = true
        (VaultUnderAzureDiagnostics() ),
        (VaultUnderResourceSpecific() )
        | distinct ResourceId, Category};
    CombinedVaultTable | where Category == "AzureBackupReport"
    | join kind = leftanti (
    CombinedVaultTable | where Category == "CoreAzureBackup"
    ) on ResourceId
    | parse ResourceId with * "SUBSCRIPTIONS/" SubscriptionId:string "/RESOURCEGROUPS" * "MICROSOFT.RECOVERYSERVICES/VAULTS/" VaultName:string
    | project ResourceId, SubscriptionId, VaultName

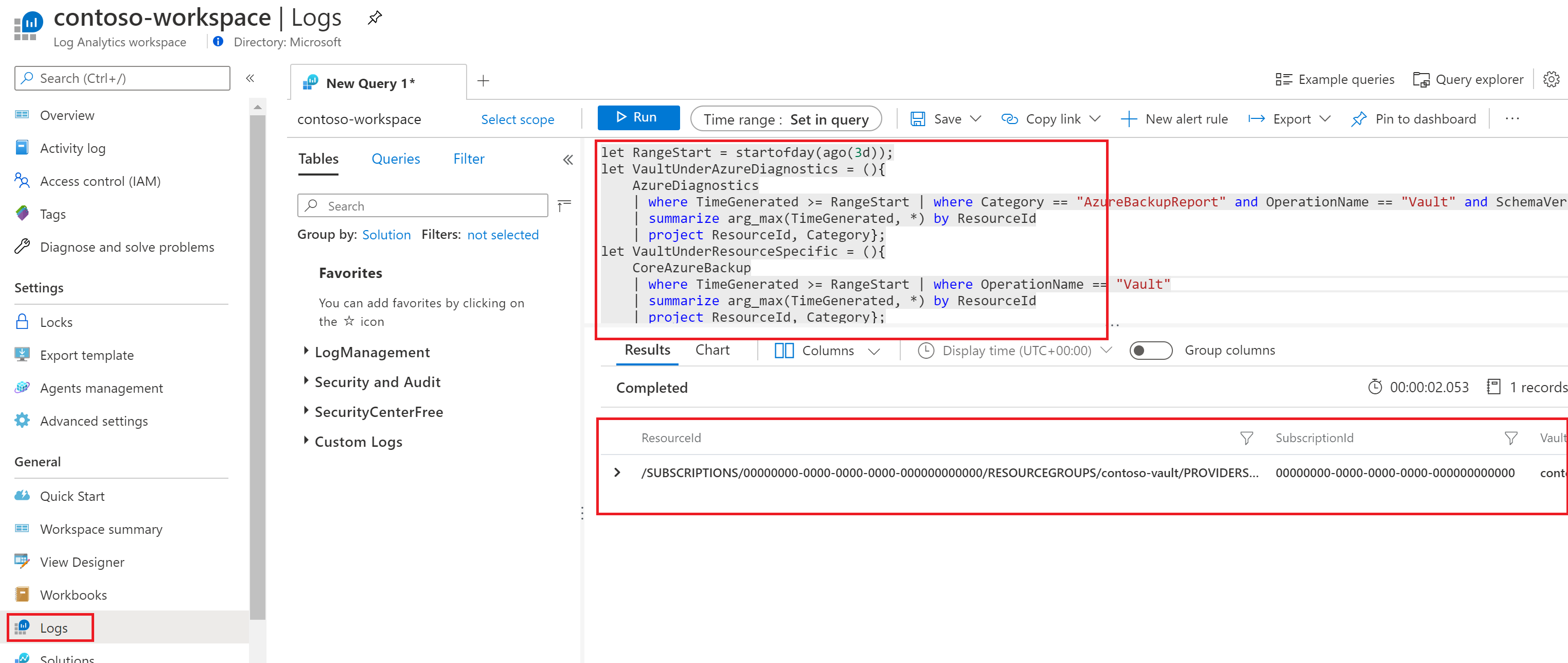

    The following screenshot shows the query being run in one of the workspaces:

    Workspace query

  2. Use the built-in Azure Policy definitions in Azure Backup to add a new diagnostics setting for all vaults in a specified scope. This policy adds a new diagnostics setting to vaults that either don't have a diagnostics setting or have only a legacy diagnostics setting. This policy can be assigned to an entire subscription or resource group at a time. You must have Owner access to each subscription for which the policy is assigned.

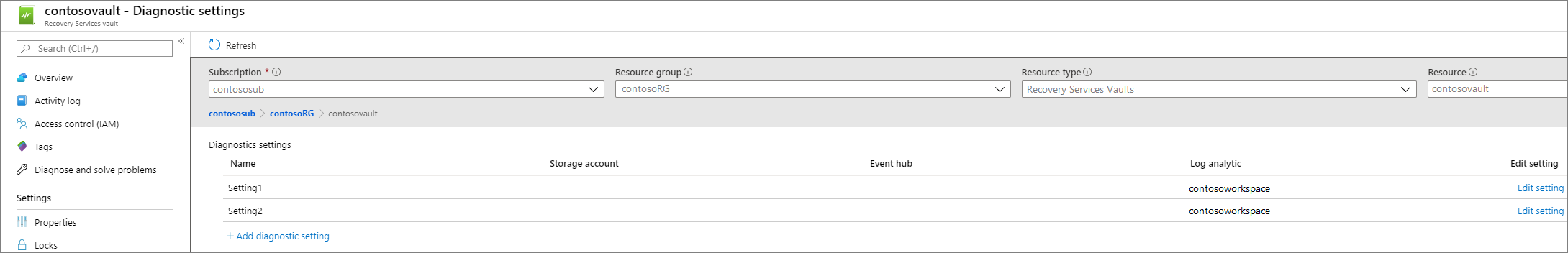

You might choose to have separate diagnostics settings for Azure Backup Report and the six new events until you've migrated all of your custom queries to use data from the new tables. The following image shows an example of a vault that has two diagnostic settings. The first setting, named Setting1, sends data of an Azure Backup Report event to a Log Analytics workspace in Azure diagnostics mode. The second setting, named Setting2, sends data of the six new Azure Backup events to a Log Analytics workspace in the resource-specific mode.

Two settings

Important

The Azure Backup Report event is supported only in Azure diagnostics mode. If you try to send data for this event in the resource-specific mode, no data will flow to the Log Analytics workspace.

Note

The toggle for Azure diagnostics or Resource specific appears only if the user selects Send to Log Analytics. To send data to a storage account or an event hub, a user selects the required destination and selects the check boxes for any of the desired events, without any additional inputs. Again, we recommend that you don't choose the legacy event Azure Backup Reporting Data going forward.

Send Azure Site Recovery events to Log Analytics

Azure Backup and Azure Site Recovery events are sent from the same Recovery Services vault. Azure Site Recovery offers two resource-specific tables - Azure Site Recovery Jobs and Azure Site Recovery Replicated Items Details. Users must choose resource specific for the two tables mentioned. Choosing the resource-specific mode for Azure Site Recovery events for any other table for site recovery prevents the required data from being sent to the Log Analytics workspace. Azure Site Recovery Jobs is available as both resource specific and legacy table.

Site Recovery events

Note

When you create a Log Analytics workspace, it does not matter if the Recovery Services vault is located in a different region.

To summarize:

  • If you already have Log Analytics diagnostics set up with Azure Diagnostics and have written custom queries on top of it, keep that setting intact until you migrate your queries to use data from the new events.
  • If you also want to onboard onto new tables, as we recommend, create a new diagnostics setting, select Resource specific, and select the six new events.
  • If you're currently sending Azure Site Recovery events to Log Analytics, do not choose the resource-specific mode for these events. Otherwise, data for these events won't flow into your Log Analytics workspace. Instead, create an additional diagnostic setting, select Azure diagnostics, and select the relevant Azure Site Recovery events.

The following image shows an example of a user who has three diagnostics settings for a vault. The first setting, named Setting1, sends data from an Azure Backup Reporting Data event to a Log Analytics workspace in Azure diagnostics mode. The second setting, named Setting2, sends data from the six new Azure Backup events to a Log Analytics workspace in the resource-specific mode. The third setting, named Setting3, sends data from the Azure Site Recovery events to a Log Analytics workspace in Azure diagnostics mode.

Three settings

Next steps

Learn the Log Analytics data model for the diagnostics events
