How to synchronize attributes for Lifecycle workflows

  • Article

Workflows contain specific tasks, which can run automatically against users based on the specified execution conditions. Automatic workflow scheduling is supported based on the employeeHireDate and employeeLeaveDateTime user attributes in Microsoft Entra ID.

To take full advantage of Lifecycle Workflows, user provisioning should be automated, and the scheduling relevant attributes should be synchronized.

Scheduling relevant attributes

The following table shows the scheduling (trigger) relevant attributes and the methods of synchronization that are supported.

Attribute Type Supported in HR Inbound Provisioning Supported in Microsoft Entra Connect cloud sync Supported in Microsoft Entra Connect Sync
employeeHireDate DateTimeOffset Yes Yes Yes
employeeLeaveDateTime DateTimeOffset Yes Yes Yes

Note

Manually setting the employeeLeaveDateTime for cloud-only users requires special permissions. For more information, see: Configure the employeeLeaveDateTime property for a user

This document explains how to set up synchronization from on-premises Microsoft Entra Connect cloud sync or Microsoft Entra Connect for the required attributes.

Note

There's no corresponding EmployeeHireDate or EmployeeLeaveDateTime attribute in Active Directory. If you're synchronizing from on-premises AD, you'll need to identify an attribute in AD that can be used. This attribute must be a string.

Understanding EmployeeHireDate and EmployeeLeaveDateTime formatting

The EmployeeHireDate and EmployeeLeaveDateTime contain dates and times that must be formatted in a specific way. This means that you might need to use an expression to convert the value of your source attribute to a format the EmployeeHireDate or EmployeeLeaveDateTime accepts. The following table outlines the format that is expected and provides an example expression on how to convert the values.

Scenario Expression/Format Target More Information
Workday to Active Directory User Provisioning FormatDateTime([StatusHireDate], ,"yyyy-MM-ddzzz", "yyyyMMddHHmmss.fZ") On-premises AD string attribute Attribute mappings for Workday
SuccessFactors to Active Directory User Provisioning FormatDateTime([endDate], ,"M/d/yyyy hh:mm:ss tt","yyyyMMddHHmmss.fZ") On-premises AD string attribute Attribute mappings for SAP Success Factors
Custom import to Active Directory Must be in the format "yyyyMMddHHmmss.fZ" On-premises AD string attribute Attribute mappings for any other system of record
Microsoft Graph User API Must be in the format "YYYY-MM-DDThh:mm:ssZ" EmployeeHireDate and EmployeeLeaveDateTime
Workday to Microsoft Entra user provisioning Can use a direct mapping. No expression is needed but can be used to adjust the time portion of EmployeeHireDate and EmployeeLeaveDateTime EmployeeHireDate and EmployeeLeaveDateTime
SuccessFactors to Microsoft Entra user provisioning Can use a direct mapping. No expression is needed but can be used to adjust the time portion of EmployeeHireDate and EmployeeLeaveDateTime EmployeeHireDate and EmployeeLeaveDateTime

For more information on expressions, see Reference for writing expressions for attribute mappings in Microsoft Entra ID.

The expression examples in the table use endDate for SAP and StatusHireDate for Workday. However, you can opt to use different attributes.

For example, you might use StatusContinuousFirstDayOfWork instead of StatusHireDate for Workday. In this instance your expression would be:

FormatDateTime([StatusContinuousFirstDayOfWork], , "yyyy-MM-ddzzz", "yyyyMMddHHmmss.fZ")

The following table has a list of suggested attributes and their scenario recommendations.

HR Attribute HR System Scenario Microsoft Entra attribute
StatusHireDate Workday Joiner EmployeeHireDate
StatusContinuousFirstDayOfWork Workday Joiner EmployeeHireDate
StatusDateEnteredWorkforce Workday Joiner EmployeeHireDate
StatusOriginalHireDate Workday Joiner EmployeeHireDate
StatusEndEmploymentDate Workday Leaver EmployeeLeaveDateTime
StatusResignationDate Workday Leaver EmployeeLeaveDateTime
StatusRetirementDate Workday Leaver EmployeeLeaveDateTime
StatusTerminationDate Workday Leaver EmployeeLeaveDateTime
startDate SAP SF Joiner EmployeeHireDate
firstDateWorked SAP SF Joiner EmployeeHireDate
lastDateWorked SAP SF Leaver EmployeeLeaveDateTime
endDate SAP SF Leaver EmployeeLeaveDateTime

For more attributes, see the Workday attribute reference and SAP SuccessFactors attribute reference.

Importance of time

To ensure timing accuracy of scheduled workflows it’s crucial to consider:

  • The time portion of the attribute must be set accordingly, for example the employeeHireDate should have a time at the beginning of the day like 1AM or 5AM and the employeeLeaveDateTime should have time at the end of the day like 9PM or 11PM
  • The Workflows won't run earlier than the time specified in the attribute, however the tenant schedule (default 3h) can delay the workflow run. For instance, if you set the employeeHireDate to 8AM but the tenant schedule doesn't run until 9AM, the workflow won't be processed until then. If a new hire is starting at 8AM, you would want to set the time to something like (start time - tenant schedule) to ensure it runs before the employee arrives.
  • It's recommended, that if you're using temporary access pass (TAP), that you set the maximum lifetime to 24 hours. Doing this will help ensure that the TAP hasn't expired after being sent to an employee who might be in a different timezone. For more information, see Configure Temporary Access Pass in Microsoft Entra ID to register Passwordless authentication methods.
  • When importing the data, you should understand if and how the source provides time zone information for your users to potentially make adjustments to ensure timing accuracy.

Create a custom sync rule in Microsoft Entra Connect cloud sync for EmployeeHireDate

The following steps guide you through creating a synchronization rule using cloud sync.

  1. In the Microsoft Entra admin center, browse to > Hybrid management > Microsoft Entra Connect.
  2. Select Manage Microsoft Entra Connect cloud sync.
  3. Under Configuration, select your configuration.
  4. Select Click to edit mappings. This link opens the Attribute mappings screen.
  5. Select Add attribute.
  6. Fill in the following information:
    • Mapping Type: Direct
    • Source attribute: msDS-cloudExtensionAttribute1
    • Default value: Leave blank
    • Target attribute: employeeHireDate

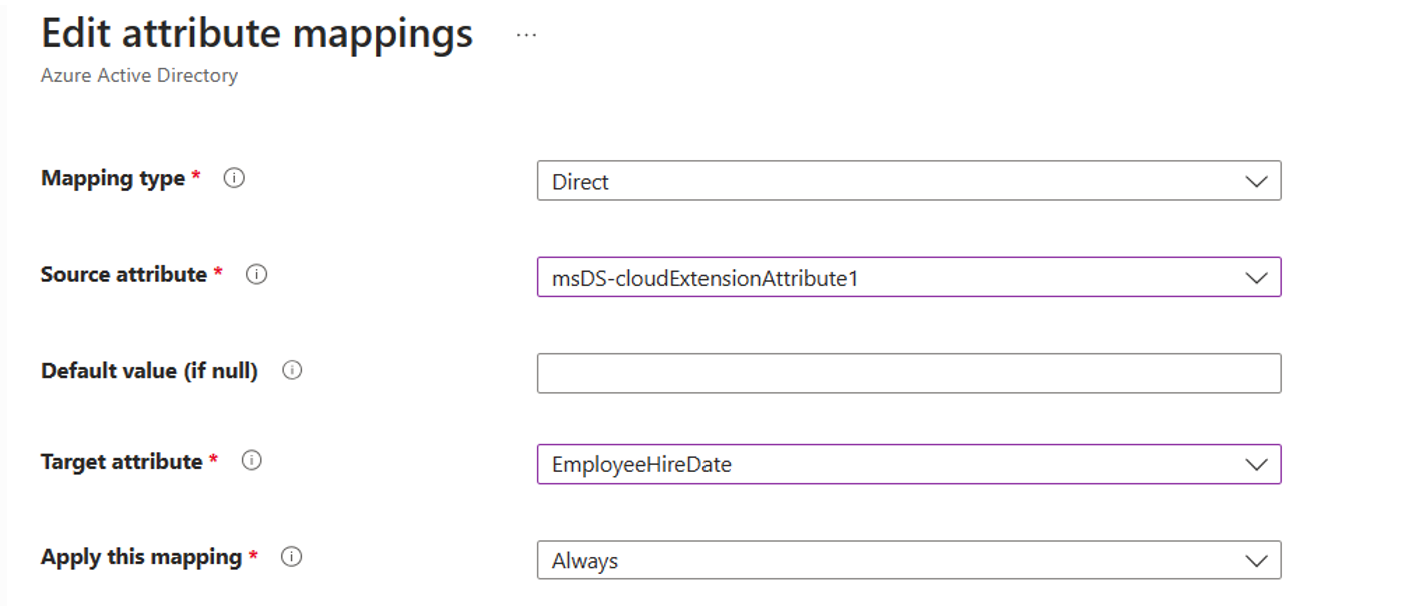

    • Apply this mapping: Always Screenshot of the cloud attribute mapping.
  7. Select Apply.
  8. Back on the Attribute mappings screen, you should see your new attribute mapping.
  9. Select Save schema.

For more information on attributes, see Attribute mapping in Microsoft Entra Connect cloud sync.

How to create a custom sync rule in Microsoft Entra Connect for EmployeeHireDate

The following example walks you through setting up a custom synchronization rule that synchronizes the Active Directory attribute to the employeeHireDate attribute in Microsoft Entra ID.

  1. Open a PowerShell window as administrator and run Set-ADSyncScheduler -SyncCycleEnabled $false to disable the scheduler.
  2. Go to Start\Microsoft Entra Connect\ and open the Synchronization Rules Editor
  3. Ensure the direction at the top is set to Inbound.
  4. Select Add Rule.
  5. On the Create Inbound synchronization rule screen, enter the following information and select Next.
    • Name: In from AD - EmployeeHireDate
    • Connected System: contoso.com
    • Connected System Object Type: user
    • Metaverse Object Type: person

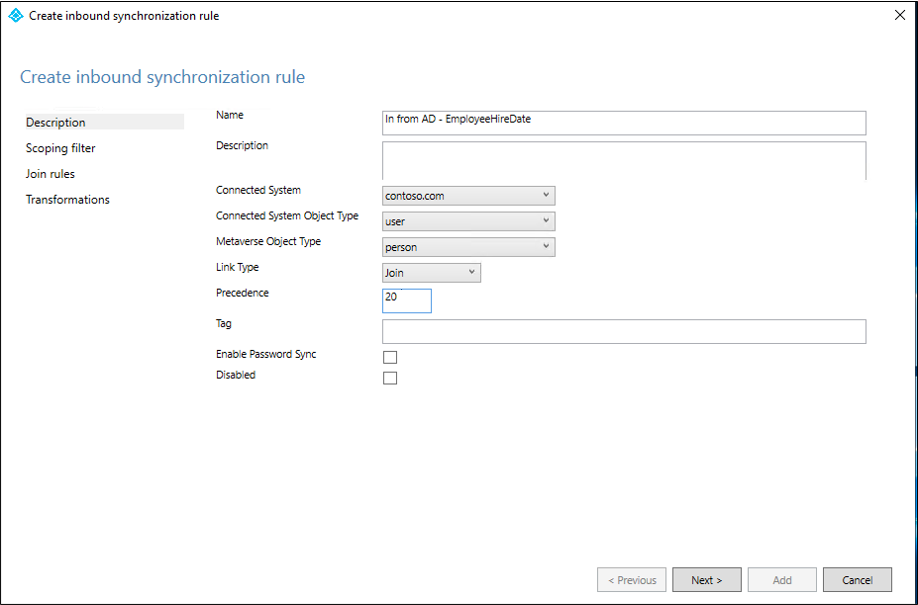

    • Precedence: 20 Screenshot of creating an inbound synchronization rule basics.
  6. On the Scoping filter screen, select Next.
  7. On the Join rules screen, select Next.
  8. On the Transformations screen, Under Add transformations, enter the following information.
    • FlowType: Direct
    • Target Attribute: employeeHireDate

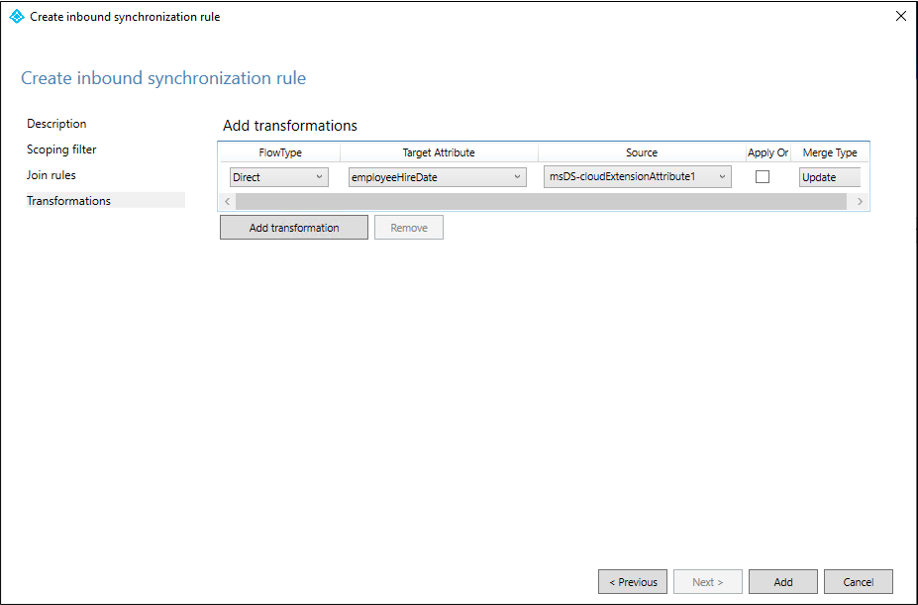

    • Source: msDS-cloudExtensionAttribute1 Screenshot of creating inbound synchronization rule transformations.
  9. Select Add.
  10. In the Synchronization Rules Editor, ensure the direction at the top is set to Outbound.
  11. Select Add Rule.
  12. On the Create Outbound synchronization rule screen, enter the following information and select Next.
    • Name: Out to Microsoft Entra ID - EmployeeHireDate
    • Connected System: <your tenant>
    • Connected System Object Type: user
    • Metaverse Object Type: person
    • Precedence: 21
  13. On the Scoping filter screen, select Next.
  14. On the Join rules screen, select Next.
  15. On the Transformations screen, Under Add transformations, enter the following information.
    • FlowType: Direct
    • Target Attribute: employeeHireDate

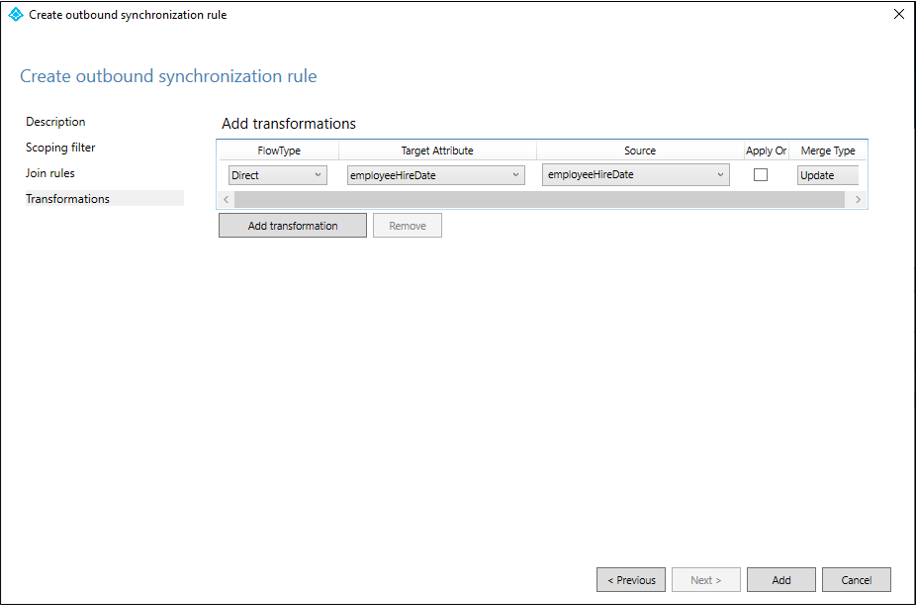

    • Source: employeeHireDate Screenshot of create outbound synchronization rule transformations.
  16. Select Add.
  17. Close the Synchronization Rules Editor
  18. Enable the scheduler again by running Set-ADSyncScheduler -SyncCycleEnabled $true.

Note

  • msDS-cloudExtensionAttribute1 is an example source.
  • Starting with Microsoft Entra Connect 2.0.3.0, employeeHireDate is added to the default 'Out to Microsoft Entra ID' rule, so steps 10-16 are not required.
  • Starting with Microsoft Entra Connect 2.1.19.0, employeeLeaveDateTime is added to the default 'Out to Microsoft Entra ID' rule, so steps 10-16 aren't required.

For more information, see How to customize a synchronization rule and Make a change to the default configuration.

Edit attribute mapping in the provisioning application

Once you have set up your provisioning application, you're able to edit its attribute mapping. When the app is created, you get a list of default mappings between your HRM and Active Directory. From there, you can either edit the existing mapping, or add new mapping.

To update this mapping, you'd do the following steps:

  1. Sign in to the Microsoft Entra admin center as a Global Administrator.

  2. Browse to Identity > Applications > Enterprise applications.

  3. Open your provisioned application.

  4. Select Provisioning and then select Edit attribute Mapping.

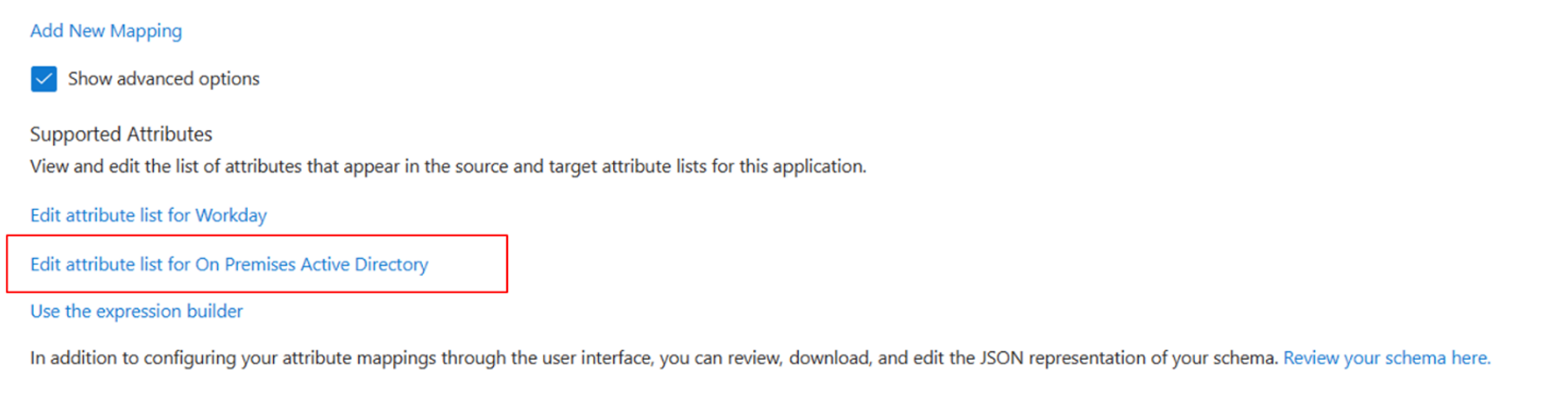

  5. Select Show advanced options, and then select Edit Attribute list for On-Premises Active Directory. Screenshot of editing on-premises attribute.

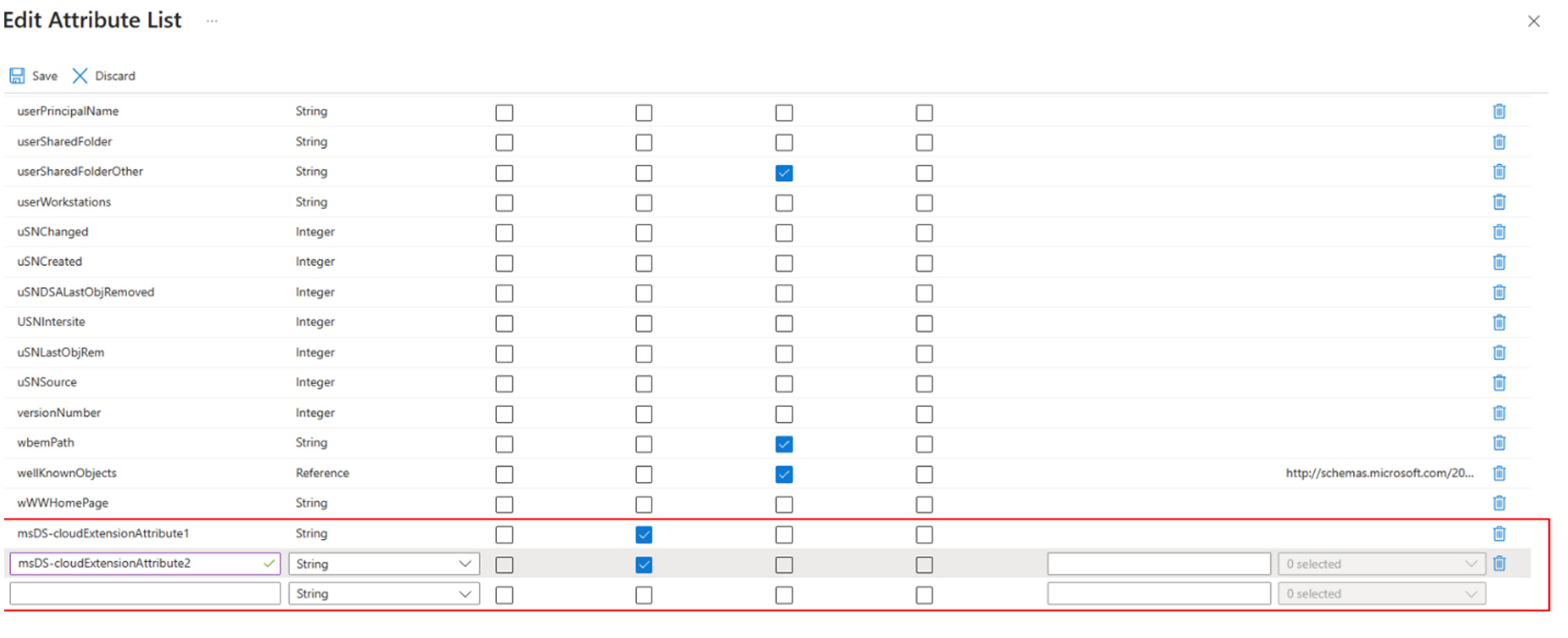

  6. Add your source attribute or attributes created as Type String, and select on the CheckBox for required. Screenshot of source API list.

    Note

    The number, and name, of source attributes added will depend on which attributes you are syncing from Active Directory.

  7. Select Save.

  8. From there, you must map the HRM attributes to the added Active Directory attributes. To do this, Add New Mapping using an Expression.

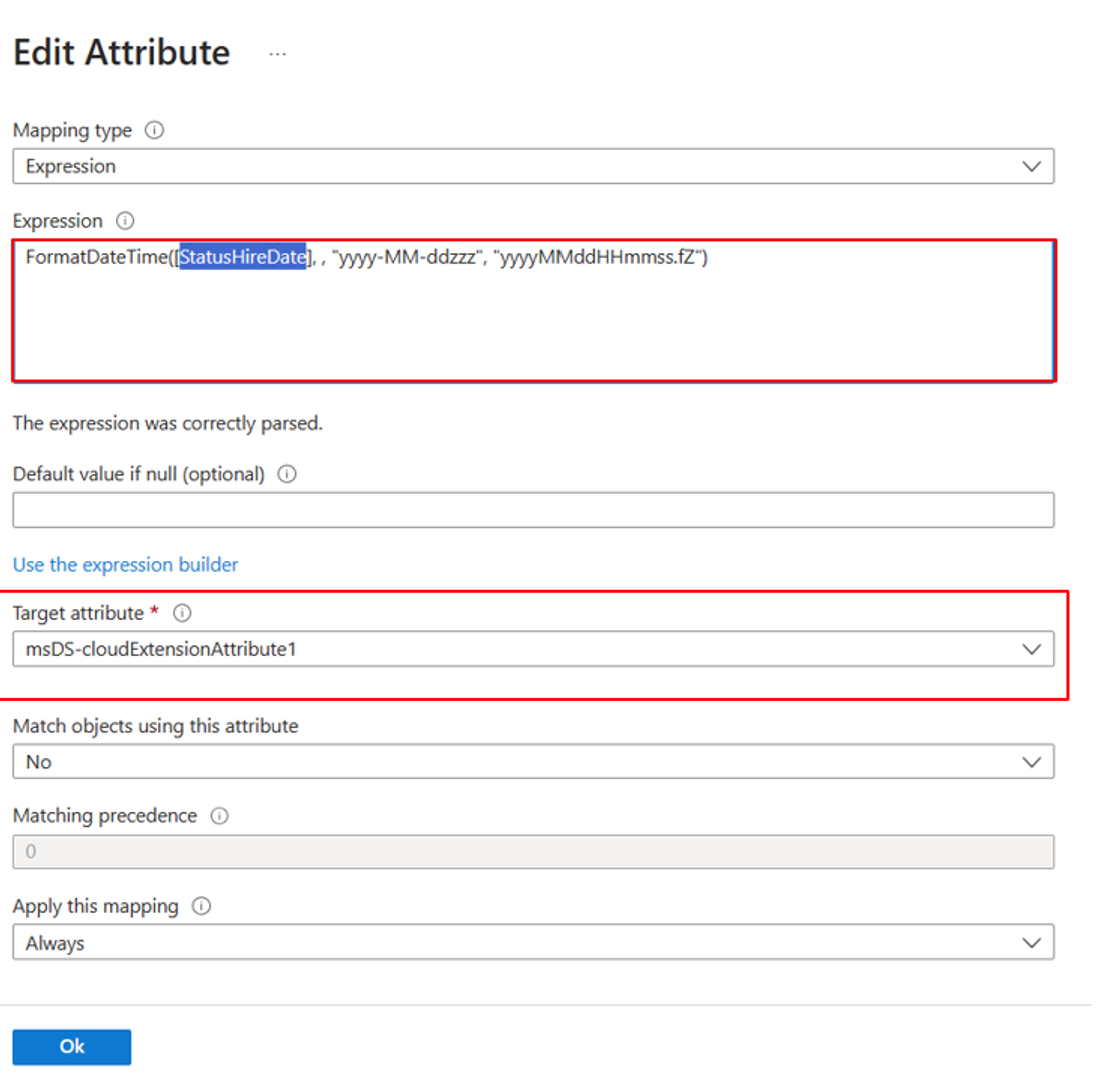

  9. Your expression must match the formatting found in the Understanding EmployeeHireDate and EmployeeLeaveDateTime formatting section. Screenshot of setting attribute format.

  10. Select ok.

How to verify these attribute values in Microsoft Entra ID

To review the values set on these properties on user objects in Microsoft Entra ID, you can use the Microsoft Graph PowerShell SDK. For example:

# Import Module
Import-Module Microsoft.Graph.Users

# Define the necessary scopes
$Scopes =@("User.Read.All", "User-LifeCycleInfo.Read.All")

# Connect using the scopes defined and select the Beta API Version
Connect-MgGraph -Scopes $Scopes


# Query a user, using its user ID, and return the desired properties
$user = Get-MgUser -UserID "00aa00aa-bb11-cc22-dd33-44ee44ee44ee" -Property EmployeeLeaveDateTime
$User.EmployeeLeaveDateTime

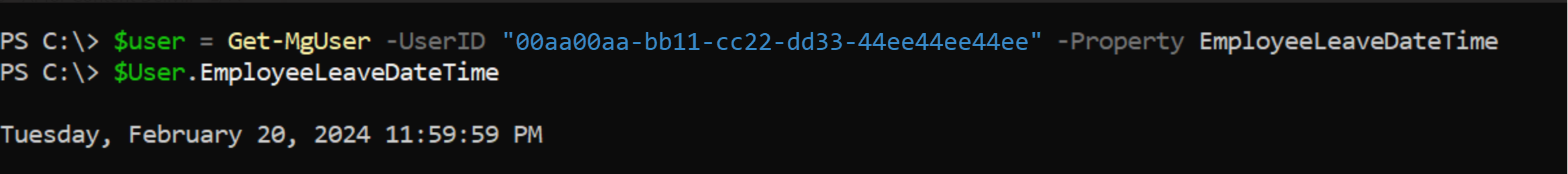

Screenshot of the result.
