SMART on FHIR overview

  • Article

Important

Azure API for FHIR will be retired on September 30, 2026. Follow the migration strategies to transition to Azure Health Data Services FHIR® service by that date. Due to the retirement of Azure API for FHIR, new deployments won't be allowed beginning April 1, 2025. Azure Health Data Services FHIR service is the evolved version of Azure API for FHIR that enables customers to manage FHIR, DICOM, and MedTech services with integrations into other Azure services.

Substitutable Medical Applications and Reusable Technologies (SMART on FHIR®) is a healthcare standard through which applications can access clinical information through a data store. It adds a security layer based on open standards including OAuth2 and OpenID Connect, to FHIR interfaces to enable integration with EHR systems. Using SMART on FHIR provides important benefits, including:

  • Applications have a known method for obtaining authentication/authorization to a FHIR repository.
  • Users accessing a FHIR repository with SMART on FHIR are restricted to resources associated with the user, rather than having access to all data in the repository.
  • Users have the ability to grant applications access to a further limited set of their data by using SMART clinical scopes.

The following tutorials describe steps to enable SMART on FHIR applications with FHIR Service.

Prerequisites

SMART on FHIR using Samples OSS (SMART on FHIR(Enhanced))

Step 1: Set up FHIR SMART user role

Follow the steps listed under Manage Users: Assign Users to Role. Any user added to role - "FHIR SMART User" is able to access the FHIR Service if their requests comply with the SMART on FHIR implementation Guide, such as request having access token, which includes a fhirUser claim and a clinical scopes claim. The access granted to the users in this role will be limited by the resources associated to their fhirUser compartment and the restrictions in the clinical scopes.

Step 2: FHIR server integration with samples

Follow the steps found in Azure Health Data and AI Samples OSS. This enables integration of FHIR server with other Azure Services (such as APIM, Azure functions and more).

Note

Samples are open-source code, and you should review the information and licensing terms on GitHub before using it. They are not part of Azure Health Data Service and are not supported by Microsoft Support. These samples can be used to demonstrate how Azure Health Data Services and other open-source tools can be used together to demonstrate ONC (g)(10) compliance using Microsoft Entra ID as the identity provider workflow.

SMART on FHIR proxy

Click to expand!

Note

This is another path to SMART on FHIR (Enhanced) as mentioned. SMART on FHIR Proxy option only enables an EHR launch sequence.

To use SMART on FHIR, you must first authenticate and authorize the app. The first time you use SMART on FHIR, you also must get administrative consent to let the app access your FHIR resources.

If you don't have an ownership role in the app, contact the app owner and ask them to grant admin consent for you in the app.

If you do have administrative privileges, complete the following steps to grant admin consent to yourself directly. (You can also grant admin consent to yourself later when you're prompted in the app.) You can complete the same steps to add other users as owners, so they can view and edit this app registration.

To add yourself or another user as owner of an app:

  1. In the Azure portal, go to Microsoft Entra ID.
  2. In the left menu, select App Registration.
  3. Search for the app registration you created, and then select it.
  4. In the left menu, under Manage, select Owners.
  5. Select Add owners, and then add yourself or the user you want to have admin consent.
  6. Select Save

Step 2: Enable the SMART on FHIR proxy

SMART on FHIR requires that Audience has an identifier URI equal to the URI of the FHIR service. The standard configuration of the Azure API for FHIR uses an Audience value of https://azurehealthcareapis.com. However, you can also set a value matching the specific URL of your FHIR service (for example https://MYFHIRAPI.azurehealthcareapis.com). This is required when working with the SMART on FHIR proxy.

To enable the SMART on FHIR proxy in the Authentication settings for your Azure API for FHIR instance, select the SMART on FHIR proxy check box.

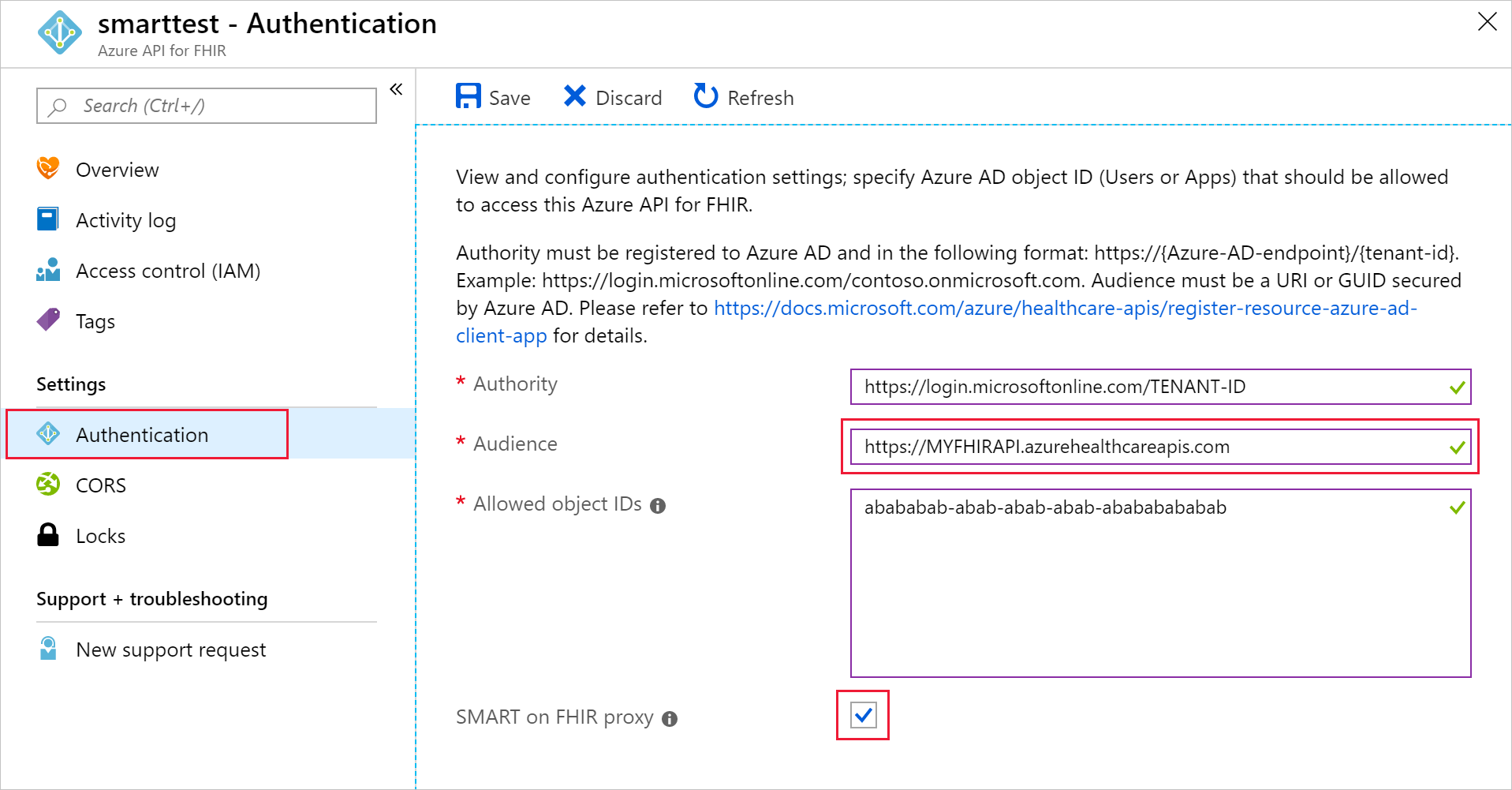

Screenshot shows enabling the SMART on FHIR proxy.

The SMART on FHIR proxy acts as an intermediary between the SMART on FHIR app and Microsoft Entra ID. The authentication reply (the authentication code) must go to the SMART on FHIR proxy instead of the app itself. The proxy then forwards the reply to the app.

Because of this two-step relay of the authentication code, you need to set the reply URL (callback) for your Microsoft Entra client application to a URL that is a combination of the reply URL for the SMART on FHIR proxy and the reply URL for the SMART on FHIR app. The combined reply URL takes the following form.

https://MYFHIRAPI.azurehealthcareapis.com/AadSmartOnFhirProxy/callback/aHR0cHM6Ly9sb2NhbGhvc3Q6NTAwMS9zYW1wbGVhcHAvaW5kZXguaHRtbA

In the reply, aHR0cHM6Ly9sb2NhbGhvc3Q6NTAwMS9zYW1wbGVhcHAvaW5kZXguaHRtbA is a URL-safe, base64-encoded version of the reply URL for the SMART on FHIR app. For the SMART on FHIR app launcher, when the app is running locally, the reply URL is https://localhost:5001/sampleapp/index.html.

You can generate the combined reply URL by using a script like the following.

$replyUrl = "https://localhost:5001/sampleapp/index.html"
$fhirServerUrl = "https://MYFHIRAPI.azurewebsites.net"
$bytes = [System.Text.Encoding]::UTF8.GetBytes($ReplyUrl)
$encodedText = [Convert]::ToBase64String($bytes)
$encodedText = $encodedText.TrimEnd('=');
$encodedText = $encodedText.Replace('/','_');
$encodedText = $encodedText.Replace('+','-');

$newReplyUrl = $FhirServerUrl.TrimEnd('/') + "/AadSmartOnFhirProxy/callback/" + $encodedText

Add the reply URL to the public client application that you created earlier for Microsoft Entra ID.

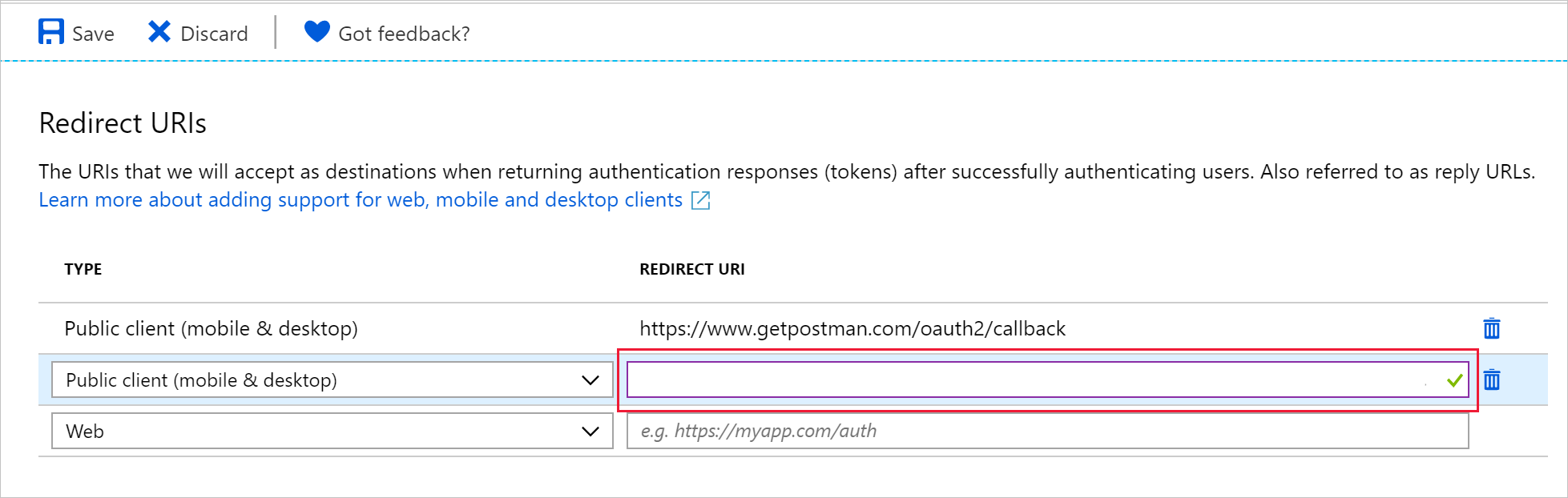

Screenshot show how reply url can be configured for the public client.

Step 3: Get a test patient

To test the Azure API for FHIR and the SMART on FHIR proxy, you need to have at least one patient in the database. If you haven't interacted with the API yet, and you don't have data in the database, see Access the FHIR service using Postman to load a patient. Make a note of the ID of a specific patient.

Step 4: Download the SMART on FHIR app launcher

The open-source FHIR Server for Azure repository includes a simple SMART on FHIR app launcher and a sample SMART on FHIR app. In this tutorial, use this SMART on FHIR launcher locally to test the setup.

You can clone the GitHub repository and go to the application by using the following commands.

git clone https://github.com/Microsoft/fhir-server
cd fhir-server/samples/apps/SmartLauncher

The application needs a few configuration settings, which you can set in appsettings.json:

{
    "FhirServerUrl": "https://MYFHIRAPI.azurehealthcareapis.com",
    "ClientId": "APP-ID",
    "DefaultSmartAppUrl": "/sampleapp/launch.html"
}

We recommend that you use the dotnet user-secrets feature.

dotnet user-secrets set FhirServerUrl https://MYFHIRAPI.azurehealthcareapis.com
dotnet user-secrets set ClientId <APP-ID>

Use this command to run the application.

dotnet run

Step 5: Test the SMART on FHIR proxy

After you start the SMART on FHIR app launcher, you can point your browser to https://localhost:5001, where you should see the following screen.

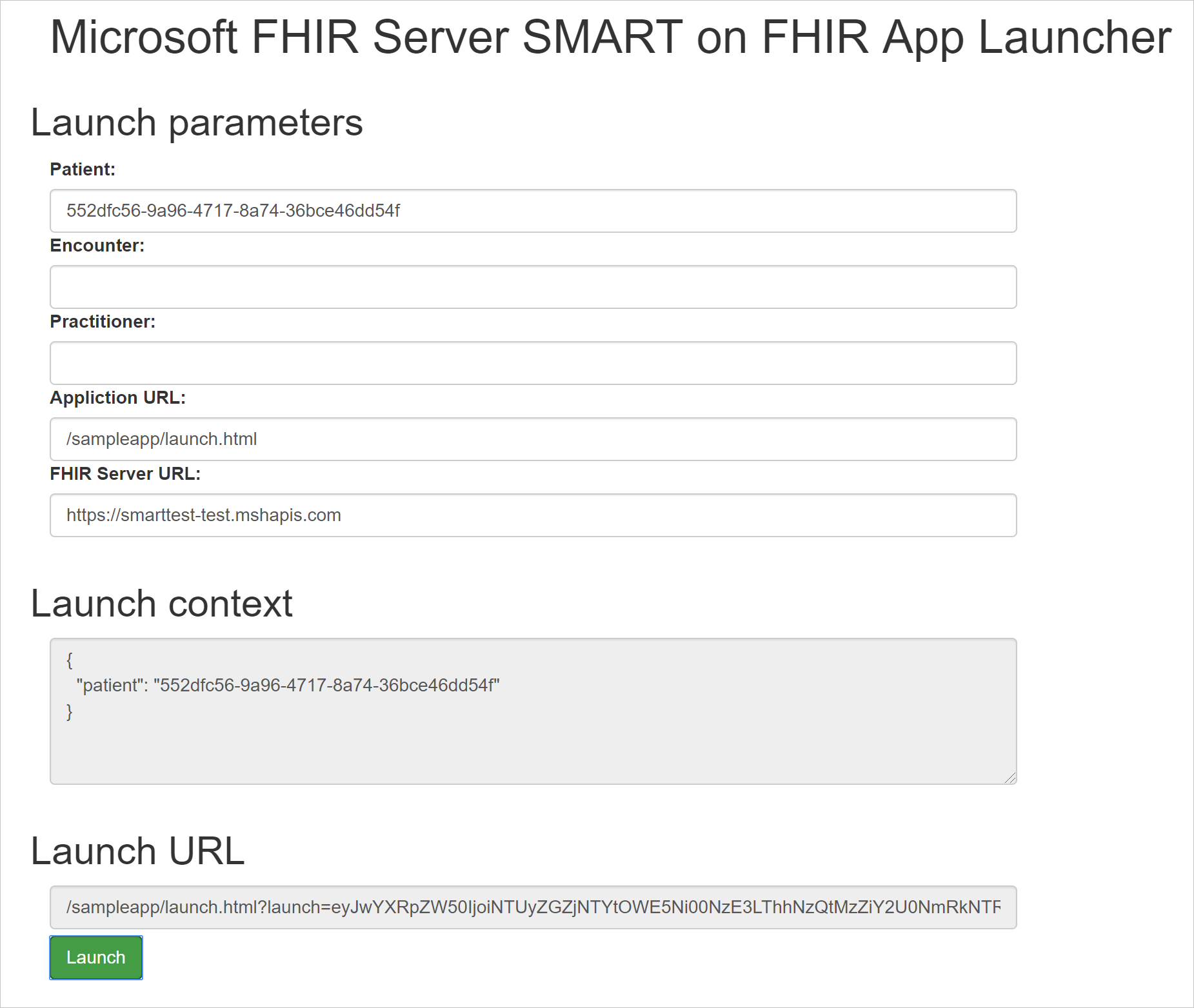

Screenshot of SMART on FHIR app launcher.

When you enter Patient, Encounter, or Practitioner information, notice that the Launch context is updated. When you're using the Azure API for FHIR, the launch context is simply a JSON document that contains information about patient, practitioner, and more. This launch context is base64 encoded and passed to the SMART on FHIR app as the launch query parameter. According to the SMART on FHIR specification, this variable is opaque to the SMART on FHIR app and passed on to the identity provider.

The SMART on FHIR proxy uses this information to populate fields in the token response. The SMART on FHIR app can use these fields to control which patient it requests data for and how it renders the application on the screen. The SMART on FHIR proxy supports the following fields.

  • patient
  • encounter
  • practitioner
  • need_patient_banner
  • smart_style_url

These fields are meant to provide guidance to the app, but they don't convey any security information. A SMART on FHIR application can ignore them.

Notice that the SMART on FHIR app launcher updates the Launch URL information at the bottom of the page.

Select Launch to start the sample app.

Migrate from SMART on FHIR Proxy to SMART on FHIR (Enhanced)

Important

SMART on FHIR proxy is retiring in September 2026, transition to the SMART on FHIR (Enhanced) by that date. Beginning September 2026, applications relying on SMART on FHIR proxy will report errors in accessing the FHIR service.

SMART on FHIR (Enhanced) provides more capabilities compared to SMART on FHIR proxy. SMART on FHIR(Enhanced) can be considered to meet requirements with SMART on FHIR Implementation Guide (v 1.0.0) and §170.315(g)(10) Standardized API for patient and population services criterion. The following table lists the difference between SMART on FHIR proxy and SMART on FHIR (Enhanced).

Capability SMART on FHIR (Enhanced) SMART on FHIR proxy
Supports Standalone Launch Yes No
Supports EHR Launch Yes Yes
Supports scope restrictions Yes No
Relies on first party Azure products Yes, Azure products such as Azure API Management (APIM) need to be integrated No
Microsoft Support Supported for FHIR service.Open-source sample support needs to be reported and monitored via GitHub Supported for FHIR service

Migration Steps

  • Step 1: Set up FHIR SMART user role Follow the steps listed under section Manage Users: Assign Users to Role. Any user added to SMART user role is able to access the FHIR Service, if their requests comply with the SMART on FHIR implementation Guide.
  • Step 2: Deploy SMART on FHIR sample under Azure Health Data and AI OSS samples
  • Step 3: Update endpoint of the FHIR service url to '{{BASEURL_FROM_APIM}}/smart.'
  • Step 4: Uncheck the SMART on FHIR proxy setting under Authentication blade for the FHIR service.

If you have questions, you can get answers from community experts in Microsoft Q&A. For technical support, you can also create a support request.

Next steps

Now that you've learned about enabling SMART on FHIR functionality, see the search samples page for details about how to search using search parameters, modifiers, and other FHIR search methods.
