Tutorial: Create a math quiz WinForms app

  • Article

In this series of four tutorials, you build a math quiz. The quiz contains four random math problems that a quiz taker tries to answer within a specified time.

The Visual Studio integrated development environment (IDE) provides the tools that you need to create the app. To learn more about this IDE, see Welcome to the Visual Studio IDE.

In this first tutorial, you learn how to:

  • Create a Visual Studio project that uses Windows Forms.
  • Add labels, a button, and other controls to a form.
  • Set properties for the controls.
  • Save and run your project.

Prerequisites

You need Visual Studio to complete this tutorial. Visit the Visual Studio downloads page for a free version.

Note

This tutorial requires the Windows Forms App (.NET Framework) project template. During installation, select the .NET desktop development workload:

Screenshot that shows the dot NET desktop development workload in Visual Studio Installer.

If you already have Visual Studio installed and need to add it, from the menu, select Tools > Get Tools and Features, or in the Create a new project window, select the Install more tools and features link.

Screenshot that shows the Install more tools and features link from the Not finding what you're looking for message in the Create new project dialog box.

Create your Windows Forms project

When you create a math quiz, the first step is to create a Windows Forms App project.

  1. Open Visual Studio.

  2. On the start window, select Create a new project.

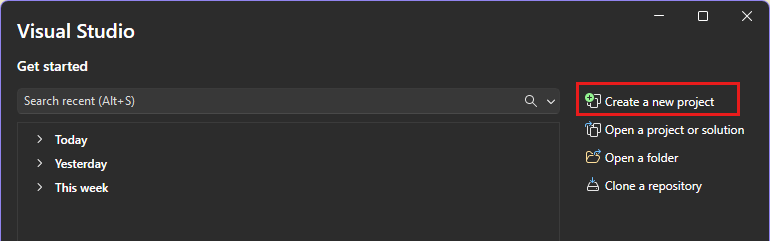

    Screenshot that shows the Create a new project option in the Visual Studio start window.

  3. In the Create a new project window, search for Windows Forms. Then select Desktop from the Project type list.

  4. Select the Windows Forms App (.NET Framework) template for either C# or Visual Basic, and then select Next.

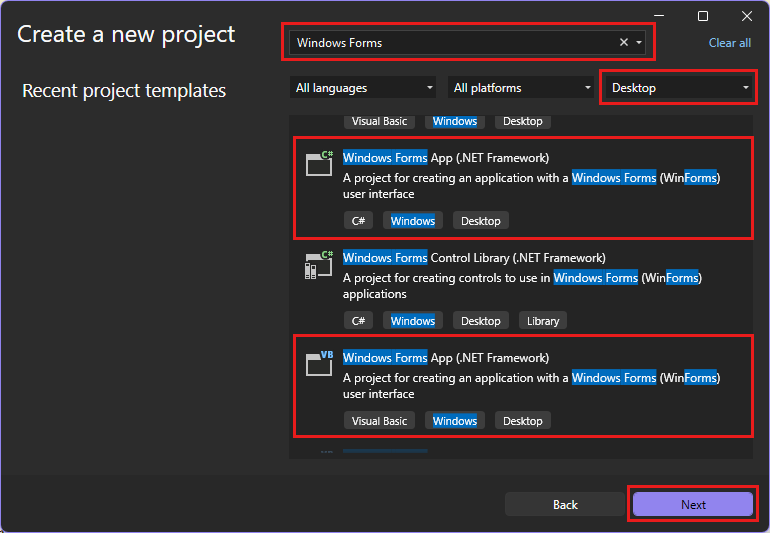

    Screenshot that shows the Create a new project dialog box with the search box, the Project type list, and two templates called out.

  5. In the Configure your new project window, name your project MathQuiz, and then select Create.

  1. Open Visual Studio.

  2. On the start window, select Create a new project.

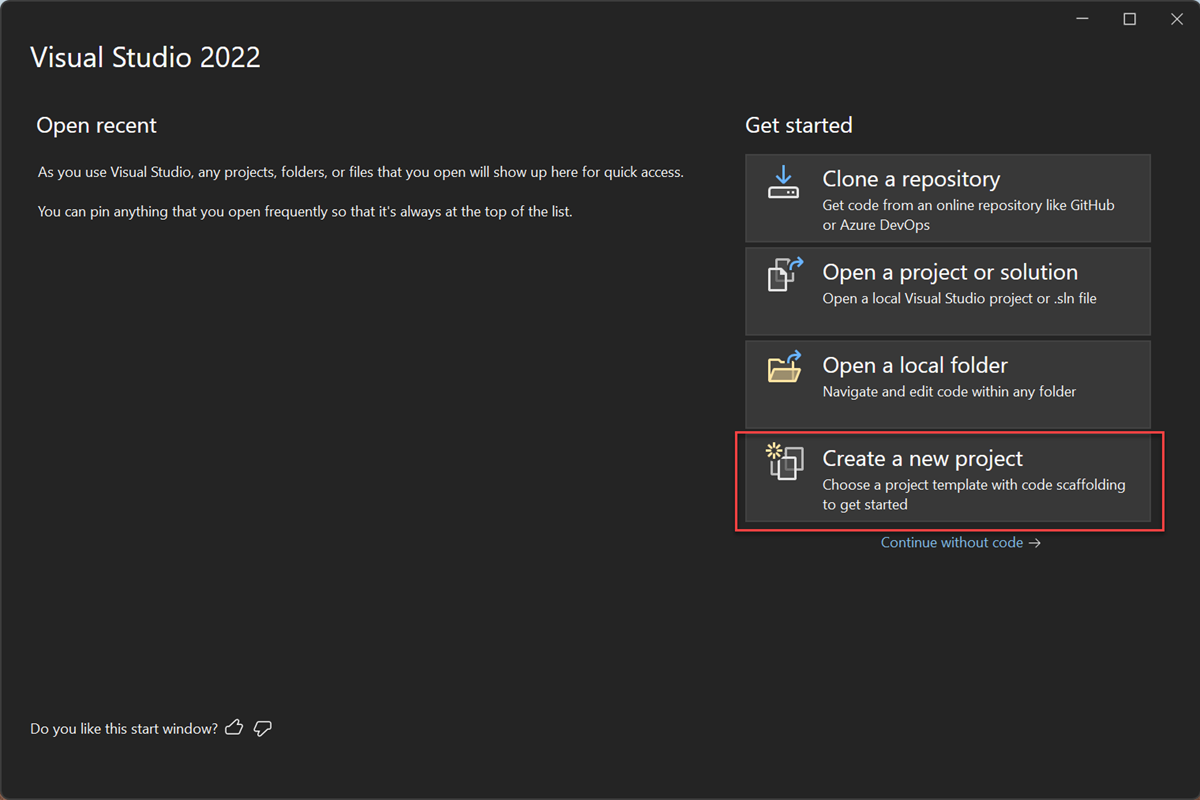

    Screenshot that shows the Create a new project option in the Visual Studio start window.

  3. In the Create a new project window, search for Windows Forms. Then select Desktop from the Project type list.

  4. Select the Windows Forms App (.NET Framework) template for either C# or Visual Basic, and then select Next.

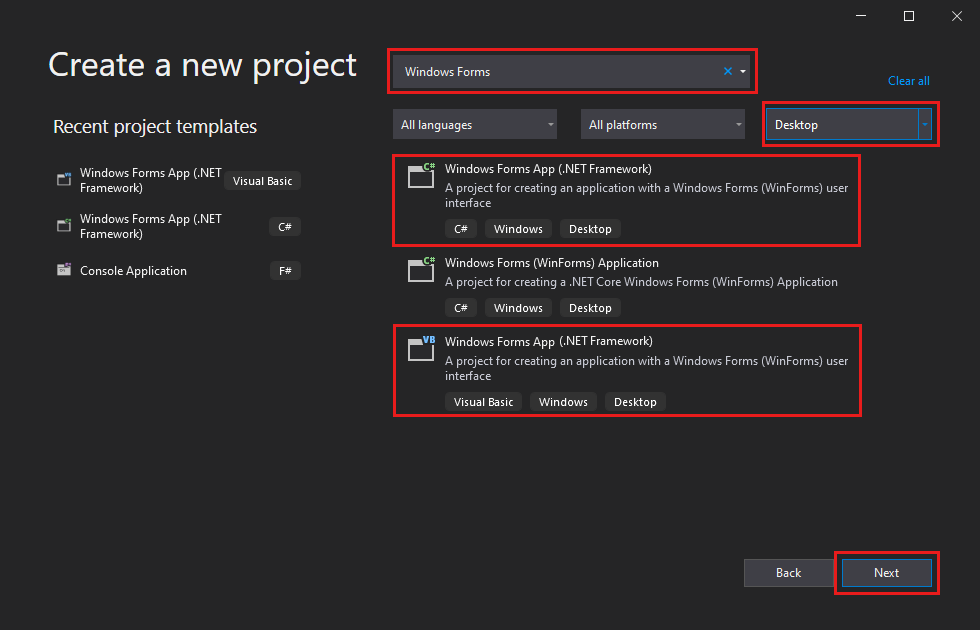

    Screenshot that shows the Create a new project dialog box with the search box, the Project type list, and two templates called out.

  5. In the Configure your new project window, name your project MathQuiz, and then select Create.

Visual Studio creates a solution for your app. A solution is a container for all the projects and files that your app needs.

Set form properties

After you select your template and name your file, Visual Studio opens a form for you. This section shows you how to change some form properties.

  1. In your project, select Windows Forms Designer. The designer tab is labeled Form1.cs [Design] for C# or Form1.vb [Design] for Visual Basic.

  2. Select the form, Form1.

  3. The Properties window now displays properties for the form. This window is usually in the lower right corner of Visual Studio. If you don't see Properties, select View > Properties Window.

  4. Find the Text property in the Properties window. Depending on how the list is sorted, you might need to scroll down. Enter the value Math Quiz for the Text value, and then select Enter.

    Your form now has the text "Math Quiz" in its title bar.

    Note

    You can display properties by category or alphabetically. Use the buttons on the Properties window to switch back and forth.

  5. Change the size of the form to 500 pixels wide by 400 pixels tall.

    You can resize the form by dragging its edges or drag handle until the correct size appears as the Size value in the Properties window. The drag handle is a small white square in the lower-right corner of the form. You can also resize the form by changing the values of the Size property.

  6. Change the value of the FormBorderStyle property to Fixed3D, and set the MaximizeBox property to False.

    These values prevent quiz takers from resizing the form.

Create the time remaining box

The math quiz contains a box in the upper-right corner. That box shows the number of seconds that remain in the quiz. This section shows you how to use a label for that box. You add code for the countdown timer in a later tutorial in this series.

  1. On the left side of the Visual Studio IDE, select the Toolbox tab. If you don't see the toolbox, select View > Toolbox from the menu bar or Ctrl+Alt+X.

  2. Select the Label control in the Toolbox, and then drag it onto the form.

  3. In the Properties box, set the following properties for the label:

    • Set the (Name) to timeLabel.
    • Change AutoSize to False so that you can resize the box.
    • Change the BorderStyle to FixedSingle to draw a line around the box.
    • Set the Size to 200, 30.
    • Select the Text property, and then select the Backspace key to clear the Text value.
    • Select the plus sign (+) next to the Font property, and then set the Size to 15.75.

  4. Move the label to the upper-right corner of the form. When blue spacer lines appear, use them to position the control on the form.

  5. Add another Label control from the Toolbox, and then set its font size to 15.75.

  6. Set this label's Text property to Time Left.

  7. Move the label so that it lines up to the left of the timeLabel label.

    Screenshot that shows the Time Left and remaining time label with controls lined up next to each other in the upper-right corner of the form.

Add controls for the addition problem

The first part of the quiz is an addition problem. This section shows you how to use labels to display that problem.

  1. Add a Label control from the Toolbox to the form.

  2. In the Properties box, set the following properties for the label:

    • Set the Text to ? (question mark).
    • Set AutoSize to False.
    • Set the Size to 60, 50.
    • Set the font size to 18.
    • Set TextAlign to MiddleCenter.
    • Set the Location to 50, 75 to position the control on the form.
    • Set the (Name) to plusLeftLabel.

  3. In the form, select the plusLeftLabel label that you created. Copy the label by selecting either Edit > Copy or Ctrl+C.

  4. Paste the label into the form three times by selecting either Edit > Paste or Ctrl+V three times.

  5. Arrange the three new labels so that they are in a row to the right of the plusLeftLabel label.

  6. Set the second label's Text property to + (plus sign).

  7. Set the third label's (Name) property to plusRightLabel.

  8. Set the fourth label's Text property to = (equals sign).

  9. Add a NumericUpDown control from the Toolbox to the form. You learn more about this kind of control later.

  10. In the Properties box, set the following properties for the NumericUpDown control:

    • Set the font size to 18.
    • Under MaximumSize, set the width to 100.
    • Set the (Name) to sum.

  11. Line up the NumericUpDown control with the Label controls for the addition problem.

    Screenshot that shows the first row of the math quiz, with labels visible and a control with arrow keys that displays a zero.

Add controls for the subtraction, multiplication, and division problems

Next, add labels to the form for the remaining math problems.

  1. Copy the four Label controls and the NumericUpDown control that you created for the addition problem. Paste them into the form.

  2. Move the new controls to line up below the addition controls.

  3. In the Properties box, set the following properties for the new controls:

    • Set the (Name) of the first question-mark label to minusLeftLabel.
    • Set the Text of the second label to - (minus sign).
    • Set the (Name) of the second question-mark label to minusRightLabel.
    • Set the (Name) of the NumericUpDown control to difference.

  4. Copy the addition controls, and paste them two more times into the form.

  5. For the third row:

    • Set the (Name) of the first question-mark label to timesLeftLabel.
    • Set the Text of the second label to × (multiplication sign). You can copy the multiplication sign from this tutorial and paste it onto the form.
    • Set the (Name) of the second question-mark label to timesRightLabel.
    • Set the (Name) of the NumericUpDown control to product.

  6. For the fourth row:

    • Set the (Name) of the first question-mark label to dividedLeftLabel.
    • Set the Text of the second label to ÷ (division sign). You can copy the division sign from this tutorial and paste it onto the form.
    • Set the (Name) of the second question-mark label to dividedRightLabel.
    • Set the (Name) of the NumericUpDown control to quotient.

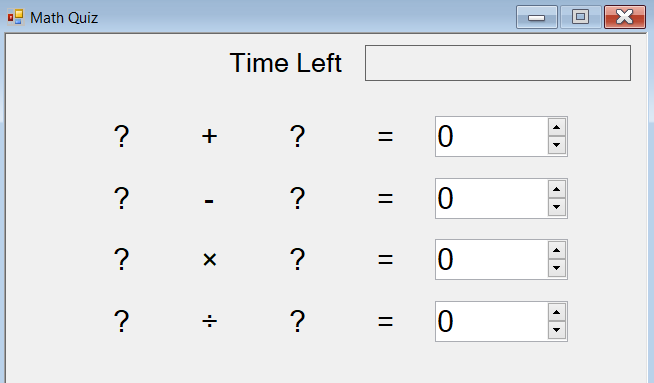

Screenshot that shows a math quiz with four rows of problems, with labels and controls with arrow keys visible.

Add a start button and set the tab-index order

This section shows you how to add a start button. You also specify the tabbing order of the controls. This ordering determines how the quiz taker moves from one control to the next by using the Tab key.

  1. Add a Button control from the Toolbox to the form.

  2. In the Properties box, set the following properties of the button:

    • Set the (Name) to startButton.
    • Set the Text to Start the quiz.
    • Set the font size to 14.
    • Set AutoSize to True, which causes the button to automatically resize to fit the text.
    • Set the TabIndex to 0. This value makes the start button the first control to receive the focus.

  3. Center the button near the bottom of the form.

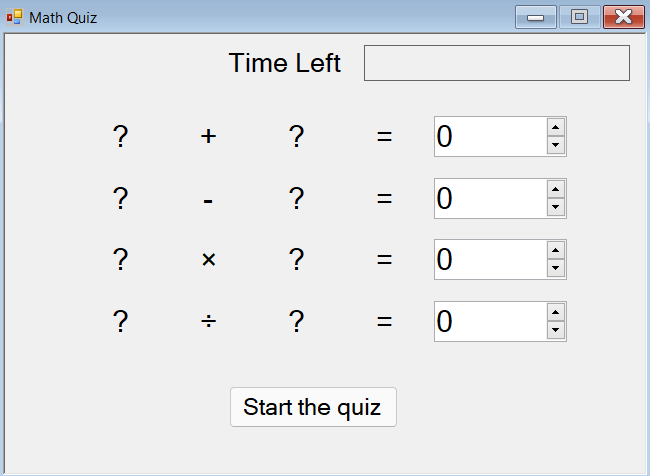

    Screenshot that shows a math quiz with four rows of problems and a start button.

  4. In the Properties box, set the TabIndex property of each NumericUpDown control:

    • Set the TabIndex of the sum control to 1.
    • Set the TabIndex of the difference control to 2.
    • Set the TabIndex of the product control to 3.
    • Set the TabIndex of the quotient control to 4.

Run your app

The math problems don't work yet on your quiz. But you can still run your app to check whether the TabIndex values function as you expect.

  1. Use one of the following methods to save your app:

    • Select Ctrl+Shift+S.
    • On the menu bar, select File > Save All.
    • On the toolbar, select the Save All button.

  2. Use one of the following methods to run your app:

    • Select F5.
    • On the menu bar, select Debug > Start Debugging.
    • On the toolbar, select the Start button.

  3. Select the Tab key a few times to see how the focus moves from one control to the next.

Next step

Advance to the next tutorial to add random math problems and an event handler to your math quiz.

Tutorial part 2: Add math problems to a math quiz WinForms app
