Update Kubernetes and node images across multiple member clusters

Article
10/17/2024

Platform admins managing large number of clusters often have problems with staging the updates of multiple clusters (for example, upgrading node OS image or Kubernetes versions) in a safe and predictable way. To address this challenge, Azure Kubernetes Fleet Manager (Fleet) allows you to orchestrate updates across multiple clusters using update runs.

Update runs consist of stages, groups, and strategies and can be applied either manually, for one-time updates, or automatically, for ongoing regular updates using auto-upgrade profiles. All update runs (manual or automated) honor member cluster maintenance windows.

Understanding update runs

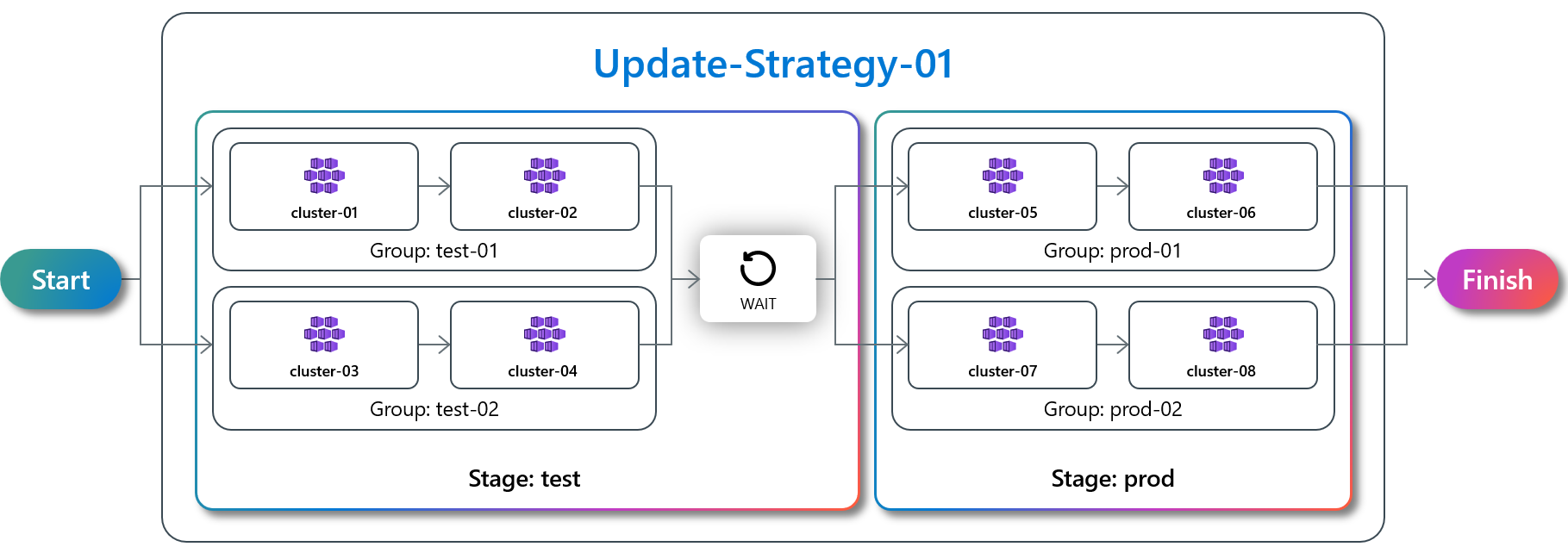

The following image visualizes an upgrade run containing two update stages, each containing two update groups with two member clusters. A wait period is configured between the first and second stages.

Update run: An update run represents an update being applied to a collection of AKS clusters, consisting of the update goal and sequence. The update goal describes the desired updates (for example, upgrading to Kubernetes version 1.28.3). The update sequence describes the exact order to apply the update to multiple member clusters, expressed using stages and groups. If unspecified, all the member clusters are updated one by one sequentially. An update run can be stopped and started.
Update stage: Update runs are divided into stages, which are applied sequentially. For example, a first update stage might update test environment member clusters, and a second update stage would then later update production environment member clusters. A wait time can be specified to delay between the application of subsequent update stages.
Update group: Each update stage contains one or more update groups, which are used to select the member clusters to be updated. Update groups are also used to order the application of updates to member clusters. Within an update stage, updates are applied to all the different update groups in parallel; within an update group, member clusters update sequentially. Each member cluster of the fleet can only be a part of one update group.
Update strategy: An update strategy describes the update sequence with stages and groups and allows you to reuse an update run configuration instead of defining the sequence repeatedly in each run. An update strategy doesn't include desired Kubernetes or node image versions.

Currently, the supported update operations on member cluster are upgrades. There are three types of upgrades you can choose from:

Upgrade Kubernetes versions for the Kubernetes control plane and the nodes (which includes upgrading the node images).
Upgrade Kubernetes versions for only the control plane of the clusters.
Upgrade only the node images.

You can specify the target Kubernetes version to upgrade to, but you can't specify the exact target node image version. This is because the latest available node image version may vary depending on the Azure region of the cluster (check the AKS release tracker for more information).

The target node image versions are automatically selected for you based on your preferences:

Latest: Use the latest node images available in the Azure region of a cluster when the upgrade of the cluster starts. As a result, different image versions could be used depending on which Azure region a cluster is in and when its upgrade actually starts.
Consistent: When the update run starts, it picks the latest common image versions across the Azure regions of the member clusters in this run, such that the same, consistent image versions are used across clusters.

You should choose Latest to use fresher image versions and minimize security risks, and choose Consistent to improve reliability by using and verifying those images in clusters in earlier stages before using them in later clusters.

Planned maintenance

Update runs honor planned maintenance windows that you set at the Azure Kubernetes Service (AKS) cluster level.

Within an update run (for both One by one or Stages type update runs), update run prioritizes upgrading the clusters in the following order:

Member with an open ongoing maintenance window.
Member with maintenance window opening in the next four hours.
Member with no maintenance window.
Member with a closed maintenance window.

Update run states

An update run can be in one of the following states:

NotStarted: Update run hasn't started.
Running: Upgrade is in progress for at least one of the member clusters in the update run.
Pending:
- Member cluster: A member cluster can be in the pending state for any of the following reasons which can be viewed in the message field.
  - Maintenance window isn't open. Message indicates next opening time.
  - Target Kubernetes version isn't yet available in the Azure region of the member. Message links to the release tracker so that you can check status of the release across regions.
  - Target node image version isn't yet available in the Azure region of the member. Message links to the release tracker so that you can check status of the release across regions.
- Group: A group is in Pending state if all members in the group are in Pending state or not started. When a member moves to Pending, the update run will attempt to upgrade the next member in the group. If all members are Pending, the group moves to Pending state. If a group is in Pending state, the update run waits for the group to complete before moving on to the next stage for execution.
- Stage: A stage is in Pending state if all groups under that stage are in Pending state or not started.
- Run: A run is in Pending state if the current stage that should be running is in Pending state.
Skipped: All levels of an update run can be skipped. Skipping can be system or user-initiated.
- Member:
  - You skipped upgrade for a member, group, or stage.
  - Member cluster is already at the target Kubernetes version (if update run mode is Full or ControlPlaneOnly).
  - Member cluster is already at the target Kubernetes version and all node pools are at the target node image version.
  - When consistent node image is chosen for an upgrade run, if it's not possible to find the target image version for one of the node pools, then the upgrade is skipped for that cluster. As an example, this can occur when a new node pool with a new Virtual Machine (VM) SKU is added after an update run has started.
- Group:
  - All member clusters were detected as Skipped by the system.
  - You initiated a skip at the group level.
- Stage:
  - All groups in the stage were detected as Skipped by the system.
  - You initiated a skip at the stage level.
- Run:
  - All stages were detected as Skipped by the system.
Stopped: All levels of an update run can be stopped. There are two possibilities for entering a stopped state:
- You stop the update run, at which point update run stops tracking all operations. If an operation was already initiated by update run (for example, a cluster upgrade is in progress), then that operation isn't aborted for that individual cluster.
- If a failure is encountered during the update run (for example upgrades failed on one of the clusters), the entire update run enters into a stopped state. Operations are not attempted for any subsequent cluster in the update run.
Failed: A failure to upgrade a cluster results in the following actions:
- Marks the MemberUpdateStatus as Failed on the member cluster.
- Marks all parents (group -> stage -> run) as Failed with a summary error message.
- Stops the update run from progressing any further.

Note

You can re-run an update run at any time in order to re-apply upgrades that may have been skipped or failed.

Understanding auto-upgrade profiles (preview)

Auto-upgrade profiles are used to automatically trigger update runs when new Kubernetes or node image versions are made available for AKS.

Important

Azure Kubernetes Fleet Manager preview features are available on a self-service, opt-in basis. Previews are provided "as is" and "as available," and they're excluded from the service-level agreements and limited warranty. Azure Kubernetes Fleet Manager previews are partially covered by customer support on a best-effort basis. As such, these features aren't meant for production use.

In an auto-upgrade profile you can configure:

a Channel (Stable, Rapid, NodeImage) which determines the type of auto-upgrade that is applied to the clusters.
an UpdateStrategy which configures the sequence in which the clusters are upgraded. If a strategy isn't supplied, clusters are updated one by one sequentially.
the NodeImageSelectionType (Latest, Consistent) to specify how the node image is selected when upgrading the Kubernetes version.

Stable channel

The Stable channel is always the latest AKS-supported Kubernetes patch release on minor version N-1, where N is the latest supported minor version.

Examples:

The latest supported minor Kubernetes version is 1.30. Any patch releases in the 1.29 minor range would be considered for Stable channel updates.
A new minor Kubernetes version of 1.31 is published. Any patch release in the 1.30 minor range would be considered for Stable channel updates. Any cluster previously receiving updates from 1.29 would be updated to the most recent patch for 1.30.

Rapid channel

The Rapid channel is always the most recent AKS-supported Kubernetes minor release.

Examples:

The latest supported minor version is 1.30. Any patch release in the 1.30 minor range would be considered for Rapid channel updates.
A new minor Kubernetes version of 1.31 is published. 1.30 shifts to the Stable channel. Any cluster previously receiving updates from 1.30 would be updated to the most recent patch for 1.31 which is now the Rapid channel.

NodeImage channel

Member cluster nodes are updated with a newly patched VHD containing security fixes and bug fixes on a weekly cadence. The update to the new VHD is disruptive, following maintenance windows and surge settings. No extra VHD cost is incurred when choosing this option.

If you use this channel, Linux unattended upgrades are disabled by default. Node image upgrades support patch versions that are deprecated, so long as the minor Kubernetes version is still supported. Node images are AKS-tested, fully managed, and applied with safe deployment practices.

Nodes on different operating systems will be updated in accordance with the node image versions aligned to those operating systems.

Example:

A cluster has nodes with a NodeImage of AKSWindows-2022-containerd of version 20348.2582.240716. A new NodeImage version 20348.2582.240916 is released and the cluster nodes are automatically upgraded to version 20348.2582.240916.

Minor version skipping behavior

Auto-upgrade does not move clusters between minor Kubernetes versions when there's more than one minor Kubernetes version difference (for example: 1.28 to 1.30). Where administrators have a diverse set of Kuberenetes versions it's recommended to first use one or more update run to bring member clusters into a set of consistently versioned releases so that configured Stable or Rapid channel updates ensure consistency is maintained in future.
