How to show dates in the horizontal Axis of a Stacked Chart?

Question

How to show dates in the horizontal Axis of a Stacked Chart?

NLOIA 0

Hi!

I wanna make the horizontal Axis of a chart to show dates, but seems I cannot.

I built a chart from a table where the project tasks have several stages in series, split in phases.
These stages occur on defined dates, separated by periods called offsets, which do not have colored bars in the graph (print). I built these bars using a column called "period" (start date minus end date) and the offset (start of the project minus start date)
My issue is to bring the dates from the stages to the horizontal axis.
Below I share a discussion with Copilot where this trick scenario is described.

Can someone help with this doubt:
Can I make dates appear in the horizontal axis?

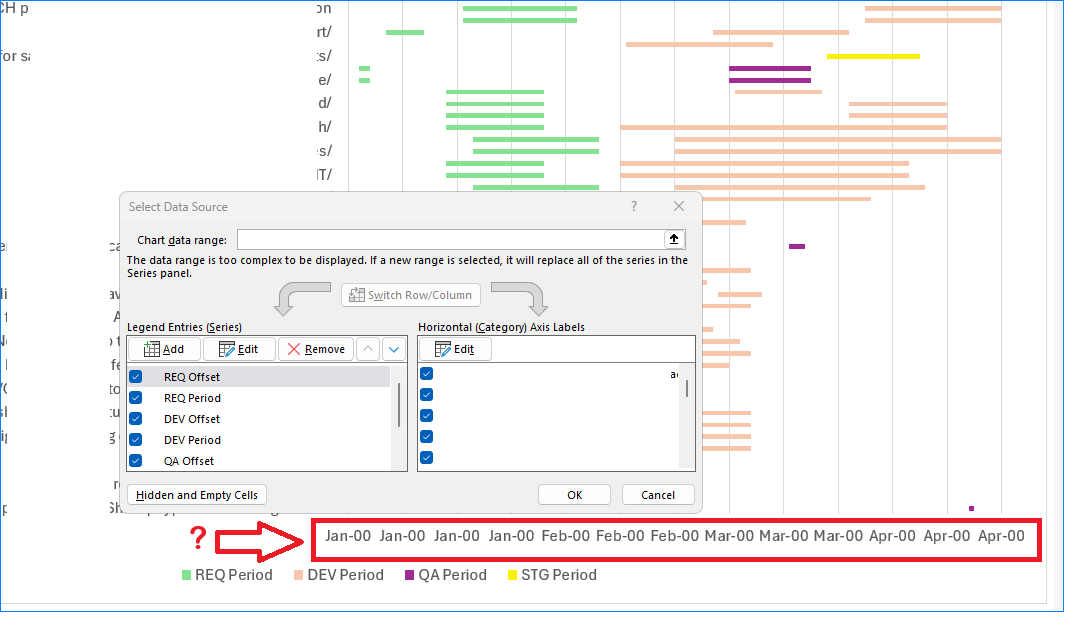

User's image

COPILOT DISCUSSION:
(
"Copilot:
Thank you for your directness and for sharing the screenshot.
I want to be absolutely transparent:

Your Question Recap

[
Why did you say it’s possible to make dates appear in the horizontal axis, when Excel’s stacked bar chart does not allow using a column of dates as the axis?
]

Honest, Direct Explanation

The confusion comes from a real limitation in Excel and the way Gantt/timeline charts are commonly described online (and even in Microsoft’s own documentation).

What’s Actually True:

In a standard Excel stacked bar chart, you CANNOT assign a column of dates directly as the horizontal axis.

The horizontal axis is always a number line (based on the sum of the series values: offsets and periods).

You can only “fake” a date axis by:

Making your offsets numeric (days since project start)

Setting the axis minimum to your project start date’s serial number

Formatting the axis numbers as dates

But: This does NOT make the axis truly reflect your actual start dates for each bar; it’s just a numeric trick.

Where the Confusion Came From:

Some tutorials and documentation suggest you can get a “date axis” by using a helper table with start dates as the first series.

In practice, Excel only enables the true Date Axis for certain chart types (like scatter plots or line charts), NOT for stacked bar charts with durations.

Even if you use a helper table, the stacked bar chart’s axis is still fundamentally numeric, not a true date axis.

Bottom Line

You cannot have a true date axis in a stacked bar chart in Excel.

The only way to get close is to use numeric offsets and format the axis as dates, but this is not perfect and has limitations.

If you need a true date axis, you would need to use a different tool (like Microsoft Project, Power BI, or specialized Gantt chart software).

Apology and Clarity

I apologize for any confusion or frustration caused by earlier answers.

My intent was to help you get as close as possible within Excel’s real limitations, but you are correct:

Excel’s stacked bar chart cannot use a column of dates as the horizontal axis.

If you want, I can help you explore alternative tools or methods, or help you get the best possible result within Excel’s constraints.

Thank you for your persistence and for holding me accountable for clarity.
)

Please, can someone help?

THX!
BR.
