While publishing the workflow below error

Question

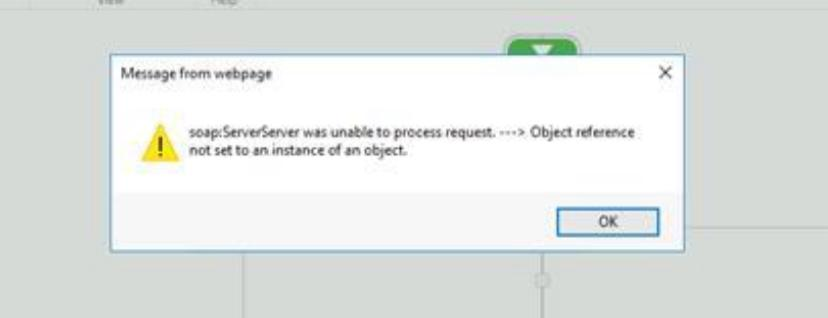

While publishing the workflow below error , Please suggest what could be the issue and what we need to verify, It is SharePoint 2016.

Answer 1

Hi sns,

Great to know that and thanks for sharing the update here.

By the way, since the Microsoft Q&A community has a policy that "The question author cannot accept their own answer. They can only accept answers by others.". and according to the scenario introduced here: Answering your own questions on Microsoft Q&A, I would make a brief summary of this thread:

[While publishing the workflow below error]

Issue Symptom:
While publishing the workflow below error , Please suggest what could be the issue and what we need to verify, It is SharePoint 2016.

Current status:
After Nintex version upgrade issue got fixed

You could click the "Accept Answer" button for this summary to close this thread, and this can make it easier for other community members to see the useful information when reading this thread. Thanks for your understanding!

Answer 2

Hi @sns ,

Are you using Nintex workflow 2013?

If so, according to my research, the error messages could have the following causes:

• The Nintex Forms database does not exist.
• The Nintex Forms database is not integrated.
• The database needs to be updated

Create Nintex Forms database:

If the Nintex Forms DB has not yet been created, you can create this DB in the [CA.]

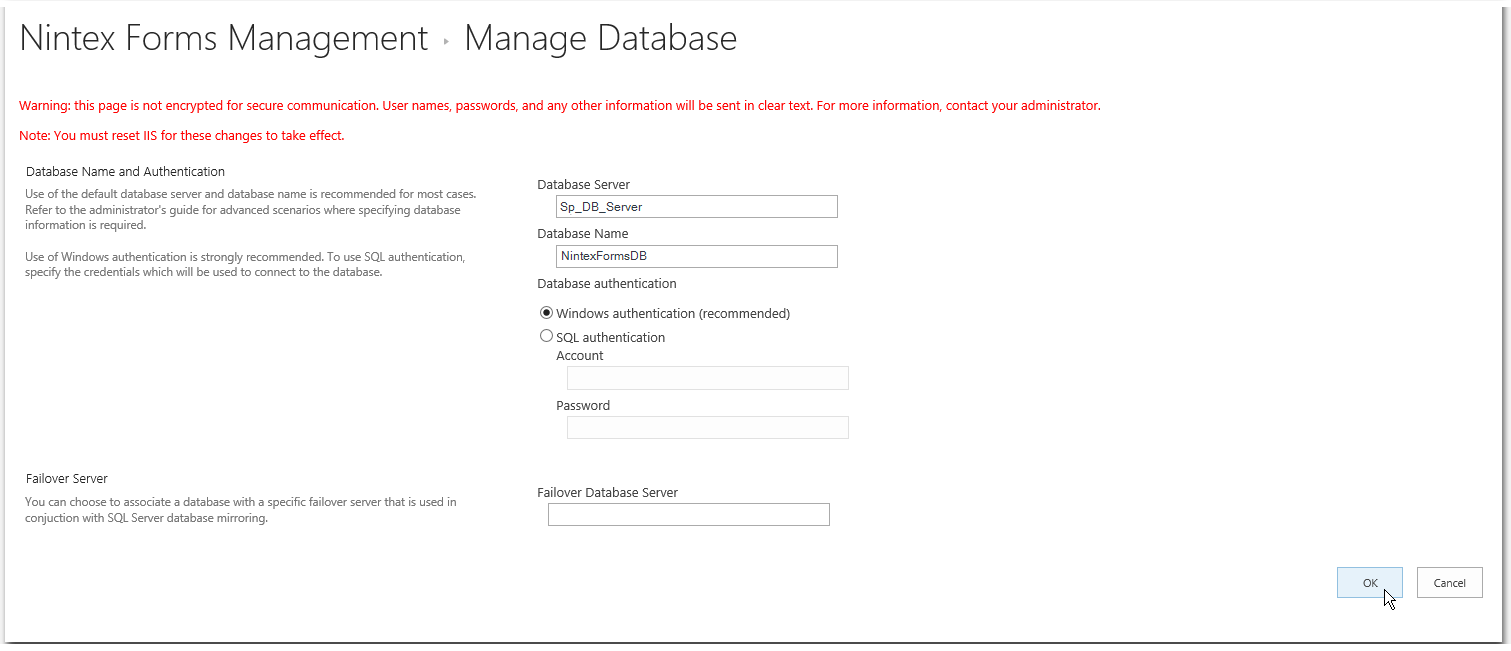

CA >  Nintex Forms Management > Manage Database

Nintex Forms database upgrade:

If Nintex Forms DB exists and is connected, then this DB probably needs to be updated.

To do this, enter the following command in the SharePoint 2016 Management Shell :

Upgrade-NFservice

After that, the error should no longer appear.

Or you can try this:

1. Go to Central Admin
2. Click on Nintex Worklfow Management
3. Database setup -> Add Content Database ( If already configured it, still created new)
4. Configuration Database click Edit
5. Update the connection string with newly created database.
6. IISRESET

If none of the above can solve your problem, I suggest you go to the Nintex community for help.
