Generate Azure Backup Usage + Capacity Used Report

ESTHER PAULINE 0 Reputation points

How can we generate the Azure Backup capacity usage report by monthly?

Azure Backup
Azure Backup
An Azure backup service that provides built-in management at scale.
977 questions
{count} votes

1 answer

Sort by: Most helpful
  1. Prrudram-MSFT 18,781 Reputation points


    A common requirement for backup admins is to obtain insights on backups based on data that spans an extended period. Use cases for such a solution include:

    • Allocating and forecasting of cloud storage consumed.
    • Auditing of backups and restores.
    • Identifying key trends at various levels of granularity.

    The report that would help you to understand the storage consumed should be the one you are asking for. Here are the steps to configure reports

    1. Create a Log Analytics workspace or use an existing one

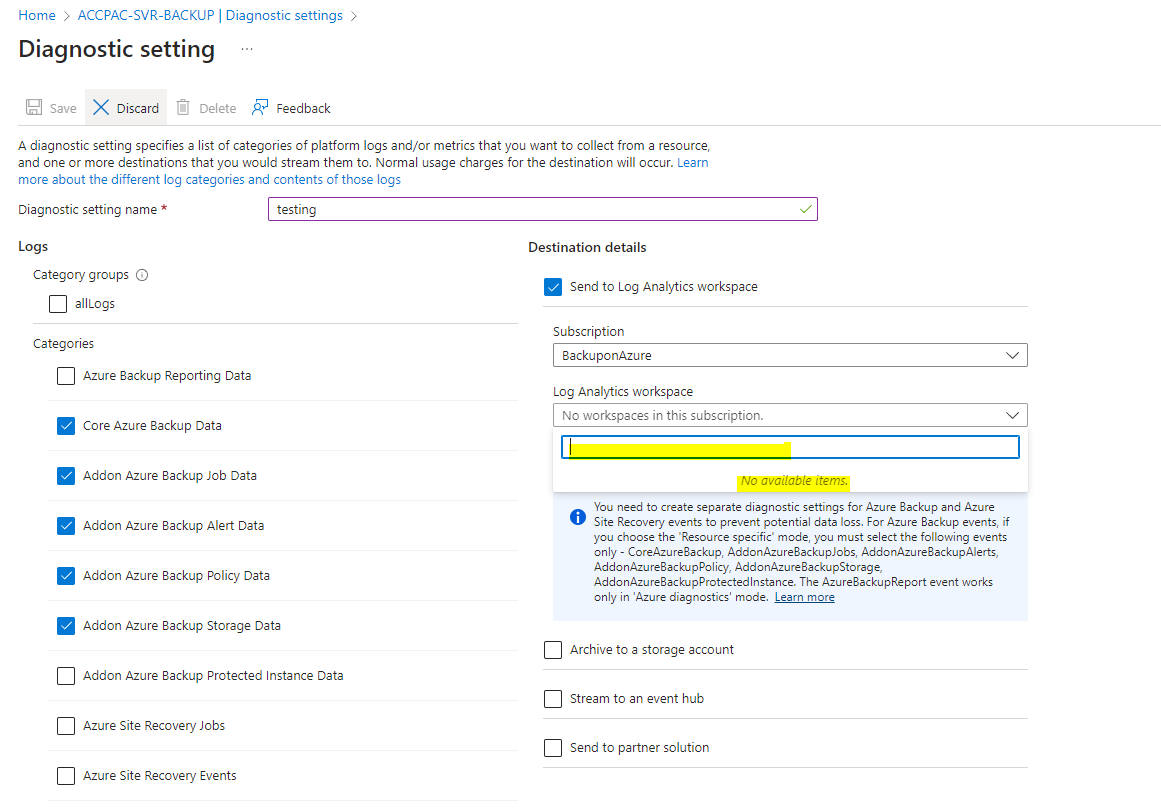

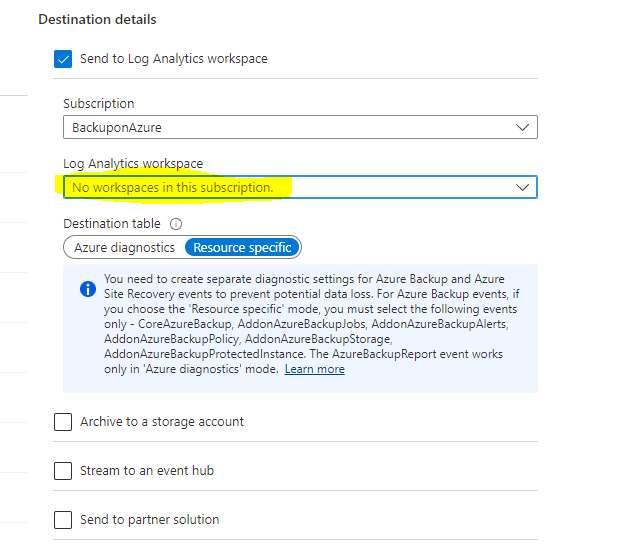

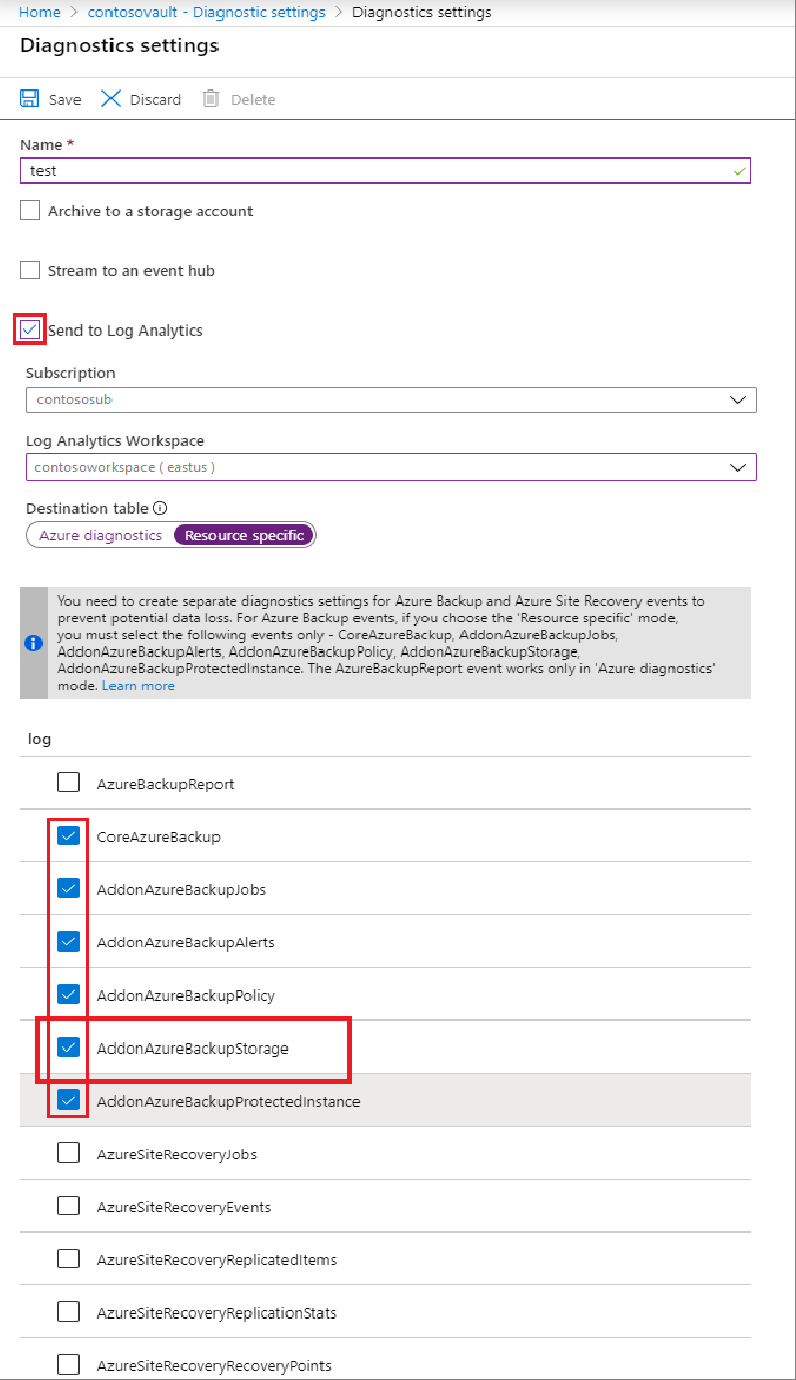

    2. Configure diagnostics settings for your vaults
      User's image
      1. View reports in the Azure portal

    Note: The Recovery Services vault is merely an entry point for Backup reports. After the Backup report workbook opens up from a vault's pane, select the appropriate set of Log Analytics workspaces to see data aggregated across all your vaults.


    Use the summary tab to get a high-level overview of your backup estate. You can get a quick glance of the total number of backup items, total cloud storage consumed, the number of protected instances, and the job success rate per workload type.

    Use this Usage tab to see information and trends on cloud storage consumed at a Backup-item level. For example, if you use SQL in an Azure VM backup, you can see the cloud storage consumed for each SQL database that's being backed up.

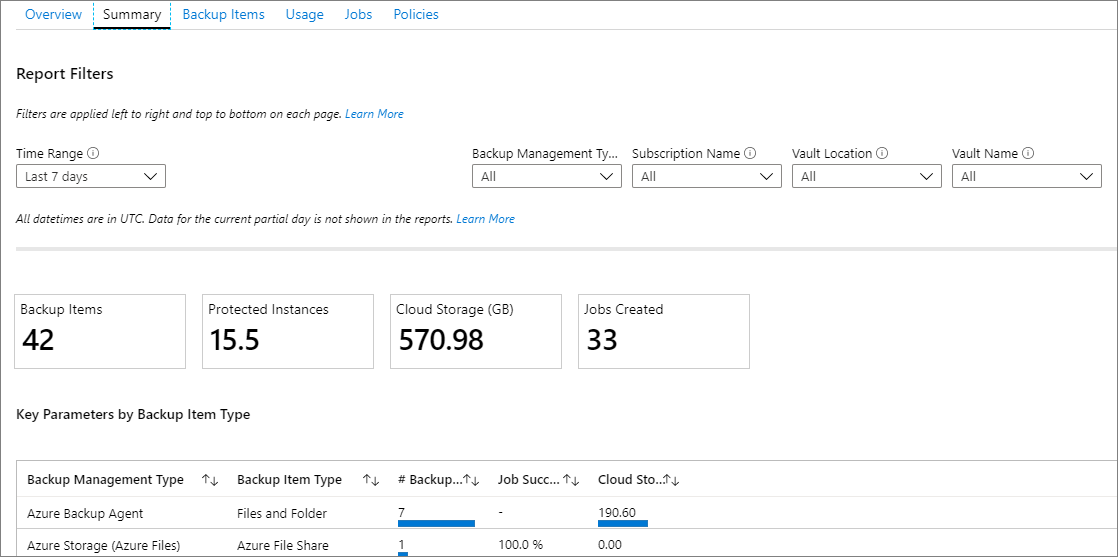

    Summary tab

    Document to refer:

    Hope this helps!
    Please accept as answer and upvote if the above information is helpful for the benefit of the community._
