Enable access from office laptop to RDS Server via Azure VNET

Surendra Koritala 20

We have a client who is working remotely from home. They want to access RDS Server hosted on AWS via Azure VNET. We build the following components for our client:
a. P2S connection between Client Laptop to Azure VNET b. S2S connection between Azure and AWS (through Cisco Peering device) Currently, we have to log in to Azure using VPNClient and open a Virtual machine on Azure, and access RDS Server. I want to know if it's possible to login into VPNClient and access RDS Server without additionally logging into Azure Virtual Machine. I want to avoid the additional step and see if it's possible to setup some routing between the client laptop and the RDS server through routing table configuration.

Boris Von Dahle 3,121 Reputation points

2023-04-15T01:00:08.0766667+00:00

Hello,

First Ensure that the P2S VPN address pool in the Azure Virtual Network Gateway does not overlap with the IP address ranges of the Azure VNet, AWS VPC, or the client's local network.

Also make sure that Azure NSG and AWS Security Groups allows the traffic.

Configure the client's routing table to route traffic destined for the AWS VPC CIDR block through the VPN tunnel.
Update Azure route table: Create a custom route table in Azure that includes a route for the P2S VPN address pool, with the next hop set to the Azure VPN Gateway. Then, associate the custom route table with the subnet that contains the Azure VPN Gateway.

Update AWS route table: Create a custom route table in AWS that includes a route for the P2S VPN address pool, with the next hop set to the AWS VPN Gateway (or the Virtual Private Gateway). Then, associate the custom route table with the subnet that contains the RDS server.
KapilAnanth-MSFT 41,491 Reputation points Microsoft Employee

2023-05-03T12:45:30.5033333+00:00

@Surendra Koritala

Reaching out to check if there are any questions on this.

Please let us know if we can be of any further assistance here.

Thanks,

Kapil

Please Accept an answer if correct. Original posters help the community find answers faster by identifying the correct answer.

Here is how
KapilAnanth-MSFT 41,491 Reputation points Microsoft Employee

2023-05-04T10:16:43.2133333+00:00

@Surendra Koritala

Just checking in to see if the below answer helped. If this answers your query, please don’t forget to click "Accept the answer" and Up-Vote for the same, which might be beneficial to other community members reading this thread. And, if you have any further query do let us know.

Thanks,

Kapil
GitaraniSharma-MSFT 49,401 Reputation points Microsoft Employee

2023-05-11T13:29:58.7866667+00:00

@Surendra Koritala , Just checking in to see if you had a chance to see the below answer. To help the community find the right answers, please do mark the post which was helpful by clicking on Accept Answer.

And, if you have any further questions do let us know.
KapilAnanth-MSFT 41,491 Reputation points Microsoft Employee

2023-05-15T04:57:26.2+00:00

@Surendra Koritala

Could you please provide an update on this post?

Kindly let us know if this helps or you need further assistance on this issue.

Thanks,

Kapil

Please don’t forget to close the thread by clicking "Accept the answer" wherever the information provided helps you, as this can be beneficial to other community members.

1 answer

KapilAnanth-MSFT 41,491 Reputation points Microsoft Employee

2023-05-02T09:44:05.8933333+00:00

@Surendra Koritala

Welcome to the Microsoft Q&A Platform. Thank you for reaching out & I hope you are doing well.

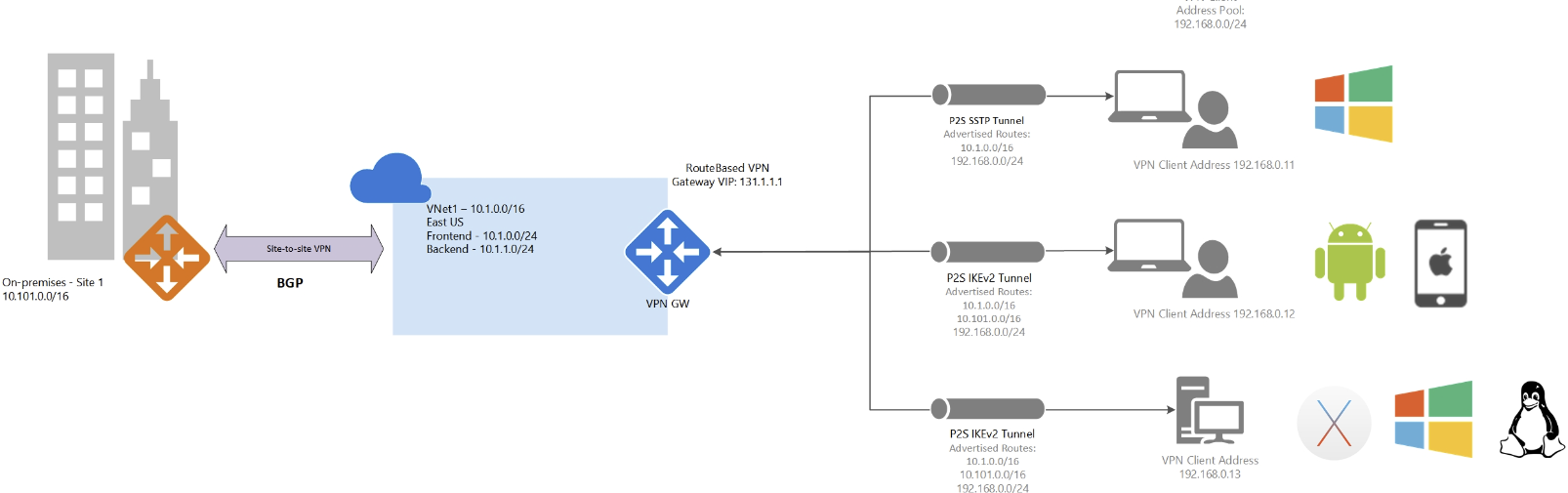

Your requirement is documented below.

However, for this, BGP is mandatory.

From AWS side, make sure BGP is configured.
Refer : How to connect AWS and Azure using a BGP-enabled VPN gateway

Thanks,

Kapil

Please don’t forget to close the thread by clicking "Accept the answer" wherever the information provided helps you, as this can be beneficial to other community members.
