VDI configuration vs nested virtualization (network problem?)

Question

Hi Guys,
need your help.
I got test lab on Windows 10 pro. There are 2 servers - DC and APP server. On App server, i got all features of VDI. Also, nested hyper-v is there. I can not create VDI collection. l will paste errors in some time (recreating again).
How exactly shoud i config Network switches and Network Cards and IPs to make it work ? My virtual machine template has not configured IP address, shoud it be done before sysprep or not? When i manually added it, i can not ping DC and APP server. Even with ethernet switch.

My DC network configuration and Windows 10 hyperv settings are:
10.0.0.1/24 and DNS 10.0.0.1 (also DHCP is here, AD and APP servers got static addresses and are added to reservations, scope for all is 10.0.0.1-10.0.0.200 ofc /24), network on Hyper-v is one network card on LABDVI switch (its private network switch manually created to this project by me).

My APP server is:
10.0.0.3/24, DNS also to 10.0.0.1. Network is also LABVDI.

Both servers can ping, ad is working, i can log in. Firewalls are turned off.

ON App server there is nested hyperV with one template. There was no IP. On Hyper-v i got ext switch and RDS Virtual. Ext has Microsoft Hyper-V Vrtual Adapter, and RDS has Intel Pro 1000T Network Adapter. How should i configure switches between this machines to make it work?

Where exactly i can see more logs about error which can not finish VM creation.

After some test i had one of this machine account in AD, but then i had error it can not be finished.

Answer 1

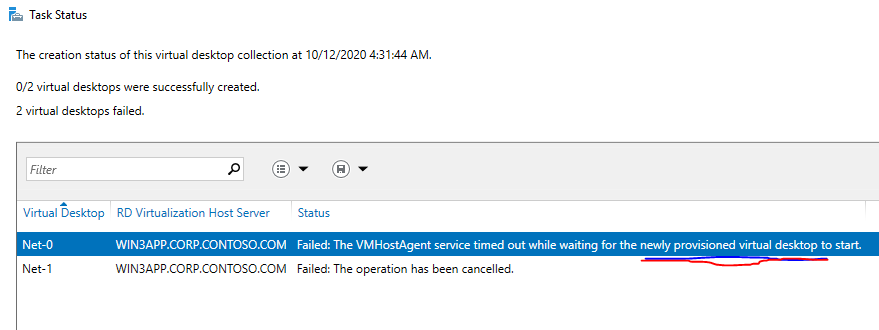

Where can i troubleshoot this issue, where can i see logs, what exactly happens? See error as attachment.

Answer 2

Hello @Kamil B

In general, RD VH should be install on physical device (Hyper-V host) and integrates with Hyper-V to provide virtual desktop collections

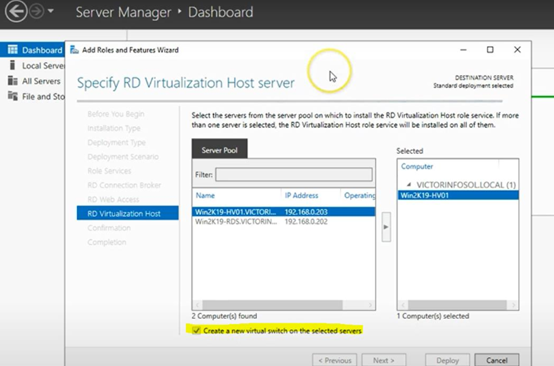

When you add roles , note to check the box below:

----------

If the Answer is helpful, please click "Accept Answer" and upvote it.
Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Best Regards
Karlie

Answer 3

But what to chose as a switch on AD machine, and APP machine (its Hyper-v-1 on laptop and windows 10). I can not pick default switch, because i got dhcp on my server (AD) and it can not be visible for my job network.
Also i do not have RDSswitch here.
How to connect this 2 hyper-v's machines?

And how it is possible, that i got objects in AD (so it must communicate with AD) and machine created in hyper-v but the process can not finish with OK status?

Answer 4

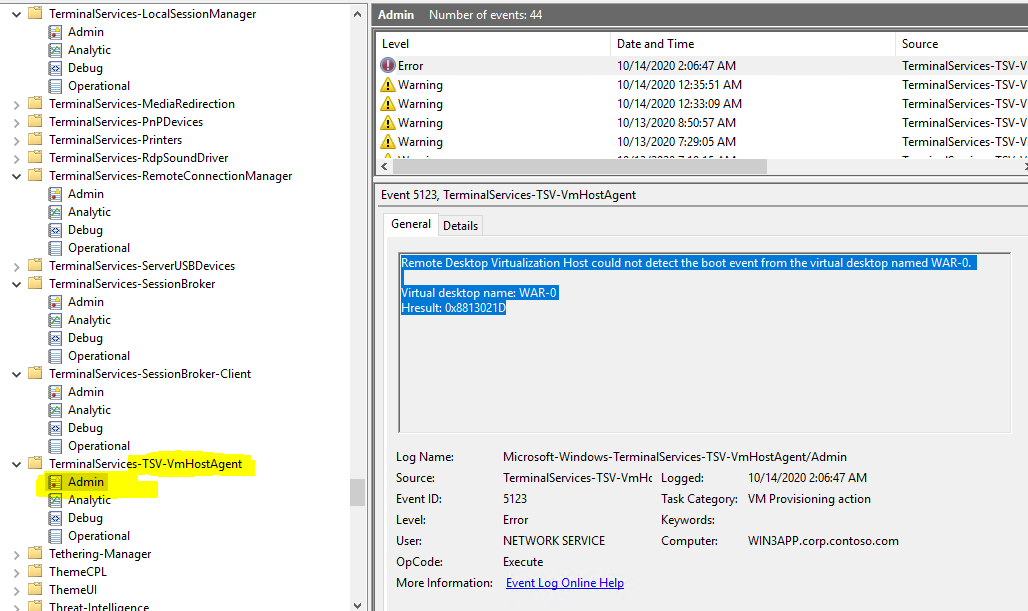

Please check current errors. Note, that i have changed localization and time, and its not syncing properly, but this is not why this errors happens.

Answer 5

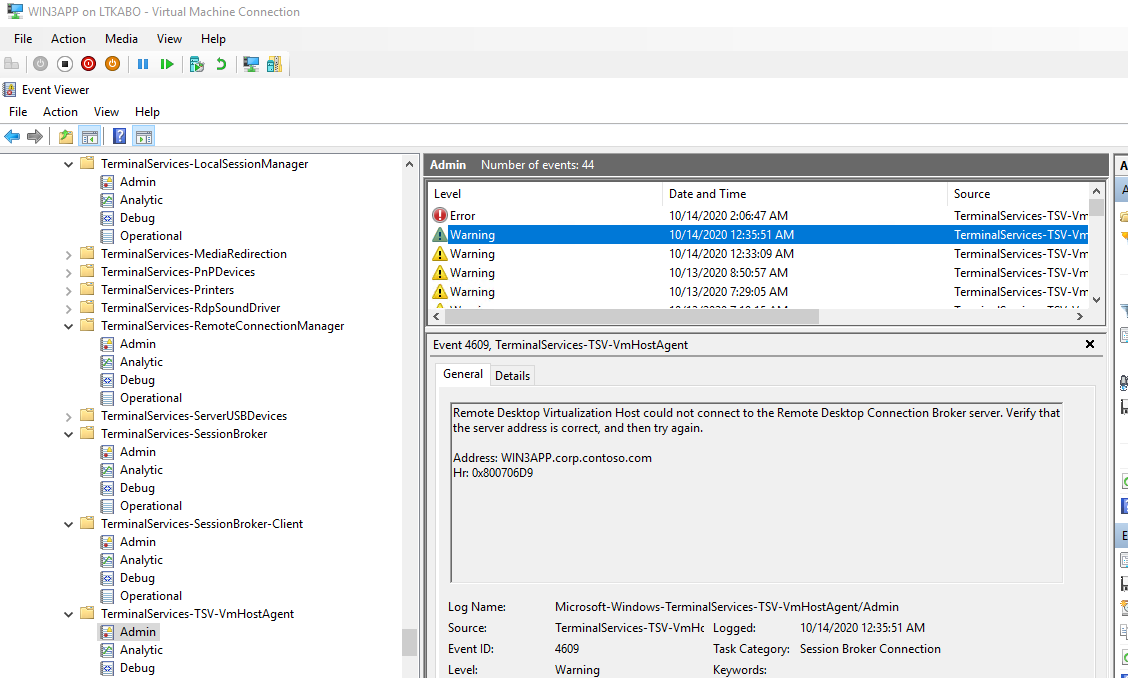

And next
