Azure Traffic Manager Deprecated

Miguel Alfaiate 0

Hi,

I use the Traffic Manager for some of our sites, but today when I add a new profile, it always has a degraded status.

Analyzing the NGINX logs, the request is not reaching any of our servers.

I don't believe it's configuration, as the other profiles are working (and some pointing to the same servers).

I did the troubleshooting as described here and it always returns 200.

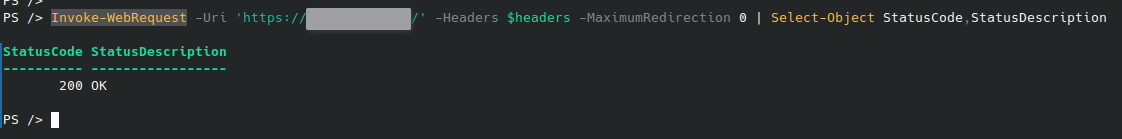

Invoke-WebRequest
User's image

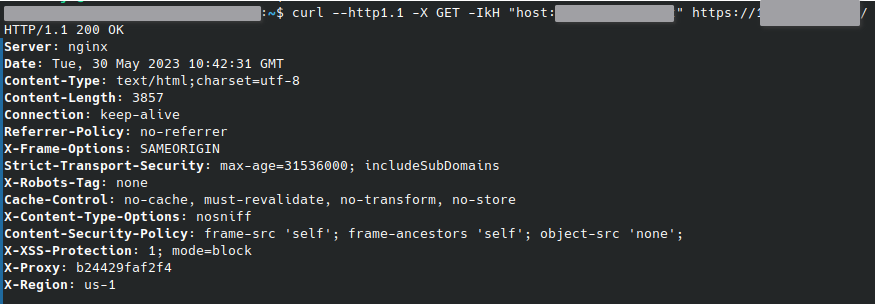

cURL
User's image

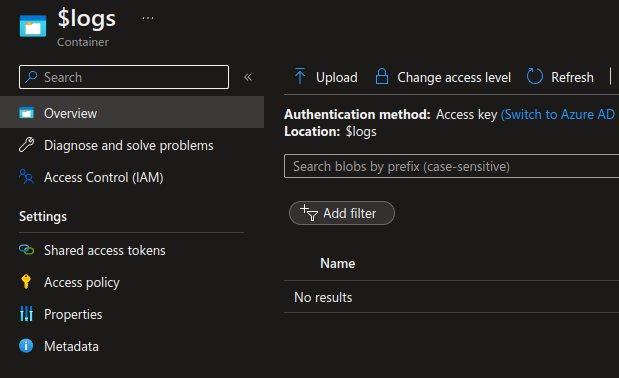

Using this article, I tried to enable logs, but no file is created in storage:
User's image

Traffic Manager configuration:
User's image

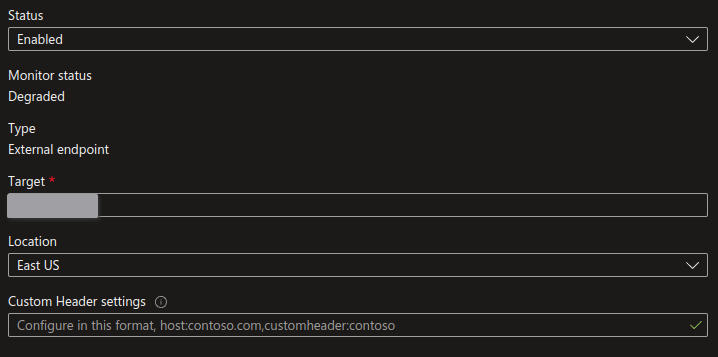

Endpoint configuration:
User's image

I'm lost :)
Because other profiles using the same endpoint are online, and the Traffic Manager configuration is simple, nothing complex and it doesn't work.

I really appreciate any help.

ChaitanyaNaykodi-MSFT 26,291 Reputation points Microsoft Employee

2023-05-30T22:15:22.45+00:00

@Miguel Alfaiate

Thank you for reaching out.
We will need to take a look at diagnostic logs in order to determine the cause here.
I understand you have already followed the documentation here to enable diagnostic logging and store them in a storage account. Initially there can be a slight delay is populating the logs. Can you please confirm if you are still unable to view the logs? Thank you!
Miguel Alfaiate 0 Reputation points

2023-05-31T11:01:06.2133333+00:00

Hi @ChaitanyaNaykodi-MSFT
24hrs later and there are no logs in the storage
ChaitanyaNaykodi-MSFT 26,291 Reputation points Microsoft Employee

2023-05-31T15:08:44.62+00:00

@Miguel Alfaiate

Thank you for getting back.
To troubleshoot the exact issue I think we will need specialized 1:1 session, where a support engineer can have a screen share session to pin point the issue. If you have a support plan you may file a support ticket, else could you please send an email to azcommunity@microsoft.com with the below details.

Subject : Attn Chaitanya

Thread URL: Link to this thread.

Subscription ID

Please let me know once you have done the same.
Miguel Alfaiate 0 Reputation points

2023-05-31T17:35:21.22+00:00

Hi @ChaitanyaNaykodi-MSFT

Could you confirm if the traffic manager is compatible with TLSv3?

Thanks.
ChaitanyaNaykodi-MSFT 26,291 Reputation points Microsoft Employee

2023-06-01T21:28:21.4466667+00:00

@Miguel Alfaiate

Thank you for getting back.

Traffic Manager does not interact with any HTTPS traffic from the client. The client performs the necessary SSL/TLS handshake with the application service endpoint directly. This documented on point number 8 here.
Miguel Alfaiate 0 Reputation points

2023-06-02T10:57:54.27+00:00

Hi @ChaitanyaNaykodi-MSFT

Issue was solved by changing TLSv3 to TLSv2. There is nothing in the documentation stating which SSL/TLS versions are supported, interesting to add for future references.

Thanks.
