AppLocker Policy through Intune isn't working

Nasrul Islam 76 Reputation points
2023-06-07T08:04:23.6633333+00:00

Hello,

I wanted to block specific remote assist applications (such as TeamViewer, AnyDesk) through Intune Portal. So I've created a app locker policy and implemented through that.

This is what I've done:-

On my laptop, opened up Local Group Policy Editor

Went to Computer Configuration --> Windows Settings --> Security Policy --> Application Control Policies. Under AppLocker,

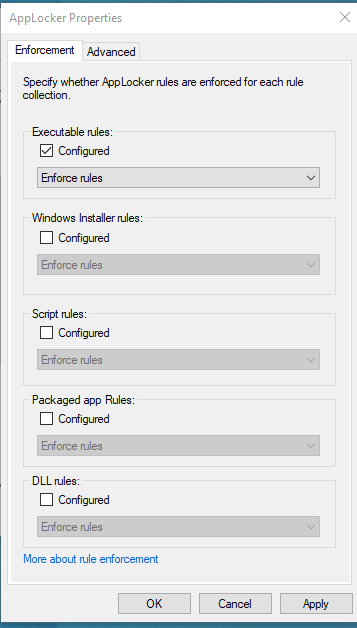

Clicked on Configure Rule Enforcement --> Enabled Executable Rules.

User's image

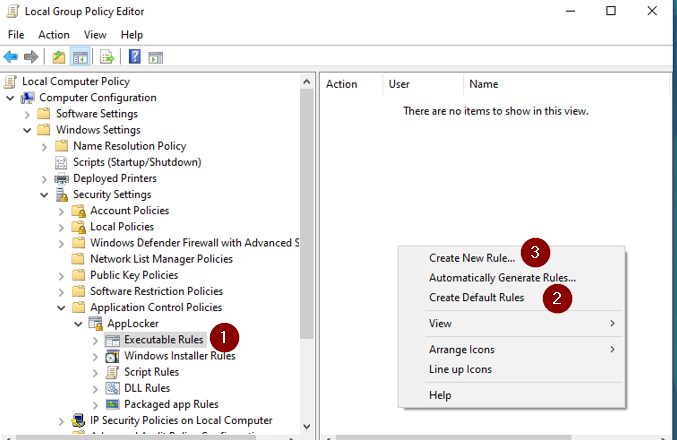

Created default rules and created a new rule to Deny the applications: AnyDesk and TeamViewer

User's image

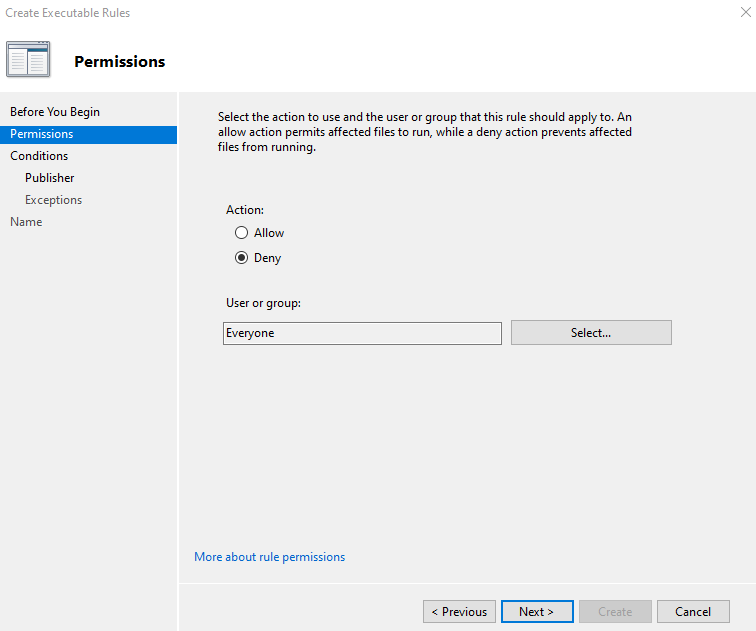

Clicked on Next
User's image

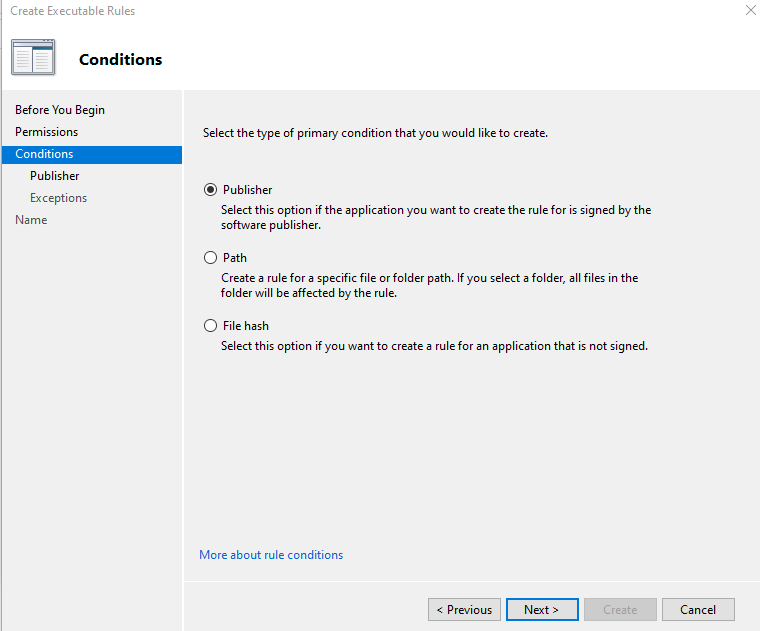

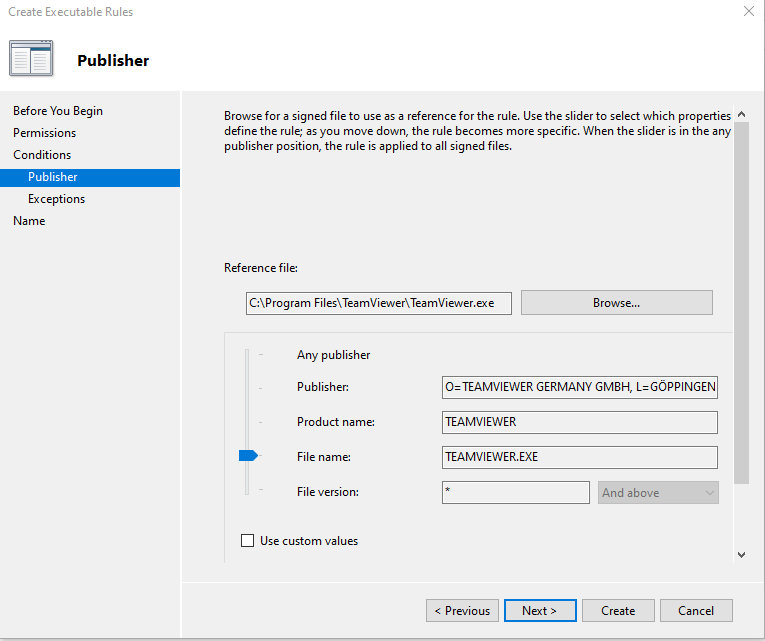

Selected Publisher

User's image

Browsed and chose Teamviewer.exe under reference file.
Selected File Name
Clicked on Next

User's image

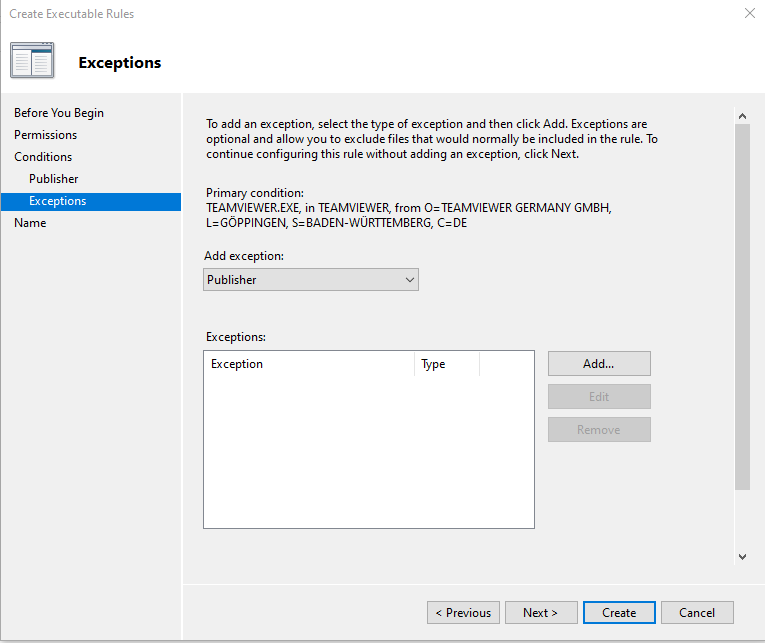

No exceptions are required, so clicked on Next

User's image

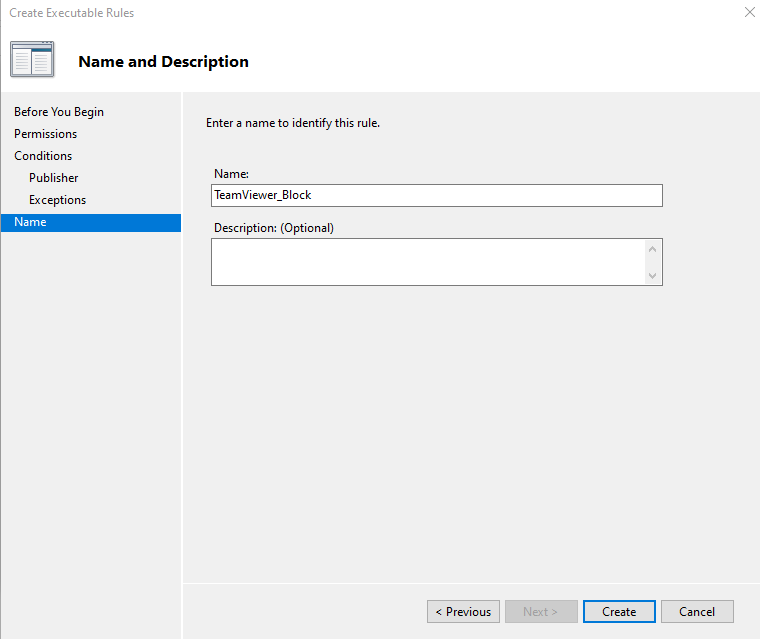

Provided a name for the rule

Clicked on Create
User's image

Rule has been created successfully.

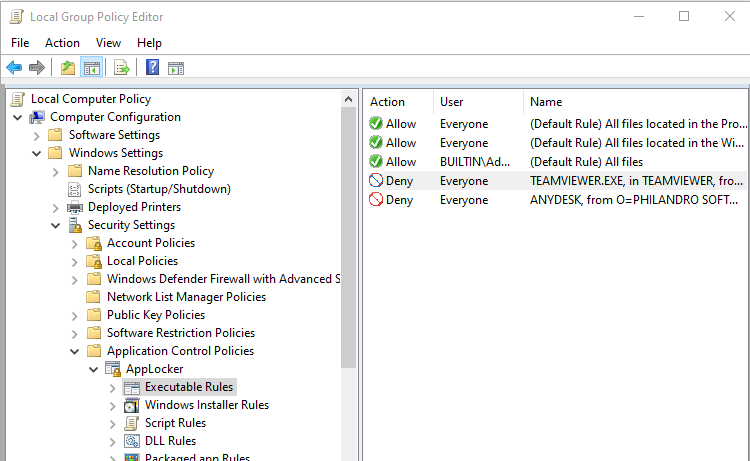

Have followed the same steps again and created a rule for AnyDesk as well.

User's image

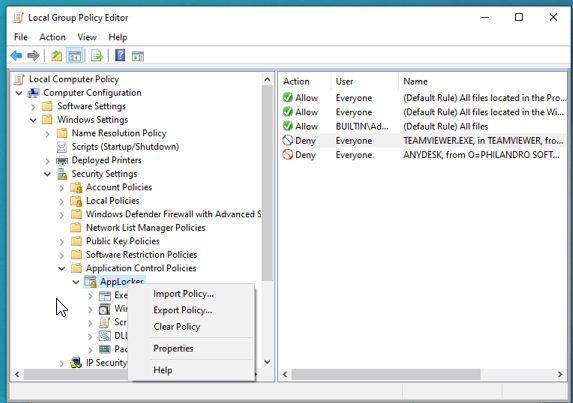

Exported this as a XML file and saved it as a XML file.

Cleared the policy
User's image

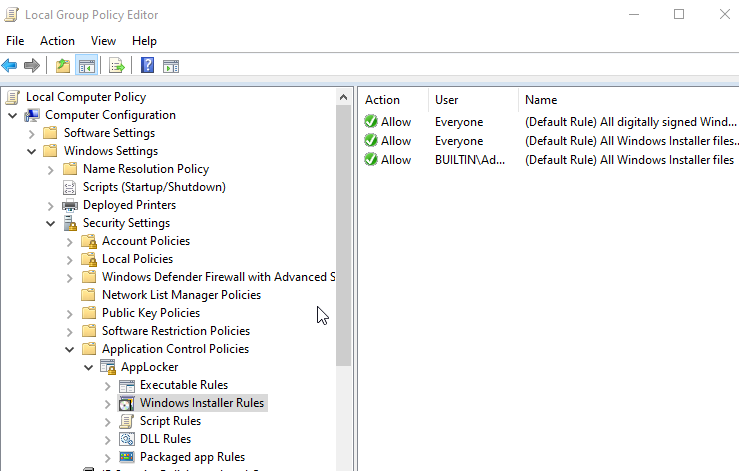

Opened up the local group policy editor again, went to Windows Installer Rules, and created default policy only without enabling it (Set to: Not Configured)

User's image

Similarly, created default rules for Script Rules, DLL Rules and Packaged App Rules without enabling them.

On Microsoft Intune Console, I went to Devices --> Windows --> Configuration Profiles --> Profiles --> Create Profile ---> Selected "Windows 10 or later" as Platform --> Selected "Template" as profile type --> "Custom" as Template Name

Clicked On "Add Row" under "OMA-URI Settings"

Provided Name: AppLocker_exe

Description: XML doc to restrict .exe files

OMA-URI: ./Vendor/MSFT/AppLocker/ApplicationLaunchRestrictions/apps/EXE/Policy

Uploaded XML File:-

<AppLockerPolicy Version="1">
  <RuleCollection Type="Exe" EnforcementMode="Enabled">
    <FilePathRule Id="921cc481-6e17-4653-8f75-050b80acca20" Name="(Default Rule) All files located in the Program Files folder" Description="Allows members of the Everyone group to run applications that are located in the Program Files folder." UserOrGroupSid="S-1-1-0" Action="Allow">
      <Conditions>
        <FilePathCondition Path="%PROGRAMFILES%\*" />
      </Conditions>
    </FilePathRule>
    <FilePathRule Id="a61c8b2c-a319-4cd0-9690-d2177cad7b51" Name="(Default Rule) All files located in the Windows folder" Description="Allows members of the Everyone group to run applications that are located in the Windows folder." UserOrGroupSid="S-1-1-0" Action="Allow">
      <Conditions>
        <FilePathCondition Path="%WINDIR%\*" />
      </Conditions>
    </FilePathRule>
    <FilePathRule Id="fd686d83-a829-4351-8ff4-27c7de5755d2" Name="(Default Rule) All files" Description="Allows members of the local Administrators group to run all applications." UserOrGroupSid="S-1-5-32-544" Action="Allow">
      <Conditions>
        <FilePathCondition Path="*" />
      </Conditions>
    </FilePathRule>
    <FilePublisherRule Id="0cc2d920-9609-418a-8244-a1de20ed685c" Name="ANYDESK, from O=PHILANDRO SOFTWARE GMBH, L=STUTTGART, S=BADEN-WÜRTTEMBERG, C=DE" Description="" UserOrGroupSid="S-1-1-0" Action="Deny">
      <Conditions>
        <FilePublisherCondition PublisherName="O=PHILANDRO SOFTWARE GMBH, L=STUTTGART, S=BADEN-WÜRTTEMBERG, C=DE" ProductName="ANYDESK" BinaryName="*">
          <BinaryVersionRange LowSection="*" HighSection="*" />
        </FilePublisherCondition>
      </Conditions>
    </FilePublisherRule>
    <FilePublisherRule Id="d7f4c601-0918-40e1-b8ee-aae774e4d118" Name="TEAMVIEWER.EXE, in TEAMVIEWER, from O=TEAMVIEWER GERMANY GMBH, L=GÖPPINGEN, S=BADEN-WÜRTTEMBERG, C=DE" Description="" UserOrGroupSid="S-1-1-0" Action="Deny">
      <Conditions>
        <FilePublisherCondition PublisherName="O=TEAMVIEWER GERMANY GMBH, L=GÖPPINGEN, S=BADEN-WÜRTTEMBERG, C=DE" ProductName="TEAMVIEWER" BinaryName="TEAMVIEWER.EXE">
          <BinaryVersionRange LowSection="*" HighSection="*" />
        </FilePublisherCondition>
      </Conditions>
    </FilePublisherRule>
  </RuleCollection>
  </AppLockerPolicy>

Added an another row for AppLocker_MSI

Name: AppLocker_MSI

Description: App Locker policy for MSI Installers

OMA-URI: ./Vendor/MSFT/AppLocker/ApplicationLaunchRestrictions/Apps/MSI/Policy

Uploaded XML:-

<AppLockerPolicy Version="1">
    <RuleCollection Type="Msi" EnforcementMode="NotConfigured">
    <FilePublisherRule Id="b7af7102-efde-4369-8a89-7a6a392d1473" Name="(Default Rule) All digitally signed Windows Installer files" Description="Allows members of the Everyone group to run digitally signed Windows Installer files." UserOrGroupSid="S-1-1-0" Action="Allow">
      <Conditions>
        <FilePublisherCondition PublisherName="*" ProductName="*" BinaryName="*">
          <BinaryVersionRange LowSection="0.0.0.0" HighSection="*" />
        </FilePublisherCondition>
      </Conditions>
    </FilePublisherRule>
    <FilePathRule Id="5b290184-345a-4453-b184-45305f6d9a54" Name="(Default Rule) All Windows Installer files in %systemdrive%\Windows\Installer" Description="Allows members of the Everyone group to run all Windows Installer files located in %systemdrive%\Windows\Installer." UserOrGroupSid="S-1-1-0" Action="Allow">
      <Conditions>
        <FilePathCondition Path="%WINDIR%\Installer\*" />
      </Conditions>
    </FilePathRule>
    <FilePathRule Id="64ad46ff-0d71-4fa0-a30b-3f3d30c5433d" Name="(Default Rule) All Windows Installer files" Description="Allows members of the local Administrators group to run all Windows Installer files." UserOrGroupSid="S-1-5-32-544" Action="Allow">
      <Conditions>
        <FilePathCondition Path="*.*" />
      </Conditions>
    </FilePathRule>
  </RuleCollection>
  </AppLockerPolicy>

Added a row for Scripts:-

Name: AppLocker_Script

Description: App Locker script default policy to allow all scripts

OMA-URI:

./Vendor/MSFT/AppLocker/ApplicationLaunchRestrictions/Apps/Script/Policy

Uploaded XML File:-

<AppLockerPolicy Version="1">
  <RuleCollection Type="Script" EnforcementMode="NotConfigured">
    <FilePathRule Id="06dce67b-934c-454f-a263-2515c8796a5d" Name="(Default Rule) All scripts located in the Program Files folder" Description="Allows members of the Everyone group to run scripts that are located in the Program Files folder." UserOrGroupSid="S-1-1-0" Action="Allow">
      <Conditions>
        <FilePathCondition Path="%PROGRAMFILES%\*" />
      </Conditions>
    </FilePathRule>
    <FilePathRule Id="9428c672-5fc3-47f4-808a-a0011f36dd2c" Name="(Default Rule) All scripts located in the Windows folder" Description="Allows members of the Everyone group to run scripts that are located in the Windows folder." UserOrGroupSid="S-1-1-0" Action="Allow">
      <Conditions>
        <FilePathCondition Path="%WINDIR%\*" />
      </Conditions>
    </FilePathRule>
    <FilePathRule Id="ed97d0cb-15ff-430f-b82c-8d7832957725" Name="(Default Rule) All scripts" Description="Allows members of the local Administrators group to run all scripts." UserOrGroupSid="S-1-5-32-544" Action="Allow">
      <Conditions>
        <FilePathCondition Path="*" />
      </Conditions>
    </FilePathRule>
  </RuleCollection>
</AppLockerPolicy>

One more row for Store Apps:-

Name: AppLocker_StoreApps

Descriptions: Default Appx policy to allow all store Apps

OMA-URI: ./Vendor/MSFT/AppLocker/ApplicationLaunchRestrictions/apps/StoreApps /Policy

<AppLockerPolicy Version="1">
  <RuleCollection Type="Appx" EnforcementMode="NotConfigured">
    <FilePublisherRule Id="a9e18c21-ff8f-43cf-b9fc-db40eed693ba" Name="(Default Rule) All signed packaged apps" Description="Allows members of the Everyone group to run packaged apps that are signed." UserOrGroupSid="S-1-1-0" Action="Allow">
      <Conditions>
        <FilePublisherCondition PublisherName="*" ProductName="*" BinaryName="*">
          <BinaryVersionRange LowSection="0.0.0.0" HighSection="*" />
        </FilePublisherCondition>
      </Conditions>
    </FilePublisherRule>
  </RuleCollection>
</AppLockerPolicy>

Another one for DLL:-

Name: AppLocker_DLL

Description: Dynamic Link Library app locker policy allows all by default

OMA-URI: ./Vendor/MSFT/AppLocker/ApplicationLaunchRestrictions/Apps/DLL/Policy

Uploaded XML file:-

<AppLockerPolicy Version="1">
  <RuleCollection Type="Dll" EnforcementMode="NotConfigured">
    <FilePathRule Id="bac4b0bf-6f1b-40e8-8627-8545fa89c8b6" Name="(Default Rule) Microsoft Windows DLLs" Description="Allows members of the Everyone group to load DLLs located in the Windows folder." UserOrGroupSid="S-1-1-0" Action="Allow">
      <Conditions>
        <FilePathCondition Path="%WINDIR%\*" />
      </Conditions>
    </FilePathRule>
    <FilePathRule Id="3737732c-99b7-41d4-9037-9cddfb0de0d0" Name="(Default Rule) All DLLs located in the Program Files folder" Description="Allows members of the Everyone group to load DLLs that are located in the Program Files folder." UserOrGroupSid="S-1-1-0" Action="Allow">
      <Conditions>
        <FilePathCondition Path="%PROGRAMFILES%\*" />
      </Conditions>
    </FilePathRule>
    <FilePathRule Id="fe64f59f-6fca-45e5-a731-0f6715327c38" Name="(Default Rule) All DLLs" Description="Allows members of the local Administrators group to load all DLLs." UserOrGroupSid="S-1-5-32-544" Action="Allow">
      <Conditions>
        <FilePathCondition Path="*" />
      </Conditions>
    </FilePathRule>
  </RuleCollection>
</AppLockerPolicy>

Have deployed it to the group of users (Microsoft 365 Security Group)

Number of members in the group: 7 (including me)

But all policies are providing an error code: -2016345596

Error reason: Syncml(516): Command was inside Atomic element and Atomic failed. This command was not rolled back successfully.

I'm stuck up here. Can you please assist me in resolving the issue and let me know what went wrong please?

Microsoft Intune Configuration
Microsoft Intune Configuration
Microsoft Intune: A Microsoft cloud-based management solution that offers mobile device management, mobile application management, and PC management capabilities.Configuration: The process of arranging or setting up computer systems, hardware, or software.
1,919 questions
{count} votes

Accepted answer
  1. Aria 75 Reputation points
    2023-08-29T19:48:46.71+00:00

    Hi All,

    I have had the same issue with Applying the AppLocker policy on Intune,

    Since you are creating an .XML File for more than one Deny rule , (Anydesk & TeamViewer ) you need to change your OMA-URI: to ( ./Vendor/MSFT/AppLocker/ApplicationLaunchRestrictions/{Grouping}/EXE/Policy) for the EXE policy, you don't really need to configure the DLL, MSI ,and Script.

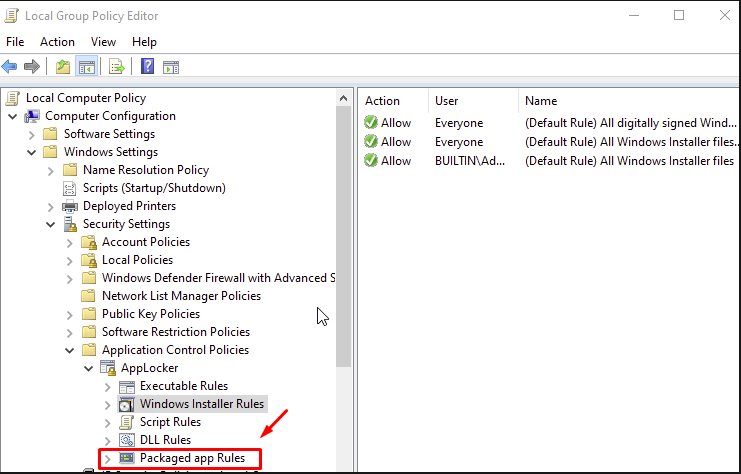

    But before making these changes you need to enable the default rule for (Packaged app rules ) then export the .xml file ,

    The rest of steps based on the pictures yu have shard looks good,

    Hope this help

    Regards, Screenshot_1.png

    0 comments No comments

3 additional answers

Sort by: Most helpful
  1. Crystal-MSFT 49,271 Reputation points Microsoft Vendor
    2023-06-07T08:48:34.3766667+00:00

    @Nasrul Islam , Thanks for posting in Q&A. For the Applocker policy we configured on Local Group Policy, after we configure, we need to test to on the device side to see if the apps can be blocked on the device side as we expect.

    Meanwhile, from the xml, I notice the EnforcementMode is not configured. Not enable, I think you need to enable it to make it works. After all are working as expected on the device side, then we can export the whole policy under "Applocker", remove the not configured part and deploy via Intune using CSP ./Vendor/MSFT/AppLocker/ApplicationLaunchRestrictions/Native/StoreApps/Policy

    Here is a link with the detailed steps for your reference:

    https://techcommunity.microsoft.com/t5/intune-customer-success/support-tip-using-applocker-to-create-custom-intune-policies-for/ba-p/364981

    Hope it can help.


    If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

    Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

    1 person found this answer helpful.
    0 comments No comments

  2. Nasrul Islam 76 Reputation points
    2023-06-07T12:26:04.65+00:00

    Hi @Crystal-MSFT

    Thank you for your reply.

    I've tried applying the policy for myself.

    This is blocking Teams and Greenshot (both are deployed through InTune).

    But it is allowing all the other Microsoft 365 suites (Word, Excel, PowerPoint, Publisher, Access) and Skype as well.

    I've tried this previously and had the same experience. Is there any specific reason?

    Can you help in resolving this please?

    Kind Regards,

    Nasrul


  3. Nasrul Islam 76 Reputation points
    2023-06-08T02:05:44.1366667+00:00

    Hi @Crystal-MSFT

    I think I found why it is blocking Greenshot, because the exe folder location is at: C:\Users<Username>\AppData\Local\Greenshot

    And the same for Teams. However Teams is bit odd.
    Teams Shortcut location: C:\Users<Username>\AppData\Roaming\Microsoft\Windows\Start Menu\Programs\Team.exe

    Target Location: C:\Users<UserName>\AppData\Local\Microsoft\Teams\Update.exe --processStart "Teams.exe"

    I've allowed Teams as well. Still it's the same.

    User's image
