Virtual Network Gateway Connection: Once I select my IKE policy, I can no longer create a custom IPsec / IKE policy

Jamie 20 Reputation points
2023-07-28T17:11:55.01+00:00

I believe this is a bug in Azure, but I don't have a way of reaching them directly. Once I select the IKE protocol (to either option), it removes a full section of options from the page that are required to configure my VPN connection to AWS. Is there some way to be able to specify the protocol (IKEv1 in my case) AND have a custom IPsec / IKE policy?

The Virtual Network Gateway SKU is VpnGw1

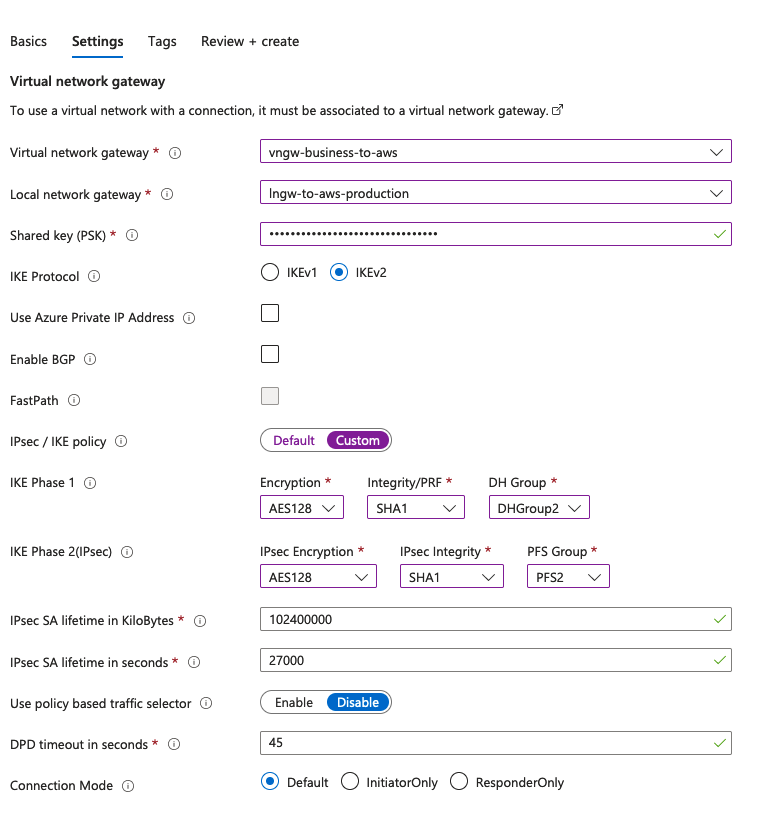

Screenshot 2023-07-28 at 12.51.22 PM

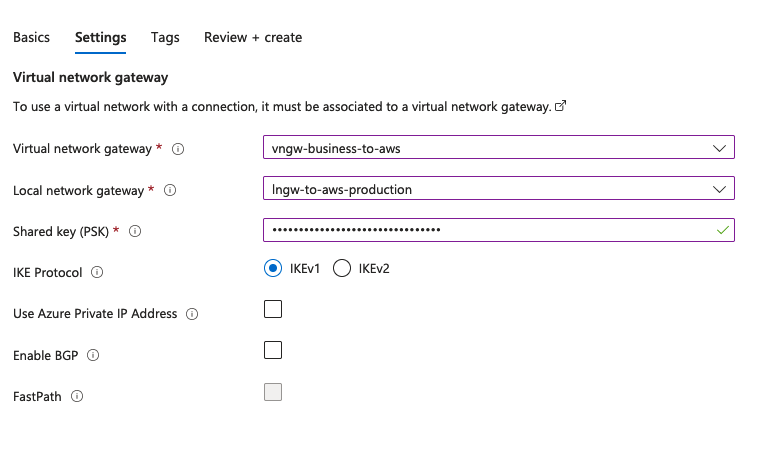

Screenshot 2023-07-28 at 12.51.31 PM

Azure VPN Gateway
Azure VPN Gateway
An Azure service that enables the connection of on-premises networks to Azure through site-to-site virtual private networks.
1,787 questions
Azure
Azure
A cloud computing platform and infrastructure for building, deploying and managing applications and services through a worldwide network of Microsoft-managed datacenters.
1,421 questions
Azure Virtual Network
Azure Virtual Network
An Azure networking service that is used to provision private networks and optionally to connect to on-premises datacenters.
2,762 questions
0 comments
Accepted answer
  1. msrini-MSFT 9,291 Reputation points Microsoft Employee
    2023-07-29T06:44:22.9+00:00

    Hi, Portal setup is not supported at this point. You can use Azure CLI or Powershell to configure custom policy for ikev1. Reference: https://github.com/MicrosoftDocs/azure-docs/issues/63423

    1 person found this answer helpful.
    0 comments
