MS Graph API for Status of installed software on individual windows device

Question

Hi Team,

I’m looking for direction on how to get software/Google Chrome installation status of individual deployed apps on windows 10 devices with MS Graph.

Initially, I was getting software installation of particular device status while invoking below mentioned API's. As of now, it is not working as expected.

API:

1. https://graph.microsoft.com/beta/deviceAppManagement/mobileApps/9ccebafb-ccea-481d-a11a-34228e3d22ec/deviceStatuses

{
    "error": {
        "code": "BadRequest",
        "message": "Resource not found for the segment 'deviceStatuses'.",
        "innerError": {
            "date": "2023-08-07T12:49:53",
            "request-id": "3fad17ea-9248-48a0-8b62-86b366065dca",
            "client-request-id": "3fad17ea-9248-48a0-8b62-86b366065dca"
        }
    }
}

1. https://graph.microsoft.com/v1.0/deviceAppManagement/mobileApps/9ccebafb-ccea-481d-a11a-34228e3d22ec/deviceStatuses

Response:

{
    "error": {
        "code": "BadRequest",
        "message": "Resource not found for the segment 'deviceStatuses'.",
        "innerError": {
            "date": "2023-08-07T12:49:23",
            "request-id": "3e988fce-5478-484e-9c47-0f4442ce2c9d",
            "client-request-id": "3e988fce-5478-484e-9c47-0f4442ce2c9d"
        }
    }
}

How to get a software/Google Chrome installation device status which is performed via Intune Admin Center in windows 10 and later device and how to get installed device status information using MS Graph API.?

Answer 1

@Saravanakumar Ganapathy, Thanks for posting in Q&A. For the Google Chrome, I would like to confirm if it is deployed via Intune win32 app?

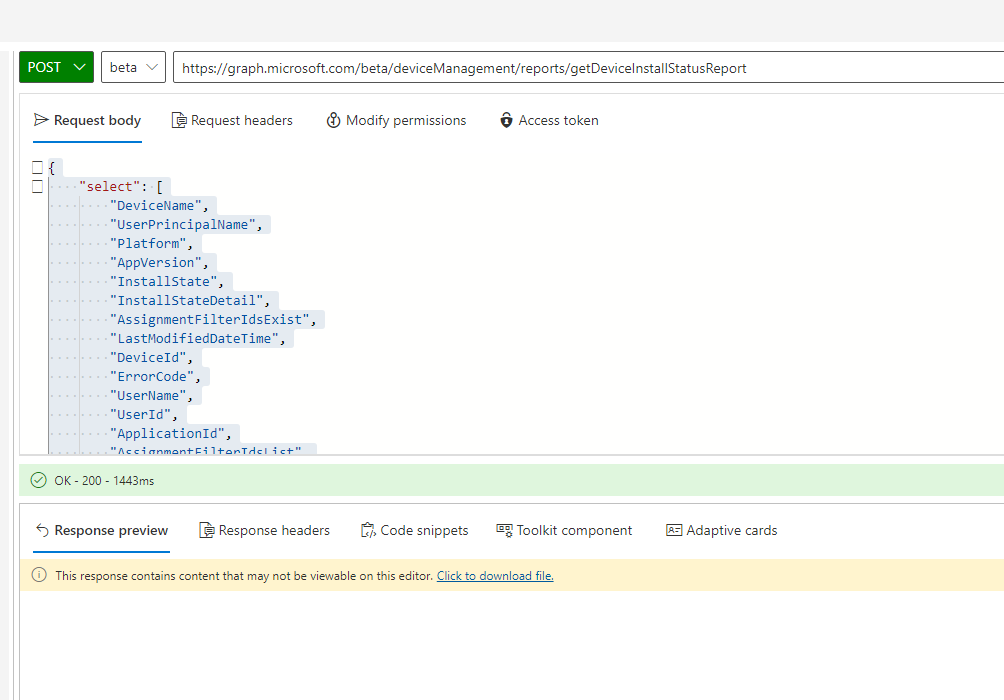

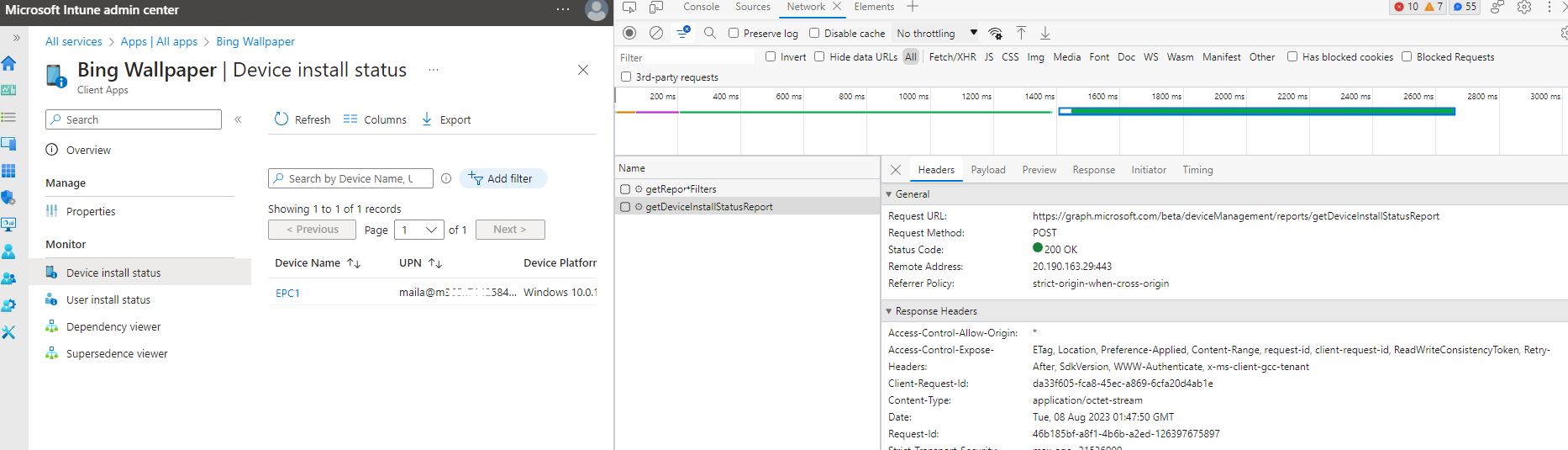

Based on my capturing DevTool log by clicking F12 when I browse the device status of a win32 app. I find it using the following URL and request body

Action: POST

URL:https://graph.microsoft.com/beta/deviceManagement/reports/getDeviceInstallStatusReport

Request body:
{
    "select": [
        "DeviceName",
        "UserPrincipalName",
        "Platform",
        "AppVersion",
        "InstallState",
        "InstallStateDetail",
        "AssignmentFilterIdsExist",
        "LastModifiedDateTime",
        "DeviceId",
        "ErrorCode",
        "UserName",
        "UserId",
        "ApplicationId",
        "AssignmentFilterIdsList",
        "AppInstallState",
        "AppInstallStateDetails",
        "HexErrorCode"
    ],
    "skip": 0,
    "top": 50,
    "filter": "(ApplicationId eq '<add your app id>')",
    "orderBy": []
}

After that, you will get the device status of the app in the file. You need to download it to view.

Hope the above information can help.

---
