I would like to know the definition of the upper extremity joint positions and trunk joint positions that are retrieved by Azure kinect dk.

Question

I would like to know the definition of the upper extremity joint positions and trunk joint positions that are retrieved by Azure kinect dk.
ex) shoulder_RIGHT: geometric center of the head of humerus

Answer 1

Chatdao Septham Greetings & Welcome to Microsoft Q&A forum!

Did you check Azure Kinect body tracking joints page already?

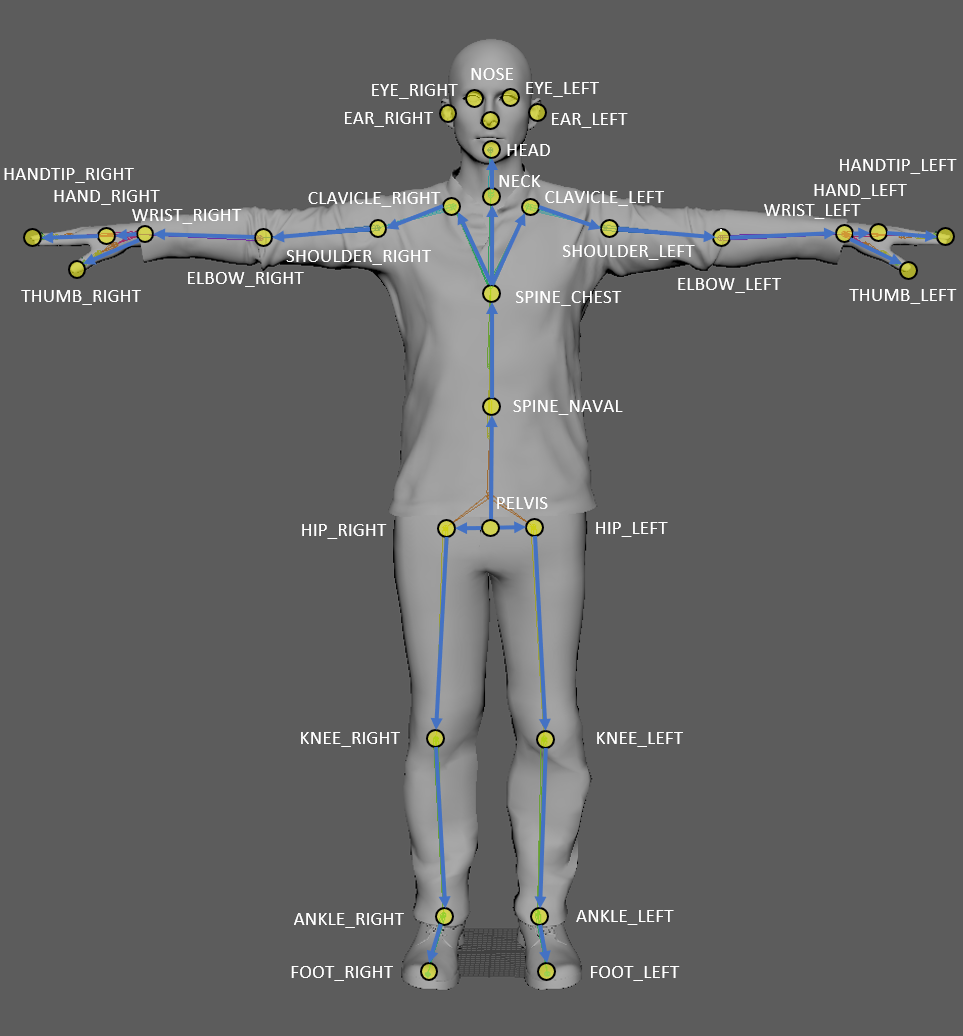

A skeleton includes 32 joints with the joint hierarchy flowing from the center of the body to the extremities. Each connection (bone) links the parent joint with a child joint. The figure illustrates the joint locations and connection relative to the human body.

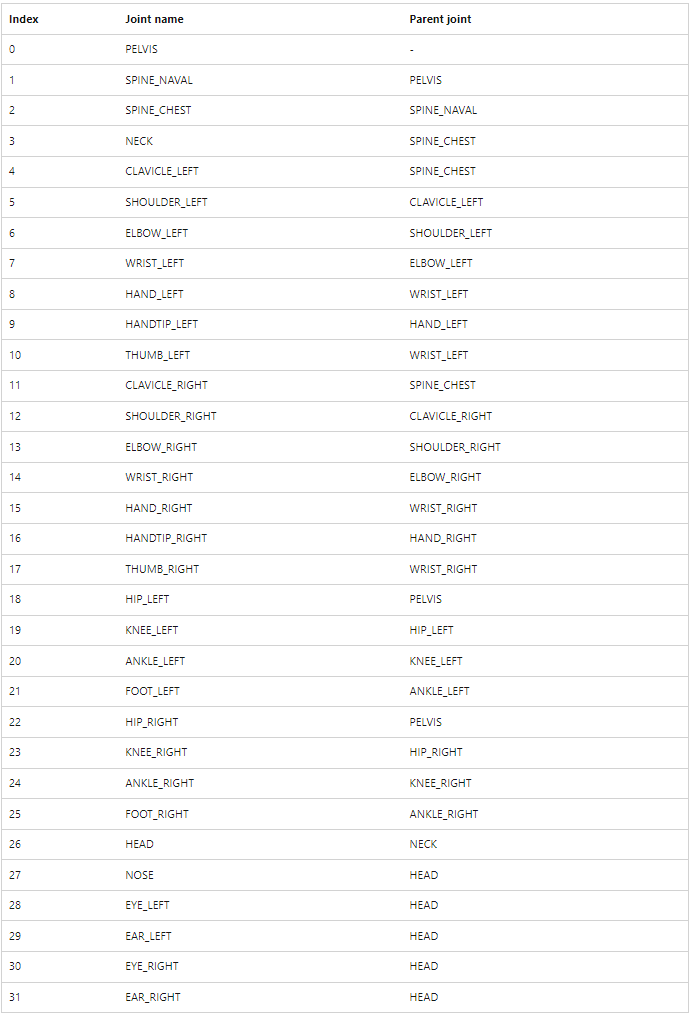

The following table enumerates the standard joint connections.

Also, See references where we are having active discussions on this topic:
https://learn.microsoft.com/en-us/answers/questions/542609/joint-points-in-azure-kinect-dk.html
https://github.com/microsoft/Azure-Kinect-Sensor-SDK/issues/1414

Hope this helps. Do let us know if there are any further queries.
