Data lineage purview in Snowflake don't work

Question

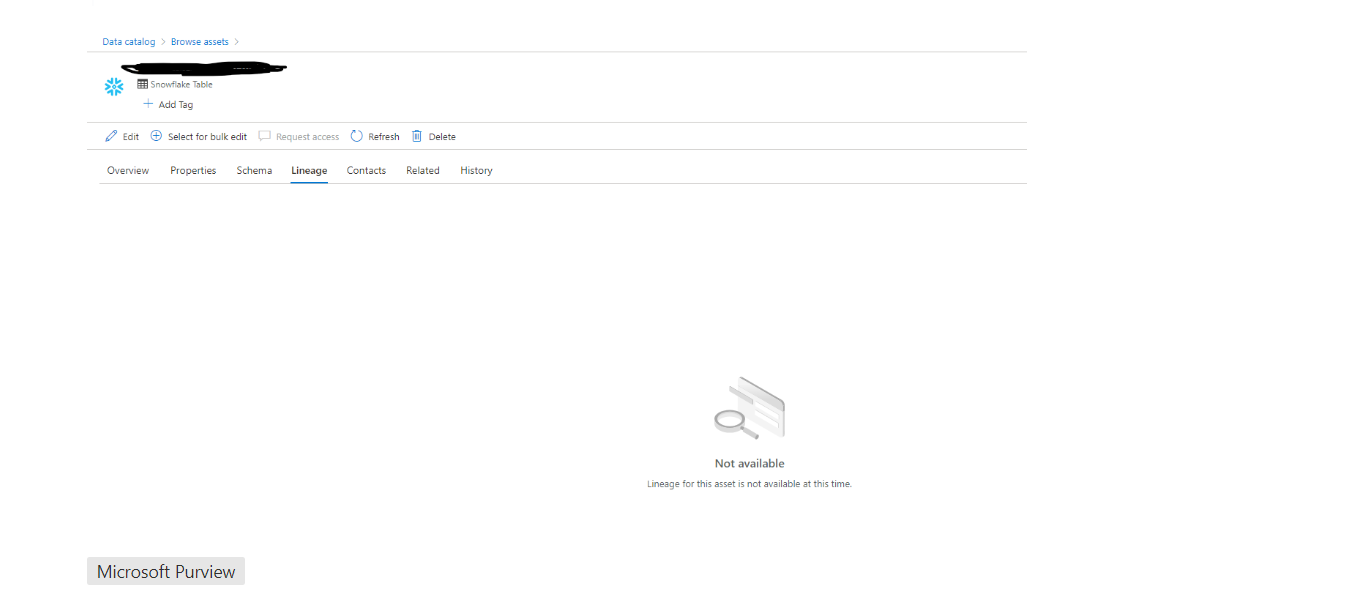

Hello Microsoft, I can't see the Purview data lineage in Snowflake. Once I do the scan, all the data is scanned but there is no lineage. Thank you very much

Answer 1

Hello Sikou KOÏTA,

Welcome to the Microsoft Q&A forum.

<copied from the documentation page>

Can you please follow the below and see if it helps?

After scanning your Snowflake source, you can browse data catalog or search data catalog to view the asset details.

Go to the asset -> lineage tab, you can see the asset relationship when applicable. Refer to the supported capabilities section on the supported Snowflake lineage scenarios. For more information about lineage in general, see data lineage and lineage user guide. https://learn.microsoft.com/en-us/purview/register-scan-snowflake#lineage

Also, please see this known limitations.

• When object is deleted from the data source, currently the subsequent scan won't automatically remove the corresponding asset in Microsoft Purview.
• Stored procedure lineage is not supported for the following patterns:
• Stored procedure defined in Java, Python and Scala languages.
  • Stored procedure using SQL EXECUTE IMMEDIATE with static SQL query as variable.

I hope this helps. Please let me know if you have any further questions.

Answer 2

Hello, I've tested it and it doesn't always work. I've attached the different codes. Thank you Here are my codes :

-- Création de la table Customers
USE WAREHOUSE PURVIEW_WH;
CREATE DATABASE IF NOT EXISTS PURVIEW_TEST;
CREATE SCHEMA IF NOT EXISTS PV;

--DROP DATABASE PURVIEW_TEST;

-- Création de la table Customers
CREATE TABLE Customers (
    CustomerID INT,
    CustomerName VARCHAR(50),
    Email VARCHAR(100),
    PRIMARY KEY (CustomerID)
);

-- Création de la table Orders
CREATE TABLE Orders (
    OrderID INT,
    CustomerID INT,
    OrderDate DATE,
    PRIMARY KEY (OrderID),
    FOREIGN KEY (CustomerID) REFERENCES Customers(CustomerID)
);

-- Création de la table Products
CREATE TABLE Products (
    ProductID INT,
    ProductName VARCHAR(50),
    Price DECIMAL(10, 2),
    PRIMARY KEY (ProductID)
);

-- Insertion de quelques données
INSERT INTO Customers VALUES (1, 'John Doe', 'john.doe@email.com');
INSERT INTO Customers VALUES (2, 'Jane Smith', 'jane.smith@email.com');

INSERT INTO Orders VALUES (101, 1, '2024-01-01');
INSERT INTO Orders VALUES (102, 1, '2024-01-02');
INSERT INTO Orders VALUES (103, 2, '2024-01-03');

INSERT INTO Products VALUES (1, 'Product A', 50.00);
INSERT INTO Products VALUES (2, 'Product B', 75.00);

-- Création de la vue pour afficher les détails de la commande
CREATE VIEW OrderDetails AS
SELECT
    o.OrderID,
    o.OrderDate,
    c.CustomerName,
    p.ProductName,
    p.Price
FROM
    Orders o
JOIN
    Customers c ON o.CustomerID = c.CustomerID
JOIN
    Products p ON o.OrderID = p.ProductID;

-- Création de la vue pour obtenir un résumé des commandes par client
CREATE VIEW CustomerOrderSummary AS
SELECT
    c.CustomerID,
    c.CustomerName,
    COUNT(o.OrderID) AS TotalOrders,
    SUM(p.Price) AS TotalSpent
FROM
    Customers c
LEFT JOIN
    Orders o ON c.CustomerID = o.CustomerID
LEFT JOIN
    Products p ON o.OrderID = p.ProductID
GROUP BY
    c.CustomerID, c.CustomerName;

-- Création de la stored procedure pour obtenir des informations agrégées en fonction d'un critère de date
CREATE OR REPLACE PROCEDURE GetOrderSummaryByDate(targetDate DATE)
    RETURNS TABLE (CustomerName VARCHAR, TotalOrders INT, TotalSpent DECIMAL)
    LANGUAGE SQL
    EXECUTE AS CALLER
AS
'
    SELECT
        o.CustomerName,
        COUNT(o.OrderID) AS TotalOrders,
        SUM(p.Price) AS TotalSpent
    FROM
        OrderDetails o
    WHERE
        o.OrderDate = targetDate
    GROUP BY
        o.CustomerName;

'
-- Exemple d'appel de la stored procedure
CALL GetOrderSummaryByDate(2024-01-02);

Answer 3

Hello @Bhargava-MSFT , Yes I followed the document but I can't see the lineage. Thank you in advance for your help. Sikou

Answer 4

Hello @Bhargava-MSFT , Thank you for your feedback. I don't have an assistance plan. What information do you need from me? Thanks,

Answer 5

Hello @Bhargava-MSFT , Where can I open the support ticket? What information do you need from me? Thank you very much.
