azure document intelligence API PRebuilt-layout with KeyValuePairs feature (C# SDK)

Question

The following code is throwing an Invalid argument error on KeyValuePairs while keyValuePairs feature exists and is valid. Can you help explain?

AnalyzeDocumentOperation operation = await client.AnalyzeDocumentFromUriAsync(WaitUntil.Completed, "prebuilt-layout", fileUri, new AnalyzeDocumentOptions() { Features = { DocumentAnalysisFeature.KeyValuePairs } });

Error message: Azure.RequestFailedException: 'Invalid argument. Status: 400 (Bad Request) ErrorCode: InvalidArgument Content: {"error":{"code":"InvalidArgument","message":"Invalid argument.","innererror":{"code":"InvalidParameter","message":"The parameter keyValuePairs is invalid: The feature is invalid or not supported."}}} I tried all below feature and they work, but keyvaluepairs feature don't work.

AnalyzeDocumentOptions options = new AnalyzeDocumentOptions();
options.Features.Add(DocumentAnalysisFeature.Barcodes);
options.Features.Add(DocumentAnalysisFeature.Formulas);
options.Features.Add(DocumentAnalysisFeature.Languages);
options.Features.Add(DocumentAnalysisFeature.FontStyling);
options.Features.Add(DocumentAnalysisFeature.OcrHighResolution);

Answer 1

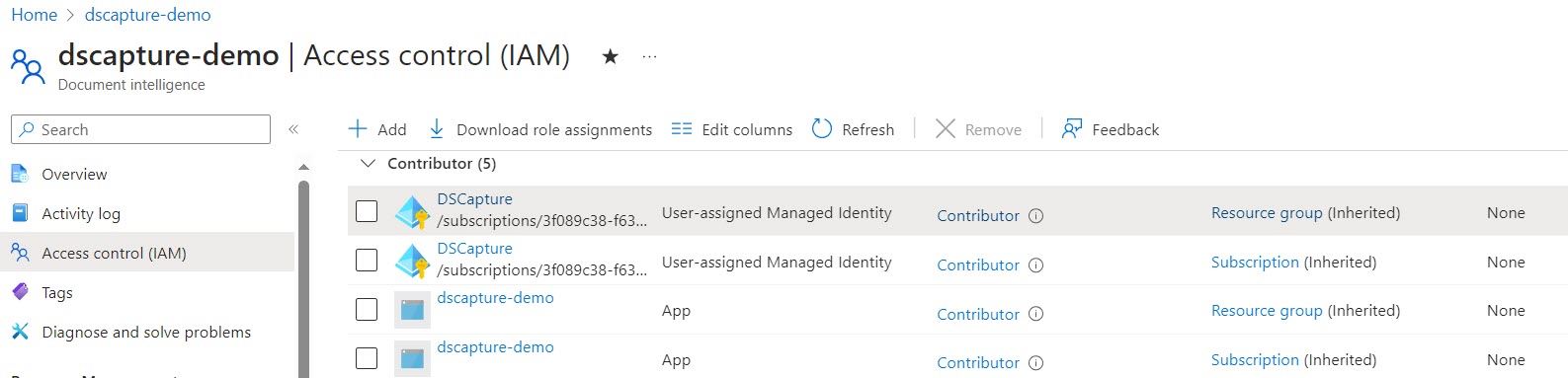

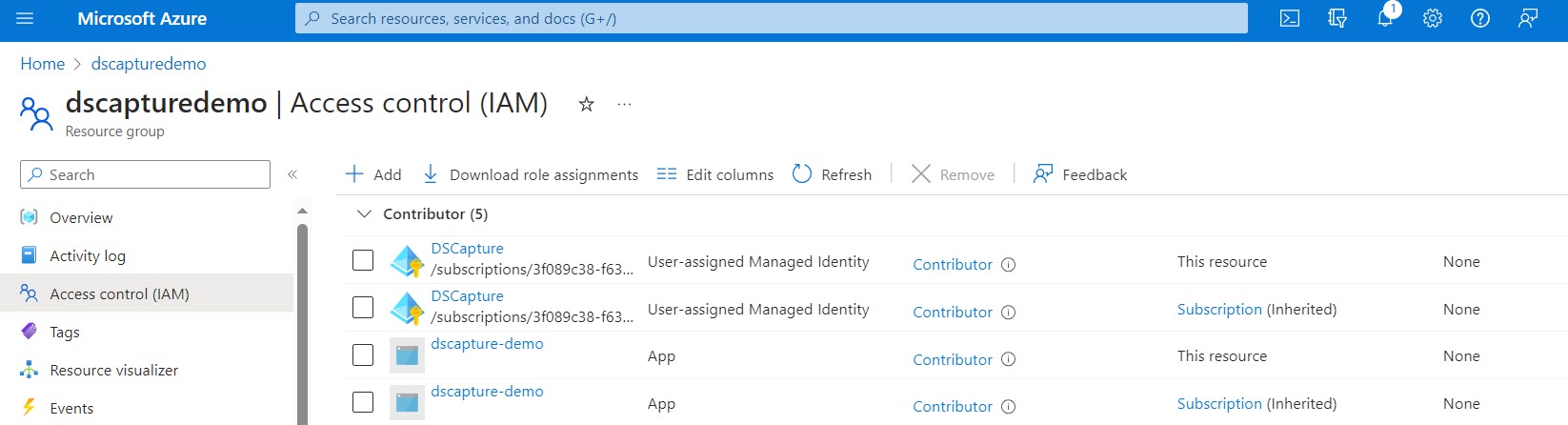

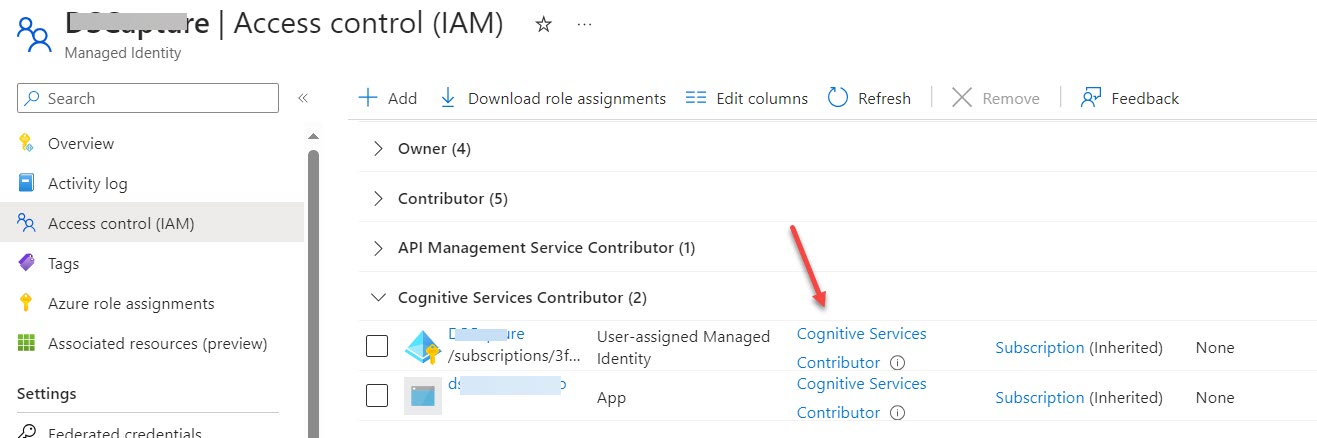

Hello @Diallo, Mouhamadou S ! You need to add the Correct Role to the Managed Identity ( The Principal ) from the IAM Menu or by Cli az role assignment create --assignee <principal-id> --role "Contributor" --scope /subscriptions/<subscription-id>/resourceGroups/<resource-group-name>/providers/Microsoft.Cognitive https://learn.microsoft.com/en-us/azure/role-based-access-control/role-assignments-portal-managed-identity Start with Contributor . Be careful selecting the correct ID , read the Document please to find the ID ! You will get there ! Just send us your feedback ! I hope this helps! Kindly mark the answer as Accepted and Upvote in case it helped! Regards

Answer 2

Hello @Diallo, Mouhamadou S I

Please adjust with this changed code and see if it works

Send me the results please , ad i will contact

using Azure;
using Azure.AI.FormRecognizer;
using Azure.AI.FormRecognizer.DocumentAnalysis;
using Azure.AI.FormRecognizer.Models;
using System;
using System.IO;
using System.Threading.Tasks;

//...

AnalyzeDocumentOptions optionkv = new AnalyzeDocumentOptions
{
    Features = { DocumentAnalysisFeature.KeyValuePairs }
};

AnalyzeDocumentOperation operation = await client.AnalyzeDocumentAsync(WaitUntil.Completed, "prebuilt-layout", fileStream, optionkv);
await operation.WaitForCompletionAsync();

AnalyzeResult result = operation.Value;

foreach (var kvp in result.KeyValuePairs)
{
    string key = kvp.Key?.Content ?? "Unknown Key";
    string value = kvp.Value?.Content ?? "null";

    if (string.IsNullOrEmpty(value))
    {
        Console.WriteLine($"Found key with no value: '{key}'");
    }
    else
    {
        Console.WriteLine($"Found key-value pair: '{key}' and '{value}'");
    }
}

I hope this helps

Kindly mark the answer as Accepted and Upvote in case it helped!

Regards

Answer 3

Hello @Diallo, Mouhamadou S I

Checking on Documentation

It is removed

https://github.com/Azure/azure-sdk-for-net/blob/main/sdk/formrecognizer/Azure.AI.FormRecognizer/CHANGELOG.md

• Removed property DocumentKeyValuePair.CommonName.

https://learn.microsoft.com/en-us/python/api/azure-ai-formrecognizer/azure.ai.formrecognizer.documentkeyvaluepair?view=azure-python

In that case either you do it with a custom class :

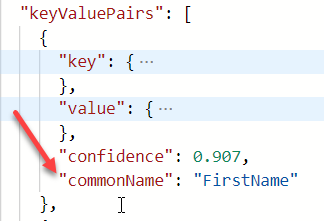

// Assuming `responseJson` is the raw JSON string from the service
var options = new JsonSerializerOptions { PropertyNamingPolicy = JsonNamingPolicy.CamelCase };
var keyValuePairs = JsonSerializer.Deserialize<List<MyDocumentKeyValuePair>>(responseJson, options);

public class MyDocumentKeyValuePair
{
    public DocumentKeyValueElement Key { get; set; }
    public DocumentKeyValueElement Value { get; set; }
    public float Confidence { get; set; }
    public string CommonName { get; set; } // Custom property to hold the 'commonName'
}

I hope this helps

Kindly mark the answer as Accepted and Upvote in case it helped! Regards

Answer 4

Hello @Diallo, Mouhamadou S I

Sorry for the late response

I have found that Form Recognizer 4.1.0-beta.1 Changelog

Has Added property CommonName to the DocumentKeyValuePair class.

I suggest you give it a try!

Kindly let us know !

I hope this helps

Kindly mark the answer as Accepted and Upvote in case it helped!

Regards
