Installing SSDT 15.8 for visual studio 2017 failing to install

Question

Installing SSDT 15.8 for visual studio 2017 failing to install

HP 21

Hello, I am trying to install SSDT 15.8 for visual studio 2017 on windows 11 and keeps on failing. VS 2017 is installed with Data Storage and Processing option. I have tried uninstall/install of VS 2017, frame work 4.8 multiple times without any success. SSDT running as admin crashing as son as I select Visual Studio 2017 from dropdown without clicking Install button. Also, not able to find Integration service project template in extension and updates in VS 2017 Also tried installing with command prompt, SSDT-Setup-ENU.exe /INSTALLIS /passive. This shows up in Programs and feature but in VS studio i do not show template to create new integration service project. I have been looking for solution for a while now with any success. Any help is appreciated. Thanks

Tianyu Sun-MSFT 34,441 Reputation points Microsoft External Staff

2024-01-23T05:33:22.2666667+00:00

Hello @HP,

Welcome to Microsoft Q&A forum.

Is there any limitation on your machine such as group policy, antivirus software and extensions? If so, please try to disable them temporarily and test again.

Did you change anything like deleting some system files, changing some paths, and modifying the Registry keys? If so, please try to recover them.

Did you try to run the SSDT normally without running it as admin?
HP 21 Reputation points

2024-01-23T17:10:25.4166667+00:00

HI,I was running SSDT as an admin. I believe there are group policy and antivirus running on the machine. No i have not deleted any system files or change paths or modify keys. Thanks
Tianyu Sun-MSFT 34,441 Reputation points Microsoft External Staff

2024-01-25T07:33:57.3966667+00:00

Hello @HP,

The error code: 0x80070005 does indicate that there’s an "access denied" issue.

Can you confirm that the group policy and antivirus installed on your machine doesn’t block you from installing SSIS/SSDT?

Is it possible for you to try to disable them temporarily?
HP 21 Reputation points

2024-01-30T22:36:02.1233333+00:00

@Tianyu Sun-MSFT I am getting below error, I have tried running DCIM and sfc /scannow command. Still same error.

Thanks
Tianyu Sun-MSFT 34,441 Reputation points Microsoft External Staff

2024-01-31T06:07:25.6633333+00:00

Hi @HP,

Thank you for sharing us the screenshot.

I did see this screenshot, and you can see that on the last line => HRESULT: 0x80070005.

Error code 0x80070643 indicates that installation cache or ISO is corrupted, error code 0x80070005 indicates that access is denied.

As you have tried to reinstall VS and SSDT, I suggest you update Windows OS, and reinstall SSDT.

Besides, have you kindly communicated with your administrator or IT department to double confirm that the group policy and antivirus don’t block you from installing the SSDT/assembly?
HP 21 Reputation points

2024-02-01T15:21:40.4033333+00:00

@Tianyu Sun-MSFT Thank you for your response. I am looking into group policy and antivirus blocking. I will update as soon as I find out. Thanks
Tianyu Sun-MSFT 34,441 Reputation points Microsoft External Staff

2024-02-09T05:44:58.3533333+00:00

Hi @HP,

No problem, feel free to let us know the results.

1 answer

Your answer

Tianyu Sun-MSFT 34,441 Reputation points Microsoft External Staff

2024-01-23T05:33:22.2666667+00:00

Hello @HP,

Welcome to Microsoft Q&A forum.

Is there any limitation on your machine such as group policy, antivirus software and extensions? If so, please try to disable them temporarily and test again.

Did you change anything like deleting some system files, changing some paths, and modifying the Registry keys? If so, please try to recover them.

Did you try to run the SSDT normally without running it as admin?
HP 21 Reputation points

2024-01-23T17:10:25.4166667+00:00

HI,I was running SSDT as an admin. I believe there are group policy and antivirus running on the machine. No i have not deleted any system files or change paths or modify keys. Thanks
Tianyu Sun-MSFT 34,441 Reputation points Microsoft External Staff

2024-01-25T07:33:57.3966667+00:00

Hello @HP,

The error code: 0x80070005 does indicate that there’s an "access denied" issue.

Can you confirm that the group policy and antivirus installed on your machine doesn’t block you from installing SSIS/SSDT?

Is it possible for you to try to disable them temporarily?
HP 21 Reputation points

2024-01-30T22:36:02.1233333+00:00

@Tianyu Sun-MSFT I am getting below error, I have tried running DCIM and sfc /scannow command. Still same error.

Thanks
Tianyu Sun-MSFT 34,441 Reputation points Microsoft External Staff

2024-01-31T06:07:25.6633333+00:00

Hi @HP,

Thank you for sharing us the screenshot.

I did see this screenshot, and you can see that on the last line => HRESULT: 0x80070005.

Error code 0x80070643 indicates that installation cache or ISO is corrupted, error code 0x80070005 indicates that access is denied.

As you have tried to reinstall VS and SSDT, I suggest you update Windows OS, and reinstall SSDT.

Besides, have you kindly communicated with your administrator or IT department to double confirm that the group policy and antivirus don’t block you from installing the SSDT/assembly?
HP 21 Reputation points

2024-02-01T15:21:40.4033333+00:00

@Tianyu Sun-MSFT Thank you for your response. I am looking into group policy and antivirus blocking. I will update as soon as I find out. Thanks
Tianyu Sun-MSFT 34,441 Reputation points Microsoft External Staff

2024-02-09T05:44:58.3533333+00:00

Hi @HP,

No problem, feel free to let us know the results.

Answer 1

Yitzhak Khabinsky 26,586

It is better to start using VS2019. Even free of charge Community edition is good enough to develop SSIS projects. VS2019 is not using SSDT anymore. It needs "SQL Server Integration Services Projects" extension for VS2019. Here is its download link: https://marketplace.visualstudio.com/items?itemName=SSIS.SqlServerIntegrationServicesProjects

VS2019 supports all versions between 2012 - 2022. Please see below. SSIS - TargetServerVersion_2

HP 21 Reputation points

2024-01-22T22:53:20.1233333+00:00

I need to have specific version of VS and ssdt because of our SQL server version. Thanks
HP 21 Reputation points

2024-01-22T22:54:27.1233333+00:00

I need to use specific version on VS and SSDT because of our SQL server version. Thanks
Yitzhak Khabinsky 26,586 Reputation points

2024-01-22T23:10:17.0333333+00:00

I updated the answer to cover your concerns.
HP 21 Reputation points

2024-01-23T15:49:44.2833333+00:00

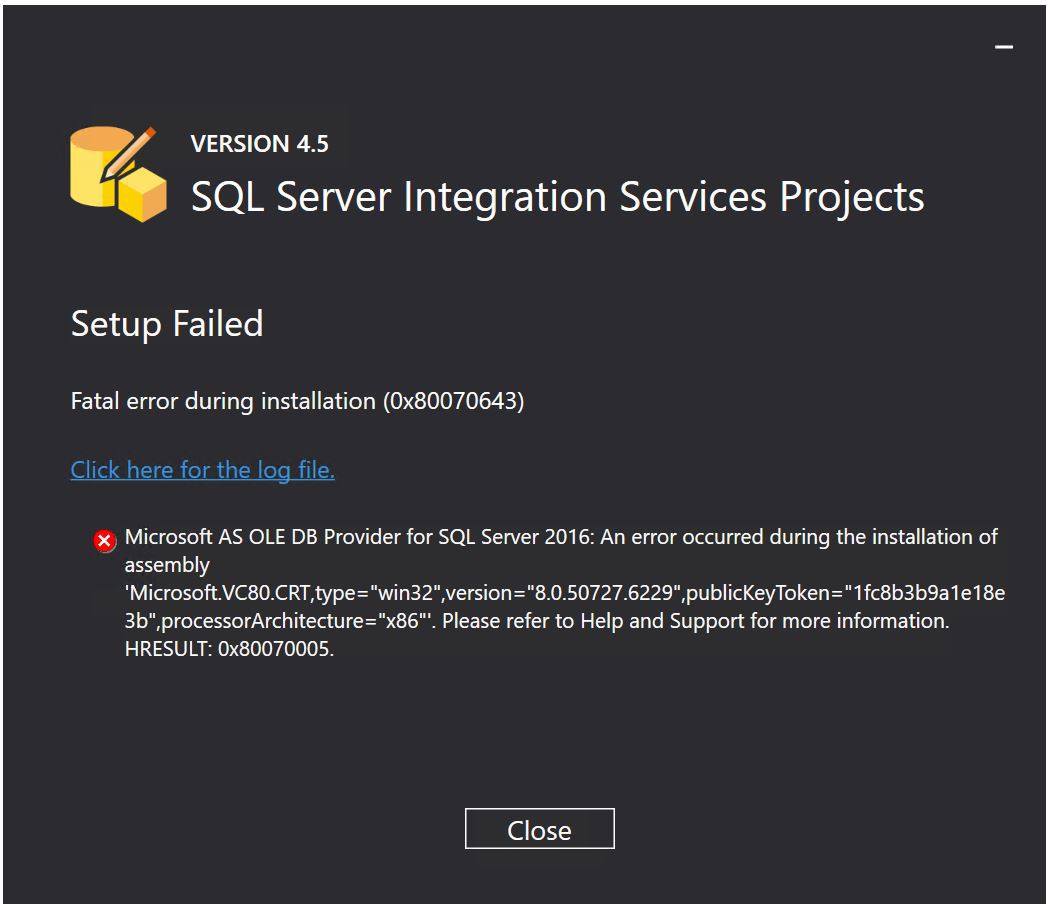

Hi, Thanks for your response. I have installed VS 2019 and then downloaded SSIS Project 4.5. I started install and getting below error: Microsoft AS OLE DB Provider for SQL Server 2016: An error occurred during the installation of assembly 'Microsoft.VC80.CRT,type="win32",version="8.0.50727.6229",publicKeyToken="1fc8b3b9a1e18e3b",processorArchitecture="x86"'. Please refer to Help and Support for more information. HRESULT: 0x80070005. Thanks
HP 21 Reputation points

2024-01-23T16:18:57.0233333+00:00

Hi, I saw one of your old post @ https://learn.microsoft.com/en-us/answers/questions/183812/failure-when-installing-sql-server-integration-ser . I checked, I have already have VC++ 2013 installed.
Yitzhak Khabinsky 26,586 Reputation points

2024-01-23T16:44:58.59+00:00

Please try to install one version below of "SQL Server Integration Services Projects" extension for VS2019, v4.4 It is a GA.
Deleted

This comment has been deleted due to a violation of our Code of Conduct. The comment was manually reported or identified through automated detection before action was taken. Please refer to our Code of Conduct for more information.
HP 21 Reputation points

2024-01-23T18:04:27.65+00:00

V 4.4 gives same error as above.
HP 21 Reputation points

2024-01-23T18:09:28.5033333+00:00

V4.4 gives same error as above.
Yitzhak Khabinsky 26,586 Reputation points

2024-01-23T18:44:57.1533333+00:00

Please try install .Net Framework v.4.8.1
HP 21 Reputation points

2024-01-23T19:44:54.5233333+00:00

@Yitzhak Khabinsky after installing .Net framework 4.8.1 i am getting same error as above. Thanks
Yitzhak Khabinsky 26,586 Reputation points

2024-01-23T20:02:14.94+00:00

Please try to download and install "Microsoft OLE DB Driver for SQL Server" v.18.6.7 : https://learn.microsoft.com/en-us/sql/connect/oledb/release-notes-for-oledb-driver-for-sql-server?view=sql-server-ver16#1867
HP 21 Reputation points

2024-01-23T20:09:08.7066667+00:00

@Yitzhak Khabinsky Microsoft OLE DB Driver for SQL server v 18.6.7.0 is already installed on the machine. Thanks
Yitzhak Khabinsky 26,586 Reputation points

2024-01-23T20:43:28.9733333+00:00
Please try the following at the command prompt, opened as Administrator:

Dism /Online /Cleanup-Image /RestoreHealth

sfc /scannow
HP 21 Reputation points

2024-01-23T22:29:53.13+00:00

@Yitzhak Khabinsky I ran DISM this morning and just now ran sfc command. it showed that corrupt files are successfully repaired. I rebooted machine and ran SSIS 4.4 install. It still gives same error.

Thanks
