Question

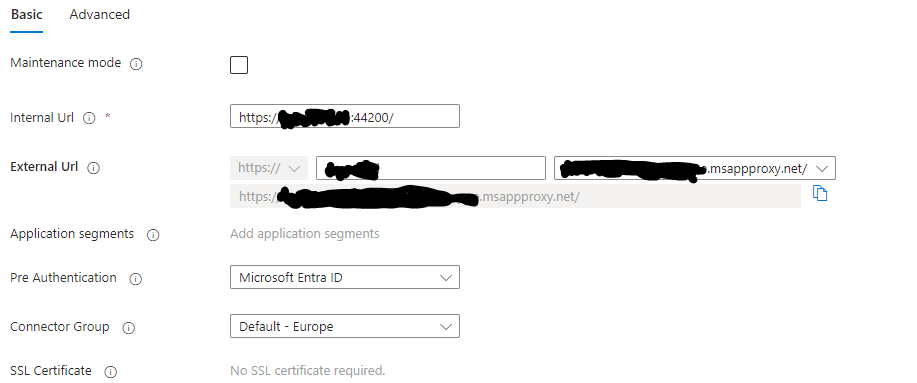

Hello, we use the Application Proxy in Azure. I have created an application and released it. The application runs on a server where multiple web applications are running, so the page must be accessed via a specific port. (Example: https://webserver:50001). I have specified this as the internal URL. The page can also be successfully accessed. The problem now is that when I want to log in to the page, it is done via a different port (Example: https://webserver: 50002). Here the login times out because the server is not accessible via the port. My guess is that this is because I only specified https://webserver:50001 as the internal URL. How can I solve this problem? How can I specify multiple ports?

Answer 1

Hello @SK !

If you have tried the Translate Urls in application body without luck , then yu have to take care of this redirection .

https://learn.microsoft.com/en-us/entra/identity/app-proxy/application-proxy-application-gateway-waf

https://learn.microsoft.com/en-us/azure/application-gateway/how-application-gateway-works

I suggest you have a look on Application Gateway integration , but even this will be an issue , since the Login is via a Different Port , maybe there is a solution , you have to create another URL mapping while

maintinaing the intial URL

For example

https://application:5000 --> used to login

https://application:5000/signup --> used to signup Application Gateway can solve this issue and offers advanced configuration elements as well

I hope this helps!

Kindly mark the answer as Accepted and Upvote in case it helped!

Regards

Answer 2

Hello @SK ! Welcome to Microsoft QnA! So the App has different Port for Login and different for the actual APP ? Regards
