Adding Interface Catalyst 8000v

Harmen 45

hello i configured a virtual machine for a Cisco Catalyst 8000v. All looks good, only it has only one port (GigabitEthernet1). I also need GigabitEthernet2. I can add it, but when I commit, it complains anybody any idea?

c8000v-Seco#config-transaction
connected from 127.0.0.1 using console on c8000v-Seco
c8000v-Seco(config)# interface GigabitEthernet2
c8000v-Seco(config-if)# commit
Aborted: inconsistent value: Device refused one or more commands:
interface GigabitEthernet2
           ^

deherman-MSFT 38,021 Reputation points Microsoft Employee Moderator

2024-02-06T20:53:53.33+00:00

@Harmen
Is this an Azure VM? What is the size and do you have multiple ethernet interfaces attached?
Your question appears to be related to the Cisco portion of the configuration. I recommend reaching out to them for support. https://community.cisco.com/t5/networking/ct-p/4461-network-infrastructure

Harmen 45

thanks deherman-MSFT, for you help
I selected several sizes (standard_DS2_v2, standard_D2s_v3). The Cisco documentation starts with
https://www.cisco.com/c/en/us/td/docs/routers/C8000V/Azure/deploying-cisco-catalyst-8000v-on-microsoft-azure/deploy-c8000v-on-microsoft-azure.html#task_tc1_gsd_qcb

Perform the following steps to deploy Cisco Catalyst 8000V with multiple interfaces. Procedure

---	Step 1	Select Virtual machines in the left hand side panel.
Step 1	Select Virtual machines in the left hand side panel.
Step 2	Click Add.
Step 3	Enter "C8000V".Finds the Cisco Catalyst 8000V VM deployments in the Azure Marketplace.
Step 4	Choose the deployment of your choice, with 2,4, or 8 NICs.
Step 5	Click Create.

I miss the whole Add part, so i can't select the number of NICs.

Maybe i need to add the additional port (NIC) manually.

I'm a rookie, so probably i'm doing something stupid.

Accepted answer

0 additional answers

Your answer

deherman-MSFT 38,021 Reputation points Microsoft Employee Moderator

2024-02-06T20:53:53.33+00:00

@Harmen
Is this an Azure VM? What is the size and do you have multiple ethernet interfaces attached?
Your question appears to be related to the Cisco portion of the configuration. I recommend reaching out to them for support. https://community.cisco.com/t5/networking/ct-p/4461-network-infrastructure
Harmen 45 Reputation points

2024-02-07T06:38:02.3666667+00:00

thanks deherman-MSFT, for you help
I selected several sizes (standard_DS2_v2, standard_D2s_v3). The Cisco documentation starts with
https://www.cisco.com/c/en/us/td/docs/routers/C8000V/Azure/deploying-cisco-catalyst-8000v-on-microsoft-azure/deploy-c8000v-on-microsoft-azure.html#task_tc1_gsd_qcb

Perform the following steps to deploy Cisco Catalyst 8000V with multiple interfaces. Procedure

--- Step 1 Select Virtual machines in the left hand side panel.

Step 1 Select Virtual machines in the left hand side panel.

Step 2 Click Add.

Step 3 Enter "C8000V".Finds the Cisco Catalyst 8000V VM deployments in the Azure Marketplace.

Step 4 Choose the deployment of your choice, with 2,4, or 8 NICs.

Step 5 Click Create.

I miss the whole Add part, so i can't select the number of NICs.

Maybe i need to add the additional port (NIC) manually.

I'm a rookie, so probably i'm doing something stupid.

Answer 1

deherman-MSFT 38,021 Microsoft Employee Moderator

@Harmen

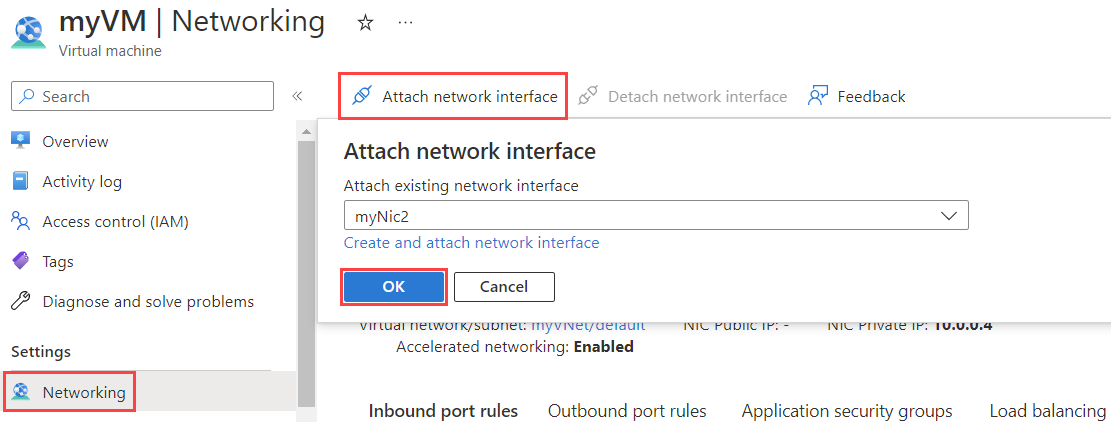

The steps you provided are for Deploy Cisco Catalyst 8000V with Multiple Interfaces. Make sure you have multiple interfaces on your Azure VM. You can add these during launch or after launch. Please note that each VM size has a limit for network interfaces. Labeled here as Max Nics for DSv2-series. Screenshot of attach a network interface to a virtual machine in Azure portal.

Hope this helps! Let me know if you still have questions or issues.

If you still have questions, please let us know in the "comments" and we would be happy to help you. Comment is the fastest way of notifying the experts. If the answer has been helpful, we appreciate hearing from you and would love to help others who may have the same question. Accepting answers helps increase visibility of this question for other members of the Microsoft Q&A community. Thank you for helping to improve Microsoft Q&A! User's image

Harmen 45 Reputation points

2024-02-08T07:18:52.13+00:00

hello deherman-MSFT many thanks. i was looking at that all the time, but i could not click it. Found out that i needed to stop the VM, then add it and restart it. Thanks again,
