Traffic Manager does not route to the correct Host

Question

I'm testing the Azure Traffic Manager custom header settings. I created a profile with priority routing. Then, I added IIS-enabled VM as an endpoint.

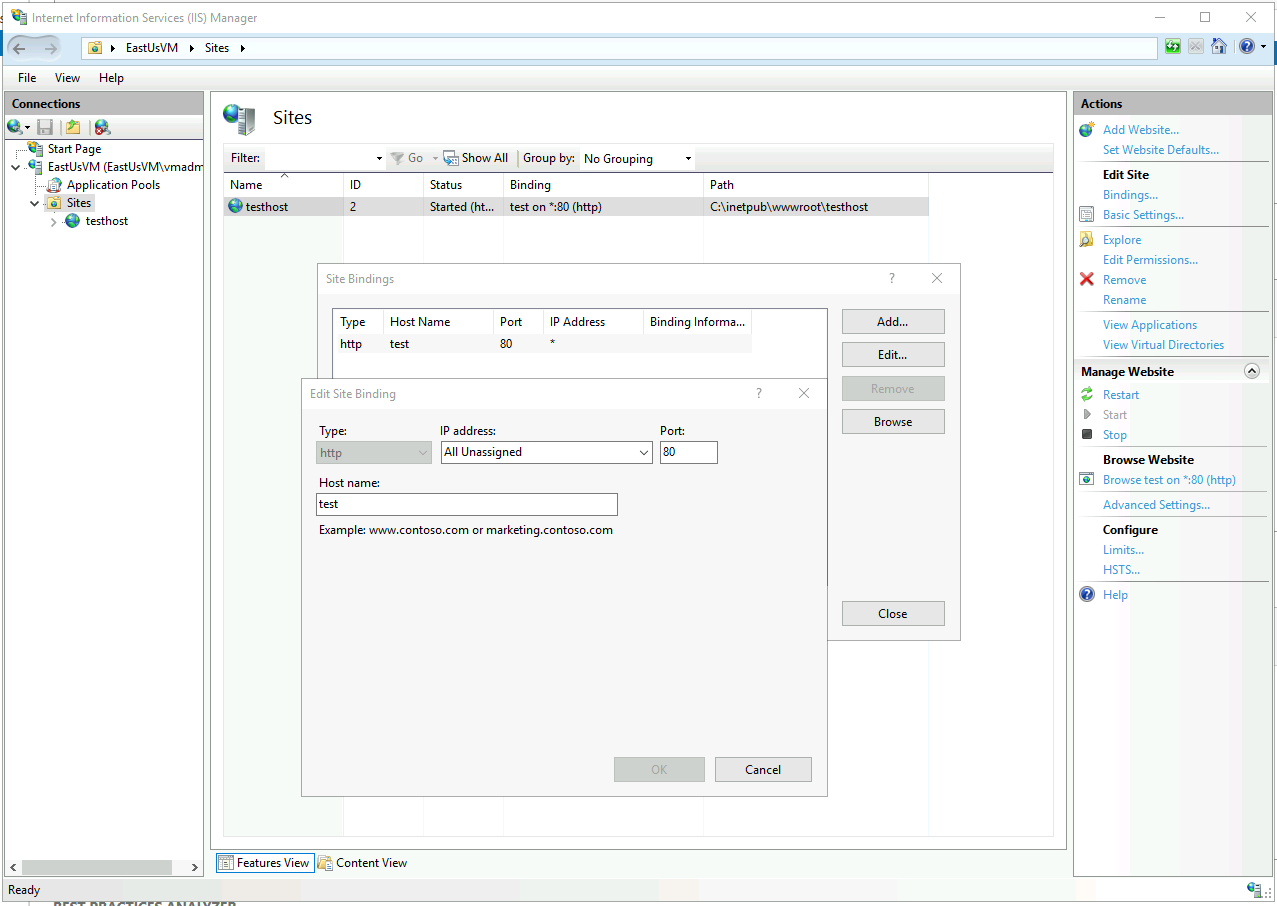

Host name is specificied in IIS manager

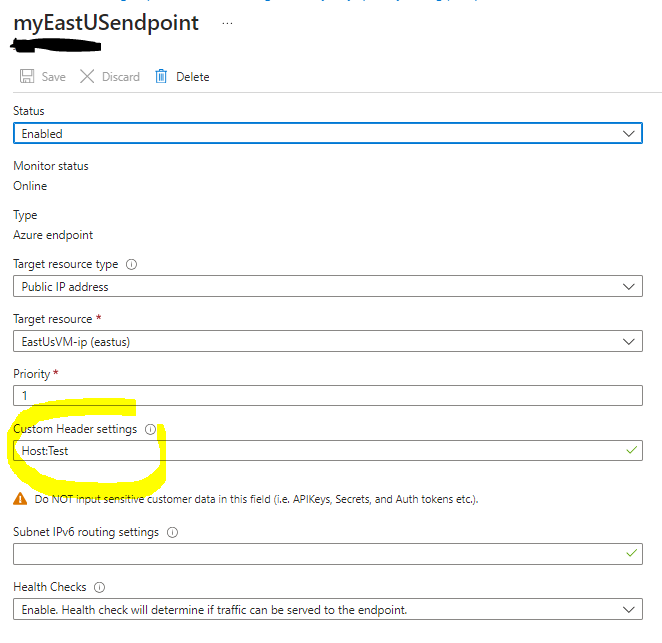

I added this host information at endpoint level.

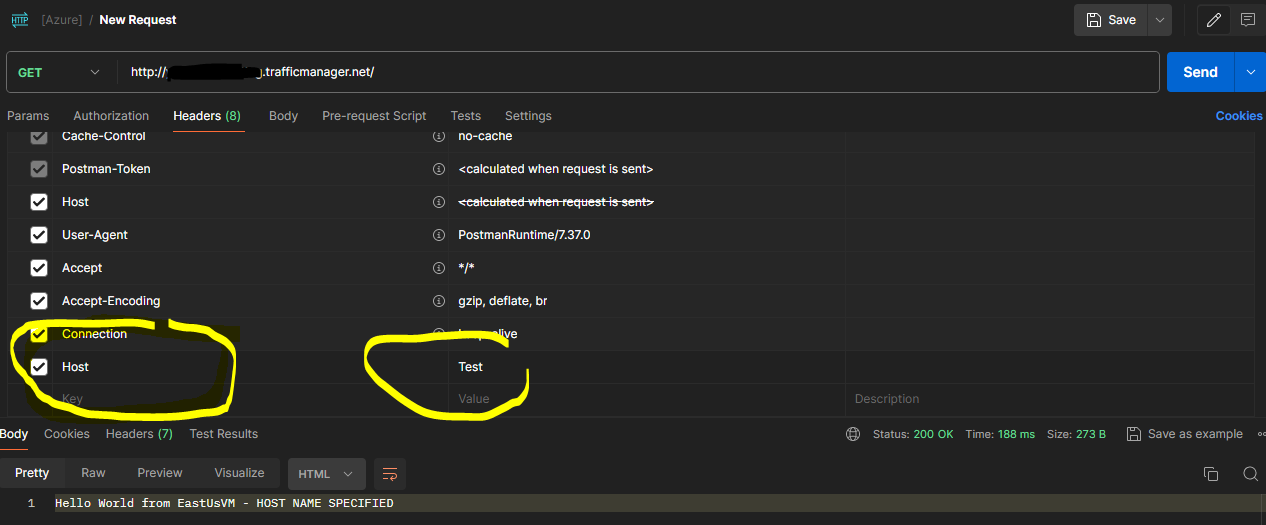

It returns the right result when I tested in postman

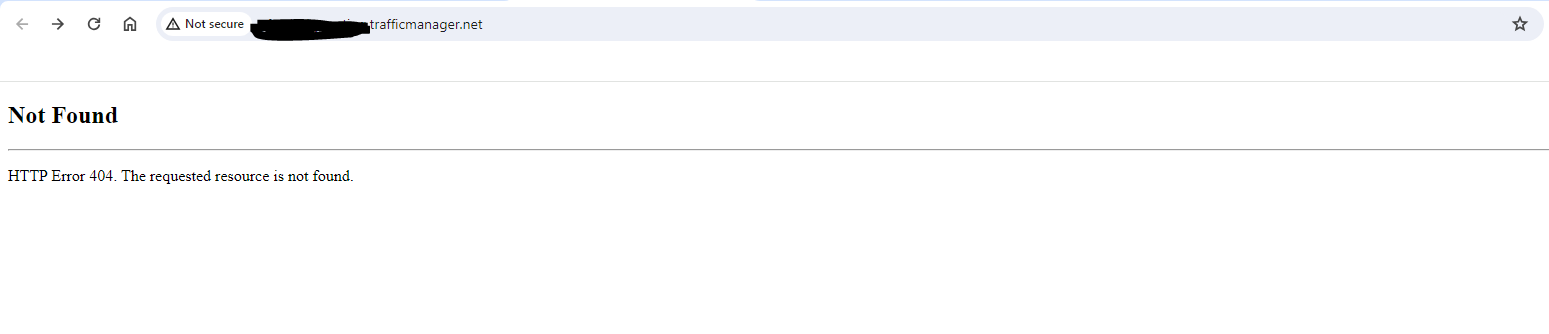

However browsing the traffic manager in browser was unsuccessful.

Answer 1

@Yasmin, Fitri ,

Welcome to the Microsoft Q&A Platform. Thank you for reaching out & I hope you are doing well.

I am afraid I am not sure what the requirement here is.

Note 1:

• You added Host Binding to your IIS VM.
• This means, requests to IIS VM would expect the host to be "Test"
• And other host or directly accessing via IP Address would give you 404 (not Traffic Manager, the IIS VM itself would give you 404)

Note 2:

• Custom header settings is only for endpoint monitoring, i.e., Health check ups from Azure Traffic Manager to your IIS VM.
• Not for actual customer traffic to your IIS VM. See : ATM Endpoint monitoring
• This means, the header Host:Test is only sent when ATM probes for health of the IIS VM, not when a customer tries to access the IIS VM.

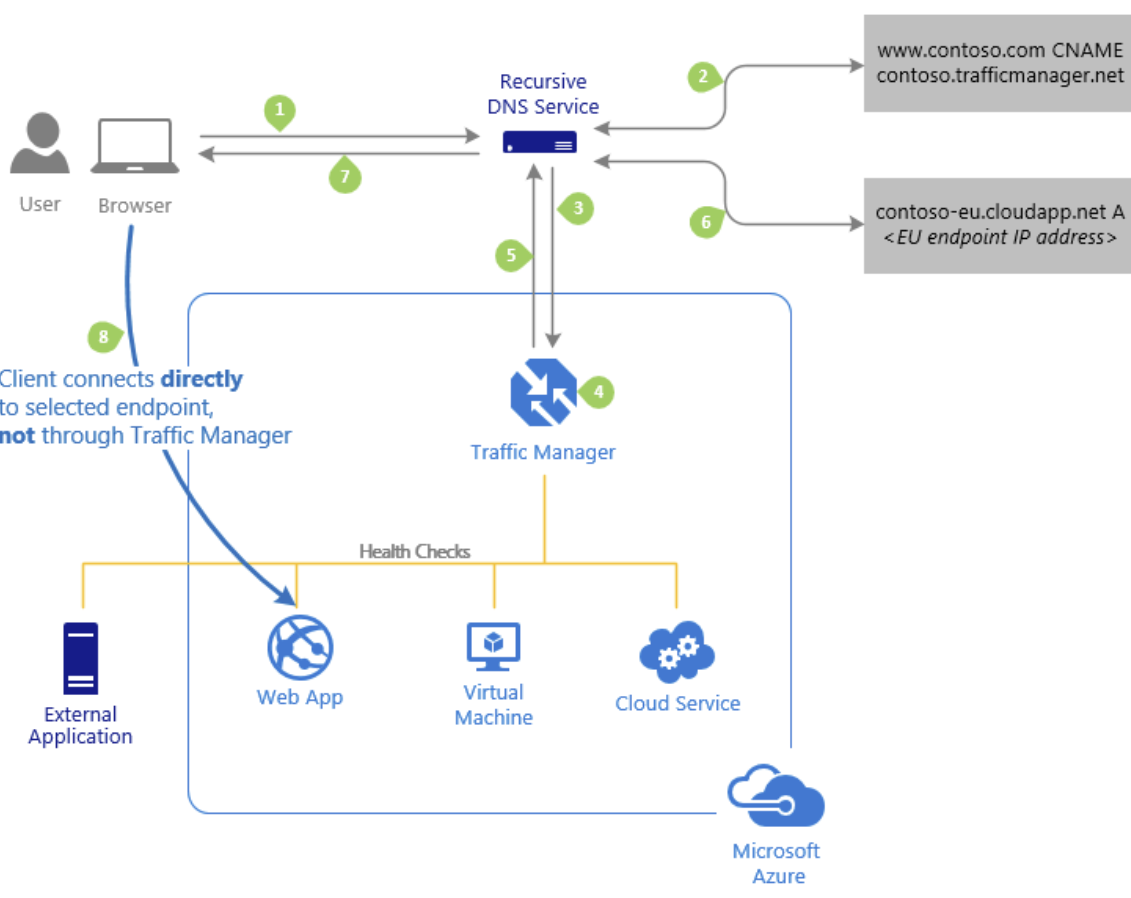

• Also, customer traffic never passes through a ATM. This means, there is no way you can influence the HTTP Headers of a client request using ATM.
• See : How clients connect using Traffic Manager.
•

So, when a custom requests goes to the VM, it will not have the header Host:Test and hence, the IIS VM would return a 404.

P.S :

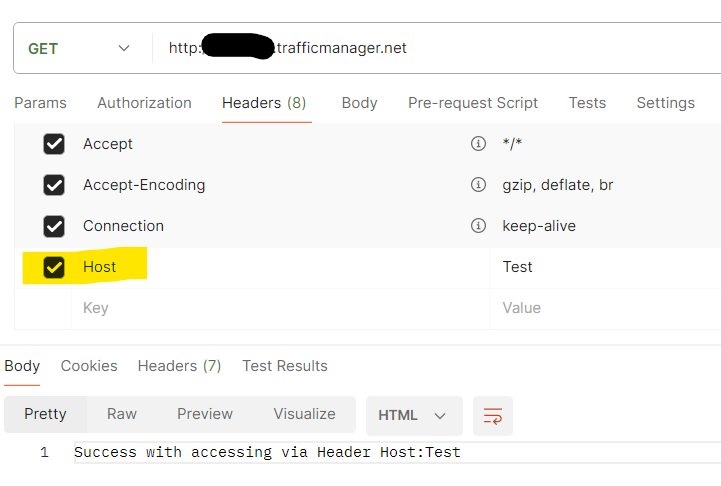

• The reason it is working with PostMan is that you are manually sending the header Host:Test with your request (per your screenshot)
•

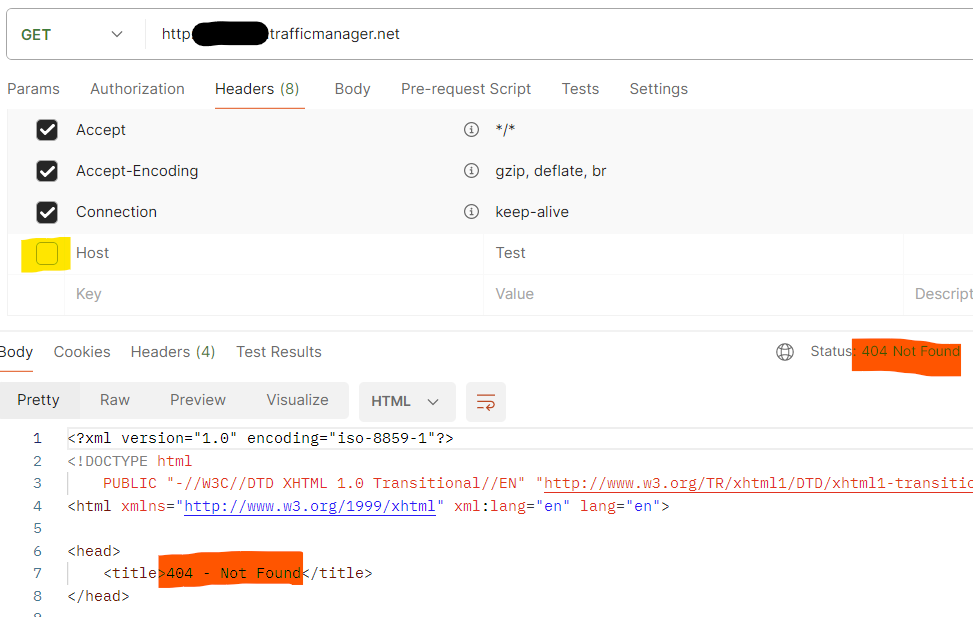

• If you were to remove the Host header, this will also give 404 only (just like a Browser, because when you access the site via Browser, the Host header is not added by anyone)
•

Kindly let us know if this helps or you need further assistance on this issue.

Thanks,

Kapil
