Hello El Mehdi Ouafiq,
Welcome to the Microsoft Q&A and thank you for posting your questions here.
Problem
Sequel to your questions, I understand that you seek guidance on deploying your Tkinter-based Python desktop UI in Azure while considering simplicity, performance, and cost-effectiveness. Also, you are facing challenges in selecting the appropriate deployment method, ensuring seamless access to the ML model and data, and preserving the functionality of the UI without extensive modifications.
Scenarios
- You need to choose between Azure Virtual Machine and Azure App Service, weighing factors such as ease of deployment, performance, and cost.
- You want to devise a strategy for efficiently transferring the pickle file containing the ML algorithm to the Azure environment, ensuring seamless integration with the UI.
- You also aim to maintain the simplicity and functionality of the Tkinter-based desktop UI while exploring deployment options in Azure, without resorting to converting it into a web application.
Solution
Deploying a Tkinter-based Python desktop UI in Azure while maintaining simplicity and performance can indeed be achieved without resorting to major code restructuring. Let's explore some of the options available:
Azure Virtual Machine (VM):
You can create a VM instance and deploy your Tkinter-based UI there. This approach offers flexibility in terms of environment configuration. Uploading the pickle file to the VM shouldn't be an issue. You can use Azure Storage to store the pickle file and then retrieve it within your VM. You can make the UI accessible to business users by configuring remote access to the VM. Tools like Remote Desktop Protocol (RDP) can enable users to interact with the UI as if it were on their local machine.
Pros
- No significant modifications to the UI are necessary, allowing for the preservation of its functionality.
Cons
- The downside is managing the VM instance, including updates, security, and scalability. It might not be the most cost-effective solution, especially if the usage is sporadic.
Azure App Service:
While Azure App Service is primarily for web applications, you can still deploy desktop applications with some tweaks. One approach is to use Flask or Django to create a lightweight web service that hosts your Tkinter UI. The UI itself can remain unchanged, but it communicates with the backend via HTTP requests. To simplify deployment, you can package your Tkinter app along with the Flask or Django server into a single executable using tools like PyInstaller or Py2exe.
Cons
- This approach might require some refactoring but allows you to leverage Azure's managed services for scalability and maintenance.
- It's essential to consider the performance implications of running a Tkinter app within a web service, especially if there are many concurrent users.

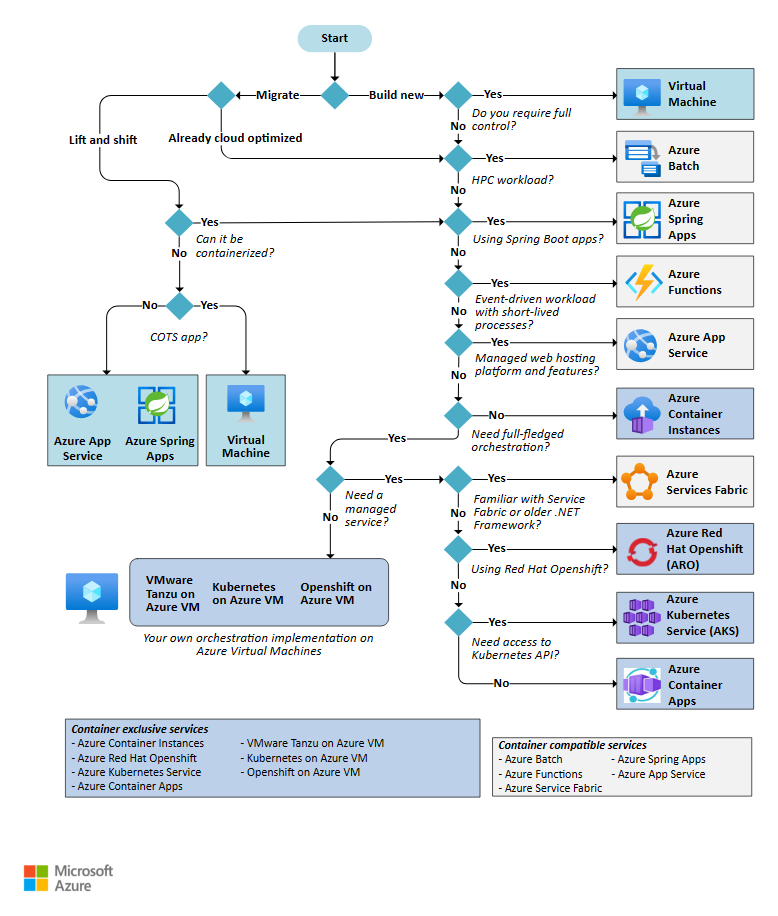

Other Methods:
Another option is to explore Azure Container Instances (ACI). You can containerize your Tkinter app and deploy it as a container in ACI. This approach provides isolation and scalability without the overhead of managing VMs. You can also investigate Azure Functions, especially if your UI functionality can be broken down into smaller, serverless components.
Cons
- However, Tkinter might not be the best fit for this approach.
Finally
If you are familiar with Cloud and virtualization architecture or you're with a good solution architect, as a solution architect I will advise you to start with VM on Azure and if otherwise.
Considering your requirements for simplicity and performance, I recommend starting with Azure App Service. While it involves some refactoring, it provides a balance between ease of deployment and scalability. Additionally, packaging your Tkinter app with Flask or Django into a single executable can simplify the deployment process for your business users.
References
Kindly utilize the additional documents available by the right side of this page.
I hope this is helpful! Do not hesitate to let me know if you have any other questions.
Please remember to "Accept Answer" if answer helped, so that others in the community facing similar issues can easily find the solution.
Best Regards,
Sina Salam
