Users Cannot Connect Outlook 2021 to Exchange 2019

Question

Every time a user tries to connect a new account to Outlook via Exchange, the following event occurs:

SERVERNAME 3002 Error MsExchange BackEndRehydration Application 7/8/2024 9:55:11 AM

Protocol /Autodiscover failed to process request from identity NT AUTHORITY\SYSTEM. Exception: System.TypeInitializationException: The type initializer for 'Microsoft.Exchange.Security.Authentication.FederatedAuthService.AuthServiceStaticConfig' threw an exception. ---> System.TypeInitializationException: The type initializer for 'Microsoft.Exchange.Security.Authentication.FederatedAuthService.AuthServiceHelper' threw an exception. ---> System.OutOfMemoryException: Exception of type 'System.OutOfMemoryException' was thrown.

at Microsoft.Exchange.Security.Authentication.FederatedAuthService.LiveIdBasicAuthenticationCountersInstance..ctor(String instanceName, LiveIdBasicAuthenticationCountersInstance autoUpdateTotalInstance)

at Microsoft.Exchange.Security.Authentication.FederatedAuthService.LiveIdBasicAuthenticationCounters.CreateInstance(String instanceName, PerformanceCounterInstance totalInstance)

at Microsoft.Exchange.Diagnostics.PerformanceCounterMultipleInstance.GetInstance(String instanceName, PerformanceCounterInstance totalInstance)

at Microsoft.Exchange.Security.Authentication.FederatedAuthService.LiveIdBasicAuthenticationCounters.GetInstance(String instanceName)

at Microsoft.Exchange.Security.Authentication.FederatedAuthService.AuthServiceHelper..cctor()

--- End of inner exception stack trace ---

at Microsoft.Exchange.Security.Authentication.FederatedAuthService.AuthServiceHelper.get_PerformanceCounters()

at Microsoft.Exchange.Security.Authentication.FederatedAuthService.AuthServiceStaticConfig..cctor()

--- End of inner exception stack trace ---

at Microsoft.Exchange.Security.Authentication.FederatedAuthService.AuthServiceStaticConfig.get_Config()

at Microsoft.Exchange.Security.Authentication.FederatedAuthService.CacheReader..ctor(ConfigWrapper authConfig, RootOrgContainerIdWrapper rootOrgWrapper)

at Microsoft.Exchange.Security.Authentication.FederatedAuthService.CacheReader.GetInstance(ConfigWrapper authConfig, RootOrgContainerIdWrapper rootOrgWrapper)

at Microsoft.Exchange.Security.Authentication.FederatedAuthService.AuthPolicyRepo.GetUserPolicy(String userKey, Int32 traceId, Int32& userPolicy, HttpApplication httpApplication, IRecipientSession recipientSession, IConfigurationSession configSession, ConfigWrapper config, RootOrgContainerIdWrapper rootOrgWrapper)

at Microsoft.Exchange.Security.Authentication.FederatedAuthService.AuthPolicyEvaluator.IsBasicAuthAllowed(String userKey, String protocolName, Int32 traceId, HttpApplication httpApplication, IRecipientSession recipientSession, IConfigurationSession configSession, ConfigWrapper config, RootOrgContainerIdWrapper rootOrgWrapper)

at Microsoft.Exchange.Security.Authentication.BackendRehydrationModule.IsLegacyAuthAllowed(HttpContext httpContext)

at Microsoft.Exchange.Security.Authentication.BackendRehydrationModule.OnAuthenticateRequest(Object source, EventArgs args).

Can someone please assist with what's going on? We haven't applied any new updates nor do we appear to be out of memory.

Answer 1

Hi,

Welcome to the Microsoft Q&A forum.

Typically, this issue occurs if Exchange Server computer is added to a group that's denied the user right. By default, the following groups are denied the user right:

• Domain Admins
• Schema Admins
• Enterprise Admins
• Organization Management

To resolve the issue, you can remove the Exchange Server computer from these groups. You can check this via running the following command:

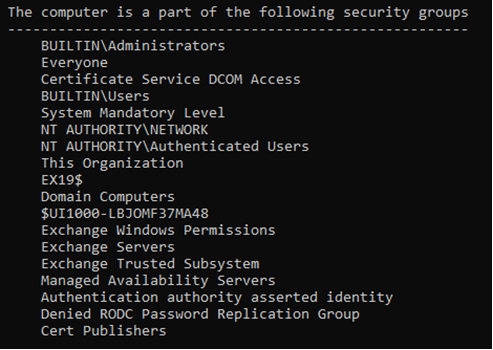

gpresult /scope computer /r

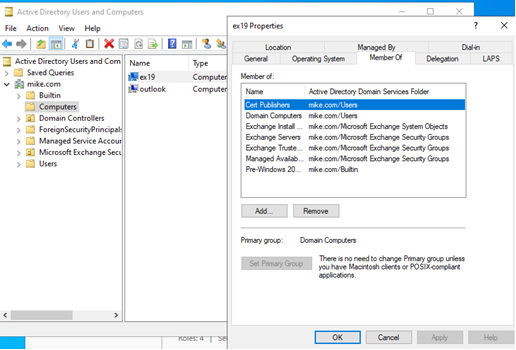

Also, you can check and change the configuration in ADUC:

And restart the Exchange Server after removing.

Please feel free to contact me for any updates. And if this helps, don’t forget to mark it as an answer.
