RE: Dataflow Exists doesn't work properly

Question

Following up on this question here.... which has a very clear example of how Exist and Not Exist are supposed to work.

https://learn.microsoft.com/en-us/answers/questions/1060665/dataflow-exists-doesnt-work-properly

I have a very simple example which I have even spot checked against logic from the documentation itself, specifically, in the second paragraph which states... "The exists transformation is similar to SQL WHERE EXISTS and SQL WHERE NOT EXISTS."

https://learn.microsoft.com/en-us/azure/data-factory/data-flow-exists

See screenshots below which show that the data in both sources are the same type and I am using NOT exists. Yet the results show records which DO exists and when running an equivalent (Where Exists) query in sql it shows those Records DO exists as well (meaning they should not be showing up in my dataflow). What am i missing?

Source2 Data Preview

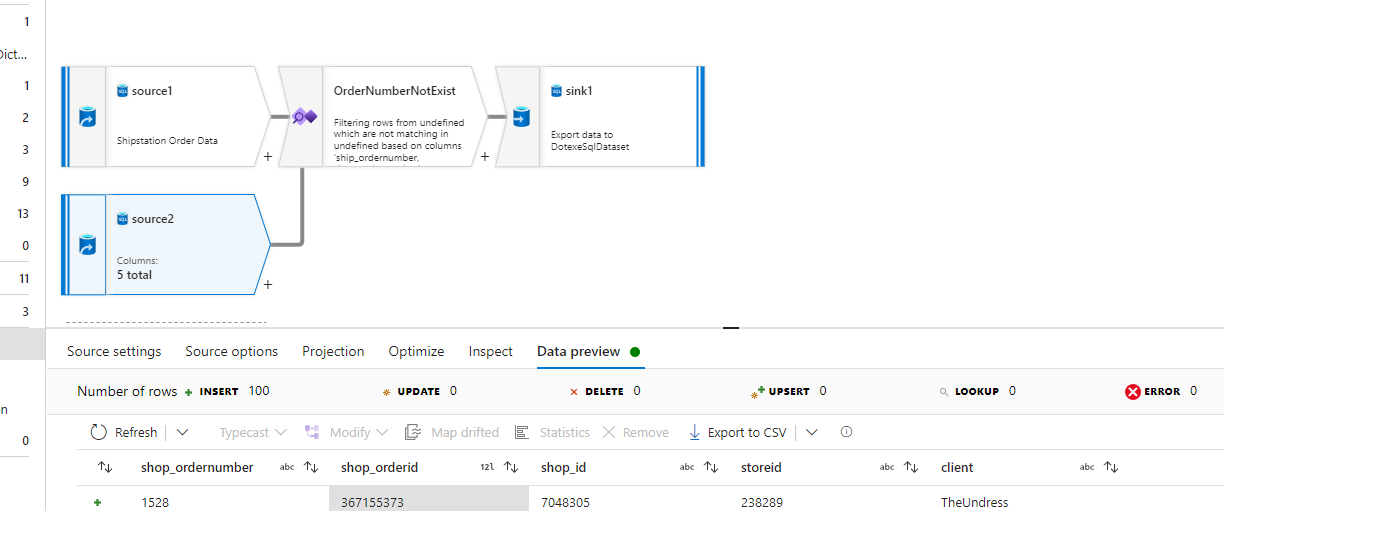

Source1 Data Preview

Exists Configuration Preview

Exists Data Preview (See Order #DD1305)

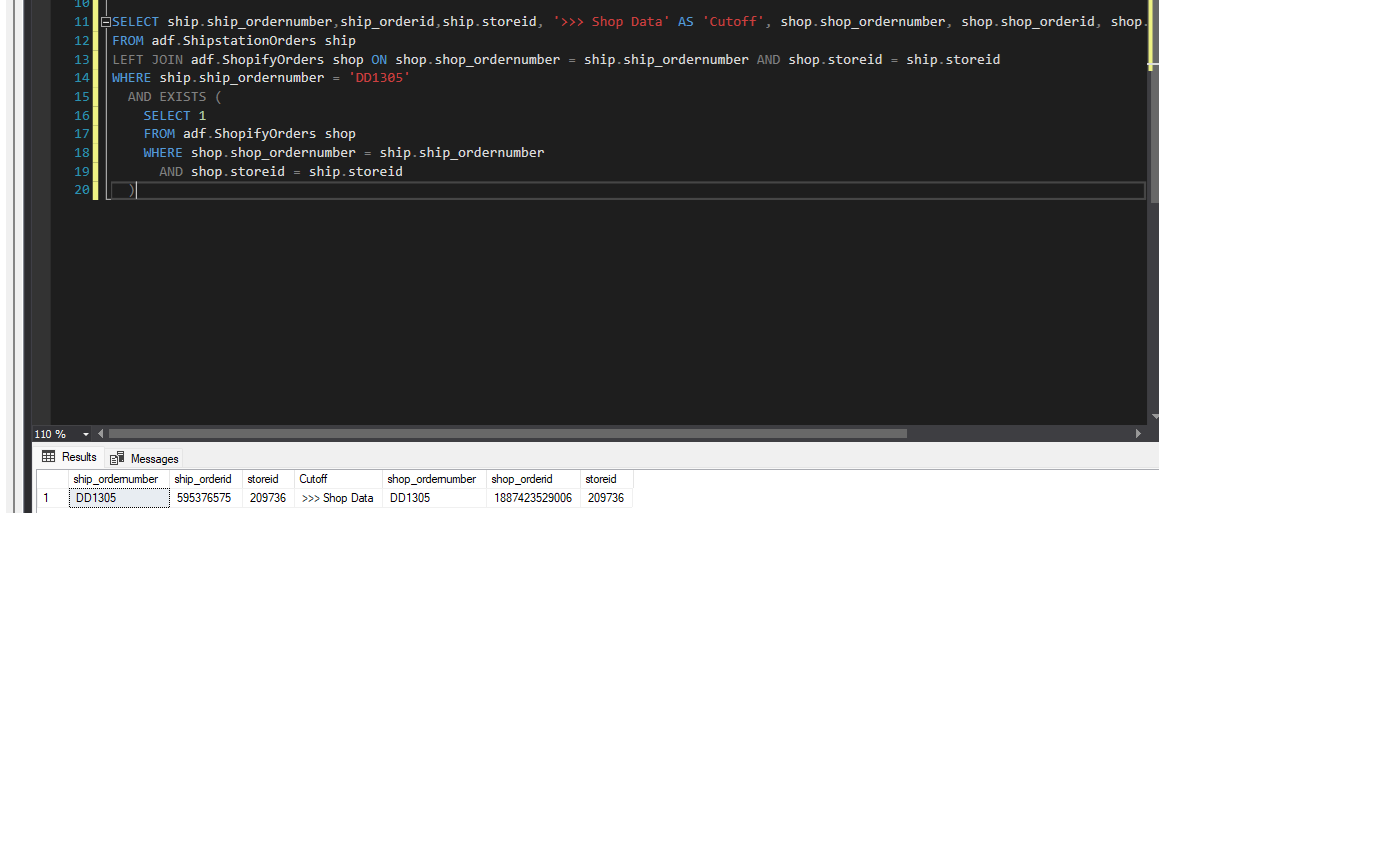

Sql Equivalent - Order #DD1305 appears in Exists Sql, therefore should NOT appear in data flow.

Answer 1

Hi Bryan Gateley ,

Welcome to Microsoft Q&A platform and thanks for posting your query here.

As per my understanding , you are trying to get all the non-matching records between two datasets based on the conditions provided in the exists transformation configuration. Please let me know if that is not the case.

I had a close look between the SQL query and the dataflow expression used in the Exists transformation . It seems in SQL the two conditions on which data matching is being performed are:

1. shop.shop_ordernumber=ship.ship_ordernumber
2. shop.storeid=ship.storeid

However, in the dataflow, the conditions used are:

1. shop.shop_ordernumber=ship.ship_ordernumber
2. shop.shop_id=ship.shop_id

Could you please cross check if it should be shop_id or storeid like SQL query.

Hope it helps. Kindly let me know if the conditions are as expected, will dig more into it. Thanks
