Cant create a call via API in Azure Communication Services (ACS) - Error 7510 (Request Provider) / 7509 (HMAC validation)

Question

I am currently testing Azure Communication Services. My aim is to create a logic app or function that, when triggered, dispatches a call to a certain subset of people.

EDIT: my subscription and ressources reside in the west europe region, the phone number i am using is from united kingdom.

For that i am currently trying to create a call by calling the API via Postman but get the following error:

{
    "error": {
        "code": "7509",
        "message": "HMAC-SHA256 validation failed"
    }
}

However i am having trouble understanding the authorization or suspect i am doing something wrong either here or with HMAC.

The ACS-API im calling:

https://xxx.germany.communication.azure.com/calling/callConnections?api-version=2024-11-15-preview

I have no Authorization header explicetly added but am using a pre-request script:

// Set the Date header to our Date as a UTC String.
const dateStr = new Date().toUTCString();

// Hash the request body using SHA256 and encode it as Base64
const hashedBodyStr = CryptoJS.SHA256(pm.request.body.raw).toString()

const hashedBodyStr2 = CryptoJS.SHA256(pm.request.body.raw).toString()
// And add that to the header x-ms-content-sha256

// Get our previously specified endpoint variable
const endpoint = "https://XXX.germany.communication.azure.com"

// Remove the https, prefix to create a suitable "Host" value
const hostStr = 'XXX.germany.communication.azure.com'

// This gets the part of our URL that is after the endpoint, for example in https://contoso.communication.azure.com/sms, it will get '/sms'
const url = '/calling/callConnections'

// Construct our string which we'll sign, using various previously created values.
const stringToSign = pm.request.method + '\n' + url + '\n' + dateStr + ';' + hostStr + ';' + hashedBodyStr;

// Decode our access key from previously created variables, into bytes from base64.
const key = CryptoJS.enc.Base64.parse('ACS-IDENTITY-USER-ACCESS-TOKEN');

// Sign our previously calculated string with HMAC 256 and our key. Convert it to Base64.
const signature = CryptoJS.HmacSHA256(stringToSign, key).toString();

// Add our final signature in Base64 to the authorization header of the request.
pm.request.headers.upsert({
    key: 'x-ms-date',
    value:dateStr
})
pm.request.headers.upsert({
    key: 'host',
    value:hostStr
})

pm.request.headers.upsert({
    key:'x-ms-content-sha256',
    value: hashedBodyStr
});
pm.request.headers.upsert({
    key:'Authorization',
    value: "HMAC-SHA256 SignedHeaders=x-ms-date;host;x-ms-content-sha256&Signature=" + signature
});

If my unerstanding is correct, after the authorization is successfull i should be able to create a call with this body (though i also went through different versions of this and there might be something wrong here too):

{
  "callbackUri": "https://XXX.germany.communication.azure.com/callback",
  "targets": [
      {
          "phoneNumber": {
        "value": "TARGET PHONE NUMBER +49XXXXXXXXX"
    }}


  ],
  "source": {
    "communicationUser": {
      "id": "ACS-IDENTITY-ID"
    }
  },
  "properties": {
    "isMuted": false,
    "isScreenShareMuted": false
  }
}

Why i am using a pre-request script?

1. I tried following the documentation from ACS here but get the following error:

      {
          "error": {
              "code": "7510",
              "message": "Denied by the resource provider."
          }
      }


2. I found a how-to regarding postman and how to send an sms and am trying to adapt this to making a call.

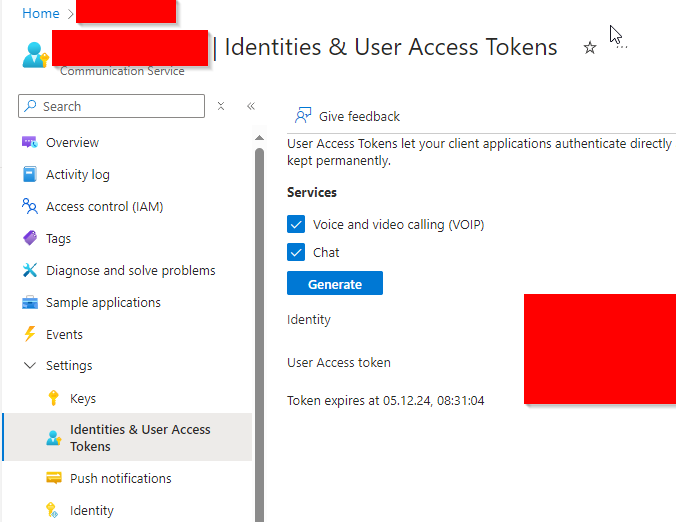

When im refering to ACS-IDENTITY-ID/USER-ACCESS-TOKEN i am using the values generated here:

For any help and / or explanation, thanks in advance!

Answer 1

Ensure that the headers x-ms-date, host, and x-ms-content-sha256 are correctly set

yoou can use following link for troubleshooting

https://learn.microsoft.com/en-us/azure/communication-services/resources/troubleshooting/voice-video-calling/troubleshooting-codes?pivots=calling
