IIS APP Crash, debug crash dump

Question

Hello,

I have an a ASP .net 3 web site and i have many crash of my app pool.

I have dump the crash and use diag tool analysis but i don't understand the crash cause.

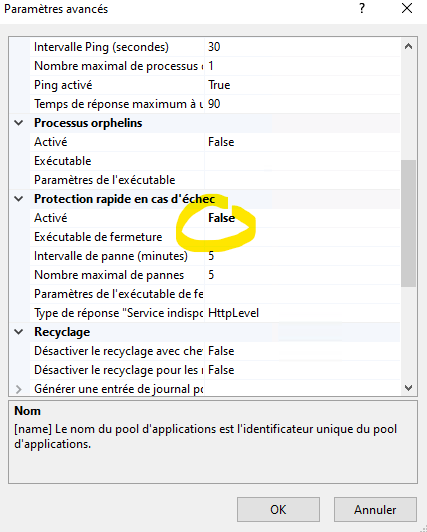

I have desactivate this setting to avoid crash.

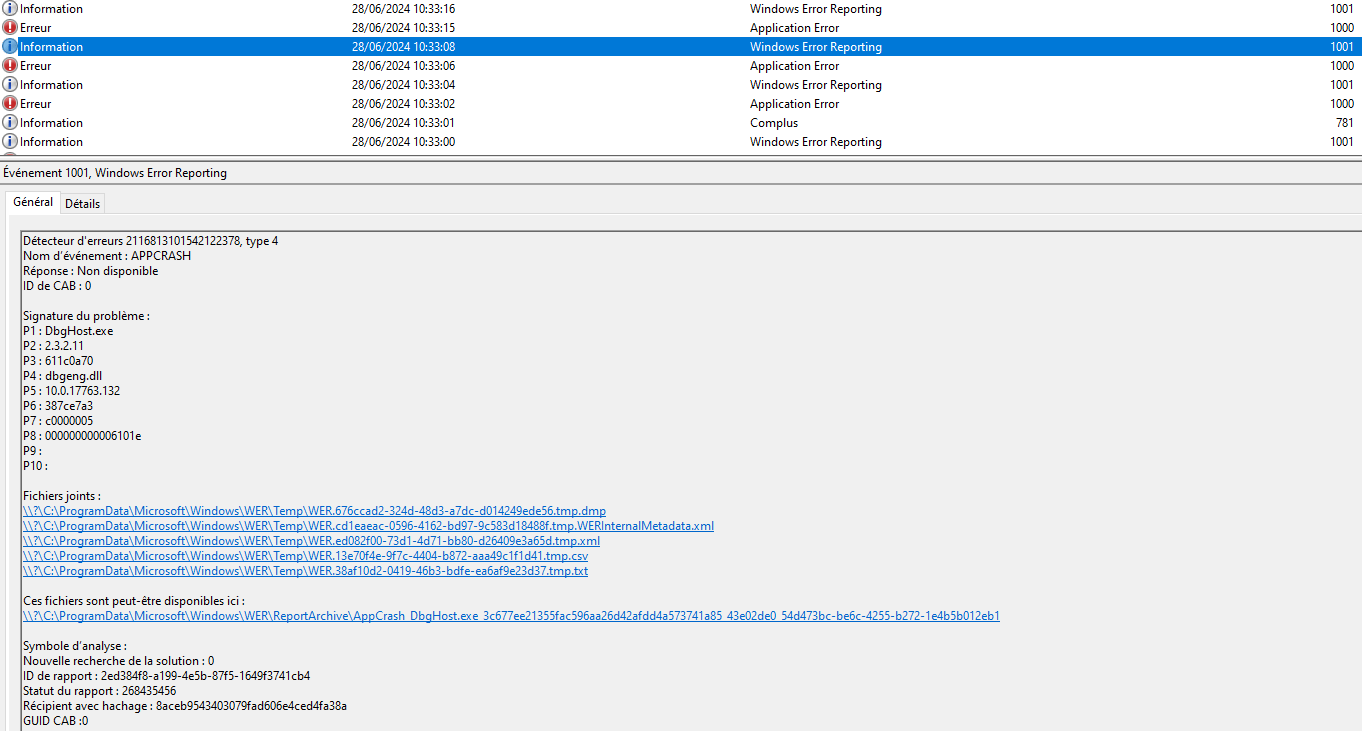

This is my event log before crash

Could you help me ?

Answer 1

Hello

Thank you for posting in Microsoft Community forum.

Since it is an APP crash, you can try to collect a user mode dump and send the result of the WinDbg tool analysis <!analyze -v> here for analysis.

User-mode Dump Files - Windows drivers | Microsoft Learn

!analyze (WinDbg) - Windows drivers | Microsoft Learn

Best Regards,

Wesley Li

Answer 2

Hello,

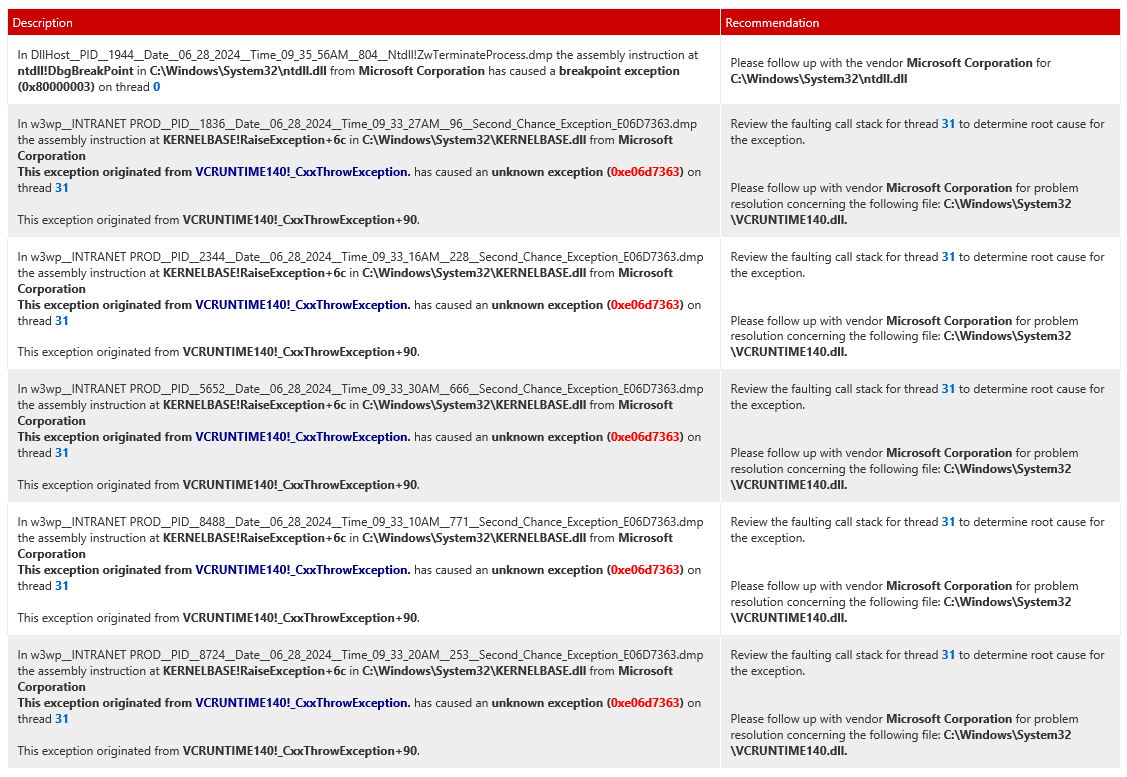

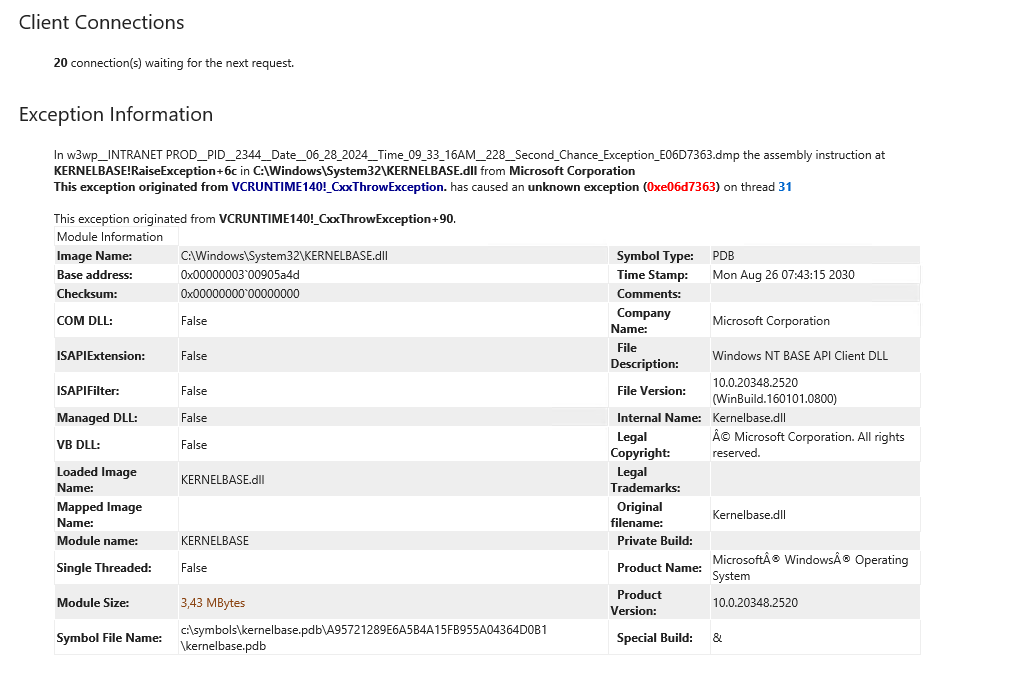

My 2 first capture come from DebugDiag Tool 3.2 analyzer

This is result of the NTDLL ZW terminate process file dump:

0:000> !analyze -v
*******************************************************************************
*                                                                             *
*                        Exception Analysis                                   *
*                                                                             *
*******************************************************************************

*** WARNING: Check Image - Checksum mismatch - Dump: 0x206cd2, File: 0x208012 - C:\symbols\ntdll.dll\86A81BE0203000\ntdll.dll
WARNING: Teb 6 pointer is NULL - defaulting to 00000000`7ffde000
WARNING: 00000000`7ffde000 does not appear to be a TEB
WARNING: Teb 6 pointer is NULL - defaulting to 00000000`7ffde000
WARNING: 00000000`7ffde000 does not appear to be a TEB
WARNING: Teb 6 pointer is NULL - defaulting to 00000000`7ffde000
WARNING: 00000000`7ffde000 does not appear to be a TEB
WARNING: Teb 6 pointer is NULL - defaulting to 00000000`7ffde000
WARNING: 00000000`7ffde000 does not appear to be a TEB
WARNING: Teb 6 pointer is NULL - defaulting to 00000000`7ffde000
WARNING: 00000000`7ffde000 does not appear to be a TEB
WARNING: Teb 6 pointer is NULL - defaulting to 00000000`7ffde000
WARNING: 00000000`7ffde000 does not appear to be a TEB
WARNING: Teb 6 pointer is NULL - defaulting to 00000000`7ffde000
WARNING: 00000000`7ffde000 does not appear to be a TEB

KEY_VALUES_STRING: 1

    Key  : Analysis.CPU.mSec
    Value: 1530

    Key  : Analysis.Elapsed.mSec
    Value: 1527

    Key  : Analysis.IO.Other.Mb
    Value: 0

    Key  : Analysis.IO.Read.Mb
    Value: 0

    Key  : Analysis.IO.Write.Mb
    Value: 0

    Key  : Analysis.Init.CPU.mSec
    Value: 218

    Key  : Analysis.Init.Elapsed.mSec
    Value: 2514

    Key  : Analysis.Memory.CommitPeak.Mb
    Value: 126

    Key  : Failure.Bucket
    Value: BREAKPOINT_80000003_dllhost.exe!wWinMain

    Key  : Failure.Hash
    Value: {71bdd4d4-4970-a0a6-797b-9227260d0826}

    Key  : Timeline.OS.Boot.DeltaSec
    Value: 153790

    Key  : Timeline.Process.Start.DeltaSec
    Value: 7

    Key  : WER.OS.Branch
    Value: fe_release

    Key  : WER.OS.Version
    Value: 10.0.20348.1

    Key  : WER.Process.Version
    Value: 6.2.20348.1

FILE_IN_CAB:  DllHost__PID__1944__Date__06_28_2024__Time_09_35_56AM__804__Ntdll!ZwTerminateProcess.dmp

COMMENT:  Dump created by DbgHost. Ntdll!ZwTerminateProcess

NTGLOBALFLAG:  0

APPLICATION_VERIFIER_FLAGS:  0

CONTEXT:  (.ecxr)
rax=0000000000000000 rbx=ffffffffffffffff rcx=ffffffffffffffff
rdx=0000000000000000 rsi=0000000000000000 rdi=0000000000000000
rip=00007ff86d060740 rsp=0000002c57d5f708 rbp=0000000000000000
 r8=0000000000000000  r9=0000002c57d5f0e0 r10=000000000000009e
r11=0000002c57d5f6e0 r12=0000000000000000 r13=0000000000000000
r14=0000000000000000 r15=0000000000000000
iopl=0         nv up ei pl zr na po nc
cs=0033  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00000244
ntdll!NtTerminateProcess:
00007ff8`6d060740 4c8bd1          mov     r10,rcx
Resetting default scope

EXCEPTION_RECORD:  (.exr -1)
ExceptionAddress: 00007ff86d063d80 (ntdll!DbgBreakPoint)
   ExceptionCode: 80000003 (Break instruction exception)
  ExceptionFlags: 00007ff8
NumberParameters: 1
   Parameter[0]: 0000000000000000
PROCESS_NAME:  dllhost.exe
ERROR_CODE: (NTSTATUS) 0x80000003 - {EXCEPTION}  Point d arr t  Un point d arr t a  t  atteint.
EXCEPTION_CODE_STR:  80000003
EXCEPTION_PARAMETER1:  0000000000000000
STACK_TEXT:
0000002c`57d5f708 00007ff8`6a6ef9a0     : 00000000`00000000 00000000`00000000 ffffffff`ffffffff 00000000`00000000 : ntdll!NtTerminateProcess
0000002c`57d5f710 00007ff7`2bad1193     : 00000000`00000076 00000000`00000000 00000000`00000000 00000000`00009000 : KERNELBASE!TerminateProcess+0x30
0000002c`57d5f740 00007ff7`2bad1450     : 00000000`0000000a 00007ff7`2bad14d9 00000000`00000000 00000000`00000000 : dllhost!wWinMain+0x18b
0000002c`57d5fa00 00007ff8`6bd54cb0     : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : dllhost!__scrt_common_main_seh+0x110
0000002c`57d5fa40 00007ff8`6d03eceb     : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : kernel32!BaseThreadInitThunk+0x10
0000002c`57d5fa70 00000000`00000000     : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : ntdll!RtlUserThreadStart+0x2b

SYMBOL_NAME:  dllhost!wWinMain+18b
MODULE_NAME: dllhost
IMAGE_NAME:  dllhost.exe
STACK_COMMAND:  dt ntdll!LdrpLastDllInitializer BaseDllName ; dt ntdll!LdrpFailureData ; ~0s; .ecxr ; kb
FAILURE_BUCKET_ID:  BREAKPOINT_80000003_dllhost.exe!wWinMain
OS_VERSION:  10.0.20348.1
BUILDLAB_STR:  fe_release
OSPLATFORM_TYPE:  x64
OSNAME:  Windows 10
IMAGE_VERSION:  6.2.20348.1
FAILURE_ID_HASH:  {71bdd4d4-4970-a0a6-797b-9227260d0826}

Answer 3

The error code 0x80000003 indicates a breakpoint exception, which usually means that there is an intentional stop or an unexpected issue in the code. The dllhost.exe is related to the COM Surrogate process, which is used to run COM objects in isolation from the original process that requested it, often for stability purposes.

Use DebugDiag 2 Collection to set up crash rules for your application pool. This tool can help you capture detailed information about the crash, including the state of the process when it crashed.

Troubleshoot application pool crashes on Cloud Services - Azure | Microsoft Learn

Check for any known issues with the .NET Core Hosting Bundle if you're using it, as a corrupted installation can cause startup problems.

Troubleshoot ASP.NET Core on Azure App Service and IIS | Microsoft Learn
