azure_learner 615

Hi Friends, I am trying to have an architecture that consists of ADF, ADLS, Data Lakehouse, and Synapse. However, I was not able to find an architecture that meets my requirements in the Azure Architecture Center. Could you please help me with the links to decent architectural diagrams on Azure data architecture? Thank you

Nandan Hegde 36,146 Reputation points MVP Volunteer Moderator

2025-06-09T12:19:47.2733333+00:00

Can you be more specific of your ask here?

What is your end goal here? Do you want a framework that incorporates all of the items you stated above?

Couple of aspects :
ADLS itself acts as your data lake (data lake is a logical term in data world)

In case if you already have synapse workspace, there is no need of managing a separate component like ADF as Synapse itself supports data pipelines
J N S S Kasyap 3,625 Reputation points Microsoft External Staff Moderator

2025-06-10T11:03:08.1633333+00:00

@azure_learner

Just checking in to see if the above answer provided by @Jayden-P helped.

If this answers your query, do click Accept Answer and Yes for was this answer helpful. And, if you have any further query do let us know.

Accepted answer

0 additional answers

Your answer

Nandan Hegde 36,146 Reputation points MVP Volunteer Moderator

2025-06-09T12:19:47.2733333+00:00

Can you be more specific of your ask here?

What is your end goal here? Do you want a framework that incorporates all of the items you stated above?

Couple of aspects :
ADLS itself acts as your data lake (data lake is a logical term in data world)

In case if you already have synapse workspace, there is no need of managing a separate component like ADF as Synapse itself supports data pipelines
J N S S Kasyap 3,625 Reputation points Microsoft External Staff Moderator

2025-06-10T11:03:08.1633333+00:00

@azure_learner

Just checking in to see if the above answer provided by @Jayden-P helped.

If this answers your query, do click Accept Answer and Yes for was this answer helpful. And, if you have any further query do let us know.

Answer 1

Hi @azure_learner

Thank you for posting your question in the Microsoft Q&A forum.

Based on the information you have provided, looks like you are looking for a diagram contains Azure Data Factory, Azure Data Lake Storage, Data Lakehouse and Synapse.

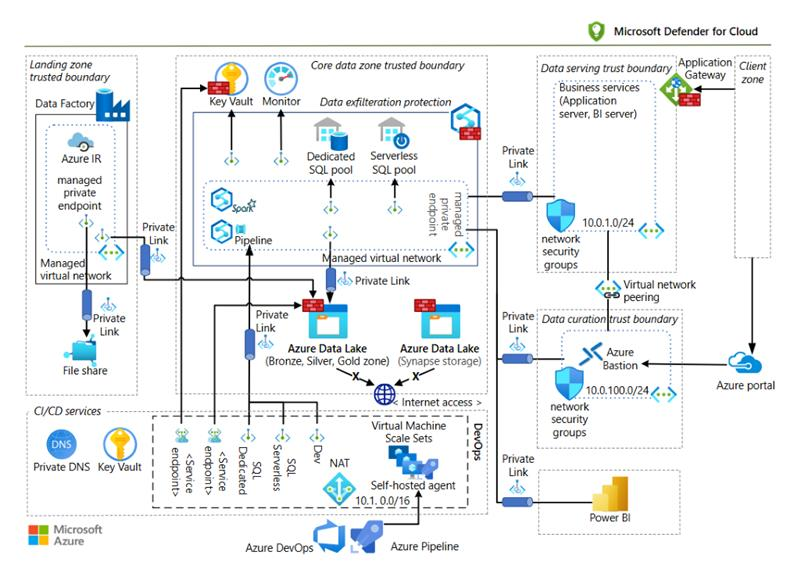

I found an architecture that meets your requirements.
User's image

You can find more details at Secure a data lakehouse on Synapse - Azure Architecture Center | Microsoft Learn

I hope this information matches your end goal.

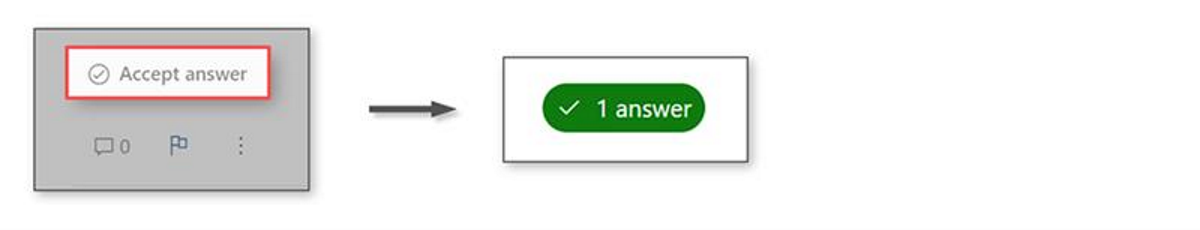

If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.
User's image
