Getting BlueScreen error code D1

Anonymous
2013-07-31T07:52:03+00:00

Original title: Problem Event Name: BlueScreen

Hello,

My PC has been shutting automatically and there appears a blue screens.

Here are the details:

Problem signature:

Problem Event Name: BlueScreen

OS Version: 6.1.7601.2.1.0.256.1

Locale ID: 1033

Additional information about the problem:

BCCode: d1

BCP1: FFFFF880065EF168

BCP2: 0000000000000002

BCP3: 0000000000000000

BCP4: FFFFF88004B51861

OS Version: 6_1_7601

Service Pack: 1_0

Product: 256_1

Files that help describe the problem:

C:\Windows\Minidump\073113-57829-01.dmp

C:\Users\admin\AppData\Local\Temp\WER-83569-0.sysdata.xml

Read our privacy statement online:

http://go.microsoft.com/fwlink/?linkid=104288&clcid=0x0409

If the online privacy statement is not available, please read our privacy statement offline:

C:\Windows\system32\en-US\erofflps.txt

Thanks in advance.

Windows for home | Other | Performance and system failures

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question.

0 comments

Answer accepted by question author

Anonymous
2013-08-04T19:39:48+00:00

The  "ANOD Network Security Filter Driver" is not a component of Windows and appears to be installed with some D-Link software and may be used for network management.

It would not be necessary software.

Hopefully uninstalling the  "ANOD Network Security Filter Driver" will prevent the problematic anodlwfx.sys from loading and therefore stop the blue screen errors.

Was this answer helpful?

4 people found this answer helpful.
0 comments

35 additional answers

Sort by: Most helpful
Most helpful Newest Oldest
  1. Anonymous
    2013-08-02T04:52:22+00:00

    Original title: Problem Event Name: BlueScreen

    Hello,

    My PC has been shutting automatically and there appears a blue screens.

    Here are the details:

    Problem signature:

    Problem Event Name: BlueScreen

    OS Version: 6.1.7601.2.1.0.256.1

    Locale ID: 1033

    Additional information about the problem:

    BCCode: d1

    BCP1: FFFFF880065EF168

    BCP2: 0000000000000002

    BCP3: 0000000000000000

    BCP4: FFFFF88004B51861

    OS Version: 6_1_7601

    Service Pack: 1_0

    Product: 256_1

    Files that help describe the problem:

    C:\Windows\Minidump\073113-57829-01.dmp

    C:\Users\admin\AppData\Local\Temp\WER-83569-0.sysdata.xml

    Read our privacy statement online:

    http://go.microsoft.com/fwlink/?linkid=104288&clcid=0x0409

    If the online privacy statement is not available, please read our privacy statement offline:

    C:\Windows\system32\en-US\erofflps.txt

    Thanks in advance.

    Recommendations:

    Do not use 2 antivirus software at the same time. Please remove Norton and Kaspersky from your system - Link to uninstallers: http://kb.eset.com/esetkb/index?page=content&id=SOLN146&locale=en_US

    http://windows.microsoft.com/en-us/windows/uninstall-change-program#uninstall-change-program=windows-7

    Use Microsoft Security Essentials and MBAM (free) in its place: http://windows.microsoft.com/en-us/windows/security-essentials-download

    http://www.malwarebytes.org/products/malwarebytes_free/

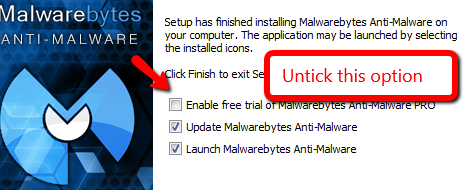

    • Do not start the free trial of MBAM >
    • Make full scans with both separately after you have installed and updated them

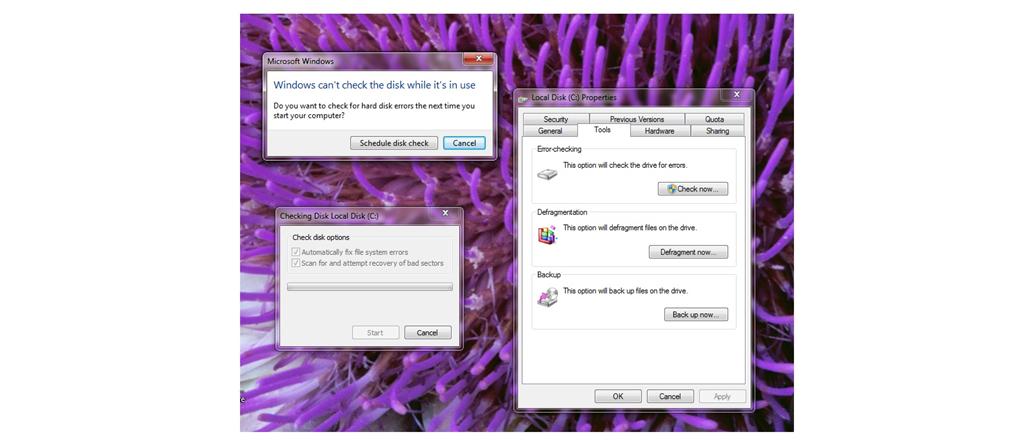

    Run Disk Check and System File checker on your system: http://windows.microsoft.com/en-us/windows7/Check-a-drive-for-errors

    http://support.microsoft.com/kb/929833/en-us

    Perform a clean boot if needed - http://support.microsoft.com/kb/929135/en-us

    Drivers to be  update:

    anodlwfx.sys                Fri Mar  6 16:10:08 2009

    Summary of the Dumps:

    [CODE]

    Built by: 7601.18113.amd64fre.win7sp1_gdr.130318-1533

    Debug session time: Wed Jul 31 14:10:35.590 2013 (UTC + 6:00)

    System Uptime: 0 days 0:29:12.542

    BugCheck D1, {fffff880063ef24b, 2, 0, fffff8800493e850}

    *** WARNING: Unable to verify timestamp for anodlwfx.sys

    *** ERROR: Module load completed but symbols could not be loaded for anodlwfx.sys

    Probably caused by : anodlwfx.sys ( anodlwfx+2850 )

    BUGCHECK_STR:  0xD1

    PROCESS_NAME:  System

    ¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨``

    Built by: 7601.18113.amd64fre.win7sp1_gdr.130318-1533

    Debug session time: Wed Jul 31 13:01:29.165 2013 (UTC + 6:00)

    System Uptime: 0 days 0:04:45.492

    BugCheck D1, {fffff880065ef04b, 2, 0, fffff880047da850}

    *** WARNING: Unable to verify timestamp for anodlwfx.sys

    *** ERROR: Module load completed but symbols could not be loaded for anodlwfx.sys

    Probably caused by : anodlwfx.sys ( anodlwfx+2850 )

    BUGCHECK_STR:  0xD1

    PROCESS_NAME:  iTunes.exe

    ¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨``

    Built by: 7601.18113.amd64fre.win7sp1_gdr.130318-1533

    Debug session time: Wed Jul 31 12:56:10.298 2013 (UTC + 6:00)

    System Uptime: 0 days 0:03:09.625

    BugCheck D1, {fffff880065ef168, 2, 0, fffff88004b51861}

    *** WARNING: Unable to verify timestamp for anodlwfx.sys

    *** ERROR: Module load completed but symbols could not be loaded for anodlwfx.sys

    Probably caused by : anodlwfx.sys ( anodlwfx+2861 )

    BUGCHECK_STR:  0xD1

    PROCESS_NAME:  System

    ¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨``

    Built by: 7601.18113.amd64fre.win7sp1_gdr.130318-1533

    Debug session time: Wed Jul 31 12:52:38.461 2013 (UTC + 6:00)

    System Uptime: 0 days 0:11:02.787

    BugCheck D1, {fffff88009bff0e9, 2, 0, fffff88003676850}

    *** WARNING: Unable to verify timestamp for anodlwfx.sys

    *** ERROR: Module load completed but symbols could not be loaded for anodlwfx.sys

    Probably caused by : anodlwfx.sys ( anodlwfx+2850 )

    BUGCHECK_STR:  0xD1

    PROCESS_NAME:  System

    ¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨``

    Built by: 7601.18113.amd64fre.win7sp1_gdr.130318-1533

    Debug session time: Wed Jul 31 12:40:48.361 2013 (UTC + 6:00)

    System Uptime: 0 days 4:35:12.688

    BugCheck 1000009F, {4, 258, fffffa80066e4b50, fffff80000b9c3d0}

    *** WARNING: Unable to verify timestamp for igdkmd64.sys

    *** ERROR: Module load completed but symbols could not be loaded for igdkmd64.sys

    Probably caused by : vwififlt.sys ( vwififlt!FilterNetPnPEvent+53 )

    BUGCHECK_STR:  0x9F

    PROCESS_NAME:  System

    ¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨``

    [/CODE]

    An update  after performing the steps above would be appreciated.

    Hello koolkat,

    Thank you for your support.

    I am done till Malware scan . I am getting the below error during "Run Disk Check and System File checker on your system". Attaching screenshot.

    Thank you.

    Was this answer helpful?

    0 comments
  2. Anonymous
    2013-08-02T04:39:38+00:00

    Hi Blue,

    I am using Desktop. I am having D-Link wireless Adapter. Is that causing the problem ?

    Moreover, I had Norton Internet security before after uninstalling it I installed Kaspersky.

    Now I see NIS was not completely uninstalled. i did it. Let me know the next steps to proceed.

    Thanks for your assistance.

    Was this answer helpful?

    0 comments
  3. Anonymous
    2013-08-01T07:50:18+00:00

    Original title: Problem Event Name: BlueScreen

    Hello,

    My PC has been shutting automatically and there appears a blue screens.

    Here are the details:

    Problem signature:

    Problem Event Name: BlueScreen

    OS Version: 6.1.7601.2.1.0.256.1

    Locale ID: 1033

    Additional information about the problem:

    BCCode: d1

    BCP1: FFFFF880065EF168

    BCP2: 0000000000000002

    BCP3: 0000000000000000

    BCP4: FFFFF88004B51861

    OS Version: 6_1_7601

    Service Pack: 1_0

    Product: 256_1

    Files that help describe the problem:

    C:\Windows\Minidump\073113-57829-01.dmp

    C:\Users\admin\AppData\Local\Temp\WER-83569-0.sysdata.xml

    Read our privacy statement online:

    http://go.microsoft.com/fwlink/?linkid=104288&clcid=0x0409

    If the online privacy statement is not available, please read our privacy statement offline:

    C:\Windows\system32\en-US\erofflps.txt

    Thanks in advance.

    Recommendations:

    Do not use 2 antivirus software at the same time. Please remove Norton and Kaspersky from your system - Link to uninstallers: http://kb.eset.com/esetkb/index?page=content&id=SOLN146&locale=en_US

    http://windows.microsoft.com/en-us/windows/uninstall-change-program#uninstall-change-program=windows-7

    Use Microsoft Security Essentials and MBAM (free) in its place: http://windows.microsoft.com/en-us/windows/security-essentials-download

    http://www.malwarebytes.org/products/malwarebytes_free/

    • Do not start the free trial of MBAM >
    • Make full scans with both separately after you have installed and updated them

    Run Disk Check and System File checker on your system: http://windows.microsoft.com/en-us/windows7/Check-a-drive-for-errors

    http://support.microsoft.com/kb/929833/en-us

    Perform a clean boot if needed - http://support.microsoft.com/kb/929135/en-us

    Drivers to be  update:

    anodlwfx.sys                Fri Mar  6 16:10:08 2009

    Summary of the Dumps:

    [CODE]

    Built by: 7601.18113.amd64fre.win7sp1_gdr.130318-1533

    Debug session time: Wed Jul 31 14:10:35.590 2013 (UTC + 6:00)

    System Uptime: 0 days 0:29:12.542

    BugCheck D1, {fffff880063ef24b, 2, 0, fffff8800493e850}

    *** WARNING: Unable to verify timestamp for anodlwfx.sys

    *** ERROR: Module load completed but symbols could not be loaded for anodlwfx.sys

    Probably caused by : anodlwfx.sys ( anodlwfx+2850 )

    BUGCHECK_STR:  0xD1

    PROCESS_NAME:  System

    ¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨``

    Built by: 7601.18113.amd64fre.win7sp1_gdr.130318-1533

    Debug session time: Wed Jul 31 13:01:29.165 2013 (UTC + 6:00)

    System Uptime: 0 days 0:04:45.492

    BugCheck D1, {fffff880065ef04b, 2, 0, fffff880047da850}

    *** WARNING: Unable to verify timestamp for anodlwfx.sys

    *** ERROR: Module load completed but symbols could not be loaded for anodlwfx.sys

    Probably caused by : anodlwfx.sys ( anodlwfx+2850 )

    BUGCHECK_STR:  0xD1

    PROCESS_NAME:  iTunes.exe

    ¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨``

    Built by: 7601.18113.amd64fre.win7sp1_gdr.130318-1533

    Debug session time: Wed Jul 31 12:56:10.298 2013 (UTC + 6:00)

    System Uptime: 0 days 0:03:09.625

    BugCheck D1, {fffff880065ef168, 2, 0, fffff88004b51861}

    *** WARNING: Unable to verify timestamp for anodlwfx.sys

    *** ERROR: Module load completed but symbols could not be loaded for anodlwfx.sys

    Probably caused by : anodlwfx.sys ( anodlwfx+2861 )

    BUGCHECK_STR:  0xD1

    PROCESS_NAME:  System

    ¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨``

    Built by: 7601.18113.amd64fre.win7sp1_gdr.130318-1533

    Debug session time: Wed Jul 31 12:52:38.461 2013 (UTC + 6:00)

    System Uptime: 0 days 0:11:02.787

    BugCheck D1, {fffff88009bff0e9, 2, 0, fffff88003676850}

    *** WARNING: Unable to verify timestamp for anodlwfx.sys

    *** ERROR: Module load completed but symbols could not be loaded for anodlwfx.sys

    Probably caused by : anodlwfx.sys ( anodlwfx+2850 )

    BUGCHECK_STR:  0xD1

    PROCESS_NAME:  System

    ¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨``

    Built by: 7601.18113.amd64fre.win7sp1_gdr.130318-1533

    Debug session time: Wed Jul 31 12:40:48.361 2013 (UTC + 6:00)

    System Uptime: 0 days 4:35:12.688

    BugCheck 1000009F, {4, 258, fffffa80066e4b50, fffff80000b9c3d0}

    *** WARNING: Unable to verify timestamp for igdkmd64.sys

    *** ERROR: Module load completed but symbols could not be loaded for igdkmd64.sys

    Probably caused by : vwififlt.sys ( vwififlt!FilterNetPnPEvent+53 )

    BUGCHECK_STR:  0x9F

    PROCESS_NAME:  System

    ¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨``

    [/CODE]

    An update  after performing the steps above would be appreciated.

    Was this answer helpful?

    0 comments
  4. Anonymous
    2013-08-01T07:07:06+00:00

    Crashes are related to ALPHA Networks Filter Driver

    Possibly a part of your Wireless adapter

    If it's a laptop you have go to manufacturer's website > Support > Drivers and download the latest driver for your wireless

    If not download the driver from wireless adapter's manufacturer's website instead

    Also what antivirus you use?

    Was this answer helpful?

    0 comments
