How can I make sliding tab pages under Xamarin.Android

Marcell Zólyomi 46 Reputation points
2021-06-25T06:24:03.797+00:00

I have been developing a store management program for Zebra Barcode readers, and I want to make the usage more easier with slidable pages. I working with two or three pages under the same Activity and I want to slide between them with finger slide movement. The most important thing, the whole project must be work on android 10. Somebody can help me?

Developer technologies | .NET | Xamarin
0 comments No comments
{count} votes

Accepted answer
  1. JarvanZhang 23,971 Reputation points
    2021-06-28T02:04:34.377+00:00

    Hello,​

    Welcome to our Microsoft Q&A platform!

    I working with two or three pages under the same Activity and I want to slide between them with finger slide movement.

    Try using Fragment to display the 'pages' in the same Activity. You could combine TabLayout with ViewPager to achieve sliding tab navigation.

       <LinearLayout ...
           android:orientation="vertical"
           android:layout_width="match_parent"
           android:layout_height="match_parent">
           <com.google.android.material.tabs.TabLayout
               android:id="@+id/tabLayout"
               android:layout_width="match_parent"
               android:layout_height="wrap_content"/>
           <androidx.viewpager.widget.ViewPager
               android:id="@+id/pager"
               android:layout_width="match_parent"
               android:layout_height="wrap_content"/>
       </LinearLayout>


    Create a custom adapter for the ViewPager to populate the data. You could inflate the layout.xml for the fragment. Here is the sample code, please check it.

       public class MainActivity : AppCompatActivity
       {
           TabLayout tabLayout;
           ViewPager pager;
           protected override void OnCreate(Bundle savedInstanceState)
           {
               base.OnCreate(savedInstanceState);
               Xamarin.Essentials.Platform.Init(this, savedInstanceState);
               SetContentView(Resource.Layout.activity_main);

               tabLayout = FindViewById<TabLayout>(Resource.Id.tabLayout);
               pager = FindViewById<ViewPager>(Resource.Id.pager);

               PagerAdapter adapter = new PagerAdapter(this.SupportFragmentManager);

               adapter.AddFragment(new FragmentA(), "FragmentA");
               adapter.AddFragment(new FragmentB(), "FragmentB");
               adapter.AddFragment(new FragmentC(), "FragmentC");

               pager.Adapter = adapter;
               adapter.NotifyDataSetChanged();
               tabLayout.SetupWithViewPager(pager);
           }
       }

       //custom adapter
       public class PagerAdapter : FragmentStatePagerAdapter
       {
           public List<AndroidX.Fragment.App.Fragment> fragments = new List<AndroidX.Fragment.App.Fragment>();
           public List<string> fragmentTitles = new List<string>();
           public PagerAdapter(AndroidX.Fragment.App.FragmentManager fm) : base(fm)
           {
           }
           public void AddFragment(AndroidX.Fragment.App.Fragment fragment, string title)
           {
               fragments.Add(fragment);
               fragmentTitles.Add(title);
           }
           public override int Count => fragments.Count;
           public override AndroidX.Fragment.App.Fragment GetItem(int position)
           {
               return fragments[position];
           }
           public override ICharSequence GetPageTitleFormatted(int position)
           {
               return new Java.Lang.String(fragmentTitles[position]);
           }
       }

       //custom fragment
       public class FragmentA : AndroidX.Fragment.App.Fragment
       {
           public override View OnCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState)
           {
               return inflater.Inflate(Resource.Layout.fragment_a_layout, container, false);
           }
       }

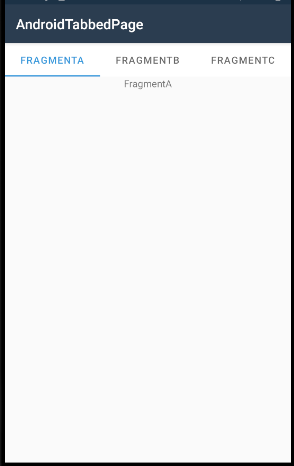

    Here is the working screenshot:

    Related doc: https://learn.microsoft.com/en-us/xamarin/android/user-interface/controls/view-pager/viewpager-and-views

    Best Regards,

    Jarvan Zhang


    If the response is helpful, please click "Accept Answer" and upvote it.

    Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

    1 person found this answer helpful.

1 additional answer

Sort by: Most helpful
  1. cristopheB 551 Reputation points
    2021-06-25T11:43:32.283+00:00

    Hello,
    first you need to create a view pager, follow this article
    https://www.c-sharpcorner.com/article/xamarin-android-create-viewpager-tablayout-floatingactionbutton-supportacti/

    and for zebra device follow this and adapt to your solution if it possible
    https://www.andrewhoefling.com/Blog/Post/xamarin-android-barcode-scanning-with-zebra-emdk-on-tc70x

    1 person found this answer helpful.
    0 comments No comments
