Connection between azure aks and private servers in another VNET

Question

I have an Azure AKS cluster with a prometheus deployment that I want to use to monitor other servers in other VNETs. I am able to add security rules for to VNET for servers that have public IPs. This allowed my Prometheus to monitor these servers with public IPs.

However for servers with private IPs, do I need to setup VPC Peering? I have tried to add a VNET-Prometheus to the AKS cluster, and create a VPC peering between VNET-Prometheus and VNET-PRIVATE. However, the AKS pods are not using the Address space of VNET-Prometheus, and I am unable to connect to any of the private servers in VNET-PRIVATE.

For example, I have 5 servers in VNET-PRIVATE with private IPs. How do I setup the connection rules to allow my prometheus in AKS to connect to the private IPs of the 5 servers in VNET-PRIVATE?

Answer 1

After much trial-and-error, I found out the problem.

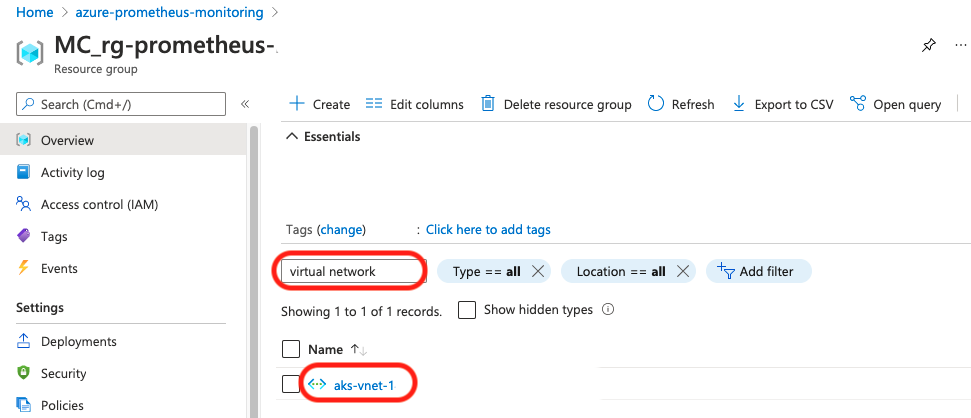

Initially, to find the virtual network of the AKS cluster, I went to the [Kubernetes service] > [azure-prometheus-monitoring(cluster name)]. There, I found the resource group as shown in the image below, and discovered that there is no VNET, hence I went ahead to create one.

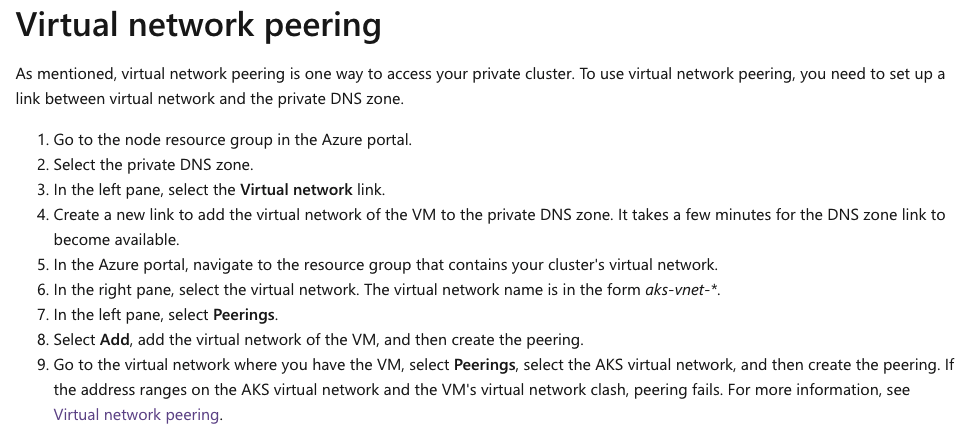

I then followed the steps indicated here to do the pairing, but failed. [source:] https://learn.microsoft.com/en-us/azure/aks/private-clusters

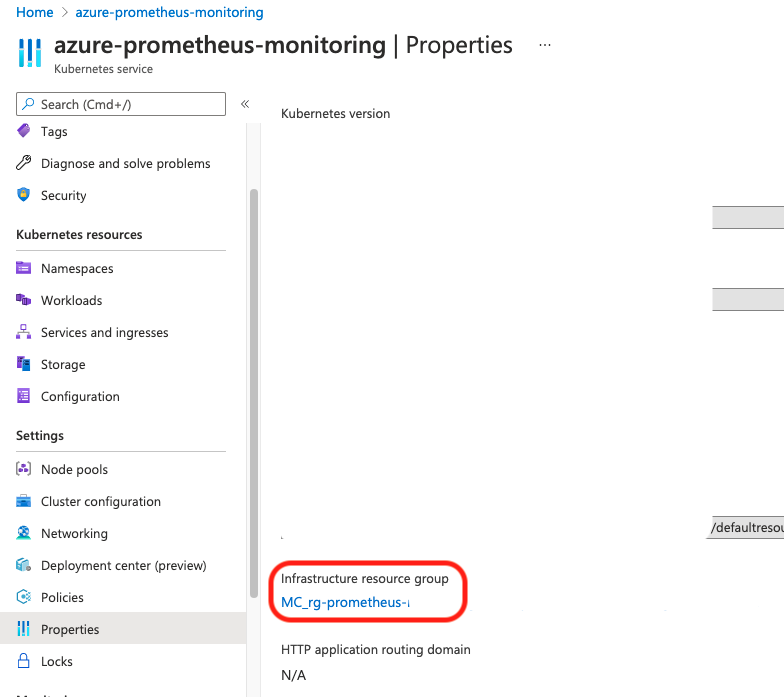

Eventually, after much head-scratching, I saw that the Azure Kubernetes page have a properties tab, which has an infrastructure resource group.

If we go to that infrastructure group, I found that there is already an Azure created VNET.

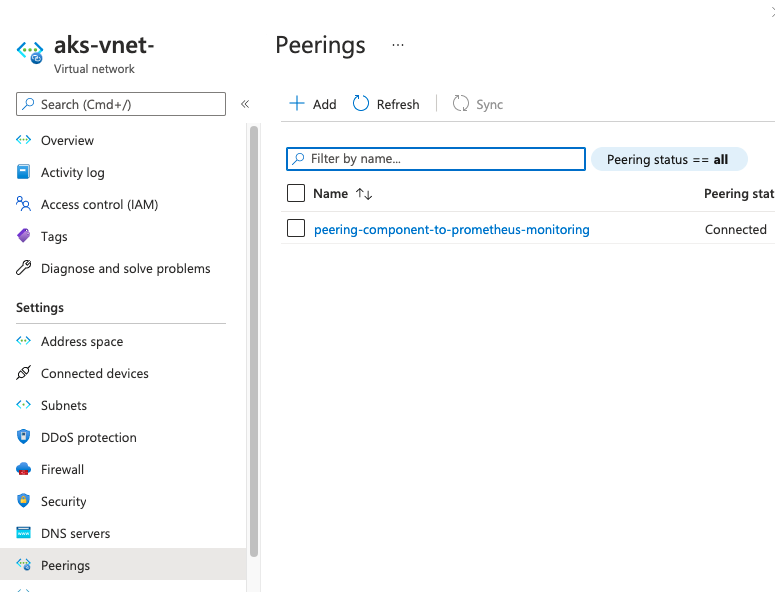

At the Azure created VNET, I added the VNET peering, and voila it worked!.

Note that if you receive the error "cannot be peered because address space of the first virtual network overlaps with address space of virtual network", then you have to go into either of the VNET (i choose the AKS VNET) and change the Address space allocated.

Infrastructure resource group seems to be a crucial part of Azure AKS, but it is almost never mentioned in forum questions and answers, online setup resources, or even official Microsoft Azure "Create a private Azure Kubernetes Service cluster" article. Hence I am answering my own question in the hopes that anyone after me that faces the same problem have some answers. Cheers!
