Configure self-hosted integration runtime over private network

Question

Hi,

As per my understanding self-hosted integration runtime uses https over public internet to transfer data between on-premise and Azure cloud services(Blob/Database).

Please correct me if I am wrong, and also advise if its possible to configure self-hosted IR over private network.

Answer 1

Hello @saurabh ,

Thanks for the question and using MS Q&A platform.

By default, the self-hosted integration runtime directly communicates with cloud-based storage services like Azure Blob storage over a secure HTTPS channel.

You can also use IPSec VPN or Azure ExpressRoute to further secure the communication channel between your on-premises network and Azure using Azure Private Endpoint.

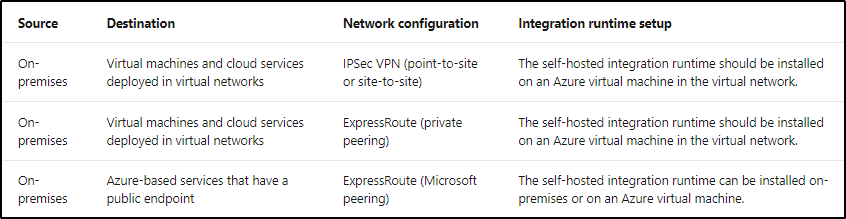

The following table summarizes the network and self-hosted integration runtime configuration recommendations based on different combinations of source and destination locations for hybrid data movement.

The following images show the use of self-hosted integration runtime for moving data between an on-premises database and Azure services by using ExpressRoute and IPSec VPN (with Azure Virtual Network):

For more details, refer to the below links:

Azure Private Link for Azure Data Factory

Azure Data Factory - Hybrid scenarios

Hope this helps. Do let us know if you any further queries.

---------------------------------------------------------------------------

Please "Accept the answer" if the information helped you. This will help us and others in the community as well.
