DatePicker OK/Cancel buttons not visible on Android

Wei Wen 1,126 Reputation points
2021-07-30T14:03:20.353+00:00

I added DatePicker in my app. However, when I tested it, I found that on Android the calendar's OK/Cancel buttons were colored white and the background was also white. So the OK/Cancel buttons were not visible. Also, when I clicked a date, it was highlighted in white and this made the selected date not visible either. Is there a way to change the color of the buttons and the selected date? Do I need to create a custom renderer for Android date picker?

Developer technologies | .NET | Xamarin
0 comments No comments
{count} votes

Accepted answer
  1. Joe Manke 1,091 Reputation points
    2021-08-02T14:24:07.87+00:00

    You can set the styling of the DatePicker dialog natively (without a renderer) by setting <item name="android:datePickerDialogTheme"> in your Android theme.


1 additional answer

Sort by: Most helpful
  1. Anonymous
    2021-08-02T07:59:28.7+00:00

    Hello,​

    Welcome to our Microsoft Q&A platform!

    Is there a way to change the color of the buttons and the selected date? Do I need to create a custom renderer for Android date picker?

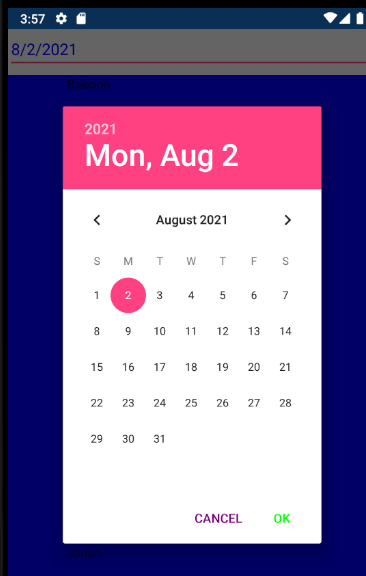

    Yes, I create a custom renderer for DatePicker in android to achieve it.

       using Android.App;
       using Android.Content;
       using Android.OS;
       using Android.Runtime;
       using Android.Views;
       using Android.Widget;
       using App117.Droid;
       using System;
       using System.Collections.Generic;
       using System.ComponentModel;
       using System.Linq;
       using System.Text;
       using Xamarin.Forms;
       using Xamarin.Forms.Platform.Android;

       [assembly: ExportRenderer(typeof(Xamarin.Forms.DatePicker), typeof(FixedDatePickerRenderer))]
       namespace App117.Droid
       {
           public class FixedDatePickerRenderer : Xamarin.Forms.Platform.Android.DatePickerRenderer
           {
               public FixedDatePickerRenderer(Context context) : base(context)
               {
               }

               protected override void OnElementPropertyChanged(object sender, PropertyChangedEventArgs e)
               {
                   base.OnElementPropertyChanged(sender, e);
                   //set color of selected date
                   Control.SetTextColor(Android.Graphics.Color.Blue);
               }
               protected override void OnElementChanged(ElementChangedEventArgs<Xamarin.Forms.DatePicker> e)
               {
                   base.OnElementChanged(e);

                   //Disposing
                   if (e.OldElement != null)
                   {
                       _element = null;
                   }

                   //Creating
                   if (e.NewElement != null)
                   {
                       _element = e.NewElement;



                   }


               }

               protected Xamarin.Forms.DatePicker _element;
               DatePickerDialog dialog;
               protected override DatePickerDialog CreateDatePickerDialog(int year, int month, int day)
               {
                    dialog = new DatePickerDialog(Context, (o, e) =>
                   {
                       _element.Date = e.Date;
                       ((IElementController)_element).SetValueFromRenderer(VisualElement.IsFocusedPropertyKey, false);
                   }, year, month, day);

                   dialog.SetButton((int)DialogButtonType.Positive, Context.Resources.GetString(global::Android.Resource.String.Ok), OnOk);
                   dialog.SetButton((int)DialogButtonType.Negative, Context.Resources.GetString(global::Android.Resource.String.Cancel), OnCancel);

                   dialog.Show();
                   //set OK/Cancel buttons color
                   dialog.GetButton((int)DialogButtonType.Positive).SetTextColor(Android.Graphics.Color.Green);
                   dialog.GetButton((int)DialogButtonType.Negative).SetTextColor(Android.Graphics.Color.Purple);
                   // CancelButton.SetTextColor(Android.Graphics.Color.HotPink);
                   return dialog;
               }

               private void OnCancel(object sender, DialogClickEventArgs e)
               {
                   _element.Unfocus();
                   //((FixedDatePicker) _element)?.CallOnCancel();
               }
               private void OnOk(object sender, DialogClickEventArgs e)
               {
                   //need to set date from native control manually now
                   _element.Date = ((DatePickerDialog)sender).DatePicker.DateTime;
                   _element.Unfocus();
                   //((FixedDatePicker)_element)?.CallOnOk();
               }

           }

       }




    Best Regards,

    Leon Lu


    If the response is helpful, please click "Accept Answer" and upvote it.

    Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.
