Checkbox to Input AutoText

Question

I want to auto change the heading of document to read "AT1" when check box CH1 is checked and for the heading to change to "AT2" and some text (actual 4 rows in a table) further down document (highlighted in the screen grab) to be hidden when check box CH2 is checked.  Only check box CB1 or check box CB2 can be checked but not both.

I know this can be done using bookmarks and some VB coding but admittedly I am a novice when it comes to VB so am help would be greatly appreciated.

The document is laid out using a table (if that makes a difference).

Answer 1

Hi Jay

Thanks.  I have made the changes (I think) but still not working.  If I understand your comment regarding autotext, basically there's no need for it as I just type the actual text I want to appear directly in the VB code a shown below.  Is this correct?

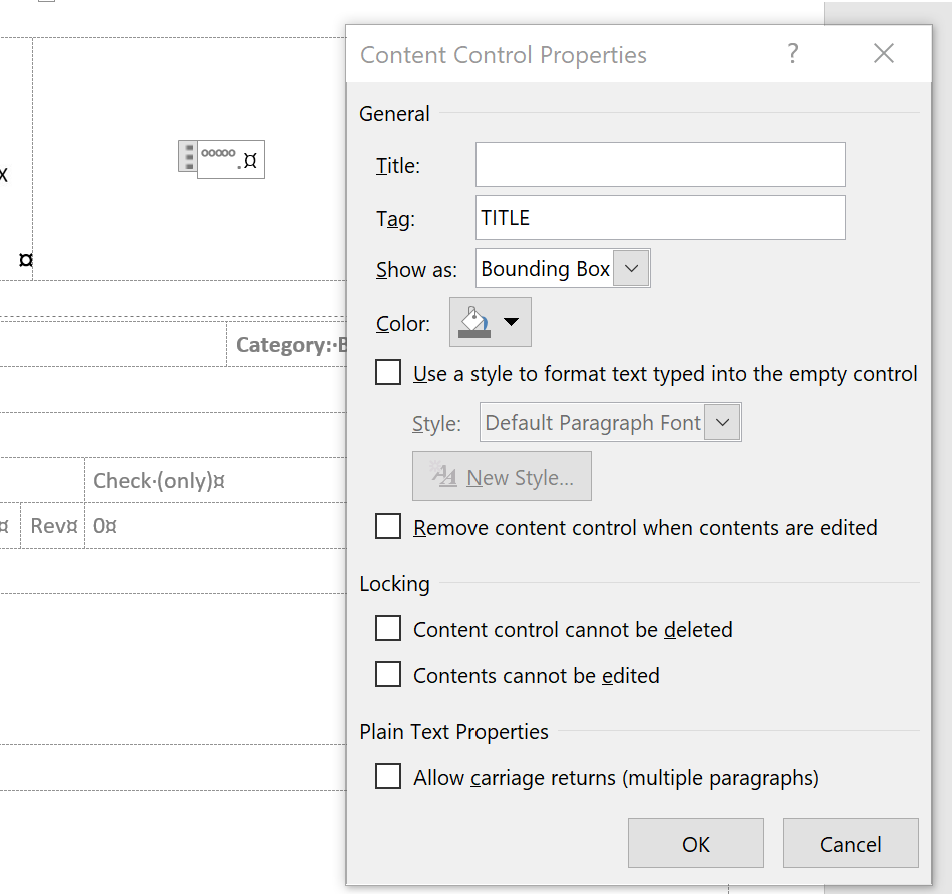

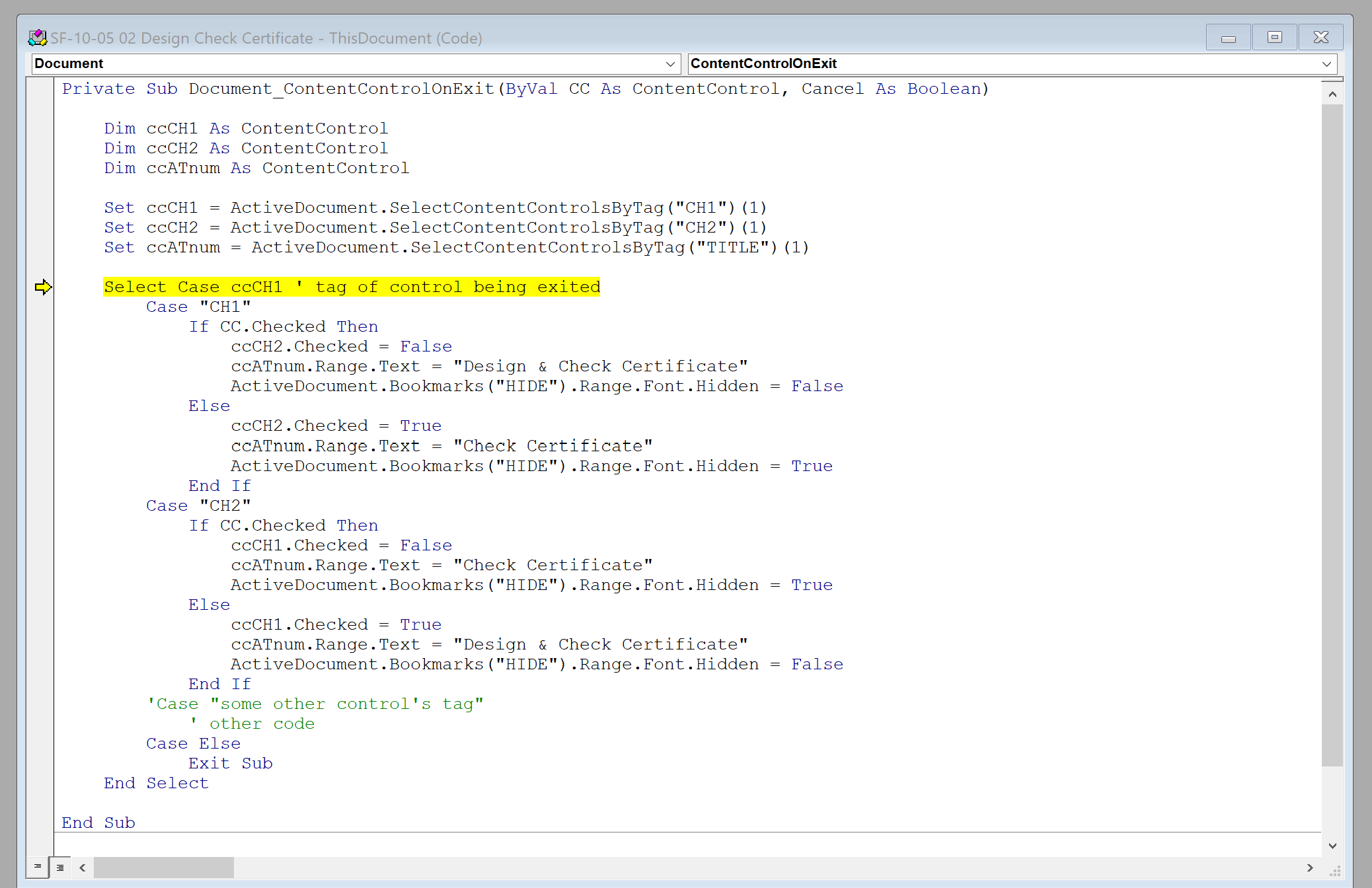

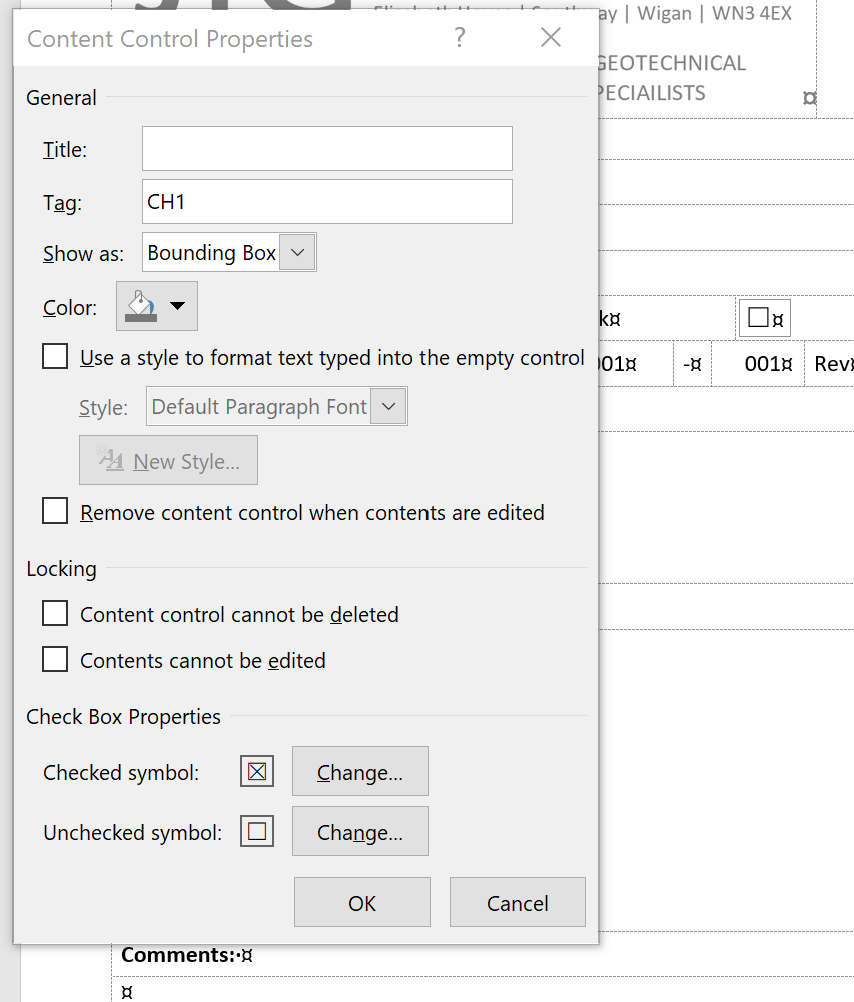

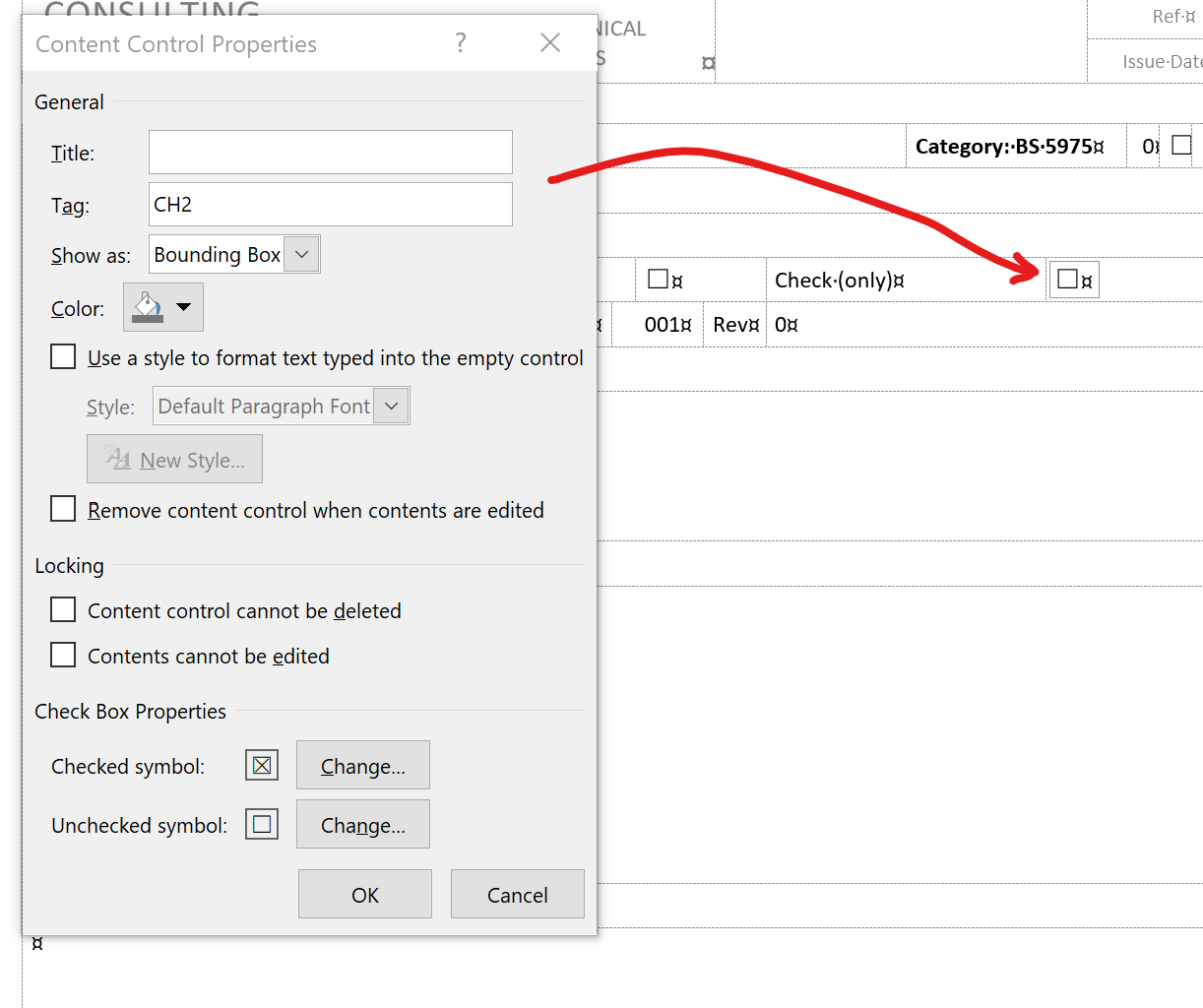

See other screen grabs for changes made

Answer 2

Hi Jay

I was a bit trigger happy, found the error and resolved and the form is working as I require.  Many thanks for sharing your expertise and assistance with this, its greatly appreciated.

Thanks again

David

Answer 3

Hi Jay

One last question, is it possible to auto uncheck CH2 when CH1 is checked and vice-versa?

Answer 4

That's exactly what's supposed to happen when the bolded lines execute:

    Select Case CC.Tag ' tag of control being exited

        Case "CH1"

            If CC.Checked Then

                ccCH2.Checked = False

                ccATnum.Range.Text = "AT1"

                ActiveDocument.Bookmarks("HIDE").Range.Font.Hidden = False

            Else

                ccCH2.Checked = True

                ccATnum.Range.Text = "AT2"

                ActiveDocument.Bookmarks("HIDE").Range.Font.Hidden = True

            End If

        Case "CH2"

            If CC.Checked Then

                ccCH1.Checked = False

                ccATnum.Range.Text = "AT2"

                ActiveDocument.Bookmarks("HIDE").Range.Font.Hidden = True

            Else

                ccCH1.Checked = True

                ccATnum.Range.Text = "AT1"

                ActiveDocument.Bookmarks("HIDE").Range.Font.Hidden = False

            End If

        'Case "some other control's tag"

            ' other code

        Case Else

            Exit Sub

    End Select

What may be confusing is that this doesn't happen until the cursor exits the content control (because this is in Document_ContentControlOnExit, which gets started when the cursor is about to exit). So when you click the check box, but before you hit the Tab key or click another control, you'll see either both boxes checked or both boxes unchecked.

It is possible to make these check boxes respond immediately instead of waiting for the exit. Greg Maxey has an article at https://gregmaxey.com/word_tip_pages/content_control_custom_events.html that shows how to do it. But this is 400-level wizardry, not really for a novice VBA programmer.

Answer 5

Thanks Jay, hadn't realised that.  Works fine and thanks again.

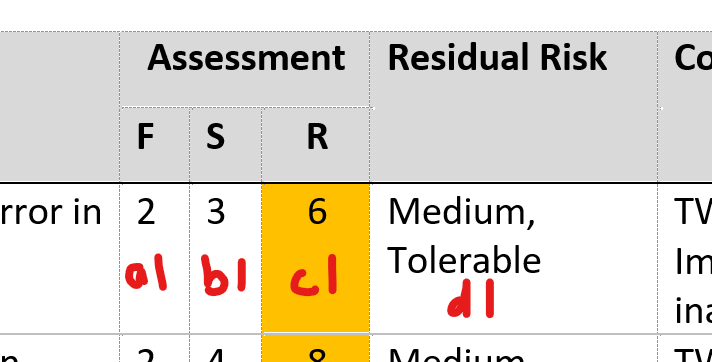

On a separate issue, is it possible to perform calculations in a Word Table and to automatically calculate the cell value with conditional formatting applied to the calculation cell? e.g. cell c1 = a1 x b2 and conditional formatting applied to c1 were cell is filled green when c1 value < 5, filled orange when c1 value is within range 5 to 9 and filled red when c1 value is >9.  Cell d1 would return 1 of 3 standard text items depending on the value of cell c1.

I appreciate this is standard stuff in Excel (of which I already have a working form) but would prefer to recreate in Word for ease of inputting text, formatting and combining multiple forms into a single working form.
