Real-time MS Word table formatting based on checkbox

Question

Hello

I'm trying to find a way to do real-time formatting on a table when a checkbox is selected. I'm trying to make an interactive checklist. As the user completes a step, they will check the box. Excel would probably be easier but this will be located in a Operator's Manual that will be a Word doc. Please advise

Update: By "real time formatting", I want the row to highlight automatically when the checkbox is clicked.

Answer 1

If you are using ContentControl Checkboxes and you assign the title Check to each of them, if you have the following code in the ThisDocument object, the rows will be shaded as you want

Private Sub Document_ContentControlOnExit(ByVal ContentControl As ContentControl, Cancel As Boolean)

If ContentControl.Title = "Check" Then

If ContentControl.Checked = True Then

    ContentControl.Range.Rows(1).Shading.BackgroundPatternColor = wdColorYellow

Else

    ContentControl.Range.Rows(1).Shading.BackgroundPatternColor = wdColorWhite

End If

End If

End Sub

Answer 2

• Create your "table" in Excel.
• Apply your conditional formatting
• Select the table in Excel (If you plan to add data, you have to select blank rows. The selection you paste into Word will NOT expand with the data in Excel)
• Copy
• Switch to Word

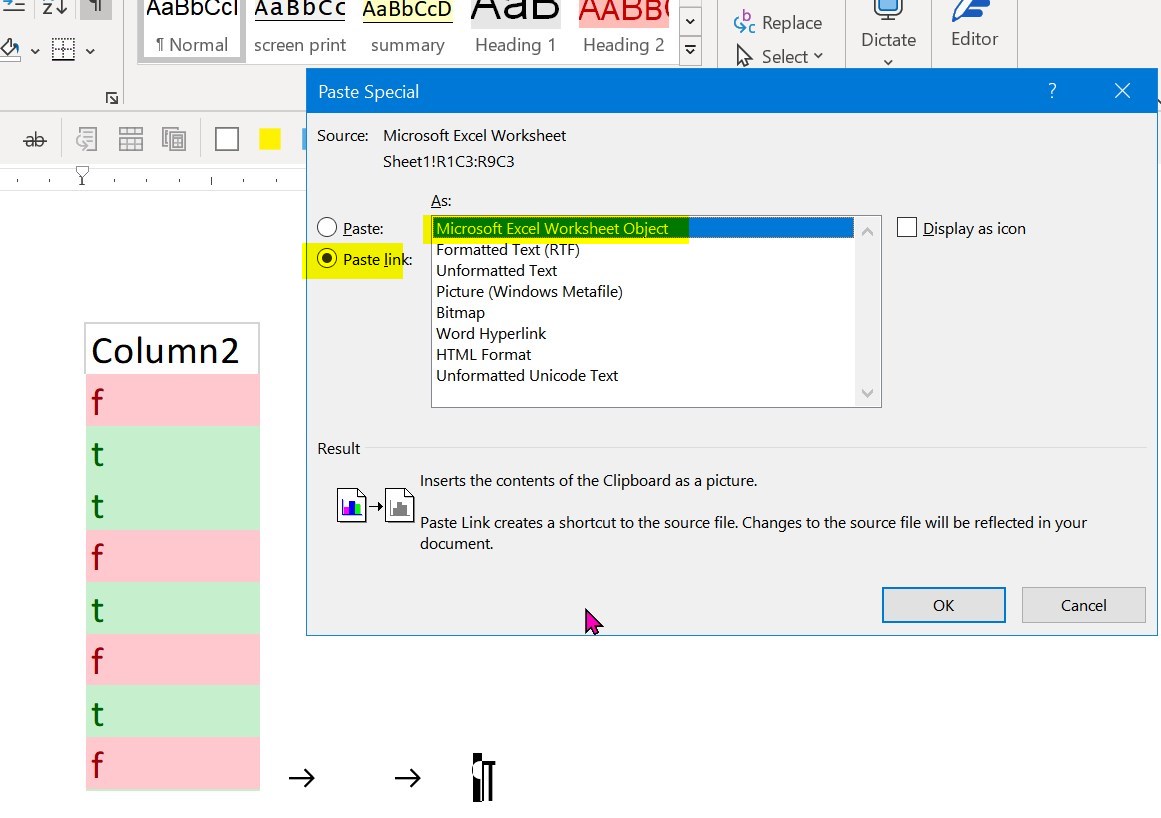

• Paste Special > "Paste Link:" and "Microsoft Excel Worksheet Object"

• when you want to change the data in the table, double click on it, Excel loads with the selection displayed, make your changes. They will be reflected in Word

.

I've tested, it works for me. I see the data in Word displayed as a table. When I have Excel open and make a change in Excel, it is displayed in Word in "real time".

.
