Microsoft Foundry Agent Testing and UI Experience

Question

I'm currently working with 𝗠𝗶𝗰𝗿𝗼𝘀𝗼𝗳𝘁 𝗙𝗼𝘂𝗻𝗱𝗿𝘆 𝗔𝗴𝗲𝗻𝘁𝘀 and would love to learn from the community's real-world experience.

𝟭. 𝗟𝗼𝗮𝗱, 𝗦𝘁𝗿𝗲𝘀𝘀 & 𝗣𝗲𝗿𝗳𝗼𝗿𝗺𝗮𝗻𝗰𝗲 𝗧𝗲𝘀𝘁𝗶𝗻𝗴

• How are you performing load, stress, and performance testing for Foundry Agents?

• Traces help with token usage, latency, and diagnostics, but how do you simulate 𝟮𝟬+ 𝗰𝗼𝗻𝗰𝘂𝗿𝗿𝗲𝗻𝘁 𝘂𝘀𝗲𝗿𝘀 and measure:

• Scalability

• Reliability

• Throughput

• Response times under load

• Are you using tools such as 𝗝𝗠𝗲𝘁𝗲𝗿, 𝗟𝗼𝗰𝘂𝘀𝘁, 𝗸𝟲, 𝗔𝘇𝘂𝗿𝗲 𝗟𝗼𝗮𝗱 𝗧𝗲𝘀𝘁𝗶𝗻𝗴, 𝗼𝗿 𝗰𝘂𝘀𝘁𝗼𝗺 𝗣𝘆𝘁𝗵𝗼𝗻 𝘀𝗰𝗿𝗶𝗽𝘁𝘀?

𝟮. 𝗔𝗱𝗮𝗽𝘁𝗶𝘃𝗲 𝗖𝗮𝗿𝗱𝘀 & 𝗕𝗲𝘁𝘁𝗲𝗿 𝗨𝗜 𝗘𝘅𝗽𝗲𝗿𝗶𝗲𝗻𝗰𝗲

• Is there a recommended approach to use 𝗔𝗱𝗮𝗽𝘁𝗶𝘃𝗲 𝗖𝗮𝗿𝗱𝘀 or create a richer chatbot experience with Foundry Agents, similar to what we can achieve in Copilot Studio?

• Are you building custom web UIs (React, Teams apps, Bot Framework, etc.) on top of Foundry Agents?

Would appreciate any guidance, lessons learned, documentation, or examples from production implementations.

Answer 1

Hello @Umesh Dinkarrao Baradkar

For production testing, I would separate load generation from agent observability.

1. Load, stress, and performance testing

Microsoft Foundry tracing is useful for understanding individual agent executions: latency, exceptions, token consumption, tool calls, retrieval operations, etc. but, it isn't intended to simulate concurrent users. Microsoft documents Foundry tracing as an OpenTelemetry-based observability capability backed by Application Insights.

For 20+ concurrent users, I would call the agent endpoint from an external load-testing tool. Azure Load Testing, k6, JMeter, Locust, or a custom async Python client can all work, depending on how your application exposes the agent.

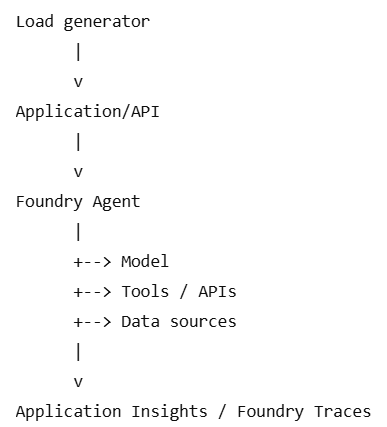

The useful pattern is:

During the test, measure at least:

• End-to-end p50/p95/p99 response latency
• Requests/conversations per second
• Successful vs. failed requests
• HTTP 429/5xx responses and retries
• Model/token usage
• Agent/tool-call latency
• Dependency failures
• Timeouts
• Application-side CPU/memory if you host part of the solution yourself

Foundry can then provide the per-request traces needed to determine where latency occurs. Microsoft recommends connecting Application Insights to the Foundry project; server-side tracing is then available for agents hosted in Foundry.

Also remember that load testing an agent isn't exactly the same as testing a normal REST API. A single user request may result in several model calls, retrievals, and tool executions, so model quotas/rate limits and downstream dependencies can become the bottleneck before your application endpoint does.

For some Foundry Agent Service configurations, concurrency is also a platform capacity consideration. For example, Microsoft documents regional concurrent-session capacity and subnet/IP requirements for network-isolated agent deployments.

2. Adaptive Cards / richer UI

I wouldn't make the Foundry Agent itself responsible for the presentation layer.

A cleaner architecture is:

Foundry Agent Service provides the agent runtime, Responses API, models, tools, conversations, tracing, and related capabilities. Your application can provide the UX appropriate for the channel. (learn.microsoft.com)

For a web application, React/Angular/etc. can render your own cards, tables, buttons, citations, progress indicators, streaming responses, and other components.

For Teams/Microsoft 365 scenarios, Adaptive Cards are a good presentation option, but I would generate/render them in the application/channel integration layer, rather than treating Adaptive Cards as a native Foundry Agent UI capability.

So for something comparable to the richer Copilot Studio experience, I'd typically use:

Foundry Agent Service for intelligence/orchestration + your application or Teams layer for the UX + Application Insights/OpenTelemetry for observability.

That also gives you much more control over production testing because you can load-test the same API/application path your real users will actually use.

Sharing these references with you:

Foundry Agent Service overview

Agent tracing overview

Set up tracing for Foundry agents

Foundry Agent Service networking and concurrency
