Azure Digital Twin CLI error

Question

Azure Digital Twin CLI error

Seiya Zelin Shen 72

I have a question on the website

https://learn.microsoft.com/zh-cn/azure/digital-twins/how-to-ingest-iot-hub-data?tabs=cli

when I run the create model or create twin as cli, it shows the error as following:

may I know how is the error ? the cli command is :

az dt twin create --dt-name <instance-name> --dtmi "dtmi:contosocom:DigitalTwins:Thermostat;1" --twin-id thermostat67 --properties '{"Temperature": 0.0,}'

az dt model create --dt-name <instance-name> --models '{ "@id": "dtmi:contosocom:DigitalTwins:Thermostat;1", "@type ": "Interface", "@Георгий Георгиевский ": "dtmi:dtdl:context;2", "contents": [ { "@type ": "Property", "name": "Temperature", "schema": "double" } ]}'

many thanks.

Seiya Zelin Shen 72 Reputation points

2022-03-24T13:42:32.787+00:00

I have try whatever

--properties '{"Temperature": 0.0,}'

--properties '{"Temperature": 0.0}'

--properties {"Temperature": 0.0,}
AshokPeddakotla-MSFT 36,021 Reputation points Moderator

2022-03-25T10:33:30.157+00:00

@Seiya Sum Welcome to Microsoft Q&A forum!
Could you please confirm how exactly you are running the CLI commands? Is it through portal directly or through CLI from your machine?

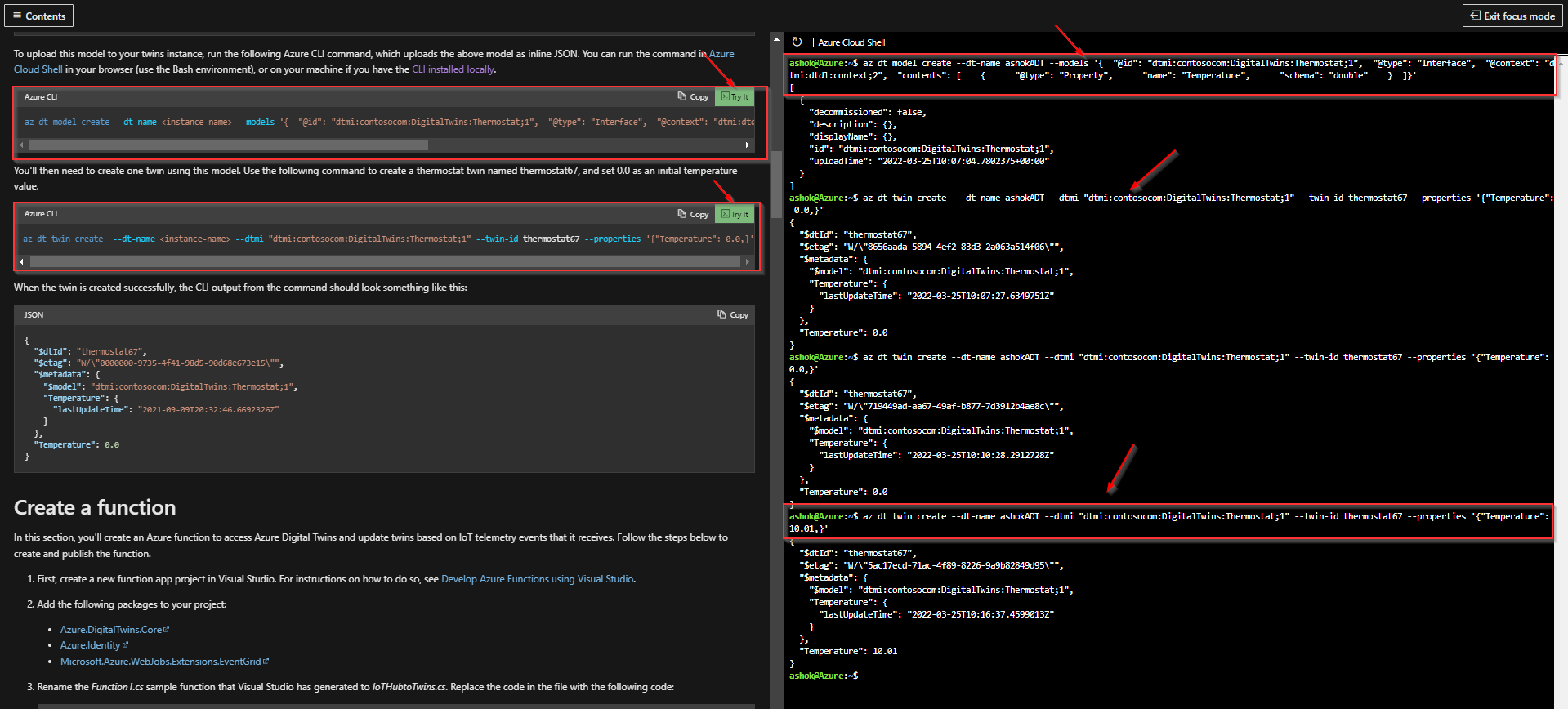

I followed the doc as by using Try it option and able to create model correctly without any issue. Please see below.

From the screenshot you have shared, error occurred due to the incorrect syntax. You have specified (double quotes) "" for temperature values.
Also, you have mentioned, you tried with different options as well. I would suggest you, delete the existing model and run the command again and see if it makes any difference.

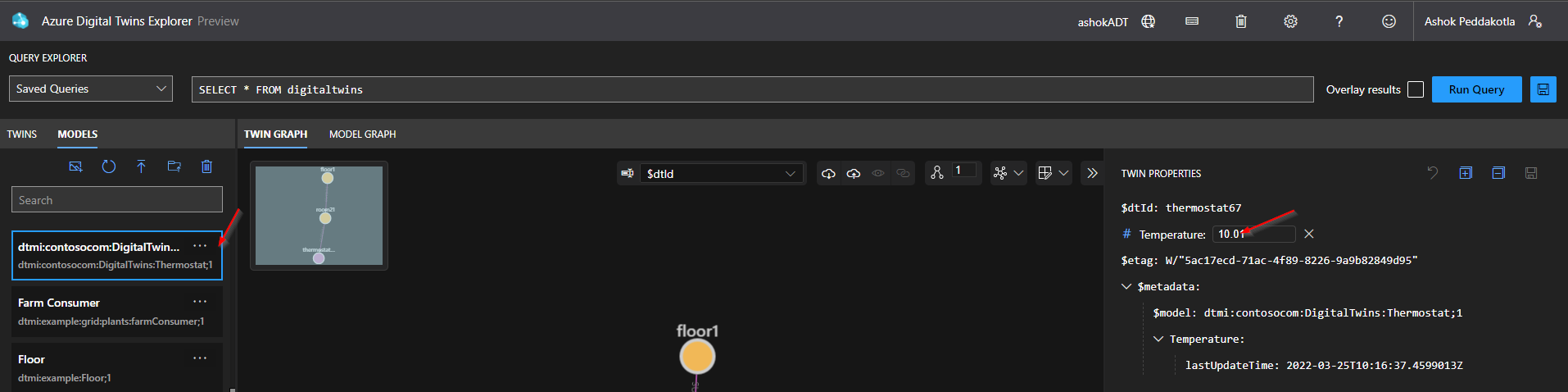

You can delete the existing models from Azure Digital Twins Explorer. You can access Azure Digital Twins Explorer from the Azure portal.

Hope this helps. Do let me know if you have any further queries.

If an answer is helpful, please click on or upvote which might help other community members reading this thread.
AshokPeddakotla-MSFT 36,021 Reputation points Moderator

2022-03-28T09:04:16.207+00:00

@Seiya Sum Wanted to follow up with you to understand whether the below information helped. Please let us know if there are any other queries.
If below suggestions answers your query, do click Accept Answer and Up-Vote for the same. And, if you have any further query do let us know.
Seiya Zelin Shen 72 Reputation points

2022-03-30T10:41:26.24+00:00

no, I cannot run at power shell, the most import is : why my script is wrong ? where is it wrong ? how to correct the string ? could you tell me ? thanks.
AshokPeddakotla-MSFT 36,021 Reputation points Moderator

2022-03-30T15:14:10.757+00:00

@Seiya Zelin Shen

no, I cannot run at power shell, the most import is : why my script is wrong ? where is it wrong ? how to correct the string ?

Could you confirm how exactly are you running the scripts?

As mentioned earlier, Your script is failing due to incorrect syntax at the end of CLI command. i.e You have specified (double quotes) "" for temperature values.

You need to specify the command without double quotes to resolve this error for --properties '{"Temperature": 0.0,}'

Correct syntax is

az dt twin create --dt-name <your instance-name> --dtmi "dtmi:contosocom:DigitalTwins:Thermostat;1" --twin-id thermostat67 --properties '{"Temperature": 0.0,}'

Also, please check Azure Digital Twins Explorer and delete the existing model with the name "dtmi:contosocom:DigitalTwins:Thermostat;1" if any

Please let us know if you have further queries. We are happy to assist you further.
Seiya Zelin Shen 72 Reputation points

2022-03-30T15:17:07.513+00:00

I am exactly sure my script is

az dt twin create --dt-name iotdigitaltwins --dtmi "dtmi:contosocom:DigitalTwins:Thermostat;1" --twin-id thermostat67 --properties '{"Temperature": 0.0,}'

I copy above sentence to run cli, that is my confuse, many thanks.
AshokPeddakotla-MSFT 36,021 Reputation points Moderator

2022-03-30T16:00:50.903+00:00

@Seiya Zelin Shen Can you confirm if you are still seeing the same error after using the above syntax?
Seiya Zelin Shen 72 Reputation points

2022-03-31T01:28:28.857+00:00

I think if possible, we can set up a meeting ,you can see my screen, and understand what is happen at my side, may I have your email box ? thanks.
QuantumCache 20,681 Reputation points Moderator

2022-03-31T01:59:32.983+00:00

Hello @Seiya Zelin Shen thanks for the quick response!

We are working in USA-Pacific Time zone And India- Time zone, please let us know your preferred time and we can have a quick call to discuss your scenario.

Answer accepted by question author

0 additional answers

Your answer

Seiya Zelin Shen 72 Reputation points

2022-03-24T13:42:32.787+00:00

I have try whatever

--properties '{"Temperature": 0.0,}'

--properties '{"Temperature": 0.0}'

--properties {"Temperature": 0.0,}
AshokPeddakotla-MSFT 36,021 Reputation points Moderator

2022-03-25T10:33:30.157+00:00

@Seiya Sum Welcome to Microsoft Q&A forum!
Could you please confirm how exactly you are running the CLI commands? Is it through portal directly or through CLI from your machine?

I followed the doc as by using Try it option and able to create model correctly without any issue. Please see below.

From the screenshot you have shared, error occurred due to the incorrect syntax. You have specified (double quotes) "" for temperature values.
Also, you have mentioned, you tried with different options as well. I would suggest you, delete the existing model and run the command again and see if it makes any difference.

You can delete the existing models from Azure Digital Twins Explorer. You can access Azure Digital Twins Explorer from the Azure portal.

Hope this helps. Do let me know if you have any further queries.

If an answer is helpful, please click on or upvote which might help other community members reading this thread.
AshokPeddakotla-MSFT 36,021 Reputation points Moderator

2022-03-28T09:04:16.207+00:00

@Seiya Sum Wanted to follow up with you to understand whether the below information helped. Please let us know if there are any other queries.
If below suggestions answers your query, do click Accept Answer and Up-Vote for the same. And, if you have any further query do let us know.
Seiya Zelin Shen 72 Reputation points

2022-03-30T10:41:26.24+00:00

no, I cannot run at power shell, the most import is : why my script is wrong ? where is it wrong ? how to correct the string ? could you tell me ? thanks.
AshokPeddakotla-MSFT 36,021 Reputation points Moderator

2022-03-30T15:14:10.757+00:00

@Seiya Zelin Shen

no, I cannot run at power shell, the most import is : why my script is wrong ? where is it wrong ? how to correct the string ?

Could you confirm how exactly are you running the scripts?

As mentioned earlier, Your script is failing due to incorrect syntax at the end of CLI command. i.e You have specified (double quotes) "" for temperature values.

You need to specify the command without double quotes to resolve this error for --properties '{"Temperature": 0.0,}'

Correct syntax is

az dt twin create --dt-name <your instance-name> --dtmi "dtmi:contosocom:DigitalTwins:Thermostat;1" --twin-id thermostat67 --properties '{"Temperature": 0.0,}'

Also, please check Azure Digital Twins Explorer and delete the existing model with the name "dtmi:contosocom:DigitalTwins:Thermostat;1" if any

Please let us know if you have further queries. We are happy to assist you further.
Seiya Zelin Shen 72 Reputation points

2022-03-30T15:17:07.513+00:00

I am exactly sure my script is

az dt twin create --dt-name iotdigitaltwins --dtmi "dtmi:contosocom:DigitalTwins:Thermostat;1" --twin-id thermostat67 --properties '{"Temperature": 0.0,}'

I copy above sentence to run cli, that is my confuse, many thanks.
AshokPeddakotla-MSFT 36,021 Reputation points Moderator

2022-03-30T16:00:50.903+00:00

@Seiya Zelin Shen Can you confirm if you are still seeing the same error after using the above syntax?
Seiya Zelin Shen 72 Reputation points

2022-03-31T01:28:28.857+00:00

I think if possible, we can set up a meeting ,you can see my screen, and understand what is happen at my side, may I have your email box ? thanks.
QuantumCache 20,681 Reputation points Moderator

2022-03-31T01:59:32.983+00:00

Hello @Seiya Zelin Shen thanks for the quick response!

We are working in USA-Pacific Time zone And India- Time zone, please let us know your preferred time and we can have a quick call to discuss your scenario.

Answer 1

Hello @Seiya Sum Thanks for reaching out on this forum!

Thanks to @AshokPeddakotla-MSFT for the repro and validating the documentation on cloud shell.

After working offline with you on this issue, here is the summary\outcome which details the solution.

when I run the create model or create twin as cli, it shows the error as following:

----> unrecognized arguments: 60.6,}'

Fix\Workaround: When you create a twin with the CLI, depending on what type of command prompt you're using, you might have to escape the " characters

az dt twin create
             --dt-name myADTsoutheastasia.api.sea.digitaltwins.azure.net
             --dtmi "dtmi:contosocom1:DigitalTwins:Thermostat;1"
             --twin-id thermostat67
             --properties "{\"Temperature\": 60.6,}"

Documentation: We are updating instructions on the documentation as well for this CLI command usage.

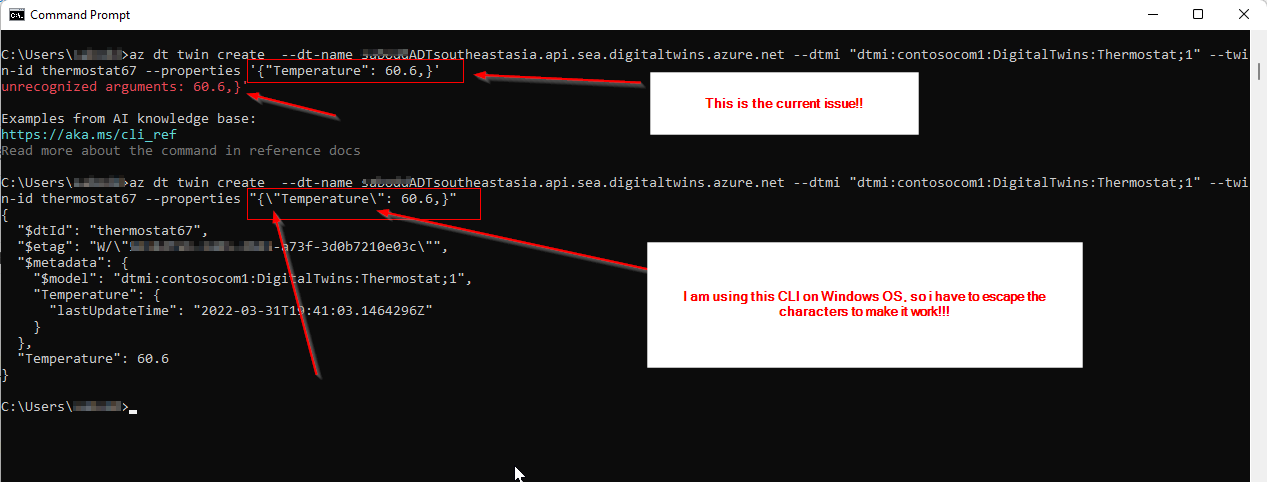

Repro of the issue on Windows OS CLI Desktop version:

We really appreciate your contribution on helping other community members, customers and improving product experience!!!

Please comment in the below section for further help in this matter, happy to help!

----------

Please do let me know if you have any queries.
Thanks
Satish

------------------------------------------
