PowerBI lineage from SQL Server in Purview

Question

PowerBI lineage from SQL Server in Purview

Cloudgeek 66

Hello,

I am trying to get lineage of PowerBI report which has SQL server as source. But lineage is not showing towards SQL server and it is stopping at PowerBI dataset. In similar way, when I trying to get lineage with Azure SQL server as source, it is showing lineage towards Azure SQL Server. So my question is Can Purview show lineage for PowerBI when on prem SQL server is its source?

Note: As I mentioned above, when source is Azure SQL server, lineage is showing correctly.

Thanks very much!!

patricio muñoz 1 Reputation point

2022-05-16T01:37:41.89+00:00

I have some questions.

Are you using powerbi cloud or desktop?
do you have access to the database from another application? what database version is it?
Cloudgeek 66 Reputation points

2022-05-16T21:51:13.01+00:00

@patricio muñoz
I am using PowerBI cloud.
I didn't understand this-do you have access to the database from another application?
But I do have access to actual source tables in on-prem sql server.

SQL DB version: Microsoft SQL Server 2019 - 15.0.4198.2
PRADEEPCHEEKATLA 91,656 Reputation points Moderator

2022-06-01T05:44:03.913+00:00
Hello anonymous user-6983,

Following up to see if the below suggestion was helpful. And, if you have any further query do let us know.

------------------------------

Please don't forget to click on or upvote button whenever the information provided helps you.
Godefroy de bouillon 11 Reputation points

2023-06-27T15:42:03.31+00:00

Hi

I can't get to the column level neither

1 answer

Your answer

patricio muñoz 1 Reputation point

2022-05-16T01:37:41.89+00:00

I have some questions.

Are you using powerbi cloud or desktop?
do you have access to the database from another application? what database version is it?
Cloudgeek 66 Reputation points

2022-05-16T21:51:13.01+00:00

@patricio muñoz
I am using PowerBI cloud.
I didn't understand this-do you have access to the database from another application?
But I do have access to actual source tables in on-prem sql server.

SQL DB version: Microsoft SQL Server 2019 - 15.0.4198.2
PRADEEPCHEEKATLA 91,656 Reputation points Moderator

2022-06-01T05:44:03.913+00:00

Hello anonymous user-6983,

Following up to see if the below suggestion was helpful. And, if you have any further query do let us know.

------------------------------

Please don't forget to click on or upvote button whenever the information provided helps you.
Godefroy de bouillon 11 Reputation points

2023-06-27T15:42:03.31+00:00

Hi

I can't get to the column level neither

Answer 1

PRADEEPCHEEKATLA 91,656 Moderator

Hello anonymous user-6983,

Thanks for the question and using MS Q&A platform.

Microsoft Purview currently doesn't support query or stored procedure for lineage or scanning. Lineage is limited to table and view sources only. Besides the lineage on assets within the data source, lineage is also supported if dataset is used as a source/sink in Data Factory or Synapse pipeline.

Hope this will help. Please let us know if any further queries.

------------------------------

Please don't forget to click on or upvote button whenever the information provided helps you. Original posters help the community find answers faster by identifying the correct answer. Here is how
Want a reminder to come back and check responses? Here is how to subscribe to a notification
If you are interested in joining the VM program and help shape the future of Q&A: Here is how you can be part of Q&A Volunteer Moderators

Cloudgeek 66 Reputation points

2022-05-17T13:55:46.227+00:00

Thank you @PRADEEPCHEEKATLA for answering!

But when I see documentation in below link, it says the Lineage is supported with on-prem SQL server.
https://learn.microsoft.com/en-us/azure/purview/register-scan-on-premises-sql-server

Are you saying that on-prem SQL server lineage won't be visible with PowerBI only?
PRADEEPCHEEKATLA 91,656 Reputation points Moderator

2022-05-18T09:15:12.28+00:00

Hello anonymous user-6983,

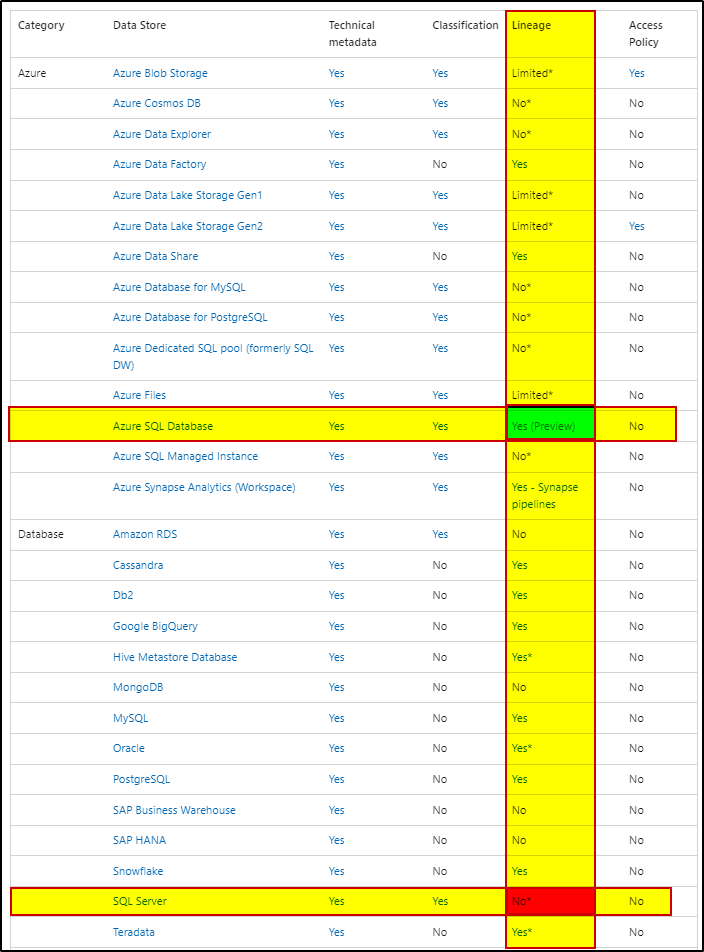

From the same document, please check the important notes:

Hope this will help. Please let us know if any further queries.
Cloudgeek 66 Reputation points

2022-05-18T17:01:39.647+00:00

@PRADEEPCHEEKATLA I am using On-prem SQL server table as a dataset in PowerBI report. This SQL table is used as a source in datafactory copy activity.
In above scenario, are you saying that Purview should lineage for PowerBI report all the way back to On-prem SQL server. Please clarify.
PRADEEPCHEEKATLA 91,656 Reputation points Moderator

2022-05-30T05:41:14.543+00:00
Hello anonymous user-6983,

If you are using SQL table is used as a source in data factory copy activity it should show the lineage as excepted.

When scanning on-premises SQL server, Microsoft Purview supports:

Extracting technical metadata including:

Instance

Databases

Schemas

Tables including the columns

Views including the columns
PRADEEPCHEEKATLA 91,656 Reputation points Moderator

2022-06-06T04:45:38.63+00:00

Hello anonymous user-6983,

Just checking in to see if the above answer helped. If this answers your query, do click Accept Answer and Up-Vote for the same. And, if you have any further query do let us know.
