Unable to get message queue from Azure Service Bus in Logic App environment

Question

Hi Azure community

Greetings from Singapore!
I am currently using Logic App and Service bus to develop an email notification feature upon some conditions are satisfied.
The architecture diagram is as follows and attached:

The Logic App will send out an email when some conditions are satisfied.

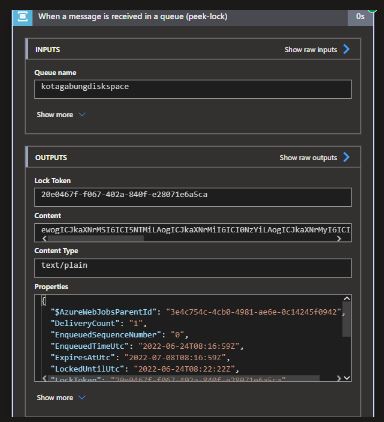

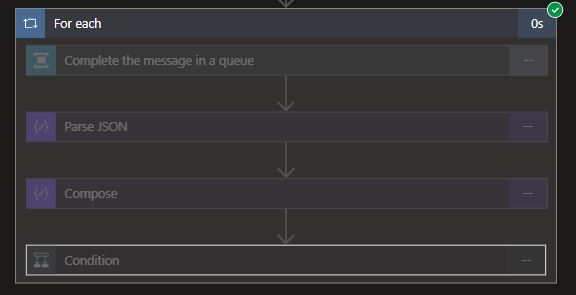

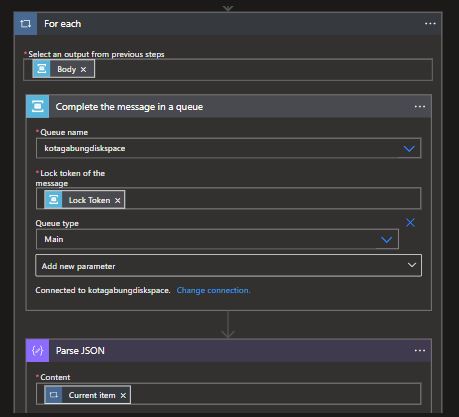

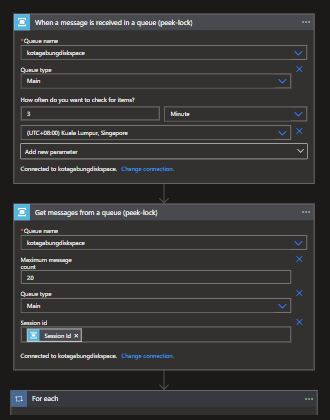

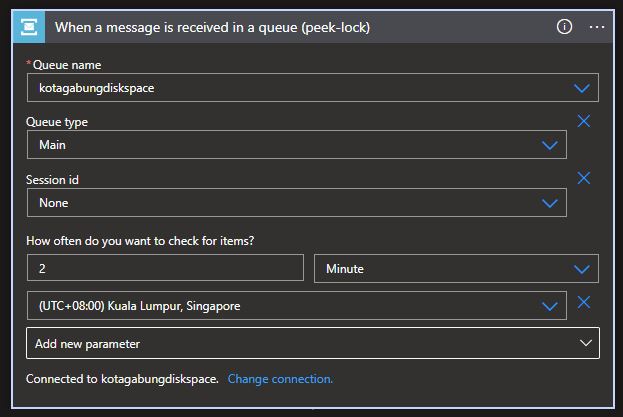

The Logic app sequence is as follows:

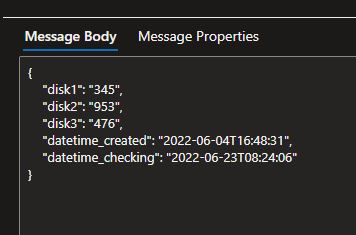

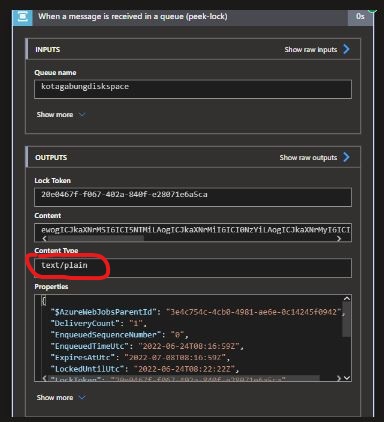

Based on the architecture, I think the Function App data processing and Service bus configuration is properly setup as I am able to view the message in peek mode in Azure Service Bus Explore portal:

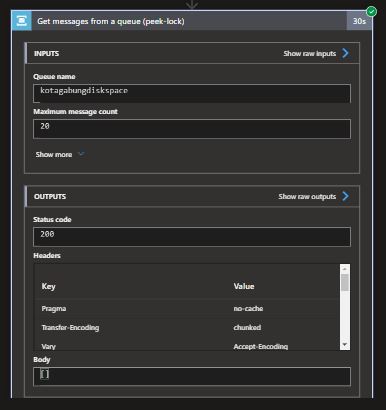

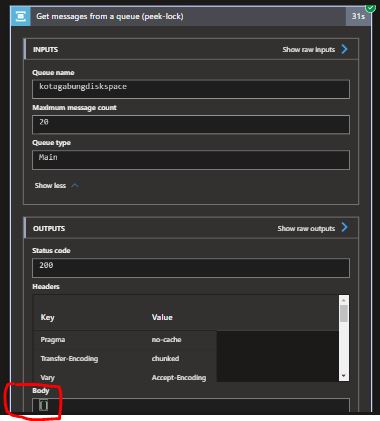

However, the message body in Logic App environment is empty [] when I was using "Get messages from a queue (peek-lock)" connector.

I am wondering if the logic app flow is not properly programmed.
From my knowledge, message queue generated by function app as output binding is peek-lock type by default.
I am also able to peek the message inside Service Bus Explorer, so that I use peek-lock connector in Logic App environment.

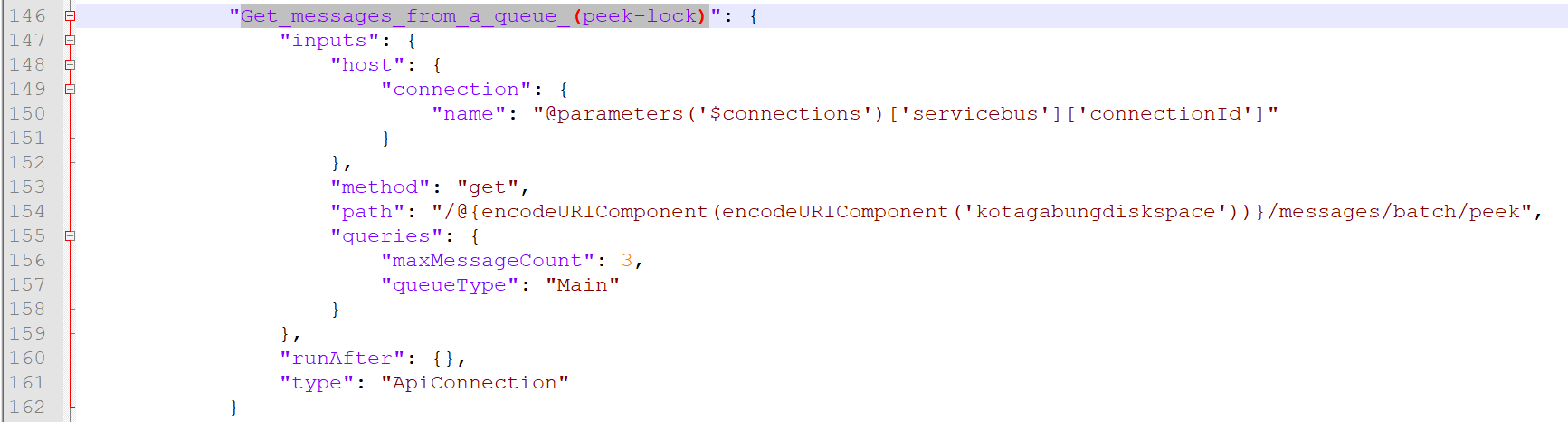

I attached the text file contains the logic app code view.
Thank you for the community help in advance!

Warmest regards
Yong Sheng

Answer 1

Hi @Lee Yong Sheng ,

Thank you for asking this question on the Microsoft Q&A Platform.

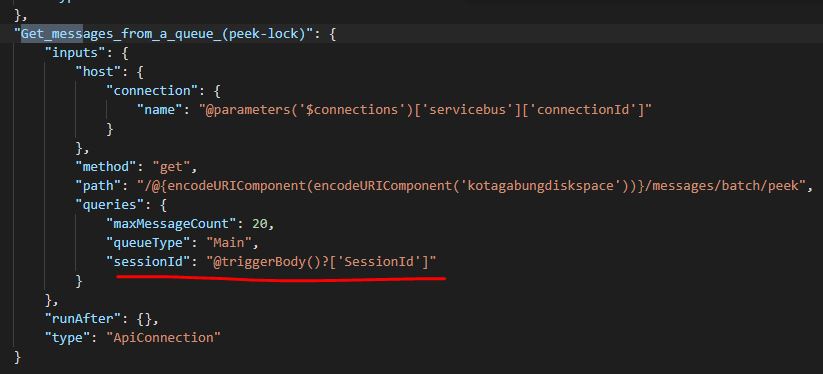

You are getting empty value because of missing "SessionId" input,

            "Get_messages_from_a_queue_(peek-lock)": {
                "inputs": {
                    "host": {
                        "connection": {
                            "name": "@parameters('$connections')['servicebus']['connectionId']"
                        }
                    },
                    "method": "get",
                    "path": "/@{encodeURIComponent(encodeURIComponent('testtopic'))}/messages/batch/peek",
                    "queries": {
                        "maxMessageCount": 20,
                        "queueType": "Main",
                        "sessionId": "@triggerBody()?['SessionId']"
                    }
                },
                "runAfter": {},
                "type": "ApiConnection"
            }

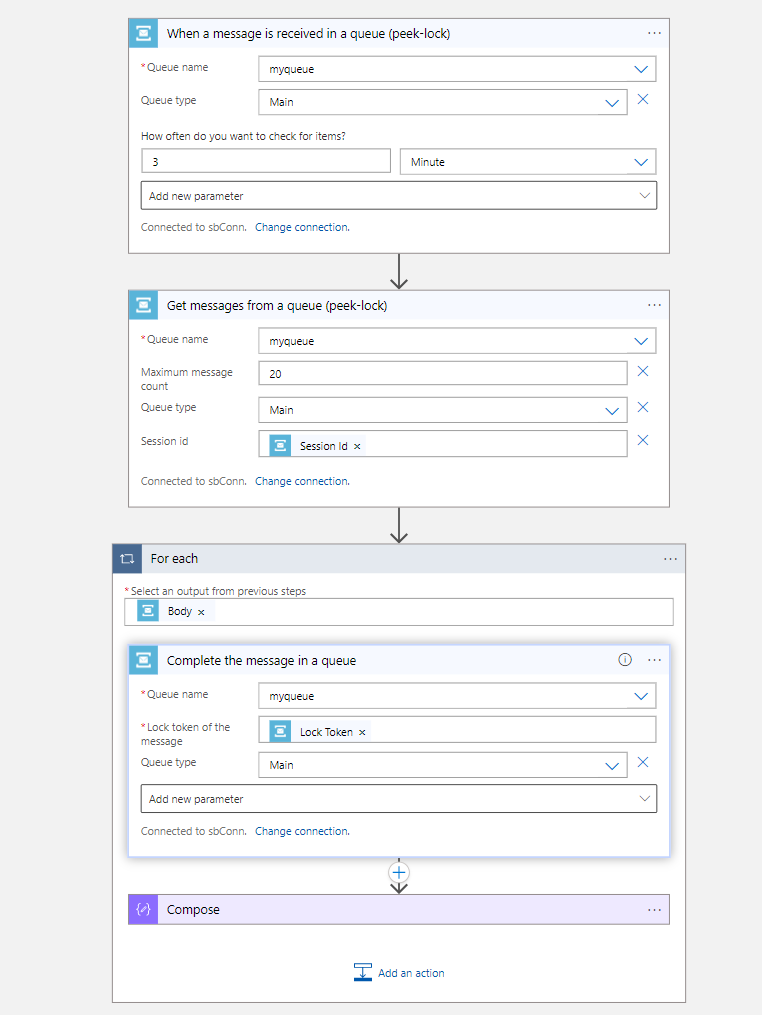

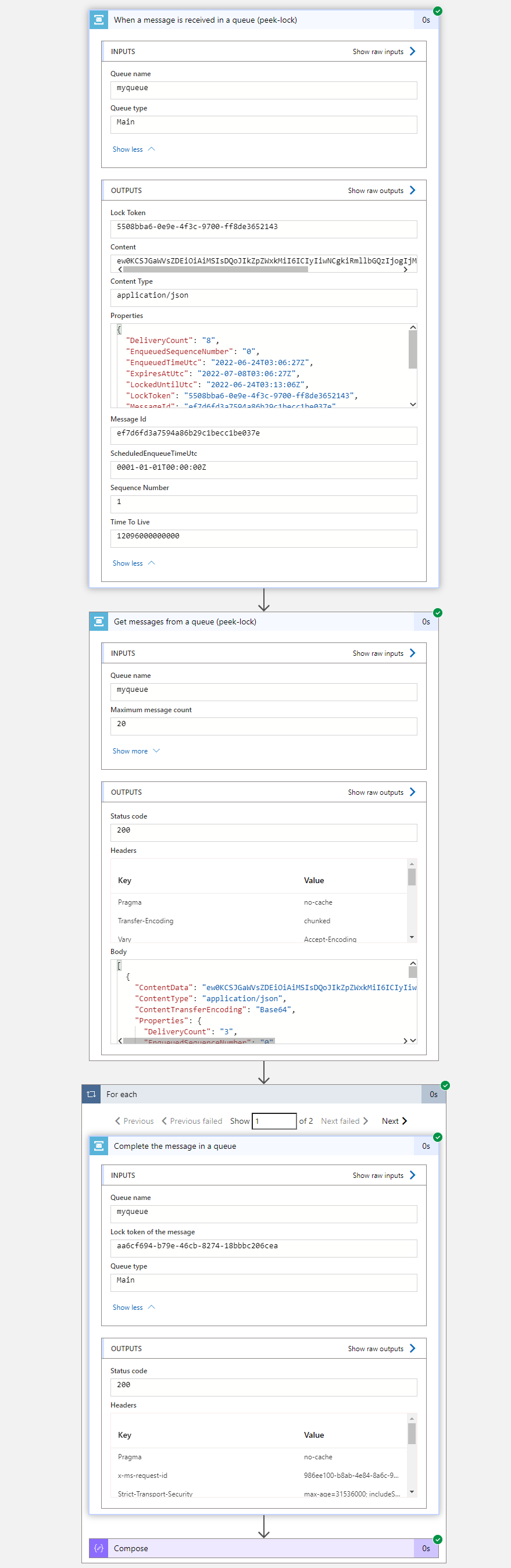

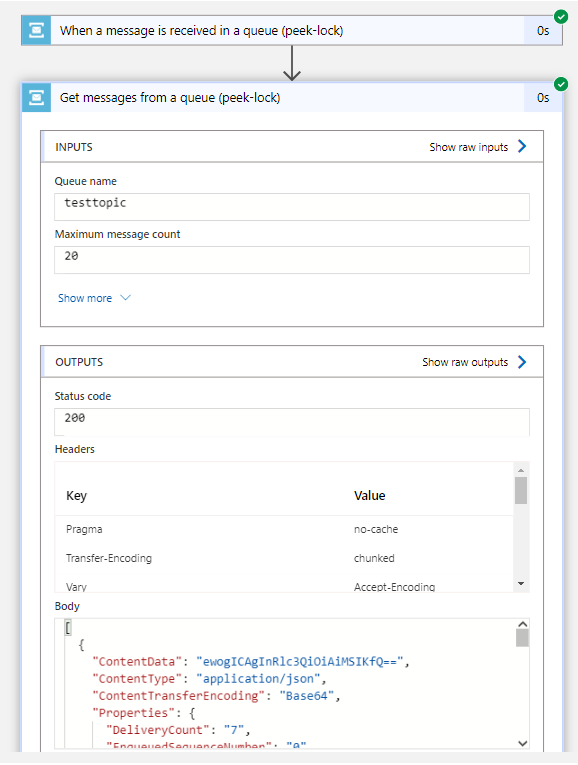

I tried to replicate it at my end and it's working fine for me, please refer the above code,

Regards,
Kamlesh Kumar
BizTalk Techie
