ADF Access to sharepoint to access csv files. Setup of Linked services

Question

Hi

I am trying to connect from ADF to Sharepoint while creating Linked services, but it shows error "Failed to get metadata of odata service, please check if service url and credential is correct and your application has permission to the resource. Expected status code: 200, actual status code: Unauthorized, response is : {"error_description":"Exception of type 'Microsoft.IdentityModel.Tokens.AudienceUriValidationFailedException' was thrown."}.
Activity ID: 94cdd116-08f1-4e23-ba56-7fc430c29b58."

I used the below documentation
https://learn.microsoft.com/en-us/azure/data-factory/connector-sharepoint-online-list?tabs=data-factory#prerequisites

Sharepoint permissions given by sharepoint admin.Below is screenshot

My adf settings are below

error screenshot attached . Please advise

Answer 1

Hello @Krishnamohan Nadimpalli ,

Thanks for the question and using MS Q&A platform.

From the error message Please check if service url and credential is correct and your application has permission to the resource. Expected status code: 200, actual status code: Unauthorized - Seems like you are having authentication issue to your SharePoint site.

Please make sure you follow the exact steps as described below:

Register SharePoint Application and Grant permission

• Register AAD Application (with user's personnel account) a) Open azure portal aad app registration page: https://portal.azure.com/#blade/Microsoft_AAD_IAM/ActiveDirectoryMenuBlade/RegisteredApps
  b) New registration, enter your app name

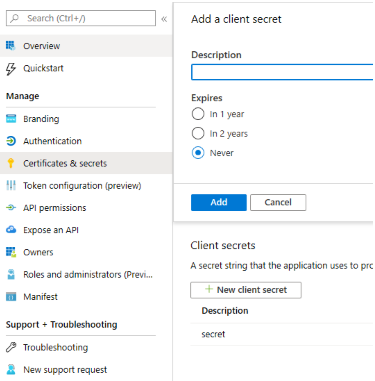

  c) Go to Certificates & secrets, create new client secret, you can set the expire to 1Y/2Y/Never

• Grant sharepoint site permission to your registered App (need site owner permission) 1) How to find the site owner
  a) Go to site home page( e.g. https://[your_site_url]/_layouts/15/appinv.aspx (replace the site URL)), and click the X members in the right corner

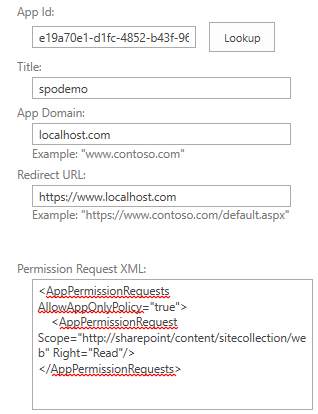

  b) Check who is the owner 2)Open sharepoint site link: https://[Tenant-Name].sharepoint.com/sites/[Site-Name]/_layouts/15/appinv.aspx (replace tenant/site name) 3)Search the AppId you just registered in Step 1a and fill the empty fields and click "Create"
  App Domain: localhost.com
  Redirect URL: https://www.localhost.com
  Permission Request XML:

<AppPermissionRequests AllowAppOnlyPolicy="true">
   <AppPermissionRequest Scope="http://sharepoint/content/sitecollection/web" Right="Read"/>
</AppPermissionRequests>

4) Click "Trust It" for this app

Then create ADF pipeline with the flow discussed in the document: Copy file from SharePoint Online

Hope this info helps. Do let us know how it goes.

---
