How to rovke oauth token?

Question

How to rovke oauth token?

scarecrow kakashi 246

I got a token and a refresh token following https://learn.microsoft.com/en-us/azure/active-directory/develop/v2-oauth2-device-code .

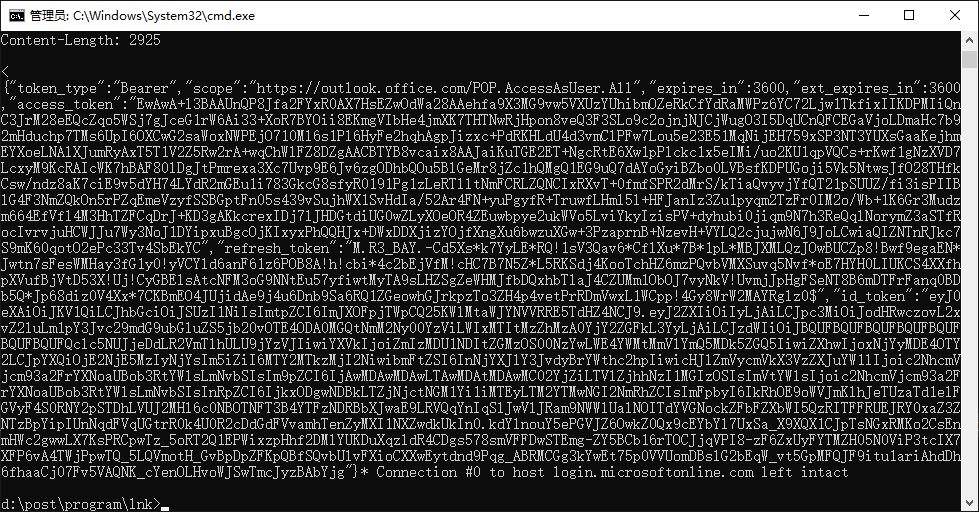

I successful get token,the result show in the picture.

I copied the results:
{"token_type":"Bearer","scope":"https://outlook.office.com/POP.AccessAsUser.All","expires_in":3600,"ext_expires_in":3600,"access_token":"EwAwA+l3BAAUnQP8Jfa2FYxR0AX7HsEZwOdWa28AAehfa9X3MG9vw5VXUzYUhibmOZeRkCfYdRaMWPz6YC72Ljw1TkfixIIKDPMIiQnC3JrM28eEQcZqo5WSj7gJceG1rW6Ai33+XoR7BYOii8EKmgVIbHe4jmXK7THTNwRjHpon8veQ3F3SLo9c2ojnjNJCjWugO3I5DqUCnQFCEGaVjoLDmaHc7b92mHduchp7TMs6UpI6OXCwG2saWoxNWPEjO710Ml6s1Pl6HyFe2hqhAgpJizxc+PdRKHLdU4d3vmClPFw7Lou5e23E51MqNijEH759xSP3NT3YUXsGaaKejhmEYXoeLNAlXJumRyAxT5T1V2Z5Rw2rA+wqChWlFZ8DZgAACBTYB8vcaix8AAJaiKuTGE2ET+NgcRtE6Xw1pPlckc1x5eIMi/uo2KU1qpVQCs+rKwf1gNzXVD7LcxyM9KcRAIcWK7hBAF80lDgJtPmrexa3Xc7Uvp9E6Jv6zgODhbQOu5BlGeMr8jZc1hQMgQ1EG9uQ7dAYoGyiBZbo0LVBsfKDPUGoji5Vk5NtwsJfO28THfkCsw/ndz8aK7ciE9v5dYH74LYdR2mGEu1i783GkcG8sfyR0191Pg1zLeRTlltNmFCRLZQNCIxRXvT+0fmfSPR2dMrS/kTiaQvyvjYfQT21pSUUZ/fi3isPIIBlG4F3NmZQkOn5rPZqEmeVzyfSSBGptFn05s439vSujhWX1SvHdIa/52Ar4FN+yuPgyfR+TruwfLHml5l+HFJanIz3Zu1pyqm2TzFr0IM2o/Wb+1K6Gr3Mudzm664EfVfl4M3HhTZFCqDrJ+KD3gAKkcrexIDj7lJHDGtdiUG0wZLyXOeOR4ZEuwbpye2ukWVo5LviYkyIzisPV+dyhubi0jiqm9N7h3ReQqlNorymZ3aSTfRocIvrvjuHCWJJu7Wy3NoJ1DYipxuBgcOjKIxyxPhQQHJx+DWxDDXjizYOjfXngXu6bwzuXGw+3PzaprnB+NzevH+VYLQ2cjujwN6J9JoLCwiaQIZNTnRJkc7S9mK60qotO2ePc33Tv4SbEkYC","refresh_token":"M.R3_BAY.-Cd5Xsk7YyLERQ!1sV3Qav6*CflXu*7B*1pLMBJXMLQzJOwBUCZp8!Bwf9egaENJwtn7sFesWMHay3fG1y0!yVCYld6anF61z6POB8A!h!cbi*4c2bEjVfM!cHC7B7N5ZL5RKSdj4KooTchHZ6mzPQvbVMXSuvq5NvfoE7HYH0LIUKCS4XXfhpXVufBjVtD53X!Uj!CyGBElsAtcNFM3oG9NNtEu57yfiwtMyTA9sLHZSgZeWHMJfbDQxhbTlaJ4CZUMm1ObOJ7vyNkV!UvmjJpHgFSeNT8B6mDTFrFanq0BDb5Q*Jp68diz0V4Xx*7CKBmEO4JUjidAe9j4u6Dnb9Sa6RQ1ZGeowhGJrkpzTo3ZH4p4vetPrRDmVwxL1WCpp!4Gy8WrW2MAYRglz0$","id_token":"eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiIsImtpZCI6ImJXOFpjTWpCQ25KWlMtaWJYNVVRRE5TdHZ4NCJ9.eyJ2ZXIiOiIyLjAiLCJpc3MiOiJodHRwczovL2xvZ2luLm1pY3Jvc29mdG9ubGluZS5jb20vOTE4ODA0MGQtNmM2Ny00YzViLWIxMTItMzZhMzA0YjY2ZGFkL3YyLjAiLCJzdWIiOiJBQUFBQUFBQUFBQUFBQUFBQUFBQUFQclc5NUJjeDdLR2VmTlhULU9jYzVJIiwiYXVkIjoiZmIzMDU1NDItZGMzOS00NzYwLWE4YWMtMmVlYmQ5MDk5ZGQ5IiwiZXhwIjoxNjYyMDE4OTY2LCJpYXQiOjE2NjE5MzIyNjYsIm5iZiI6MTY2MTkzMjI2NiwibmFtZSI6InNjYXJlY3JvdyBrYWthc2hpIiwicHJlZmVycmVkX3VzZXJuYW1lIjoic2NhcmVjcm93a2FrYXNoaUBob3RtYWlsLmNvbSIsIm9pZCI6IjAwMDAwMDAwLTAwMDAtMDAwMC02YjZiLTVlZjhhNzI1MGIzOSIsImVtYWlsIjoic2NhcmVjcm93a2FrYXNoaUBob3RtYWlsLmNvbSIsInRpZCI6IjkxODgwNDBkLTZjNjctNGM1Yi1iMTEyLTM2YTMwNGI2NmRhZCIsImFpbyI6IkRhOE9oWVJmKlhJeTUzaTd1elFGVyF4S0RNY2pSTDhLVUJ2MHl6c0NBOTNFT3B4YTFzNDRBbXJwaE9LRVQqYnIqSlJwVlJRam9NWWlUalNOITdYVGNockZFbFZXbWI5QzRITFFRUEJRY0xaZ3ZNTzBpYipIUnNqdFVqUGtrR0k4U0R2cDdGdFVvamhTenZyMXI1NXZwdkUkIn0.kdYlnouY5ePGVJZ6OwkZ0Qx9cEYbYl7UxSa_X9XQX1CJpTsNGxRMKo2CsEnmHWc2gwwLX7KsPRCpwTz_5oRT2Q1EPWixzpHhf2DMlYUKDuXqzldR4CDgs578smVFFDwSTEmg-ZY5BCb16rTOCJjqVPI8-zF6ZxUyFYTMZH05N0ViP3tcIX7XFP6vA4TWjPpwTQ_5LQVmotH_GvBpDpZFKpQBfSQvbUlvFXioCXXwEytdnd9Pqg_ABRMCGg3kYwEt75p0VVUomDBslG2bEqW_vt5GpMFQJF9itu1ariAhdDh6fhaaCj07Fv5VAQNK_cYenOLHvoWJSwTmcJyzBAbYjg"}* Connection #0 to host login.microsoftonline.com left intact

Now i want revoke refresh token ,so i excute the folowing command but they all fail . So how can i revoke refresh token?

command 1
curl -H "Content-Type: application/x-www-form-urlencoded" https://graph.windows.net/myorganization/users/bW8ZcMjBCnJZS-ibX5UQDNStvx4/invalidateAllRefreshTokens?api-version=1.6

command 2
curl -H "Content-Type: application/x-www-form-urlencoded" https://graph.windows.net/myorganization/users/AAAAAAAAAAAAAAAAAAAAAPrW95Bcx7KGefNXT-Occ5I/invalidateAllRefreshTokens?api-version=1.6

command 3
curl -H "Content-Type: application/x-www-form-urlencoded" https://graph.windows.net/myorganization/users/fb305542-dc39-4760-a8ac-2eebd9099dd9/invalidateAllRefreshTokens?api-version=1.6

command 4
curl -H "Content-Type: application/x-www-form-urlencoded" https://graph.windows.net/myorganization/users/scarecrowkakashi[@](/users/na/?userId=ff0fe430-0000-0006-0000-000000000000).com/invalidateAllRefreshTokens?api-version=1.6

command 5
curl -H "Content-Type: application/x-www-form-urlencoded" https://graph.windows.net/myorganization/users/00000000-0000-0000-6b6b-5ef8a7250b39/invalidateAllRefreshTokens?api-version=1.6

command 6
curl -H "Content-Type: application/x-www-form-urlencoded" https://graph.windows.net/myorganization/users/9188040d-6c67-4c5b-b112-36a304b66dad/invalidateAllRefreshTokens?api-version=1.6

Accepted answer

0 additional answers

Your answer

Answer 1

AmanpreetSingh-MSFT 56,871 Moderator

Hi @scarecrow kakashi • Thank you for reaching out.

In order to revoke all the refresh tokens for a given user, you can use Microsoft Graph API i.e., https://graph.microsoft.com. The graph calls that you have shared in your question are using Azure AD Graph i.e., http://graph.windows.net, which is the older version and is deprecated.

I would suggest you use the below Graph call:

POST https://graph.microsoft.com/beta/me/invalidateAllRefreshTokens - for currently signed-in user.
POST https://graph.microsoft.com/beta/users/object_id_of_the_user/invalidateAllRefreshTokens - for currently signed-in or other users.

Permissions required: User.ReadWrite, Directory.ReadWrite.All. Keep in mind that the above call must be made under user context and not application context (where the token is acquired using ClientID and ClientSecret via client_crendtials flow).

Read more: user: invalidateAllRefreshTokens

-----------------------------------------------------------------------------------------------------------

Please "Accept the answer" if the information helped you. This will help us and others in the community as well.

scarecrow kakashi 246 Reputation points

2022-09-01T06:18:27.027+00:00

How to get “object_id_of_the_user”?
Do I need to bring access token when sending a post request?
AmanpreetSingh-MSFT 56,871 Reputation points Moderator

2022-09-02T06:08:16.9+00:00

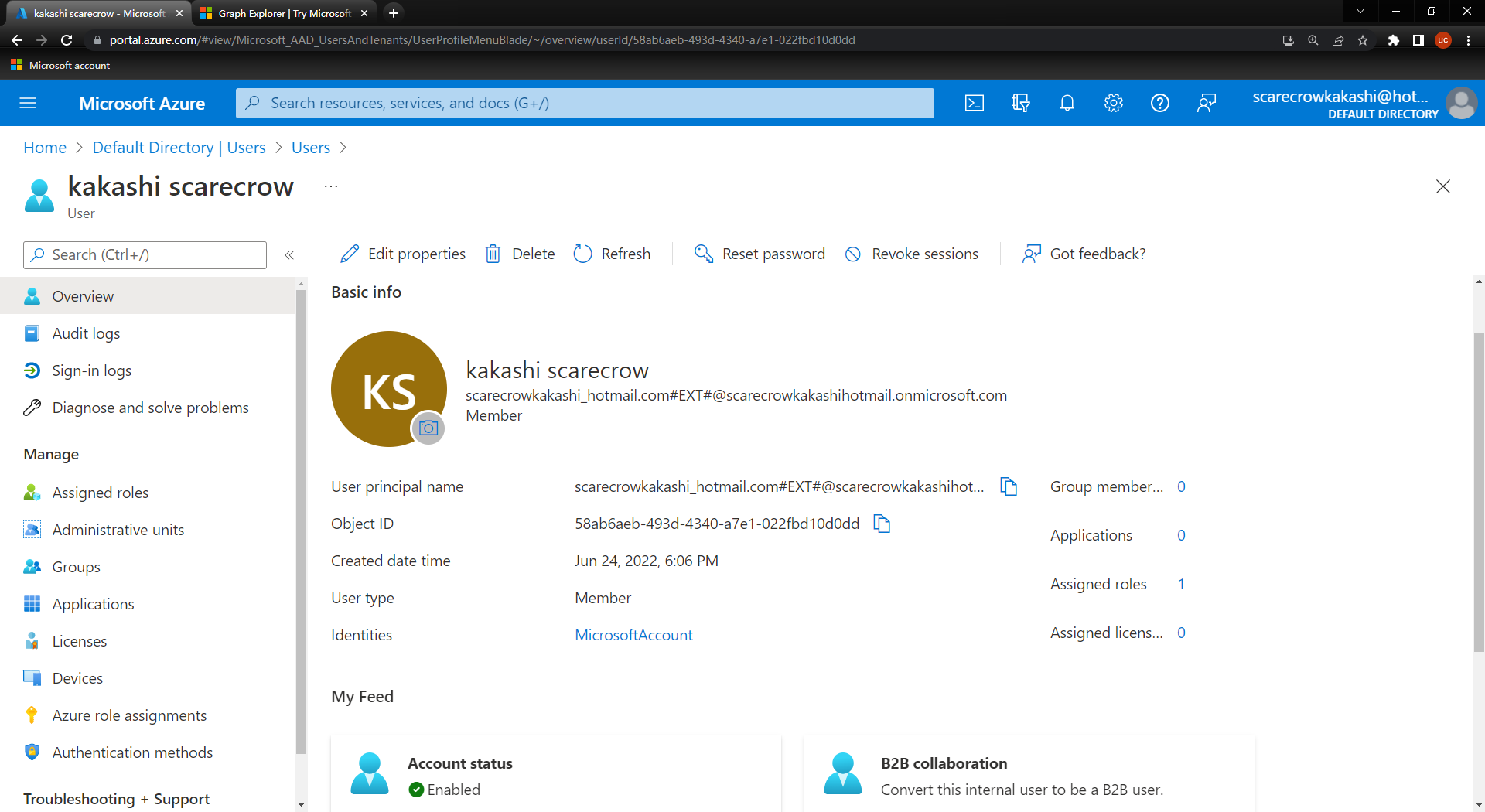

@scarecrow kakashi • You can get the “object_id_of_the_user” using Azure Portal > Azure AD > Users > Click on the user account > On the profile blade, you can see the object id of the user.

Yes, you need to pass the access token with User.ReadWrite and Directory.ReadWrite.All permissions with the Post call.
scarecrow kakashi 246 Reputation points

2022-09-02T07:01:27.89+00:00

Hi @AmanpreetSingh-MSFT ,

I got “object_id_of_the_user”

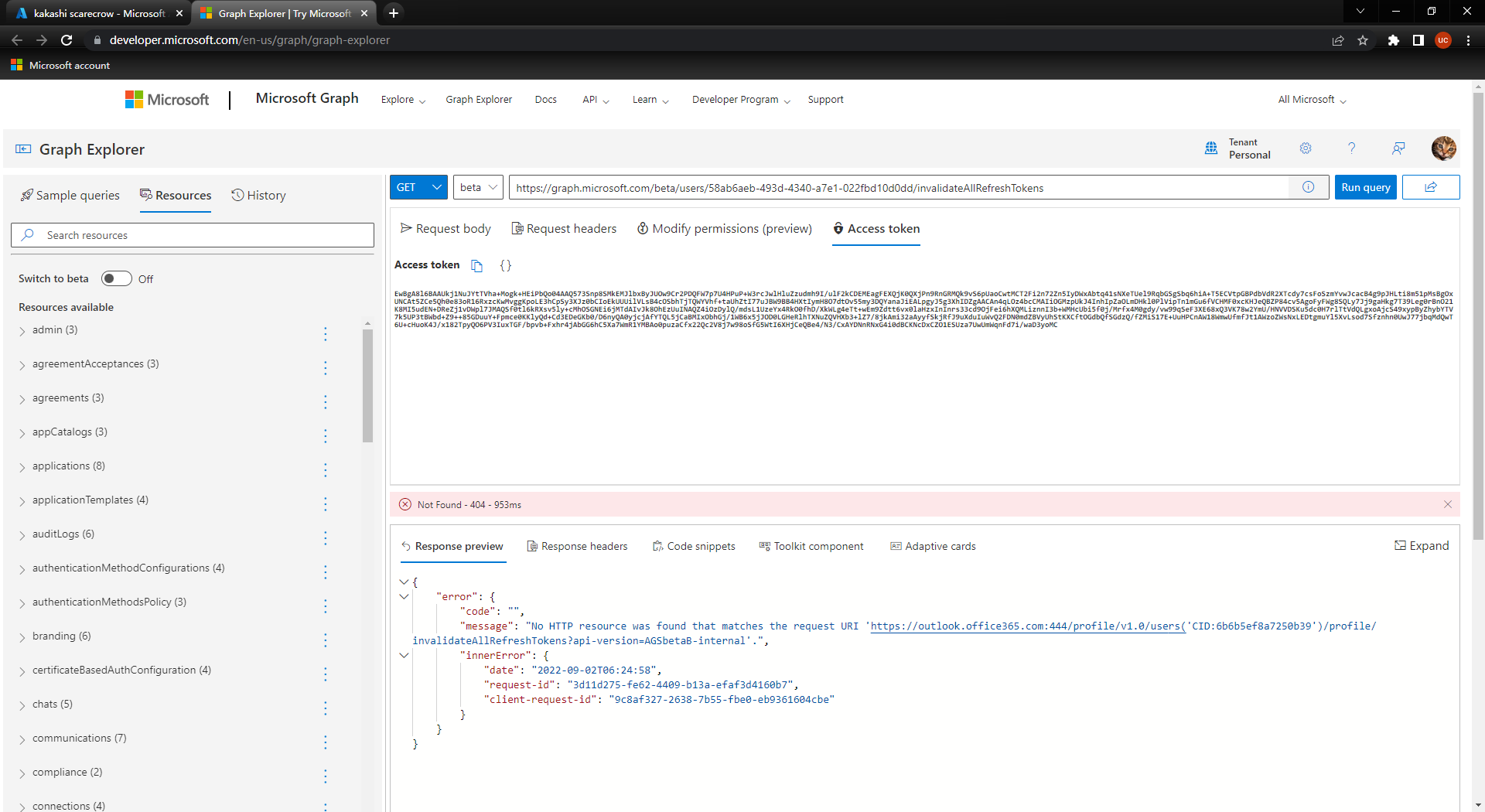

And call " https://graph.microsoft.com/beta/users/object_id_of_the_user/invalidateAllRefreshTokens " API ,from graph-explorer

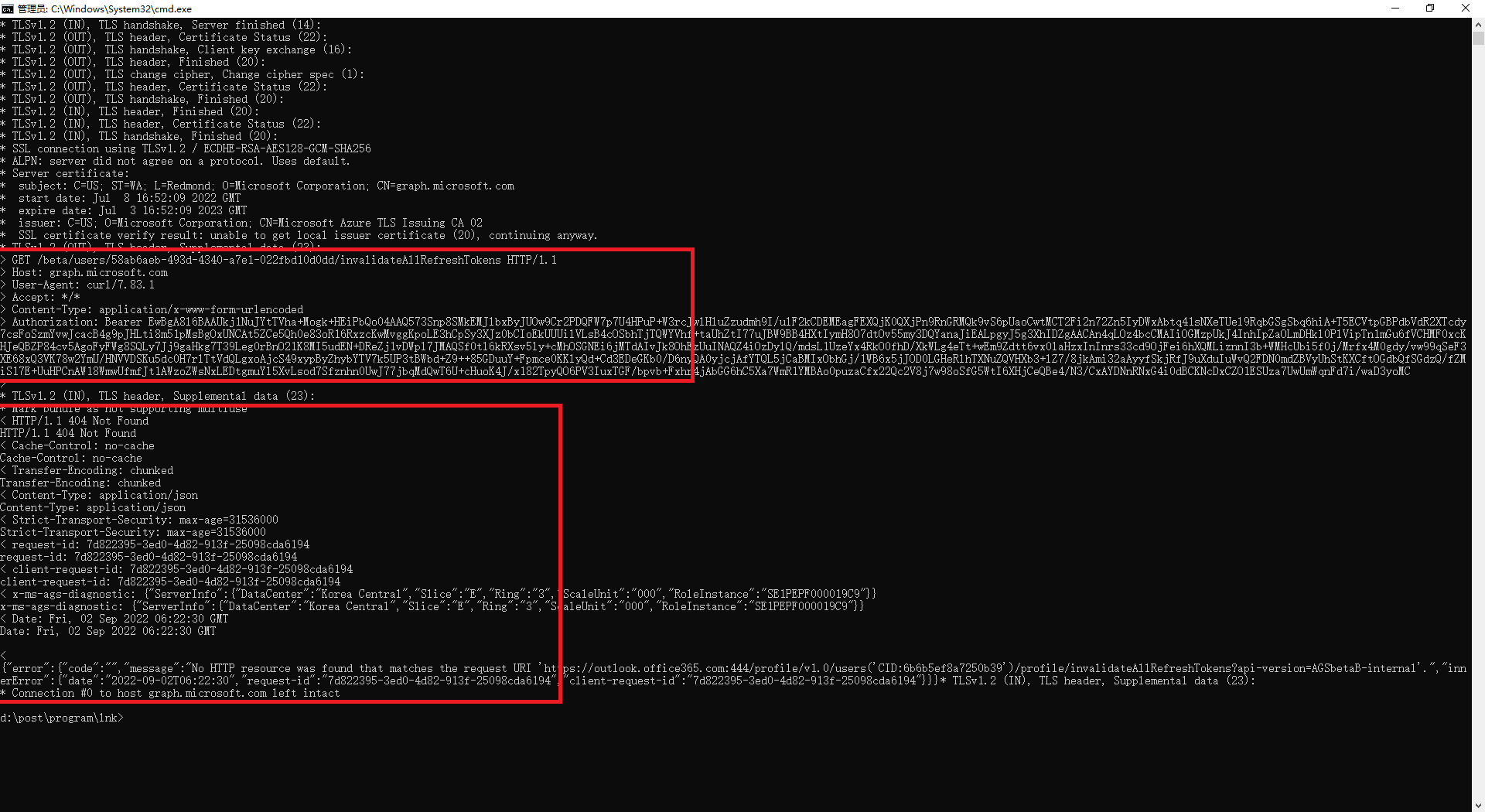

And call " https://graph.microsoft.com/beta/users/object_id_of_the_user/invalidateAllRefreshTokens " API ,from command line.

curl -vik -H "Content-Type: application/x-www-form-urlencoded" -H "Authorization: Bearer EwBgA8l6BAAUkj1NuJYtTVha+M...d3EDeGKb0/D6nyQA0yjcjAfYTQL5jCaBMIxObhGj/1WB6x5jJOD0LGHeRlhTXNuZQVHXb3+lZ7/8jkAmi32aAyyfSkjRfJ9uXduIuWvQ2FDN0mdZBVyUhStKXCftOGdbQfSGdzQ/fZMiS17E+UuHPCnAW18WmwUfmfJt1AWzoZWsNxLEDtgmuYl5XvLsod7Sfznhn0UwJ77jbqMdQwT6U+cHuoK4J/x182TpyQO6PV3IuxTGF/bpvb+Fxhr4jAbGG6hC5Xa7WmR1YMBAo0puzaCfx22Qc2V8j7w98oSfG5WtI6XHjCeQBe4/N3/CxAYDNnRNxG4i0dBCKNcDxCZO1ESUza7UwUmWqnFd7i/waD3yoMC" https://graph.microsoft.com/beta/users/58ab6aeb-493d-4340-a7e1-022fbd10d0dd/invalidateAllRefreshTokens

But they are all fail
AmanpreetSingh-MSFT 56,871 Reputation points Moderator

2022-09-02T07:30:46.777+00:00

@scarecrow kakashi • You are getting the error because you are signed in using the Hotmail account which is connecting you to the Microsoft Services tenant and not your own tenant. If your Hotmail account is the global administrator of your tenant, I would suggest you create a new user using Azure AD > Users > +New user > Create user option, assign the user with Global Administrator role by navigating to Azure AD > Roles and Administrators > Global Administrator > +Add assignment and then sign in to Graph Explorer using the new user account. The above graph call would work afterward.
AmanpreetSingh-MSFT 56,871 Reputation points Moderator

2022-09-05T06:02:27.993+00:00

@scarecrow kakashi • Have you had a chance to test it out?
scarecrow kakashi 246 Reputation points

2022-09-05T10:51:22.163+00:00

Hi @AmanpreetSingh-MSFT

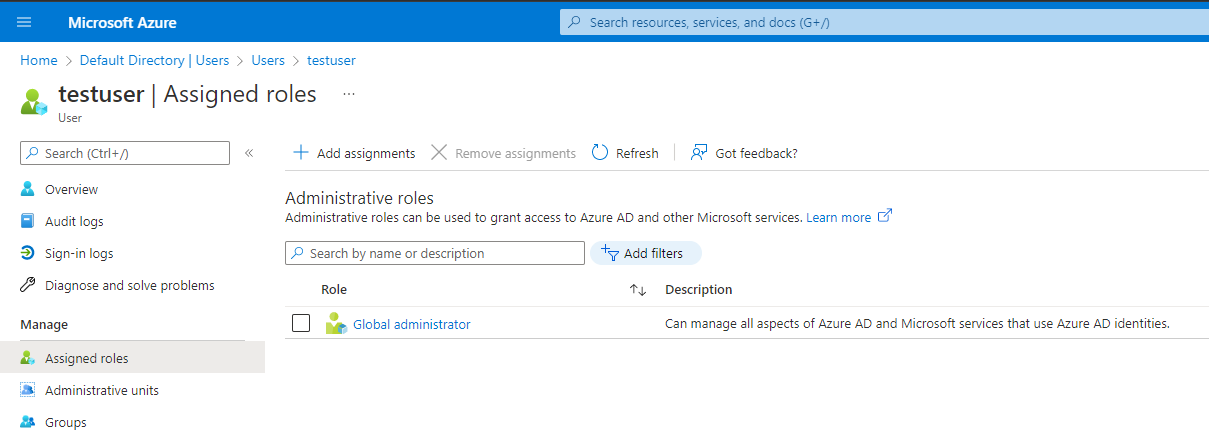

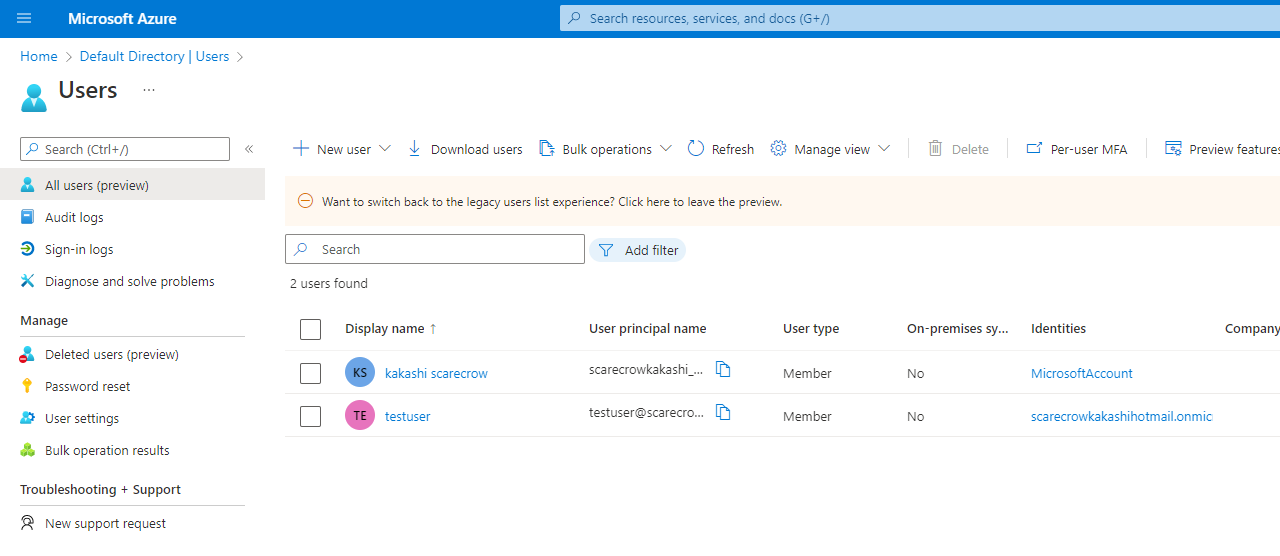

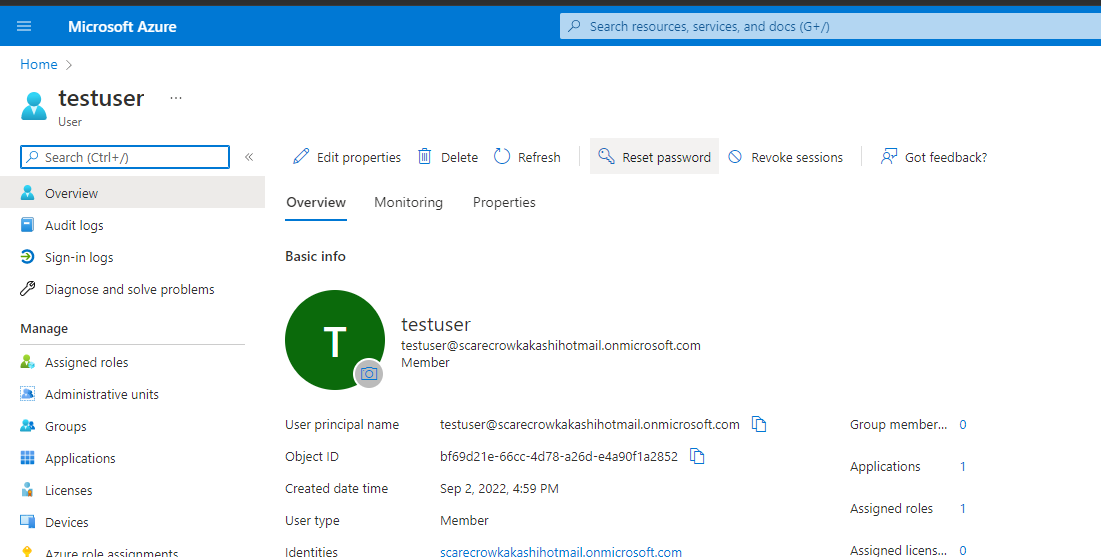

I create a new user as blow:

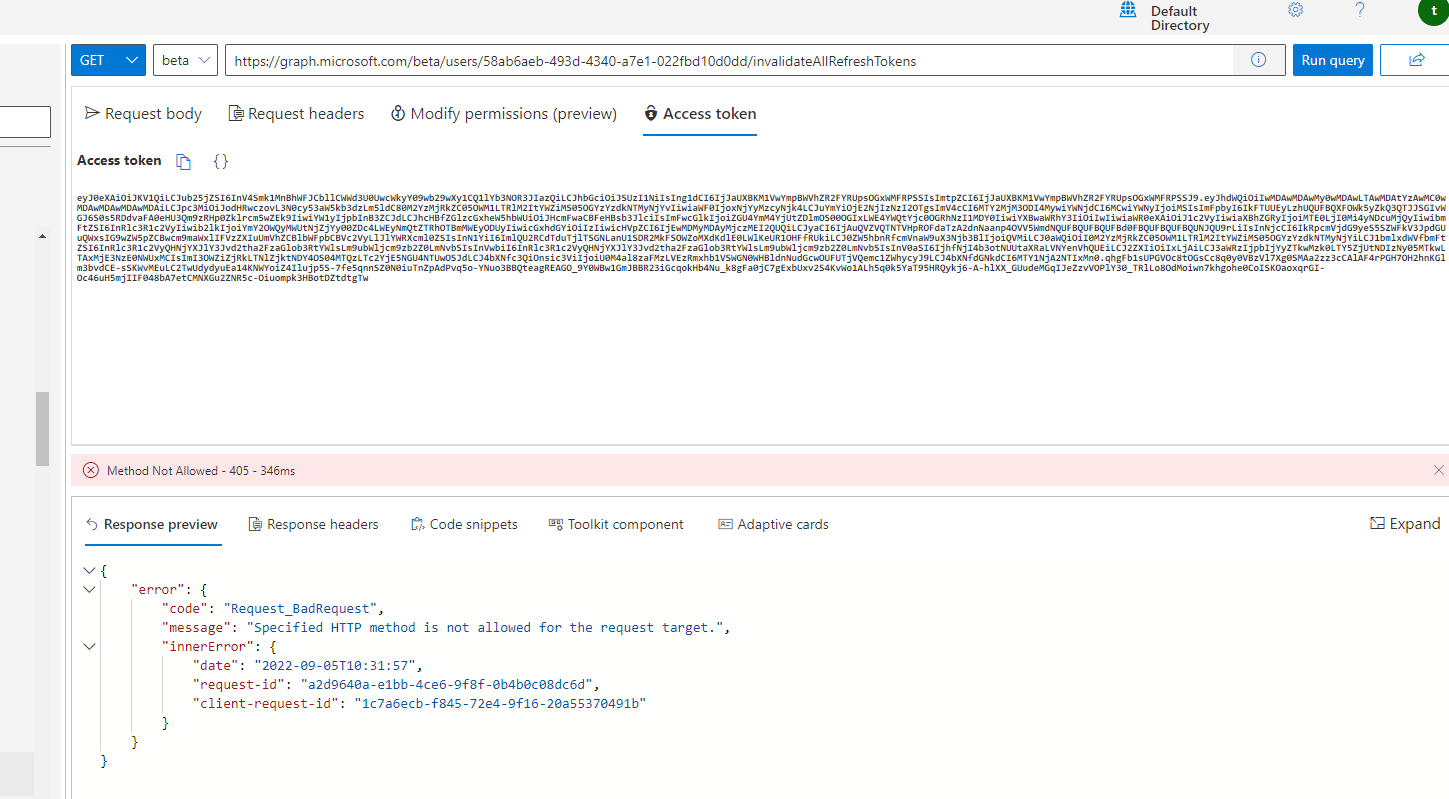

And sign in to Graph Explorer,but the API call still fail.
AmanpreetSingh-MSFT 56,871 Reputation points Moderator

2022-09-08T03:58:44.437+00:00

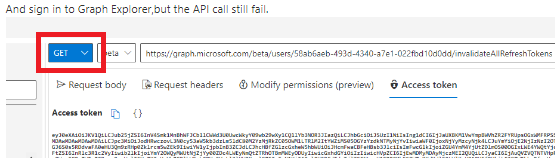

@scarecrow kakashi • The method to invoke the InvalidateAllRefreshTokens call must be POST but looking at your screenshot, you are using the GET method which is why it is resulting in the Specified HTTP method is not allowed for the request target error.
AmanpreetSingh-MSFT 56,871 Reputation points Moderator

2022-09-12T07:48:02.677+00:00

@scarecrow kakashi • Have you had a chance to check it out?
