Azure Synapse Merge Command is working with Error-"Updating a distribution key column in a MERGE statement is not supported."

Question

Hello,

I am doing a incremental load on target table using delta load from the source table based on certain conditions. It is supposed to insert/update/delete records from the source table to target table. I am achieving this through a sequence of processes in a stored proc. The store proc won't update the distribution key of any table involved throughout all the operations. I have validated that the MERGE command successfully updates/inserts/deletes record in the target table using source table, but when MERGE operation finishes, it throws the "Updating a distribution key column in a MERGE statement is not supported.". Operations post this MERGE command are skipped and system exits the Store Proc Execution

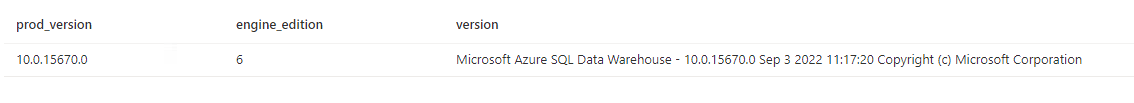

Azure Synapse Version:

Target Table DDL:

CREATE TABLE gffdw.POC_Chrtx_D
WITH
(
DISTRIBUTION = HASH(Chrtx_Sub_Account)
)
AS
SELECT * from gffdw.Chrtx_D

Source Table DDL

CREATE TABLE #trans2_filt_chrt_D
WITH
(
DISTRIBUTION = HASH(Chrtx_Sub_Account)
)
AS
SELECT * from #trans_filt_chrt_D

MERGE Query

Merge gffdw.POC_Chrtx_D POC
USING #trans2_filt_chrt_D inc
ON POC.chrtx_id = inc.chrt_id
WHEN MATCHED and inc.chrt_id<>'' and POC.tgt_hash_key<>inc.src_hash_key
THEN UPDATE /Records from inc to POC/
WHEN MATCHED and inc.chrt_id =''
THEN DELETE
WHEN NOT MATCHED and inc.chrt_id<>''
THEN INSERT /Records from inc to POC/;

Note: I have not listed out exact commands for insert/update as the tables have 100+ columns.

Post this MERGE operation in my SP, I have some additional DDL commands to be executed as follows

ALTER TABLE gffdw.STG_Filt_Chrt_D DROP COLUMN Chrt_Lang
ALTER TABLE gffdw.STG_Filt_Chrt_D DROP COLUMN Chrt_Cntry
ALTER TABLE gffdw.STG_Filt_Chrt_D DROP COLUMN Variant
ALTER TABLE gffdw.STG_Filt_Chrt_D Add Chrt_Key_Hash VARBINARY(8000)
ALTER TABLE gffdw.STG_Filt_Chrt_D Add Chrt_Row_Hash VARBINARY(8000)

All these ALTER commands are skipped due to the MERGE error.

Thanks
Bhanu

Answer 1

Hello @Bhanurdra Narayan Mohapatra ,
Thanks for the question and using MS Q&A platform.
As we understand the ask here is to get rid of the error "Updating a distribution key column in a MERGE statement is not supported", please do let us know if its not accurate.

So the reason you are getting the error is because the below statement

THEN UPDATE /Records from inc to POC/

is probably having a statement like

SET inc.Chrtx_Sub_Account = XXXXX

please beware that on the column Chrtx_Sub_Account a HASH distribution is set at the table level .

CREATE TABLE gffdw.POC_Chrtx_D
WITH
(
DISTRIBUTION = HASH(Chrtx_Sub_Account)
)

So removing the column from the update should help you .

I tried a simple query and pasting that below

CREATE TABLE dbo.himanshu_Distribution_hash_Source
(
id int NOT NULL,
description varchar(200)
)
WITH
(
DISTRIBUTION = HASH (id)
)

INSERT INTO himanshu_Distribution_hash_Source values (1,'This is an entry into himanshu_Distribution_hash_Source table')
select * from himanshu_Distribution_hash_Source

CREATE TABLE dbo.himanshu_Distribution_hash_Destination
(
id int NOT NULL,
description varchar(100)

)
WITH
(
DISTRIBUTION = HASH (id)

)

The below query will fail due to the same reason

MERGE himanshu_Distribution_hash_Destination as dest
using himanshu_Distribution_hash_Source as src
on src.id = dest.id
when matched then
Update Set
id = 1000
WHEN NOT MATCHED THEN
INSERT (id, description)
VALUES (src.id, src.description);

The below just works fine

MERGE himanshu_Distribution_hash_Destination as dest
using himanshu_Distribution_hash_Source as src
on src.id = dest.id
when matched then
** Update Set **
** description = 'Updated'**
WHEN NOT MATCHED THEN
INSERT (id, description)
VALUES (src.id, src.description);

This is called out here : https://learn.microsoft.com/en-us/sql/t-sql/statements/merge-transact-sql?view=azure-sqldw-latest&preserve-view=true#remarks

Please do let me if you have any queries.
Thanks
Himanshu

---
