How to transform complex JSON API file and to store it in Azure sql database

Question

I have a complex json API response which is requested using azure data factory and trying to store it in the Azure sql database. After using copy data function from data factory, it only gives initial rows but not the entire result.

Here is my data :

[
{
"sitesEnergy": {
"timeUnit": "DAY",
"unit": "Wh",
"count": 5,
"siteEnergyList": [
{
"siteId": 2248407,
"energyValues": {
"measuredBy": "METER",
"values": [
{
"date": "2022-09-01 00:00:00",
"value": 1520734.0
},
{
"date": "2022-09-02 00:00:00",
"value": 1630062.0
},
{
"date": "2022-09-03 00:00:00",
"value": 1495343.0
},
{
"date": "2022-09-04 00:00:00",
"value": 1363594.0
},
{
"date": "2022-09-05 00:00:00",
"value": 146063.0
}
]
}
},
{
"siteId": 1485192,
"energyValues": {
"measuredBy": "METER",
"values": [
{
"date": "2022-09-01 00:00:00",
"value": 265781.0
},
{
"date": "2022-09-02 00:00:00",
"value": 281640.0
},
{
"date": "2022-09-03 00:00:00",
"value": 239422.0
},
{
"date": "2022-09-04 00:00:00",
"value": 227063.0
},
{
"date": "2022-09-05 00:00:00",
"value": 45094.0
}
]
}
},
{
"siteId": 1449188,
"energyValues": {
"measuredBy": "METER",
"values": [
{
"date": "2022-09-01 00:00:00",
"value": 1410626.0
},
{
"date": "2022-09-02 00:00:00",
"value": 1387875.0
},
{
"date": "2022-09-03 00:00:00",
"value": 1349688.0
},
{
"date": "2022-09-04 00:00:00",
"value": 1206687.0
},
{
"date": "2022-09-05 00:00:00",
"value": 308375.0
}
]
}

Each "SiteID" column has "values" inside which there are "value" for several "date" columns. But my result is only giving the initial date, values but not all. Please see the below results from sql table.

Could you please help me how to get all the data in nested object "values" instead just the first value.

Also, below the screenshot details I used while mapping in copy activity.

Answer 1

Hi @Goutham Vutukuri ,

Thankyou for using Microsoft Q&A platform and thanks for posting your question here.

As I understand your requirement you want to copy complex JSON into Azure SQL table.

First of all the JSON that you have shared is an incomplete JSON , there are few missing braces at the end. Here I am pasting the valid JSON:

[
{
"sitesEnergy": {
"timeUnit": "DAY",
"unit": "Wh",
"count": 5,
"siteEnergyList": [
{
"siteId": 2248407,
"energyValues": {
"measuredBy": "METER",
"values": [
{
"date": "2022-09-01 00:00:00",
"value": 1520734.0
},
{
"date": "2022-09-02 00:00:00",
"value": 1630062.0
},
{
"date": "2022-09-03 00:00:00",
"value": 1495343.0
},
{
"date": "2022-09-04 00:00:00",
"value": 1363594.0
},
{
"date": "2022-09-05 00:00:00",
"value": 146063.0
}
]
}
},
{
"siteId": 1485192,
"energyValues": {
"measuredBy": "METER",
"values": [
{
"date": "2022-09-01 00:00:00",
"value": 265781.0
},
{
"date": "2022-09-02 00:00:00",
"value": 281640.0
},
{
"date": "2022-09-03 00:00:00",
"value": 239422.0
},
{
"date": "2022-09-04 00:00:00",
"value": 227063.0
},
{
"date": "2022-09-05 00:00:00",
"value": 45094.0
}
]
}
},
{
"siteId": 1449188,
"energyValues": {
"measuredBy": "METER",
"values": [
{
"date": "2022-09-01 00:00:00",
"value": 1410626.0
},
{
"date": "2022-09-02 00:00:00",
"value": 1387875.0
},
{
"date": "2022-09-03 00:00:00",
"value": 1349688.0
},
{
"date": "2022-09-04 00:00:00",
"value": 1206687.0
},
{
"date": "2022-09-05 00:00:00",
"value": 308375.0
}
]
}
}
]
}
}
]

Now, your requirement can't be achieved by using Copy activity simply because it's a complex nested json which needs to be flattened before copying it to the relational database. Here are the steps you can follow :

1. Create a dataset pointing to the source .json file and use the same in the source transformation . In the source settings option, select 'Array of document' in the JSON settings option.
2. Use Flatten transformation to unroll by 'siteEnergyList[]' and use the same in the unroll root option. Now, Select 'timeUnit','unit','count','siteId','value[]' as the source columns .
3. Use another Flatten transformation and provide 'value[]' in the unroll by option and select 'date' and 'value' as the source columns and preview the data
4. Use Sink transformation and select a dataset pointing to the Azure SQL table and call the dataflow in ADF pipeline and execute it.

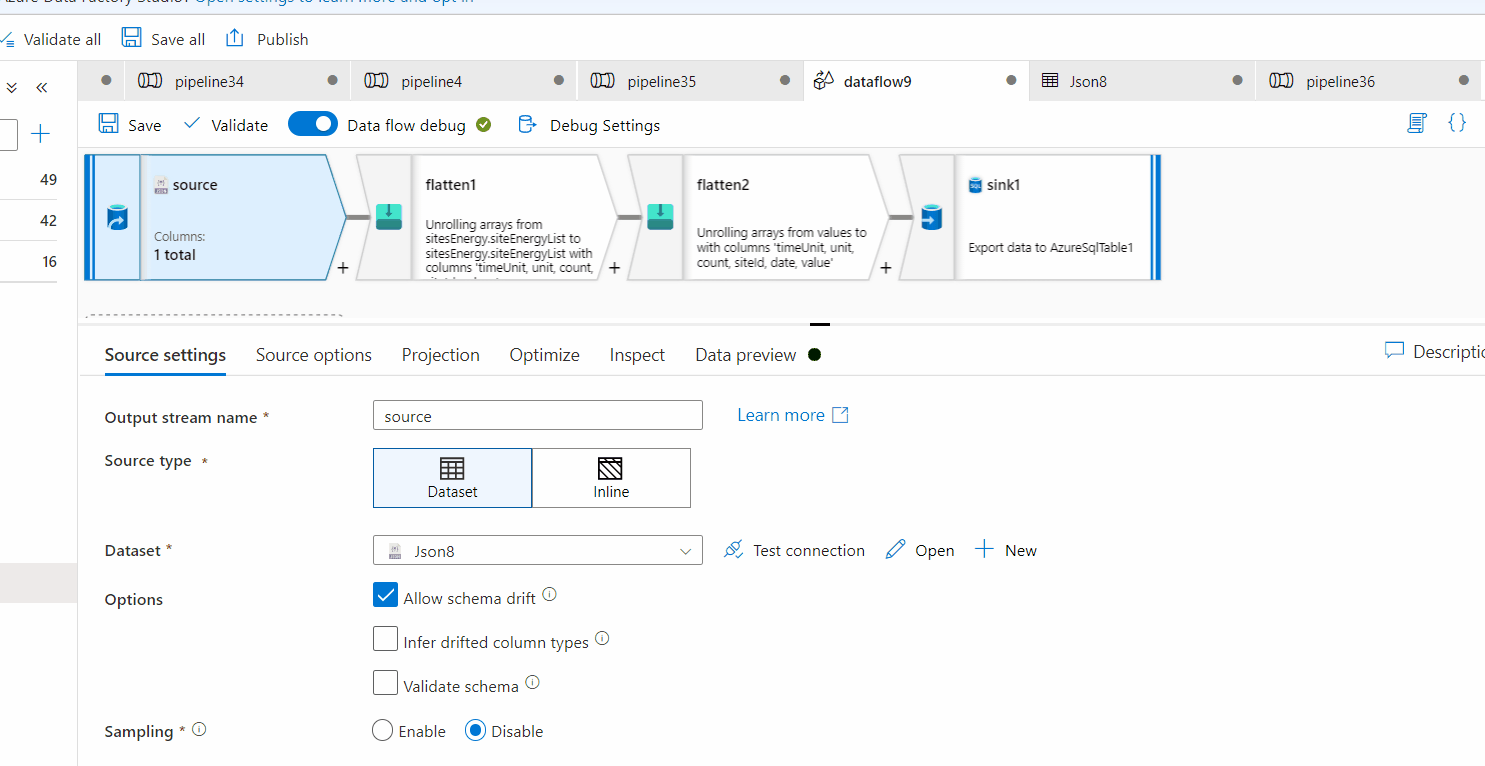

Check the below gif for reference:

Hope this will help. Please let us know if any further queries.

------------------------------
