Tutorial: Azure Active Directory single sign-on (SSO) integration with CheckProof

  • Article

In this tutorial, you'll learn how to integrate CheckProof with Azure Active Directory (Azure AD). When you integrate CheckProof with Azure AD, you can:

  • Control in Azure AD who has access to CheckProof.
  • Enable your users to be automatically signed-in to CheckProof with their Azure AD accounts.
  • Manage your accounts in one central location - the Azure portal.

Prerequisites

To get started, you need the following items:

  • An Azure AD subscription. If you don't have a subscription, you can get a free account.
  • CheckProof single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Azure AD SSO in a test environment.

To configure the integration of CheckProof into Azure AD, you need to add CheckProof from the gallery to your list of managed SaaS apps.

  1. Sign in to the Azure portal using either a work or school account, or a personal Microsoft account.
  2. On the left navigation pane, select the Azure Active Directory service.
  3. Navigate to Enterprise Applications and then select All Applications.
  4. To add new application, select New application.
  5. In the Add from the gallery section, type CheckProof in the search box.
  6. Select CheckProof from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Azure AD SSO for CheckProof

Configure and test Azure AD SSO with CheckProof using a test user called B.Simon. For SSO to work, you need to establish a link relationship between an Azure AD user and the related user in CheckProof.

To configure and test Azure AD SSO with CheckProof, perform the following steps:

  1. Configure Azure AD SSO - to enable your users to use this feature.
    1. Create an Azure AD test user - to test Azure AD single sign-on with B.Simon.
    2. Assign the Azure AD test user - to enable B.Simon to use Azure AD single sign-on.
  2. Configure CheckProof SSO - to configure the single sign-on settings on application side.
    1. Create CheckProof test user - to have a counterpart of B.Simon in CheckProof that is linked to the Azure AD representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Azure AD SSO

Follow these steps to enable Azure AD SSO in the Azure portal.

  1. In the Azure portal, on the CheckProof application integration page, find the Manage section and select single sign-on.

  2. On the Select a single sign-on method page, select SAML.

  3. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  4. On the Set up single sign-on with SAML page, perform the following steps:

    a. In the Identifier text box, type a URL using the following pattern: https://api.checkproof.com/api/v1/saml/<ID>/metadata

    b. In the Reply URL text box, type a URL using the following pattern: https://api.checkproof.com/api/v1/saml/<ID>/acs

    Note

    These values are not real. Update these values with the actual Identifier and Reply URL. Contact CheckProof Client support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section in the Azure portal.

  5. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Federation Metadata XML and select Download to download the certificate and save it on your computer.

    The Certificate download link

  6. On the Set up CheckProof section, copy the appropriate URL(s) based on your requirement.

    Copy configuration URLs

Create an Azure AD test user

In this section, you'll create a test user in the Azure portal called B.Simon.

  1. From the left pane in the Azure portal, select Azure Active Directory, select Users, and then select All users.
  2. Select New user at the top of the screen.
  3. In the User properties, follow these steps:
    1. In the Name field, enter B.Simon.
    2. In the User name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Click Create.

Assign the Azure AD test user

In this section, you'll enable B.Simon to use Azure single sign-on by granting access to CheckProof.

  1. In the Azure portal, select Enterprise Applications, and then select All applications.
  2. In the applications list, select CheckProof.
  3. In the app's overview page, find the Manage section and select Users and groups.
  4. Select Add user, then select Users and groups in the Add Assignment dialog.
  5. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
  6. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
  7. In the Add Assignment dialog, click the Assign button.

Configure CheckProof SSO

  1. In a different web browser window, sign into CheckProof website as an administrator.

  2. Go to the Settings > Company Settings > SAML SETTINGS page and Upload the Federation Metadata XML in Federation XML textbox.

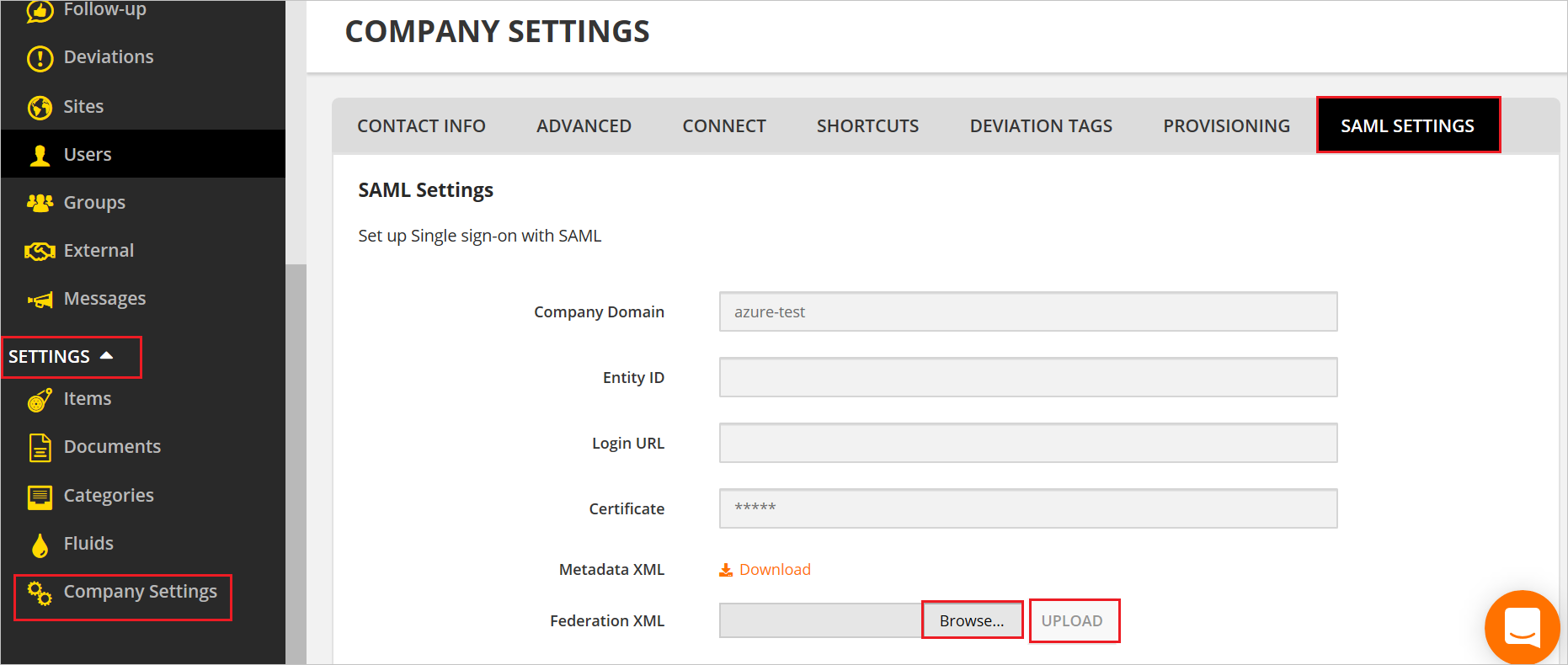

    SAML settings page.

Create CheckProof test user

  1. In a different web browser window, sign into CheckProof website as an administrator.

  2. Click on Profile and select My profile.

    CheckProof test user page.

  3. Click on CREATE USER.

  4. In the CREATE USER page, fill the required fields and click on SAVE.

    CheckProof create user page.

Note

CheckProof also supports automatic user provisioning, you can find more details here on how to configure automatic user provisioning.

Test SSO

In this section, you test your Azure AD single sign-on configuration with following options.

  • Click on Test this application in Azure portal and you should be automatically signed in to the CheckProof for which you set up the SSO.

  • You can use Microsoft My Apps. When you click the CheckProof tile in the My Apps, you should be automatically signed in to the CheckProof for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure CheckProof you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
