Tutorial: Azure Active Directory single sign-on (SSO) integration with SAP Fiori

In this tutorial, you'll learn how to integrate SAP Fiori with Azure Active Directory (Azure AD). When you integrate SAP Fiori with Azure AD, you can:

  • Control in Azure AD who has access to SAP Fiori.
  • Enable your users to be automatically signed-in to SAP Fiori with their Azure AD accounts.
  • Manage your accounts in one central location - the Azure portal.


To get started, you need the following items:

  • An Azure AD subscription. If you don't have a subscription, you can get a free account.
  • SAP Fiori single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Azure AD SSO in a test environment.

  • SAP Fiori supports SP initiated SSO


For SAP Fiori initiated iFrame Authentication, we recommend using the IsPassive parameter in the SAML AuthnRequest for silent authentication. For more details of the IsPassive parameter refer to Azure AD SAML single sign-on information.

To configure the integration of SAP Fiori into Azure AD, you need to add SAP Fiori from the gallery to your list of managed SaaS apps.

  1. Sign in to the Azure portal using either a work or school account, or a personal Microsoft account.
  2. On the left navigation pane, select the Azure Active Directory service.
  3. Navigate to Enterprise Applications and then select All Applications.
  4. To add new application, select New application.
  5. In the Add from the gallery section, type SAP Fiori in the search box.
  6. Select SAP Fiori from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Azure AD SSO for SAP Fiori

Configure and test Azure AD SSO with SAP Fiori using a test user called B.Simon. For SSO to work, you need to establish a link relationship between an Azure AD user and the related user in SAP Fiori.

To configure and test Azure AD SSO with SAP Fiori, perform the following steps:

  1. Configure Azure AD SSO - to enable your users to use this feature.
    1. Create an Azure AD test user - to test Azure AD single sign-on with B.Simon.
    2. Assign the Azure AD test user - to enable B.Simon to use Azure AD single sign-on.
  2. Configure SAP Fiori SSO - to configure the single sign-on settings on application side.
    1. Create SAP Fiori test user - to have a counterpart of B.Simon in SAP Fiori that is linked to the Azure AD representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Azure AD SSO

Follow these steps to enable Azure AD SSO in the Azure portal.

  1. Open a new web browser window and sign in to your SAP Fiori company site as an administrator.

  2. Make sure that http and https services are active and that the relevant ports are assigned to transaction code SMICM.

  3. Sign in to SAP Business Client for SAP system T01, where single sign-on is required. Then, activate HTTP Security Session Management.

    1. Go to transaction code SICF_SESSIONS. All relevant profile parameters with current values are shown. They look like the following example:

      login/create_sso2_ticket = 2
      login/accept_sso2_ticket = 1
      login/ticketcache_entries_max = 1000
      login/ticketcache_off = 0  login/ticket_only_by_https = 0
      icf/set_HTTPonly_flag_on_cookies = 3
      icf/user_recheck = 0  http/security_session_timeout = 1800
      http/security_context_cache_size = 2500
      rdisp/plugin_auto_logout = 1800
      rdisp/autothtime = 60


      Adjust the parameters based on your organization requirements. The preceding parameters are given only as an example.

    2. If necessary, adjust parameters in the instance (default) profile of the SAP system and restart the SAP system.

    3. Double-click the relevant client to enable an HTTP security session.

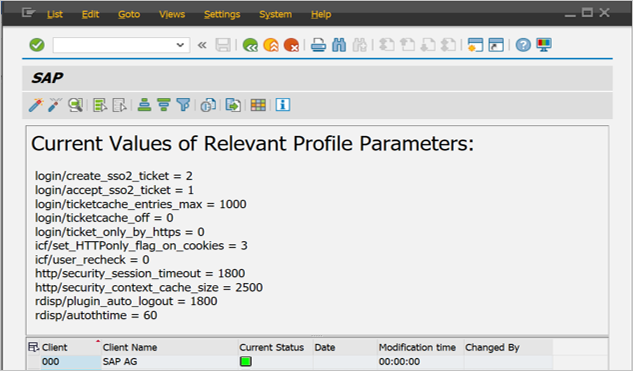

      The Current Values of Relevant Profile Parameters page in SAP

    4. Activate the following SICF services:

      /sap/bc/webdynpro/sap/sec_diag_tool (This is only to enable / disable trace)
  4. Go to transaction code SAML2 in Business Client for SAP system [T01/122]. The configuration UI opens in a new browser window. In this example, we use Business Client for SAP system 122.

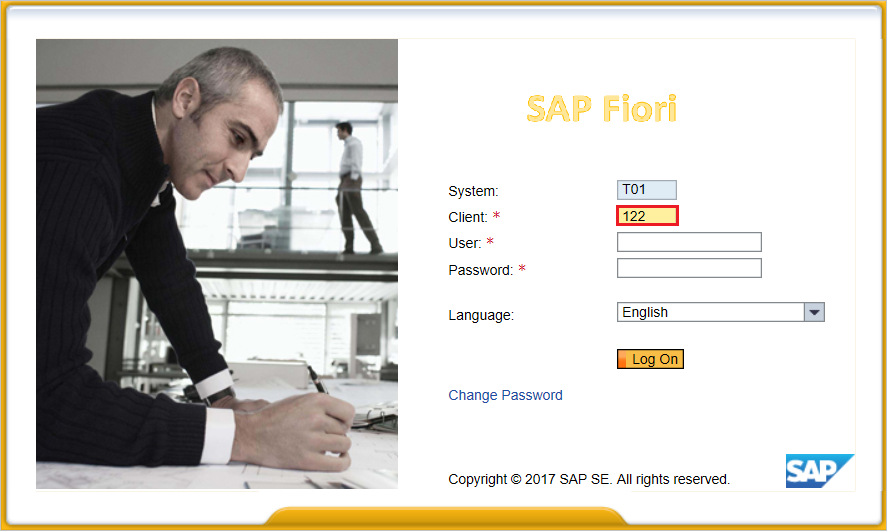

    The SAP Fiori Business Client sign-in page

  5. Enter your username and password, and then select Log on.

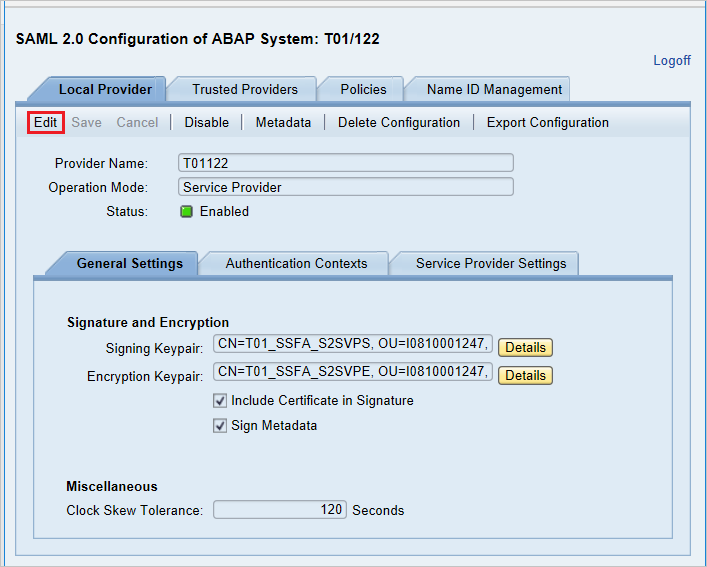

    The SAML 2.0 Configuration of ABAP System T01/122 page in SAP

  6. In the Provider Name box, replace T01122 with http://T01122, and then select Save.


    By default, the provider name is in the format <sid><client>. Azure AD expects the name in the format <protocol>://<name>. We recommend that you maintain the provider name as https://<sid><client> so you can configure multiple SAP Fiori ABAP engines in Azure AD.

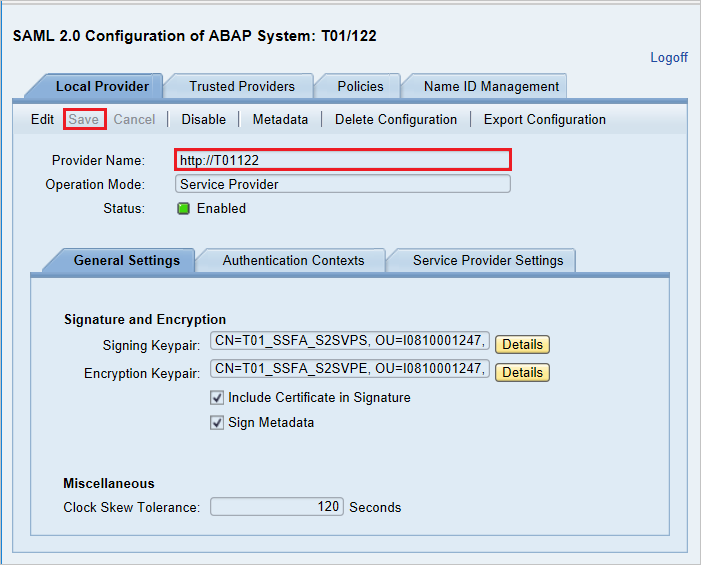

    The updated provider name in the SAML 2.0 Configuration of ABAP System T01/122 page in SAP

  7. Select Local Provider tab > Metadata.

  8. In the SAML 2.0 Metadata dialog box, download the generated metadata XML file and save it on your computer.

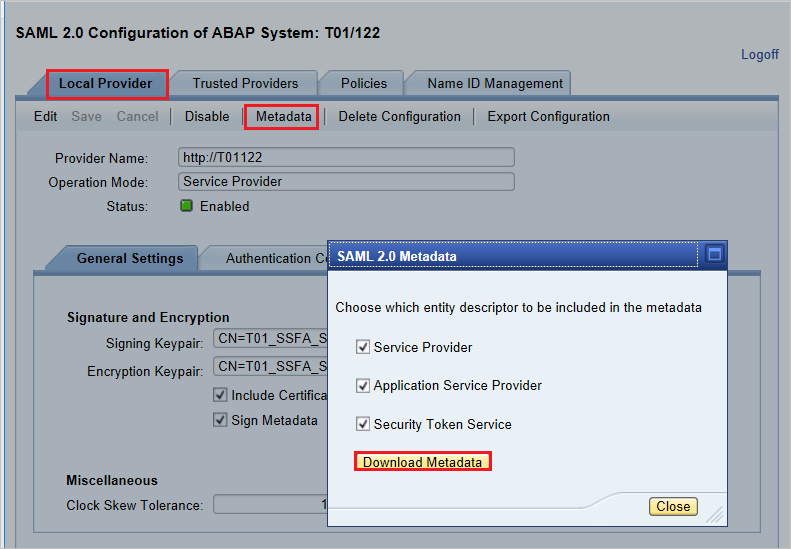

    The Download Metadata link in the SAP SAML 2.0 Metadata dialog box

  9. In the Azure portal, on the SAP Fiori application integration page, find the Manage section and select single sign-on.

  10. On the Select a single sign-on method page, select SAML.

  11. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  12. On the Basic SAML Configuration section, if you have Service Provider metadata file, perform the following steps:

    1. Click Upload metadata file.

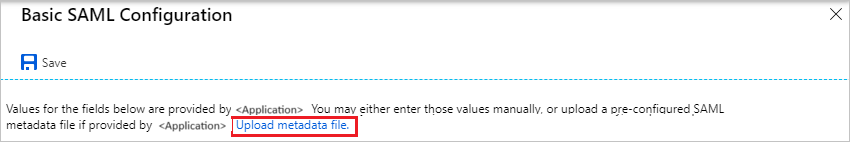

      Upload metadata file

    2. Click on folder logo to select the metadata file and click Upload.

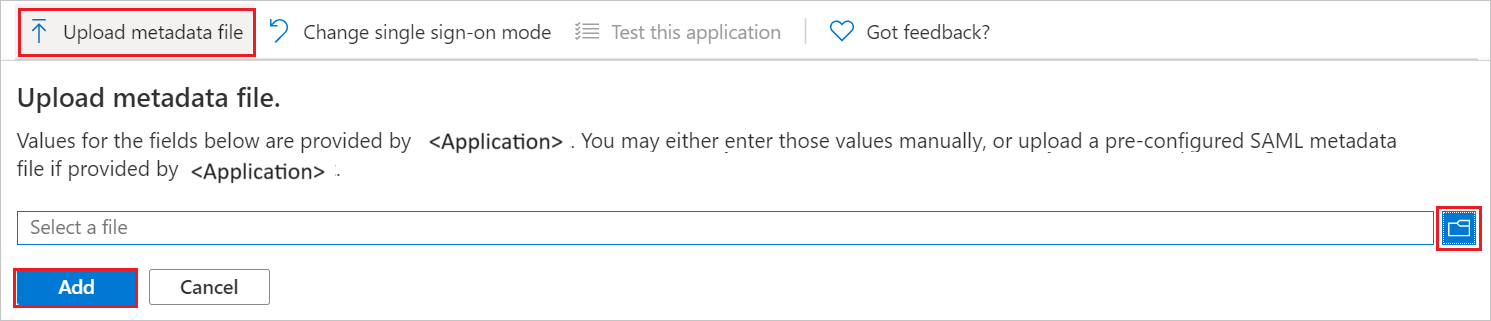

      choose metadata file

    3. When the metadata file is successfully uploaded, the Identifier and Reply URL values are automatically populated in the Basic SAML Configuration pane. In the Sign on URL box, enter a URL that has the following pattern: https://<your company instance of SAP Fiori>.


      A few customers report errors related to incorrectly configured Reply URL values. If you see this error, you can use the following PowerShell script to set the correct Reply URL for your instance:

      Set-AzureADServicePrincipal -ObjectId $ServicePrincipalObjectId -ReplyUrls "<Your Correct Reply URL(s)>"

      You can set the ServicePrincipal object ID yourself before running the script, or you can pass it here.

  13. The SAP Fiori application expects the SAML assertions to be in a specific format. Configure the following claims for this application. To manage these attribute values, in the Set up Single Sign-On with SAML pane, select Edit.

    The User attributes pane

  14. In the User Attributes & Claims pane, configure the SAML token attributes as shown in the preceding image. Then, complete the following steps:

    1. Select Edit to open the Manage user claims pane.

    2. In the Transformation list, select ExtractMailPrefix().

    3. In the Parameter 1 list, select user.userprincipalname.

    4. Select Save.

      The Manage user claims pane

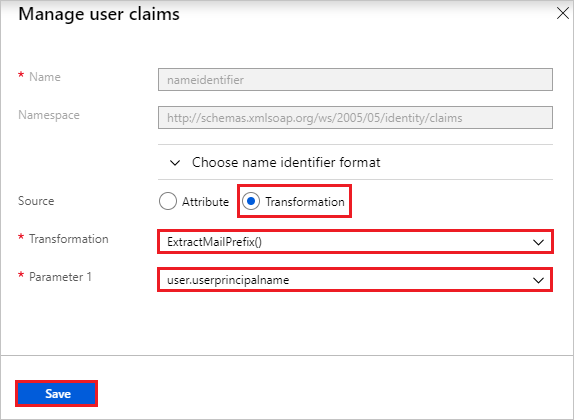

      The Transformation section in the Manage user claims pane

  15. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Federation Metadata XML and select Download to download the certificate and save it on your computer.

    The Certificate download link

  16. On the Set up SAP Fiori section, copy the appropriate URL(s) based on your requirement.

    Copy configuration URLs

Create an Azure AD test user

In this section, you'll create a test user in the Azure portal called B.Simon.

  1. From the left pane in the Azure portal, select Azure Active Directory, select Users, and then select All users.
  2. Select New user at the top of the screen.
  3. In the User properties, follow these steps:
    1. In the Name field, enter B.Simon.
    2. In the User name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Click Create.

Assign the Azure AD test user

In this section, you'll enable B.Simon to use Azure single sign-on by granting access to SAP Fiori.

  1. In the Azure portal, select Enterprise Applications, and then select All applications.
  2. In the applications list, select SAP Fiori.
  3. In the app's overview page, find the Manage section and select Users and groups.
  4. Select Add user, then select Users and groups in the Add Assignment dialog.
  5. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
  6. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
  7. In the Add Assignment dialog, click the Assign button.

Configure SAP Fiori SSO

  1. Sign in to the SAP system and go to transaction code SAML2. A new browser window opens with the SAML configuration page.

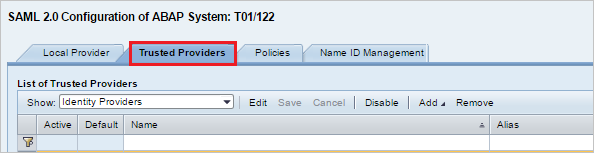

  2. To configure endpoints for a trusted identity provider (Azure AD), select the Trusted Providers tab.

    The Trusted Providers tab in SAP

  3. Select Add, and then select Upload Metadata File from the context menu.

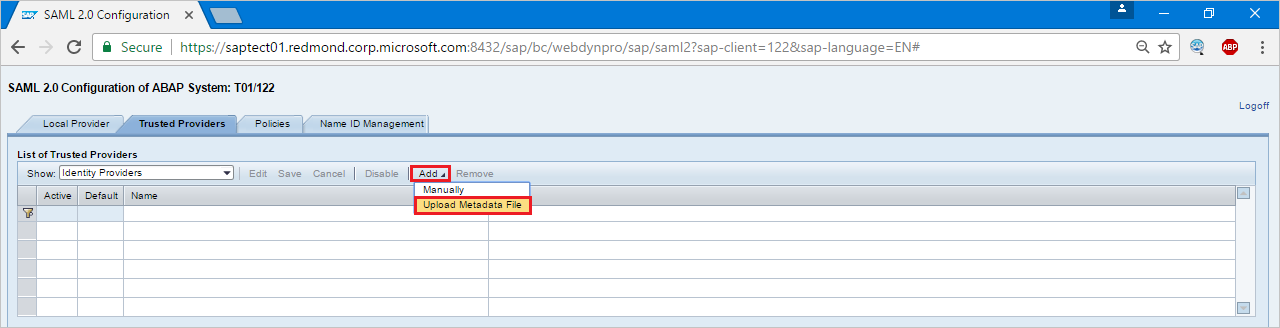

    The Add and Upload Metadata File options in SAP

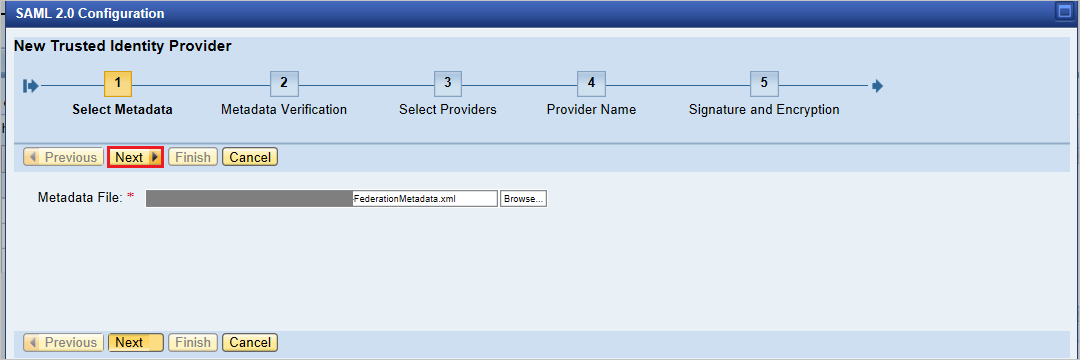

  4. Upload the metadata file that you downloaded in the Azure portal. Select Next.

    Select the metadata file to upload in SAP

  5. On the next page, in the Alias box, enter the alias name. For example, aadsts. Select Next.

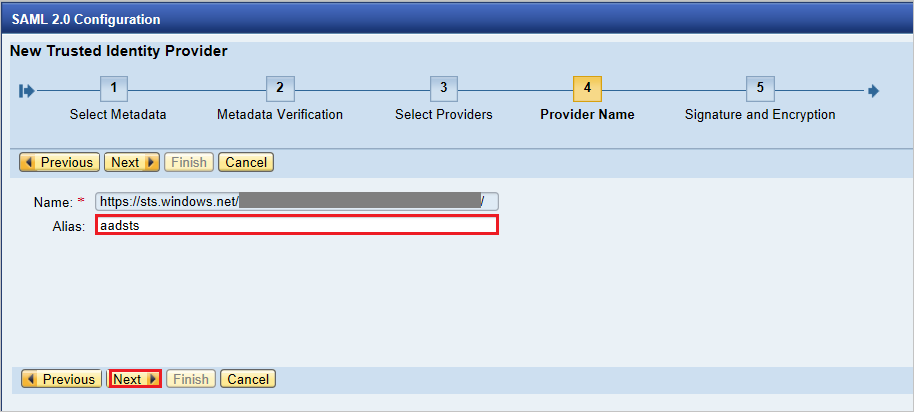

    The Alias box in SAP

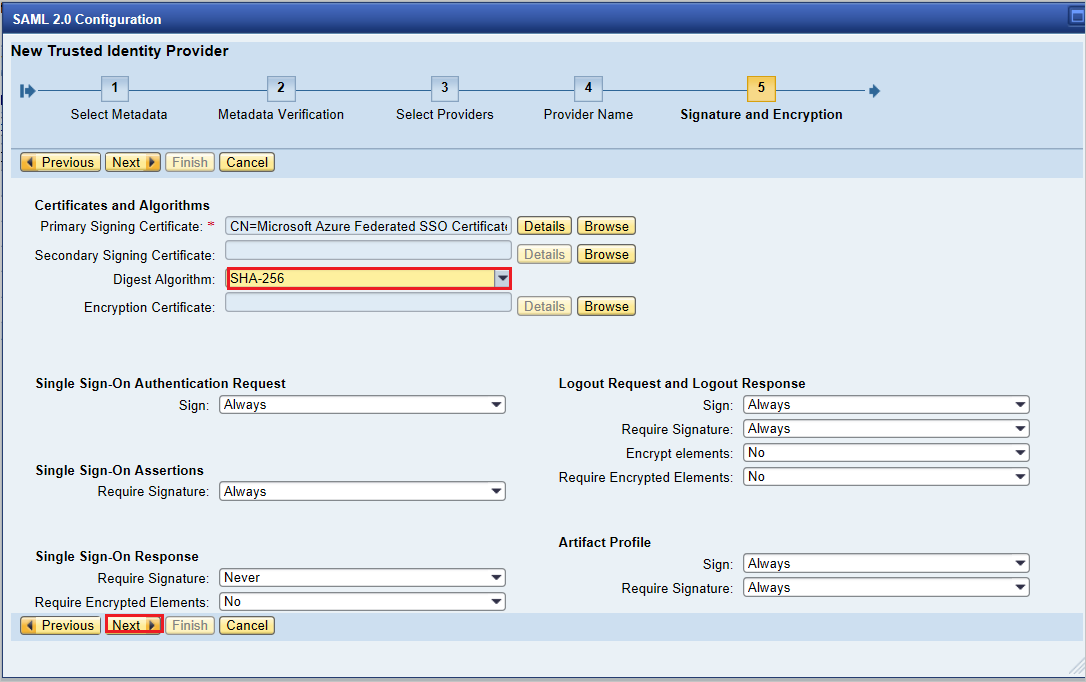

  6. Make sure that the value in the Digest Algorithm box is SHA-256. Select Next.

    Verify the Digest Algorithm value in SAP

  7. Under Single Sign-On Endpoints, select HTTP POST, and then select Next.

    Single Sign-On Endpoints options in SAP

  8. Under Single Logout Endpoints, select HTTP Redirect, and then select Next.

    Single Logout Endpoints options in SAP

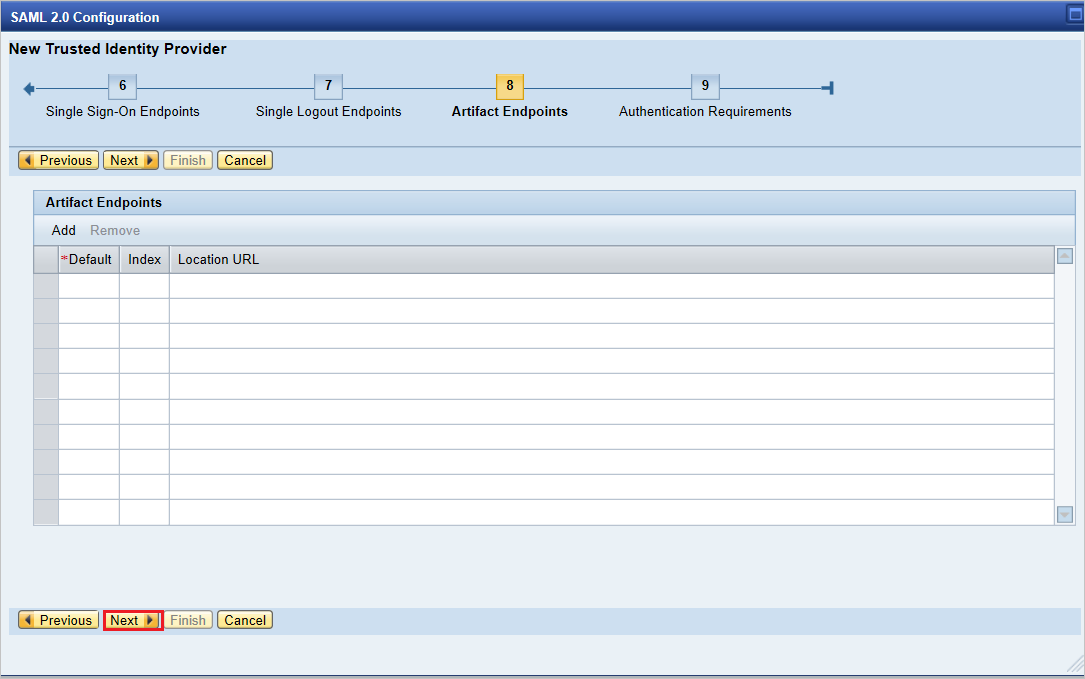

  9. Under Artifact Endpoints, select Next to continue.

    Artifact Endpoints options in SAP

  10. Under Authentication Requirements, select Finish.

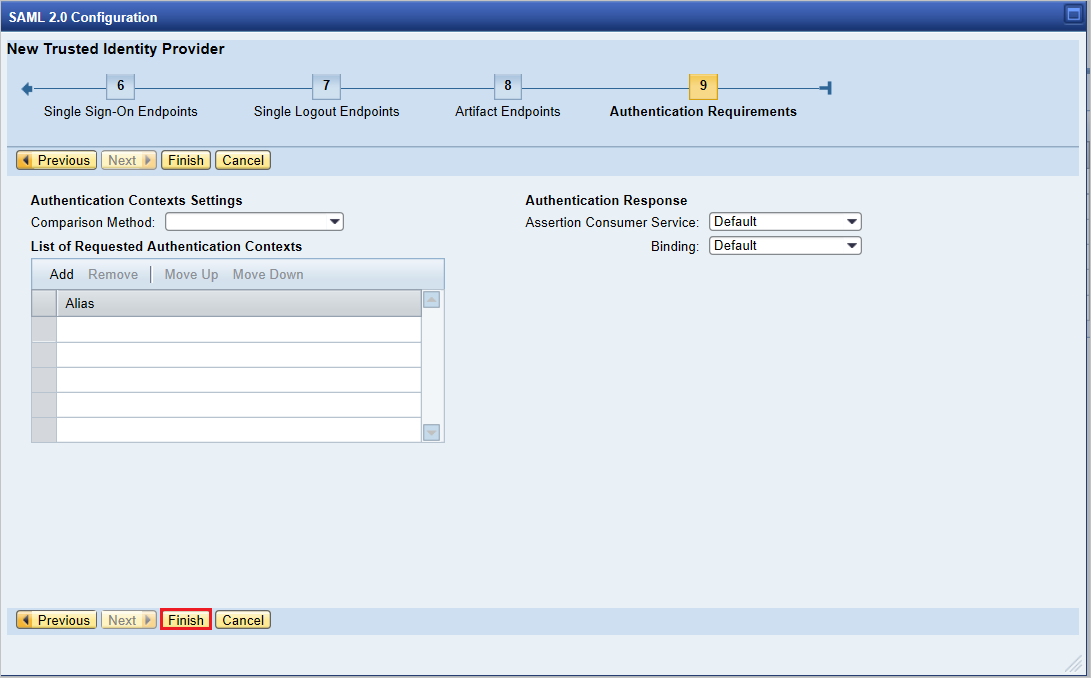

    Authentication Requirements options and the Finish option in SAP

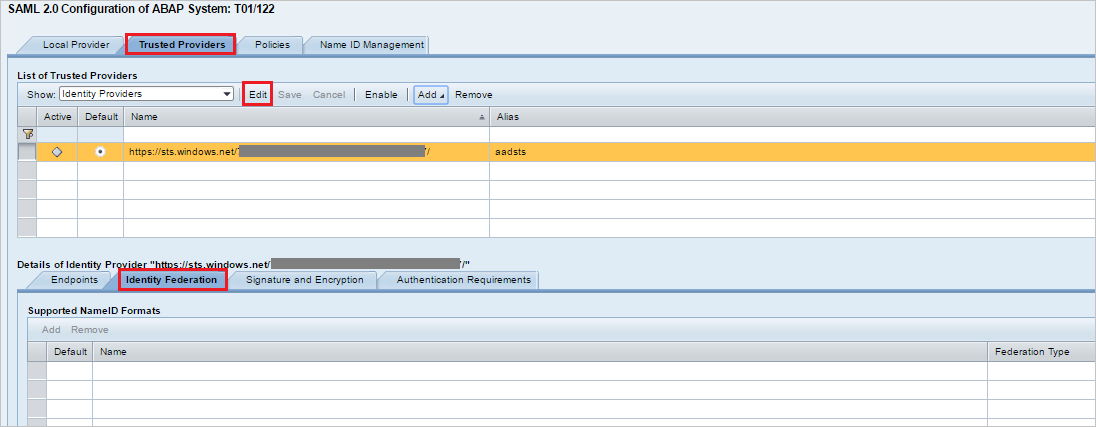

  11. Select Trusted Provider > Identity Federation (at the bottom of the page). Select Edit.

    The Trusted Provider and Identity Federation tabs in SAP

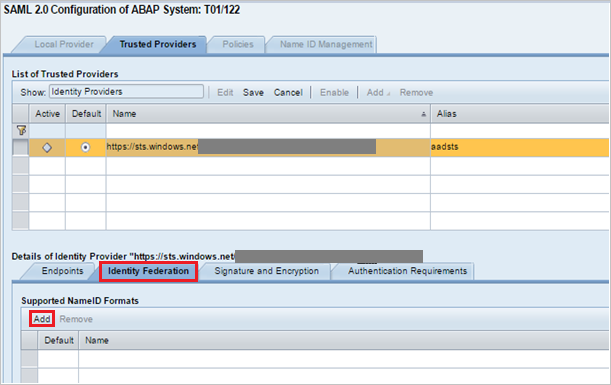

  12. Select Add.

    The Add option on the Identity Federation tab

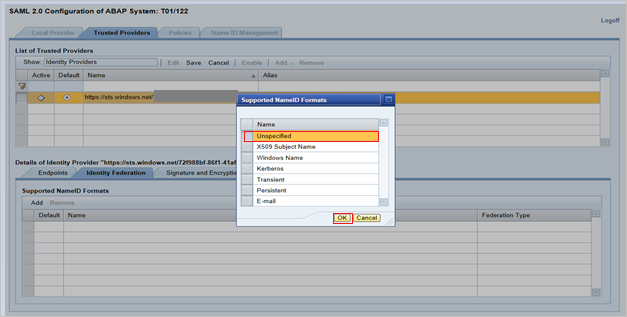

  13. In the Supported NameID Formats dialog box, select Unspecified. Select OK.

    The Supported NameID Formats dialog box and options in SAP

    The values for User ID Source and User ID Mapping Mode determine the link between the SAP user and the Azure AD claim.

    Scenario 1: SAP user to Azure AD user mapping

    1. In SAP, under Details of NameID Format "Unspecified", note the details:

      Screenshot that shows the 'Details of NameID Format "Unspecified"' dialog box in S A P.

    2. In the Azure portal, under User Attributes & Claims, note the required claims from Azure AD.

      Screenshot that shows the "User Attributes & Claims" dialog box.

    Scenario 2: Select the SAP user ID based on the configured email address in SU01. In this case, the email ID should be configured in SU01 for each user who requires SSO.

    1. In SAP, under Details of NameID Format "Unspecified", note the details:

      The Details of NameID Format "Unspecified" dialog box in SAP

    2. In the Azure portal, under User Attributes & Claims, note the required claims from Azure AD.

      The User Attributes and Claims dialog box in the Azure portal

  14. Select Save, and then select Enable to enable the identity provider.

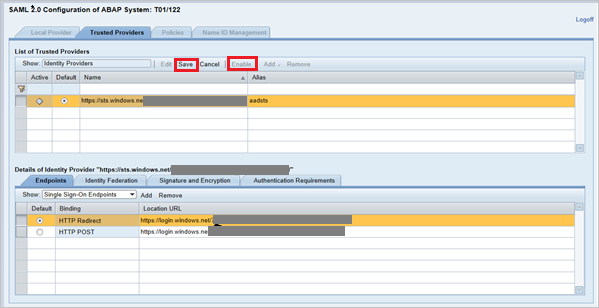

    The Save and Enable options in SAP

  15. Select OK when prompted.

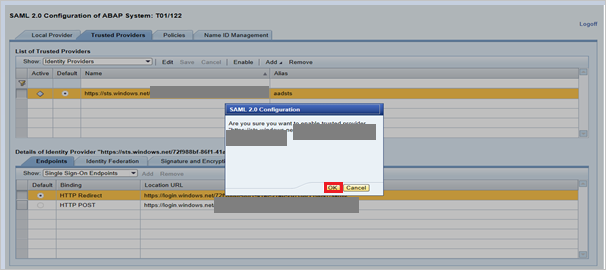

    The OK option in SAML 2.0 Configuration dialog box in SAP

Create SAP Fiori test user

In this section, you create a user named Britta Simon in SAP Fiori. Work with your in-house SAP team of experts or your organization SAP partner to add the user in the SAP Fiori platform.

Test SSO

  1. After the identity provider Azure AD is activated in SAP Fiori, try to access one of the following URLs to test single sign-on (you shouldn't be prompted for a username and password):

    • https://<sap-url>/sap/bc/bsp/sap/it00/default.htm
    • https://<sap-url>/sap/bc/bsp/sap/it00/default.htm


    Replace <sap-url> with the actual SAP host name.

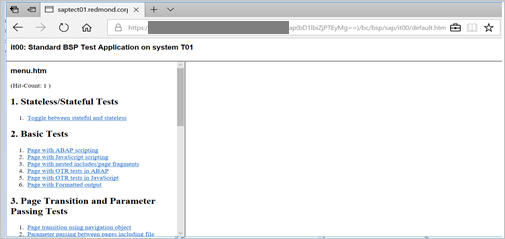

  2. The test URL should take you to the following test application page in SAP. If the page opens, Azure AD single sign-on is successfully set up.

    The standard test application page in SAP

  3. If you are prompted for a username and password, enable trace to help diagnose the issue. Use the following URL for the trace:


Next steps

Once you configure SAP Fiori you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
