Tutorial: Azure AD SSO integration with Webcargo
In this tutorial, you'll learn how to integrate Webcargo with Azure Active Directory (Azure AD). When you integrate Webcargo with Azure AD, you can:
- Control in Azure AD who has access to Webcargo.
- Enable your users to be automatically signed-in to Webcargo with their Azure AD accounts.
- Manage your accounts in one central location - the Azure portal.
To get started, you need the following items:
- An Azure AD subscription. If you don't have a subscription, you can get a free account.
- Webcargo single sign-on (SSO) enabled subscription.
This integration is also available to use from Azure AD US Government Cloud environment. You can find this application in the Azure AD US Government Cloud Application Gallery and configure it in the same way as you do from public cloud.
In this tutorial, you configure and test Azure AD SSO in a test environment.
- Webcargo supports SP and IDP initiated SSO.
Identifier of this application is a fixed string value so only one instance can be configured in one tenant.
Add Webcargo from the gallery
To configure the integration of Webcargo into Azure AD, you need to add Webcargo from the gallery to your list of managed SaaS apps.
- Sign in to the Azure portal using either a work or school account, or a personal Microsoft account.
- On the left navigation pane, select the Azure Active Directory service.
- Navigate to Enterprise Applications and then select All Applications.
- To add new application, select New application.
- In the Add from the gallery section, type Webcargo in the search box.
- Select Webcargo from results panel and then add the app. Wait a few seconds while the app is added to your tenant.
Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.
Configure and test Azure AD SSO for Webcargo
Configure and test Azure AD SSO with Webcargo using a test user called B.Simon. For SSO to work, you need to establish a link relationship between an Azure AD user and the related user in Webcargo.
To configure and test Azure AD SSO with Webcargo, perform the following steps:
- Configure Azure AD SSO - to enable your users to use this feature.
- Configure Webcargo SSO - to configure the single sign-on settings on application side.
- Create Webcargo test user - to have a counterpart of B.Simon in Webcargo that is linked to the Azure AD representation of user.
- Test SSO - to verify whether the configuration works.
Configure Azure AD SSO
Follow these steps to enable Azure AD SSO in the Azure portal.
In the Azure portal, on the Webcargo application integration page, find the Manage section and select single sign-on.
On the Select a single sign-on method page, select SAML.
On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.
On the Basic SAML Configuration section, if you wish to configure the application in IDP initiated mode, perform the following step:
In the Reply URL text box, type a URL using the following pattern:
Click Set additional URLs and perform the following step if you wish to configure the application in SP initiated mode:
In the Sign-on URL text box, type a URL using the following pattern:
These values are not real. Update these values with the actual Reply URL and Sign-on URL. Contact Webcargo Client support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section in the Azure portal.
On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Certificate (Base64) and select Download to download the certificate and save it on your computer.
On the Set up Webcargo section, copy the appropriate URL(s) based on your requirement.
Create an Azure AD test user
In this section, you'll create a test user in the Azure portal called B.Simon.
- From the left pane in the Azure portal, select Azure Active Directory, select Users, and then select All users.
- Select New user at the top of the screen.
- In the User properties, follow these steps:
- In the Name field, enter
- In the User name field, enter the email@example.com. For example,
- Select the Show password check box, and then write down the value that's displayed in the Password box.
- Click Create.
- In the Name field, enter
Assign the Azure AD test user
In this section, you'll enable B.Simon to use Azure single sign-on by granting access to Webcargo.
- In the Azure portal, select Enterprise Applications, and then select All applications.
- In the applications list, select Webcargo.
- In the app's overview page, find the Manage section and select Users and groups.
- Select Add user, then select Users and groups in the Add Assignment dialog.
- In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
- If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
- In the Add Assignment dialog, click the Assign button.
Configure Webcargo SSO
To automate the configuration within Webcargo, you need to install My Apps Secure Sign-in browser extension by clicking Install the extension.
After adding extension to the browser, click on Set up Webcargo will direct you to the Webcargo Single Sign-On application. From there, provide the admin credentials to sign in to Webcargo Single Sign-On. The browser extension will automatically configure the application for you and automate steps 3-6.
If you want to set up Webcargo manually, open a new web browser window and sign in to your Webcargo company site as an administrator and perform the following steps:

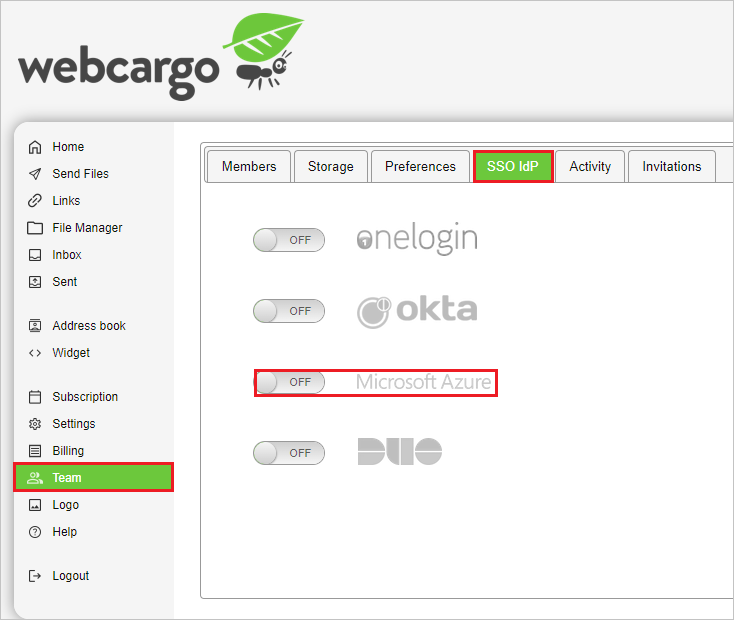

Click on Team at the left side navigation and select SSO idP tab then, enable the Microsoft Azure.
In the Azure Configuration section, in the Login URL textbox, paste the Login URL value which you have copied from the Azure portal, click Choose File to upload the Certificate (Base64) file which you have downloaded from the Azure portal.
Create Webcargo test user
In this section, you create a user called Britta Simon in Webcargo. Work with Webcargo support team to add the users in the Webcargo platform. Users must be created and activated before you use single sign-on.
In this section, you test your Azure AD single sign-on configuration with following options.
Click on Test this application in Azure portal. This will redirect to Webcargo Sign on URL where you can initiate the login flow.
Go to Webcargo Sign-on URL directly and initiate the login flow from there.
- Click on Test this application in Azure portal and you should be automatically signed in to the Webcargo for which you set up the SSO.
You can also use Microsoft My Apps to test the application in any mode. When you click the Webcargo tile in the My Apps, if configured in SP mode you would be redirected to the application sign-on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the Webcargo for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.
Once you configure Webcargo you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
